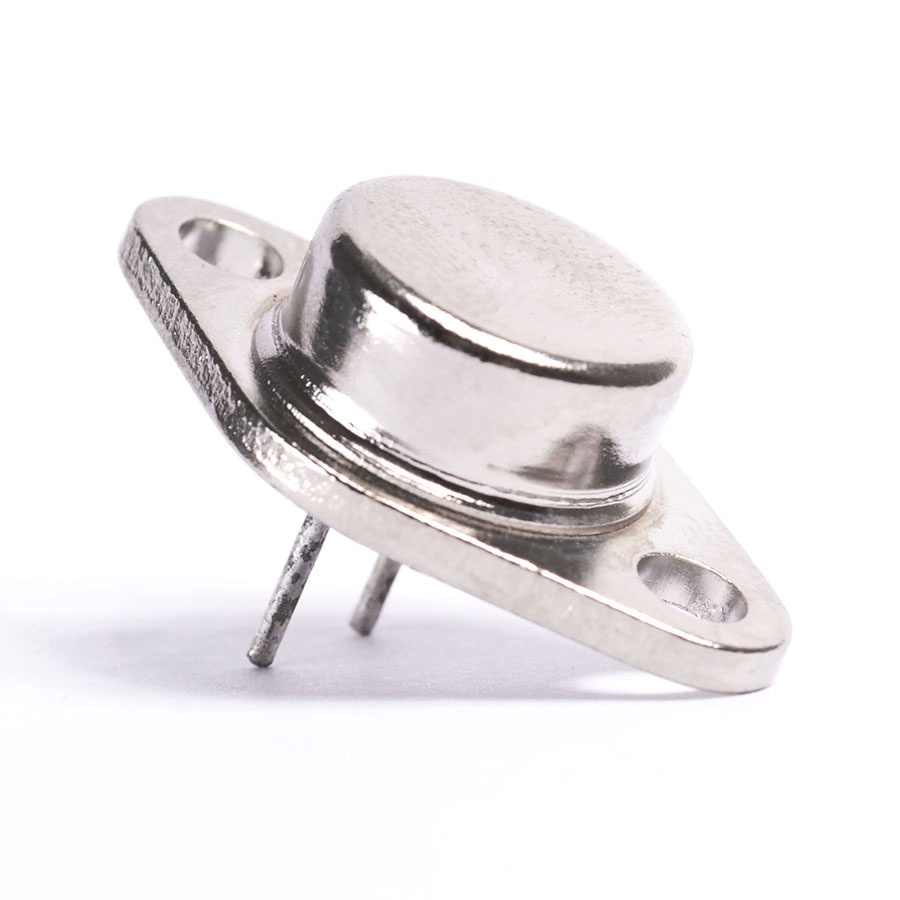

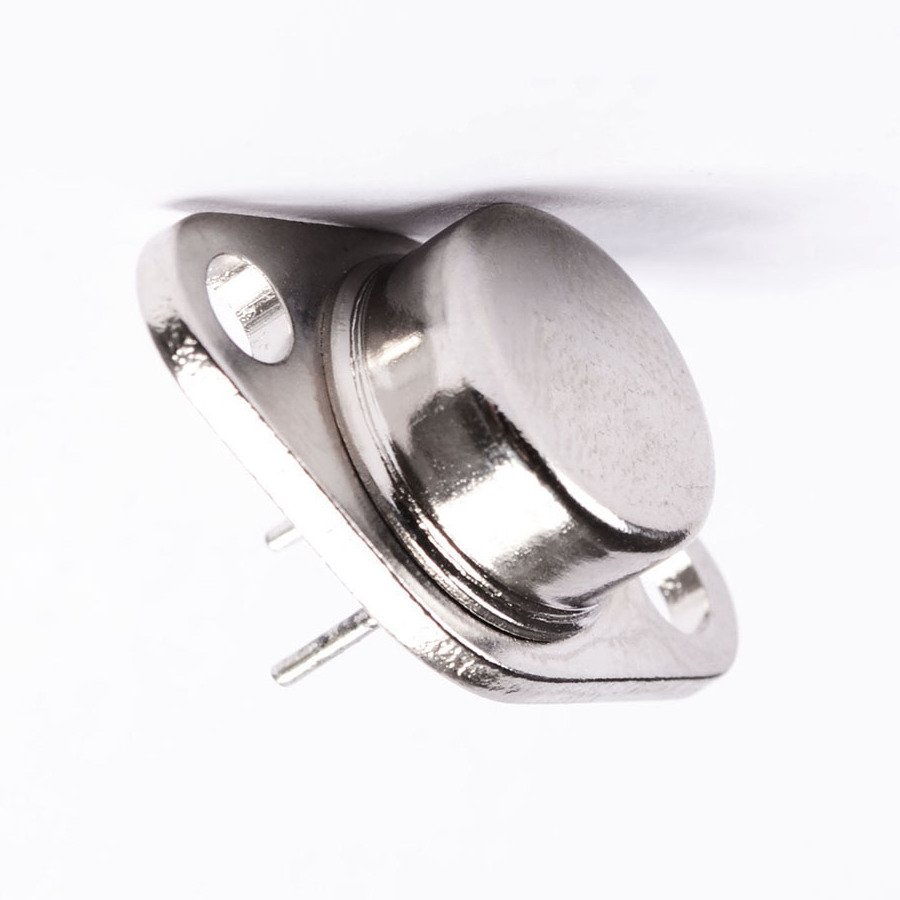

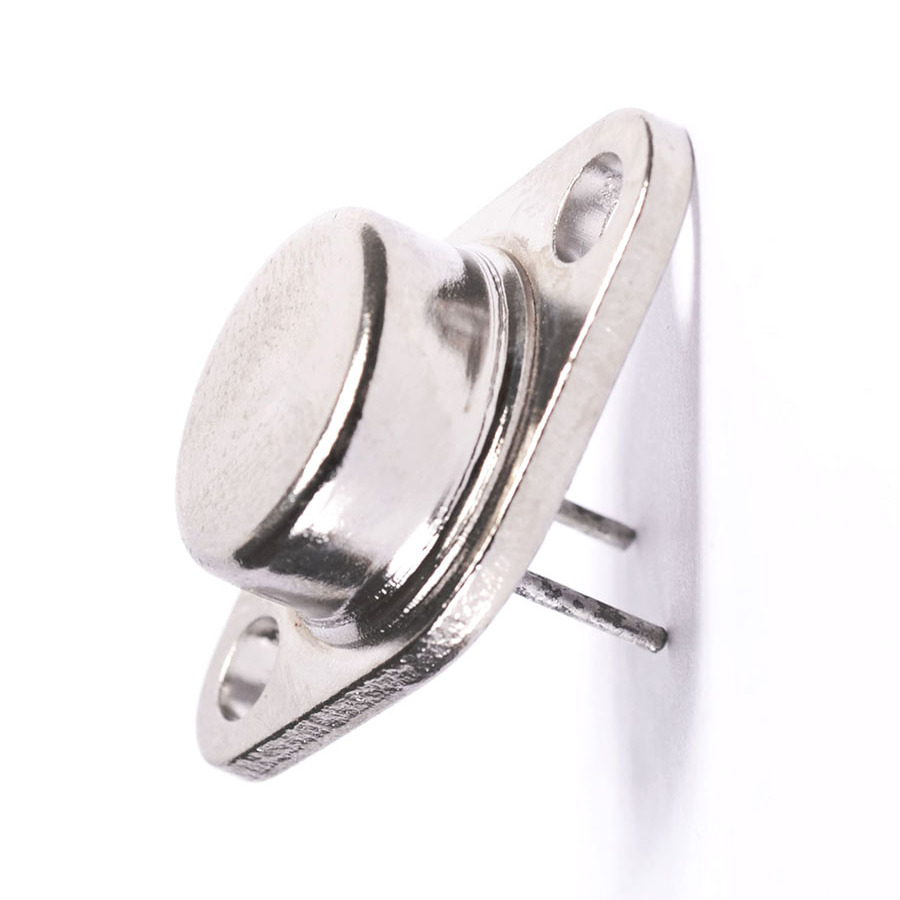

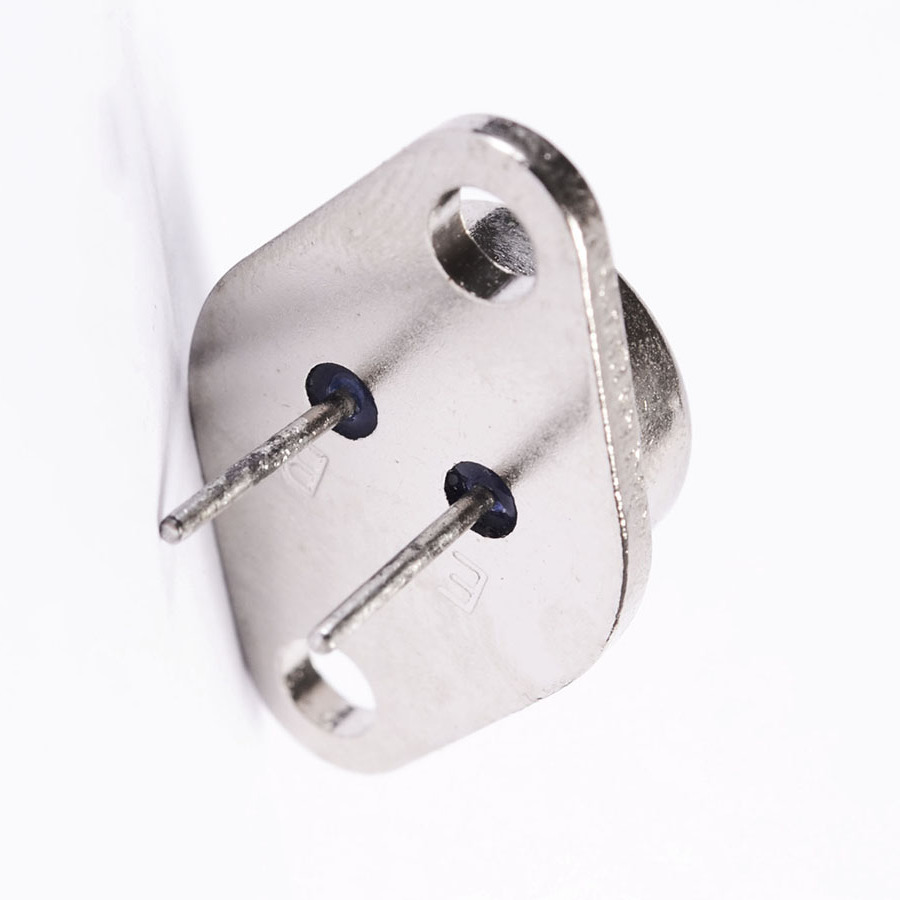

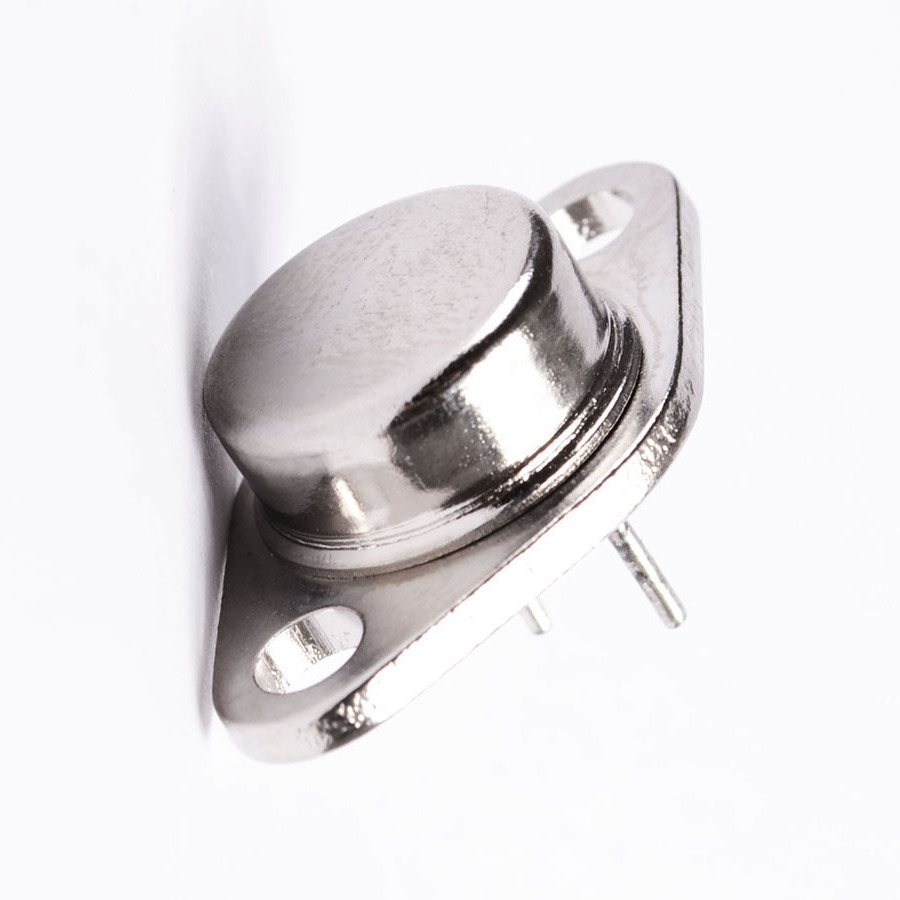

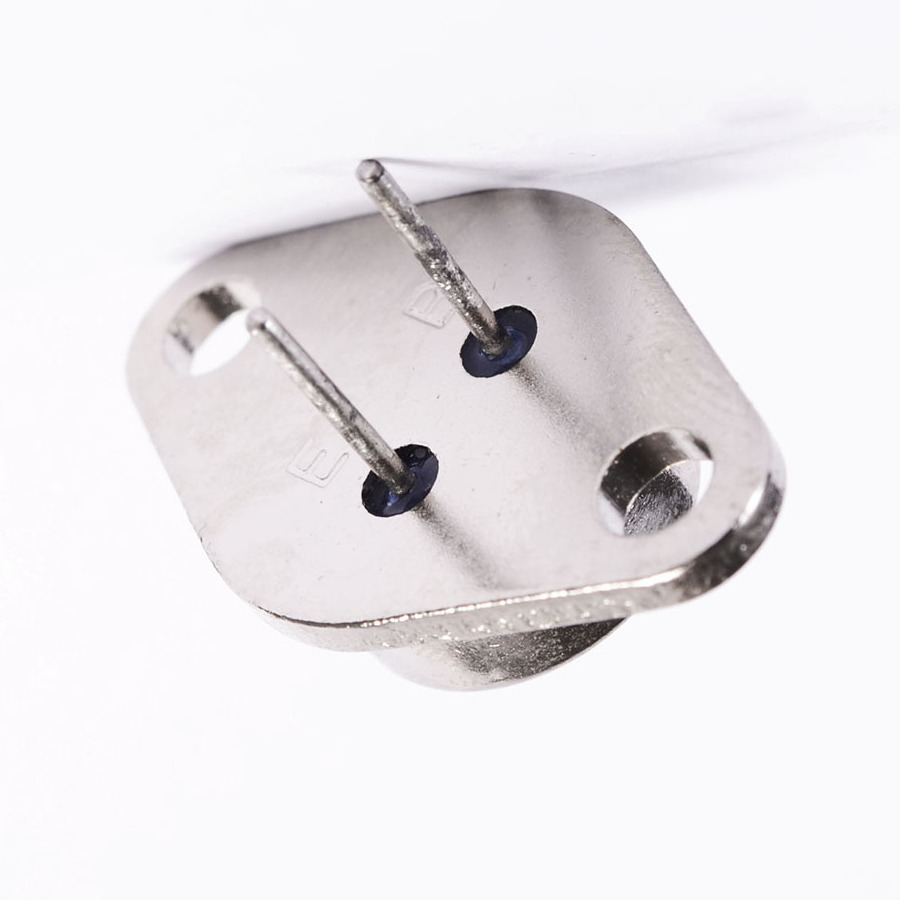

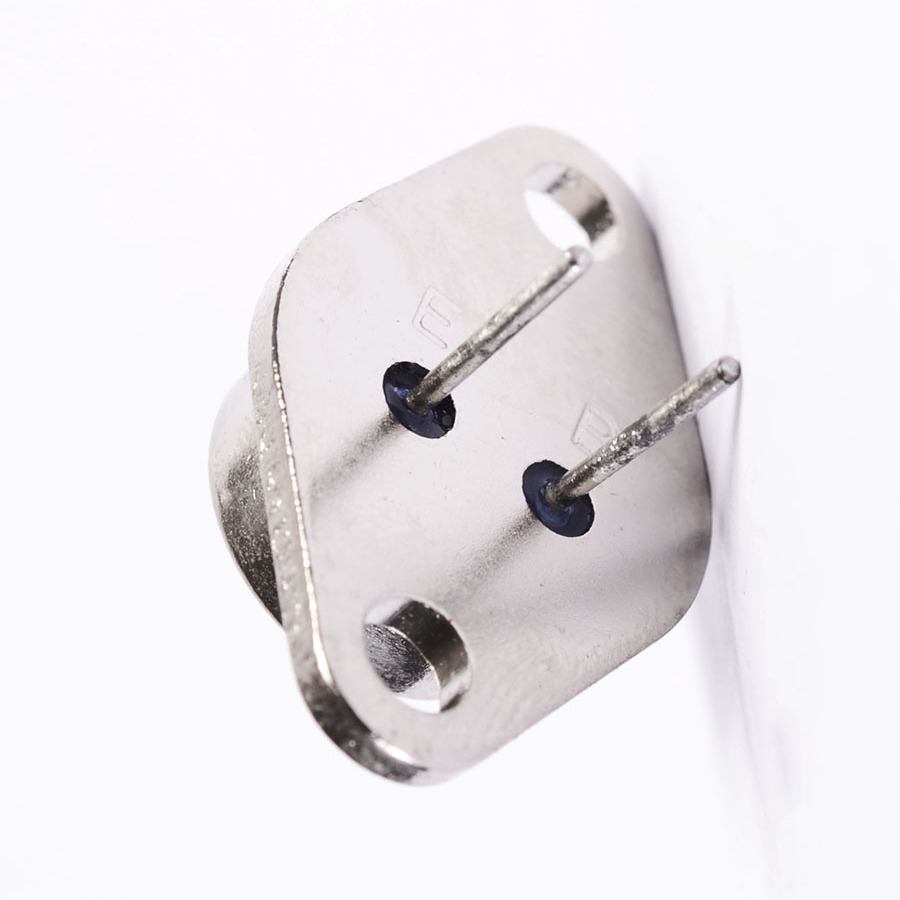

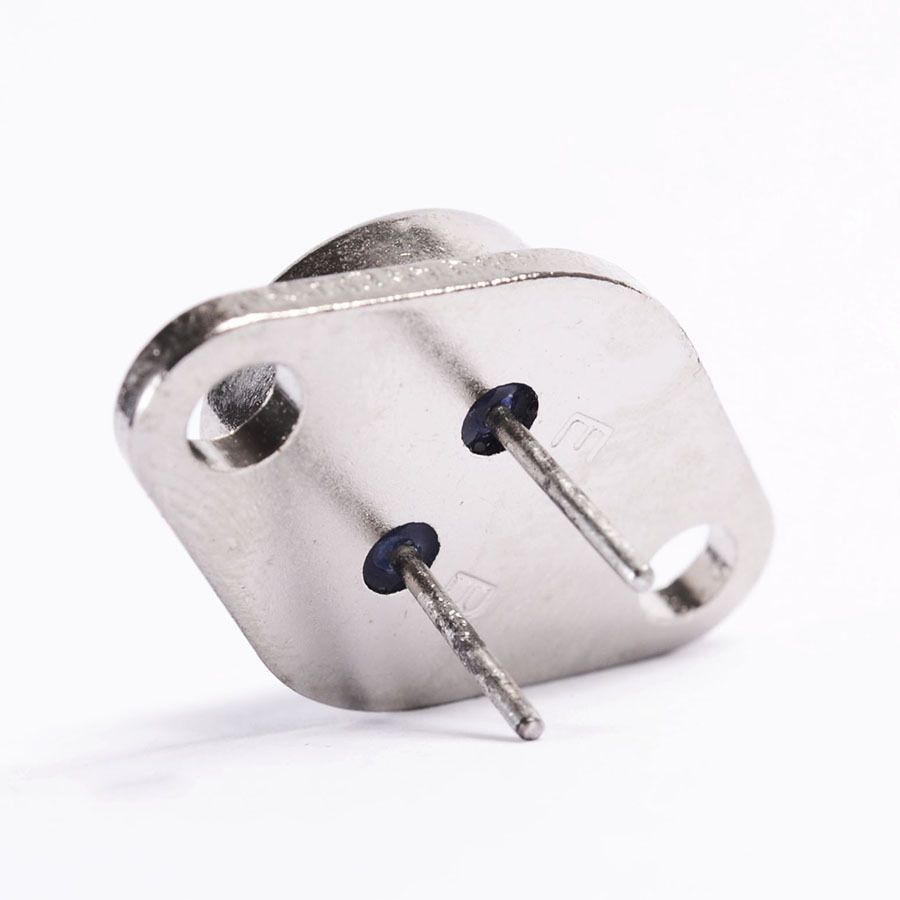

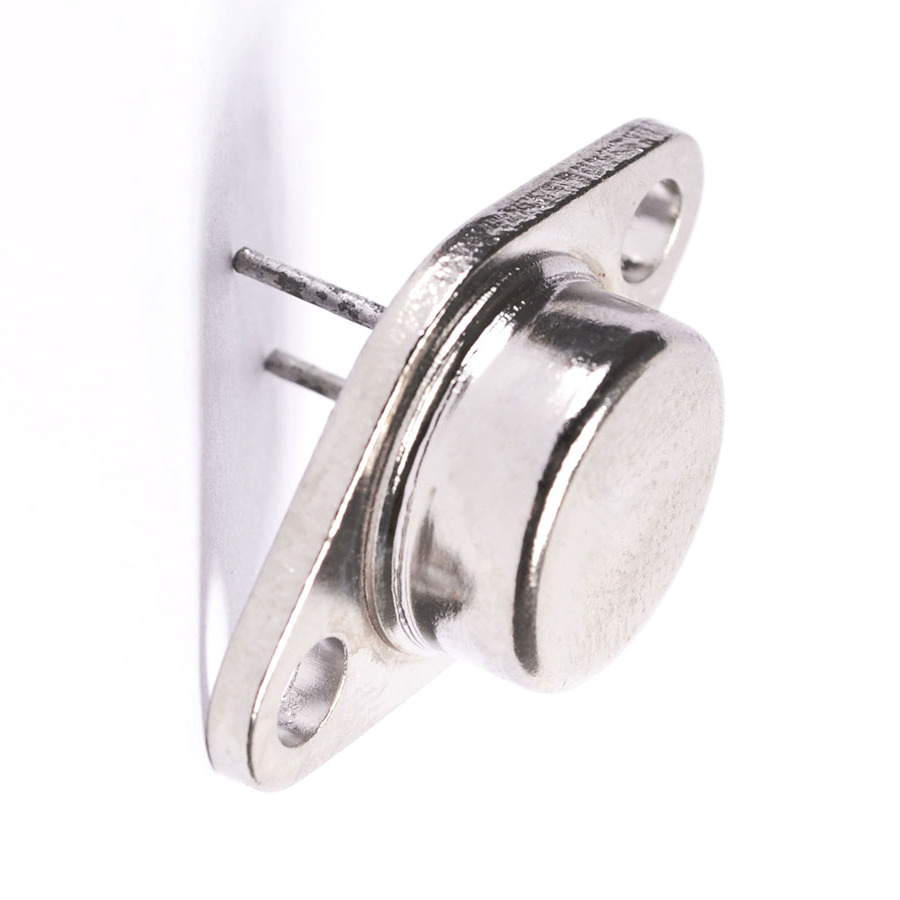

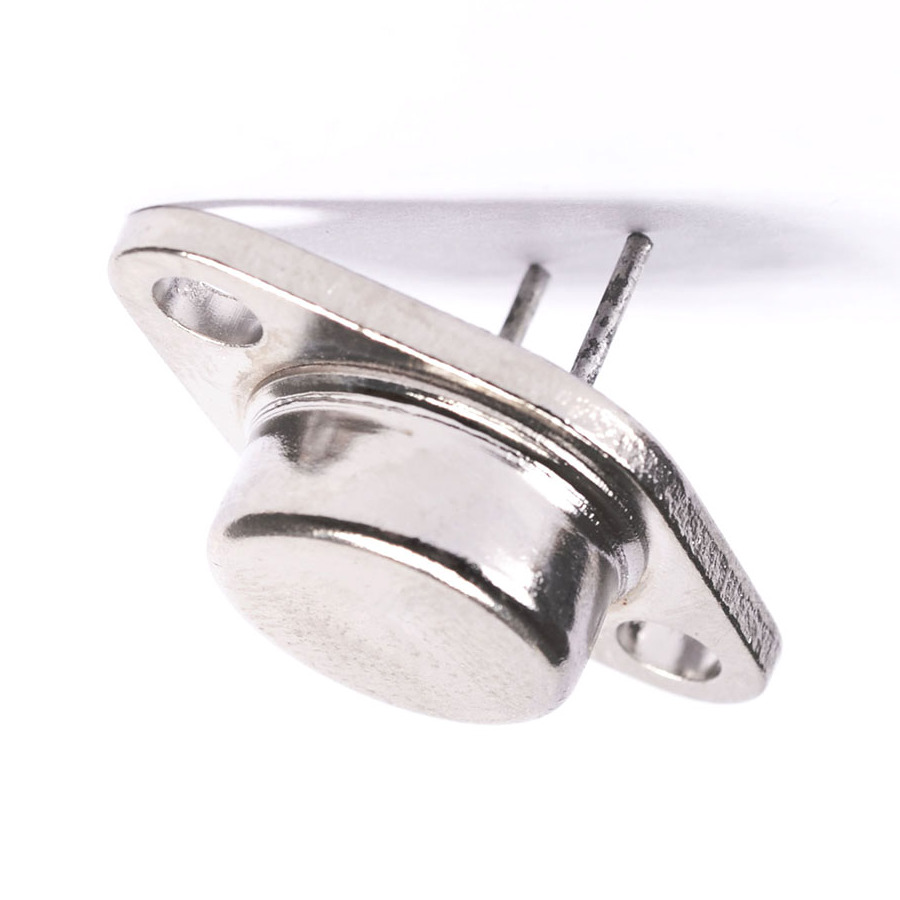

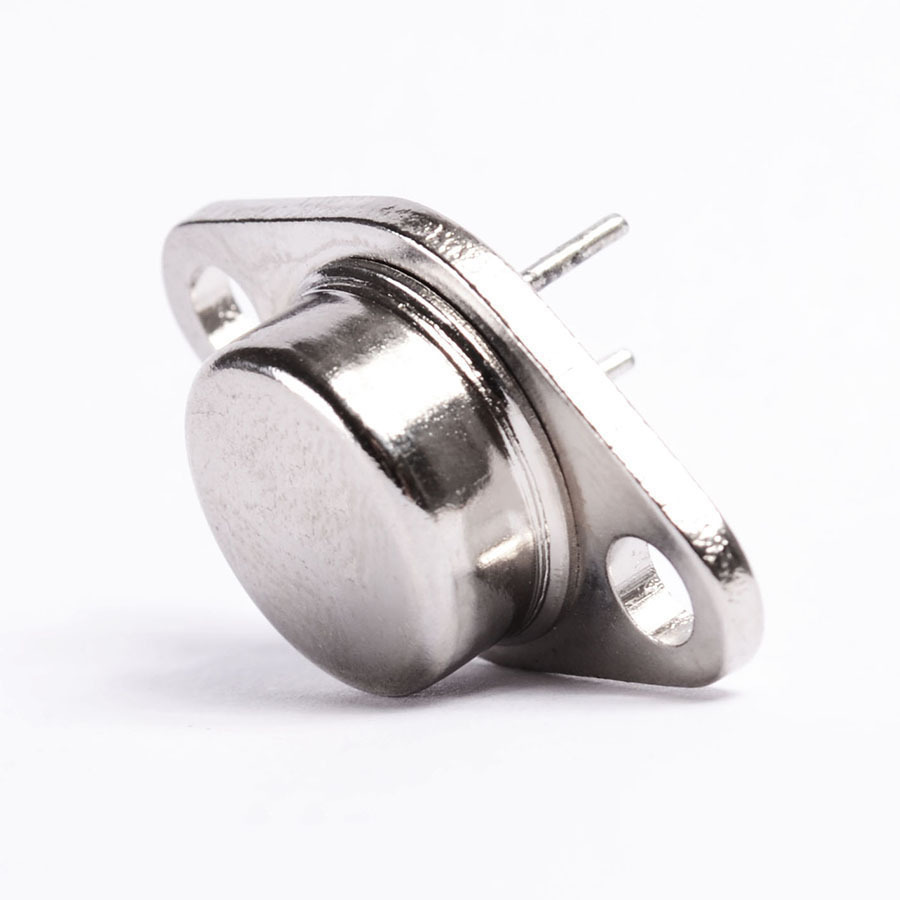

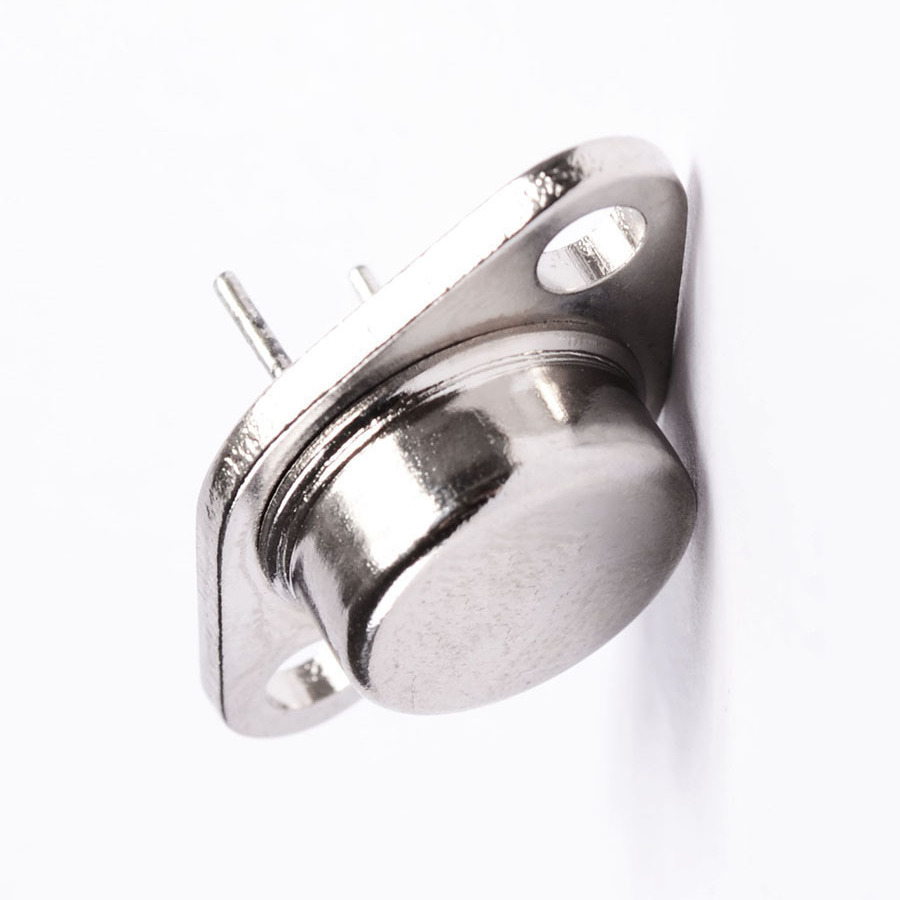

BDY15

SKU: BDY15
BDY15 Transistor Silicon NPN CASE: SOT9 MAKE: ITT Industries
Product specifications
Equivalent BDY15C
Type Transistor Silicon NPN
Case SOT9
Manufacturer ITT Industries
Vbr CBO 36
Vbr CEO 36
Max. PD (W) 12
Max. hFE 600
Min hFE 50
Ic Max. (A) 2.5
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
R(sat) (Û) 400m
Derate Above 25°C 77m
Trans. Freq (Hz) Min. 100k
Oper. Temp (°C) Max. 175
@VCE (V) 2.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 12 W
Maximum Collector-Base Voltage |Vcb| 36 V
Maximum Collector-Emitter Voltage |Vce| 36 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 2.5 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 372347
