BF123
View detailed images (13)

BF123

SKU: BF123

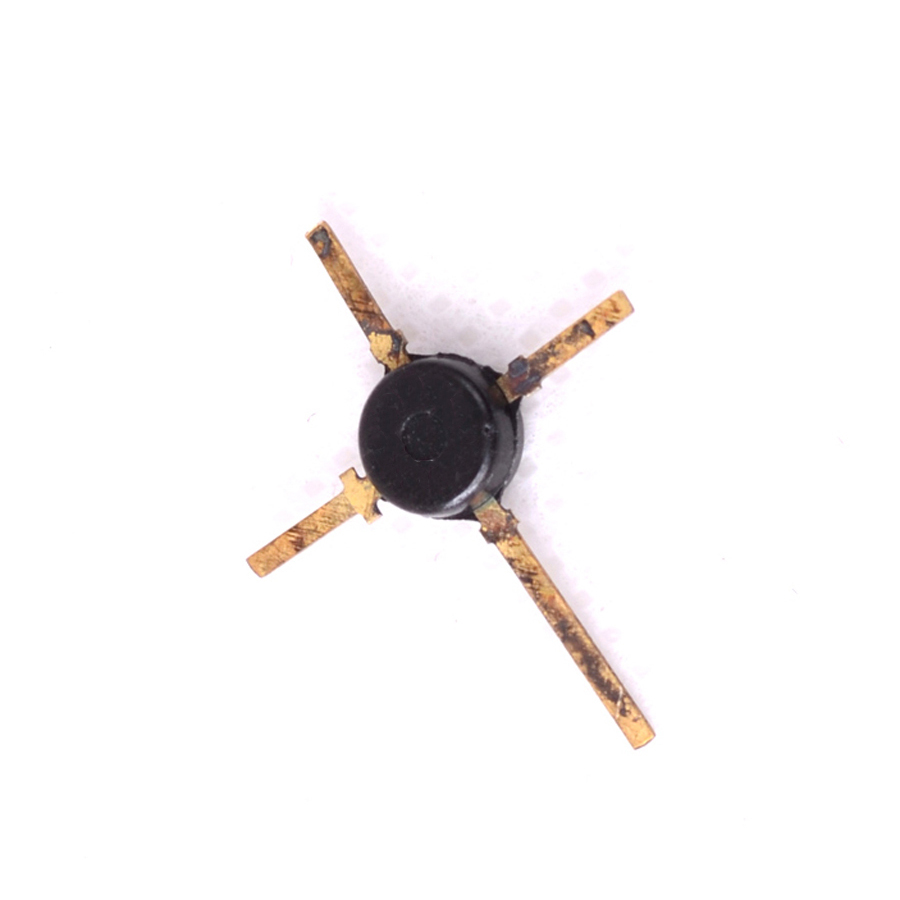

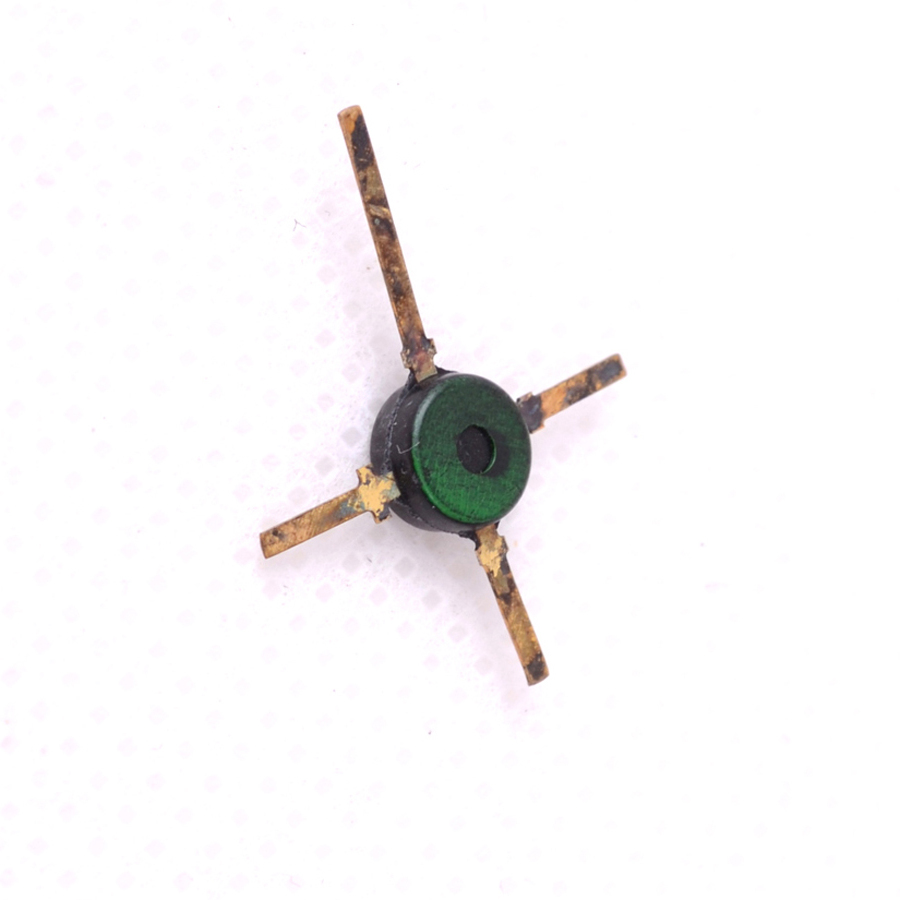

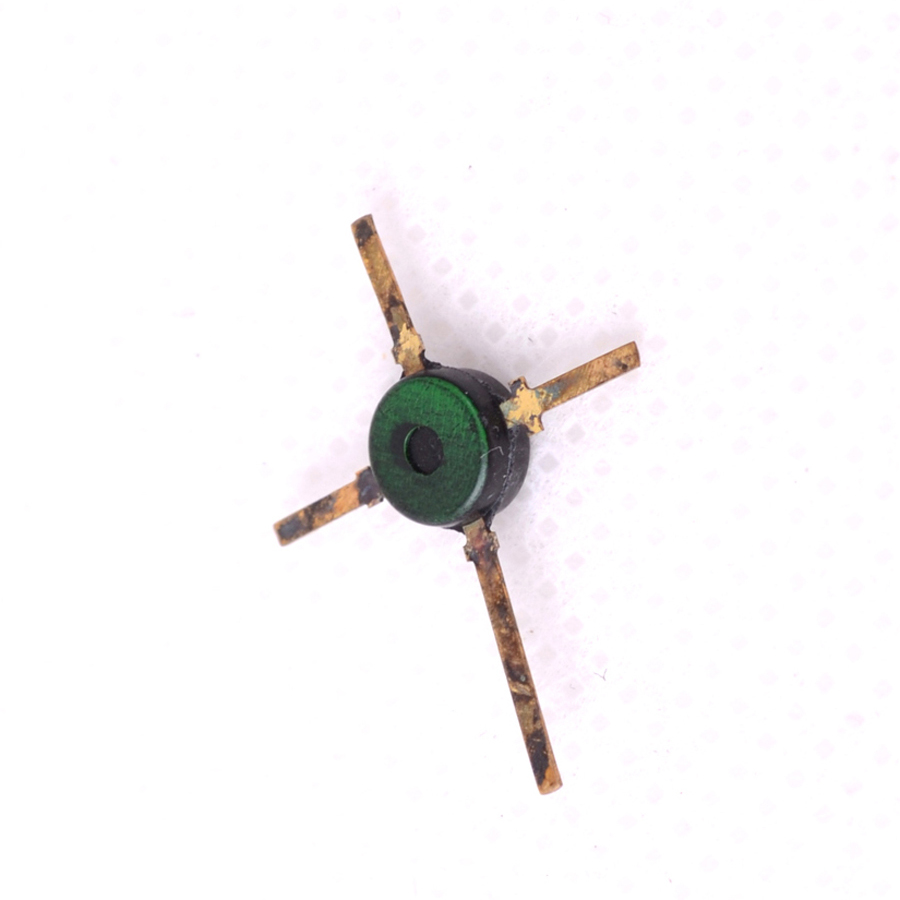

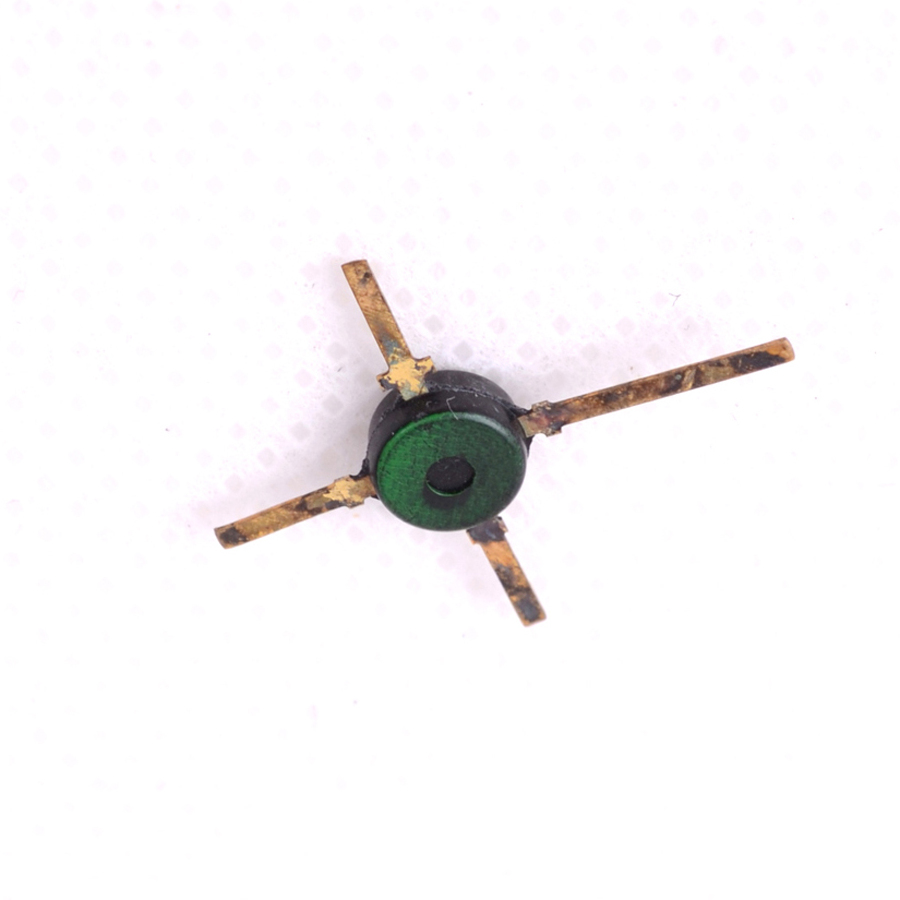

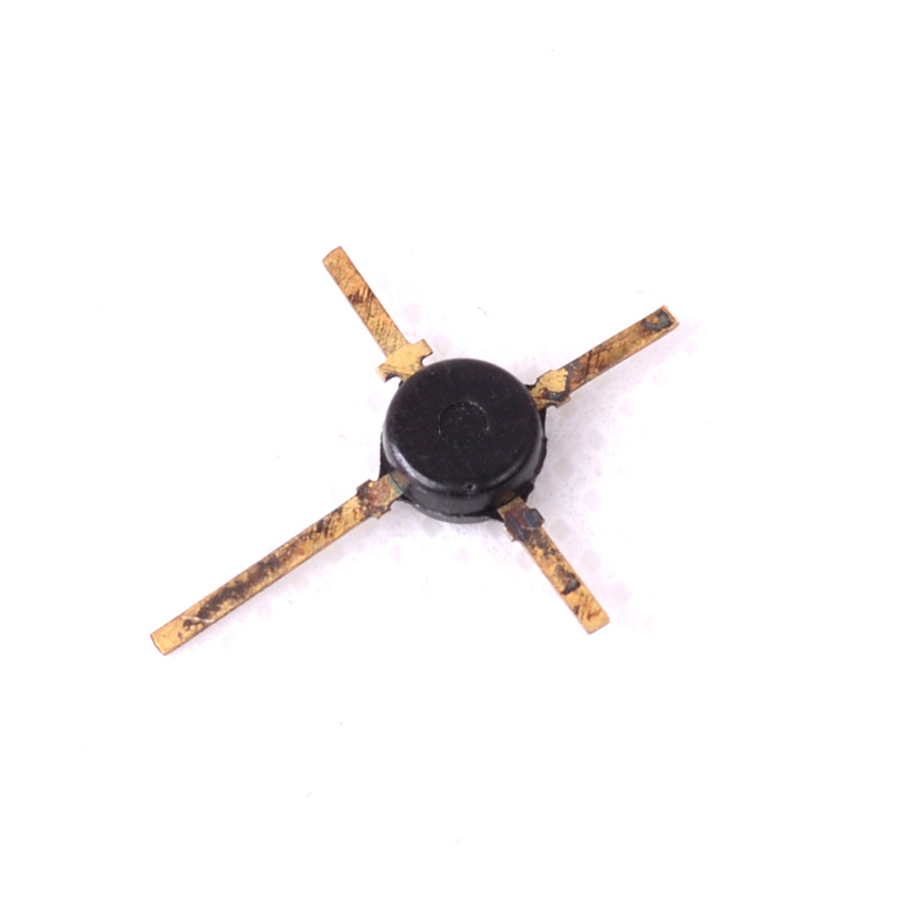

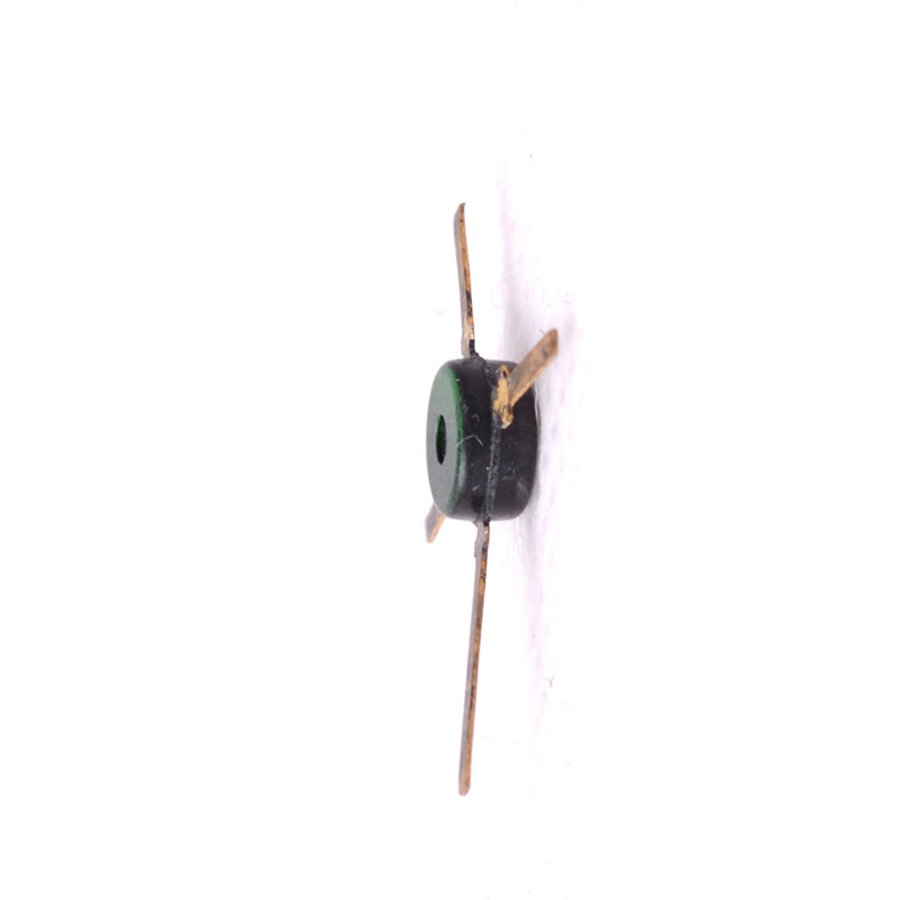

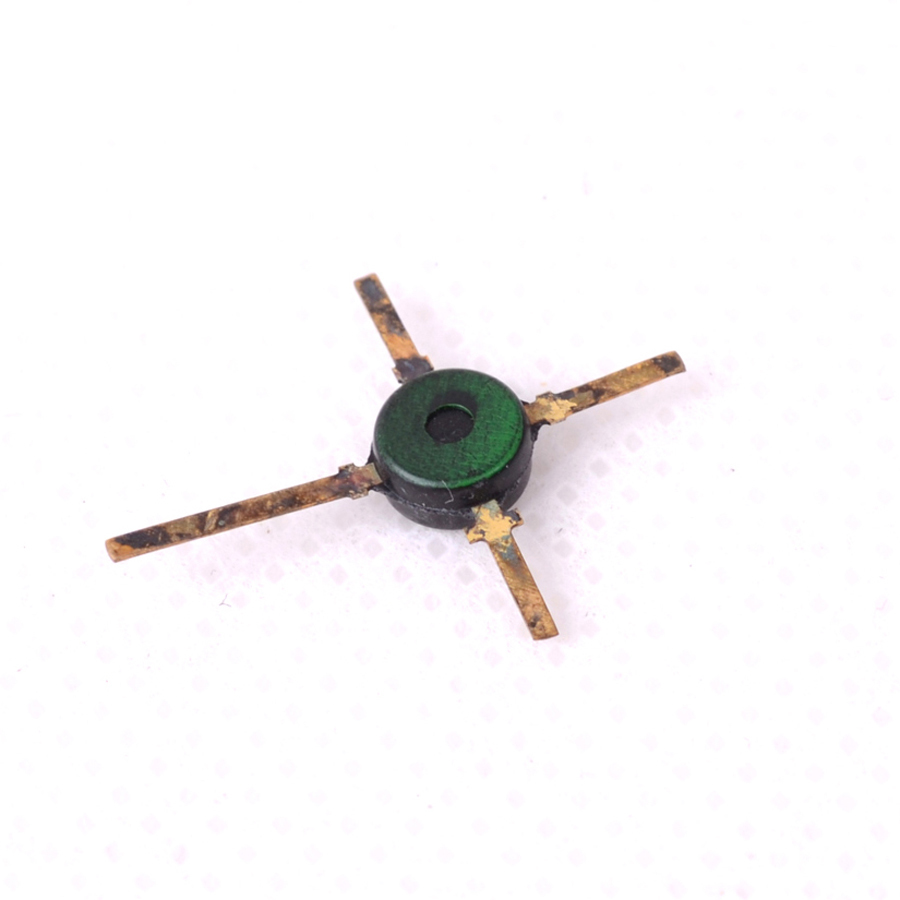

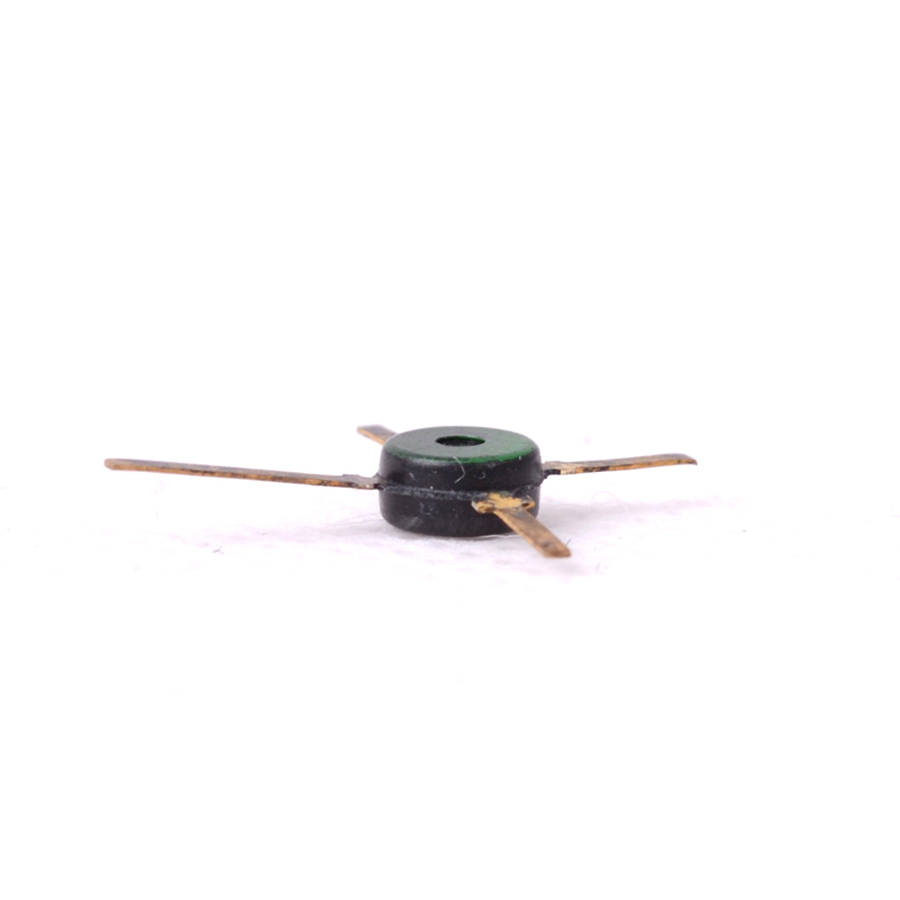

BF123 Transistor Silicon NPN CASE: SOT103 MAKE: ITT Industries
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer ITT Industries
Vbr CEO 30
Max. PD (W) 330m
C(ob) (F) 300f
Derate (Amb) (W/°C) 3.3m
hfe 35
Ic Max. (A) 30m
Polarity NPN
Trans. Freq (Hz) Min. 550M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 7.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.33 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.025 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.4 pF
Transition Frequency (ft): 275 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SKU 115628
