BF195
View detailed images (5)

BF195

SKU: BF195

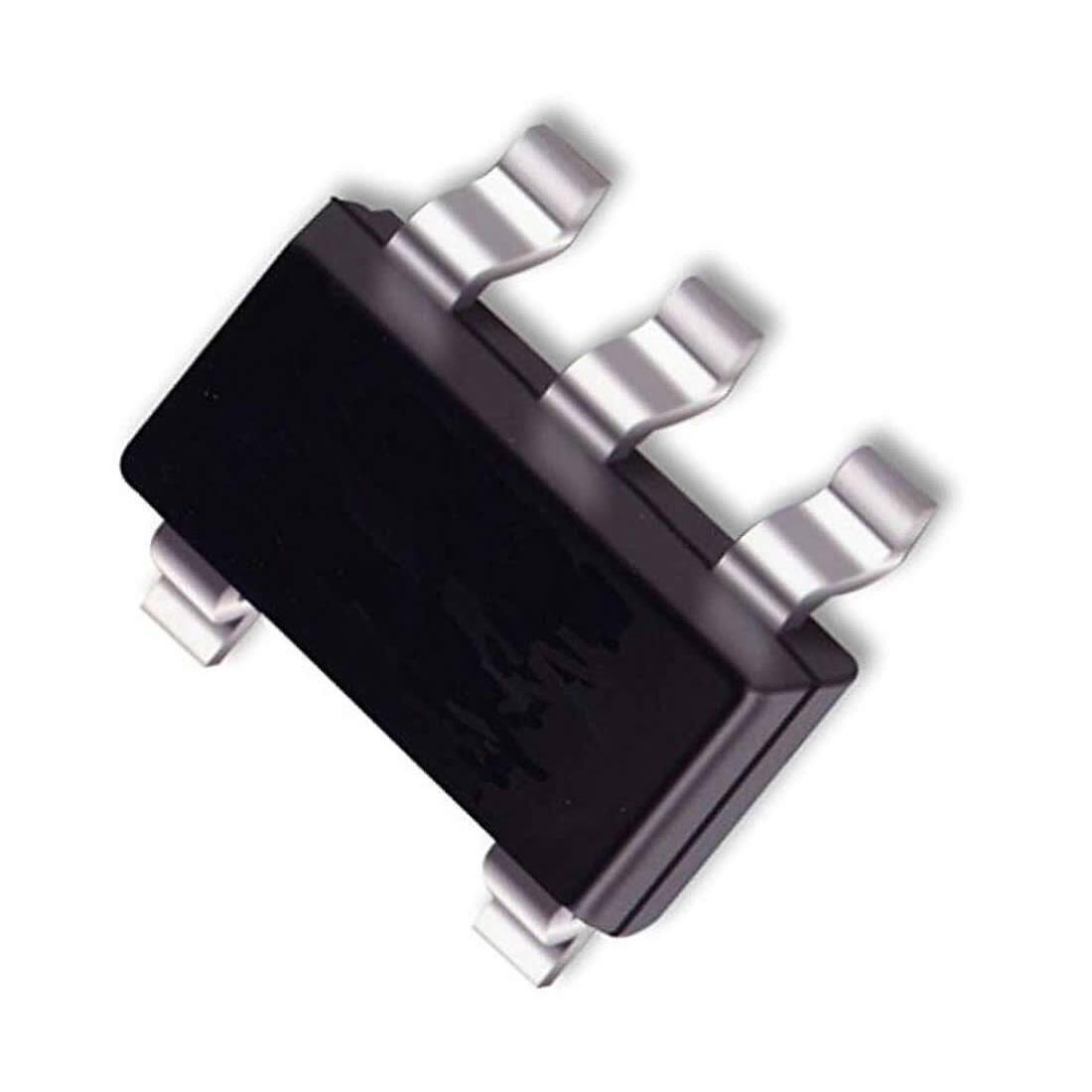

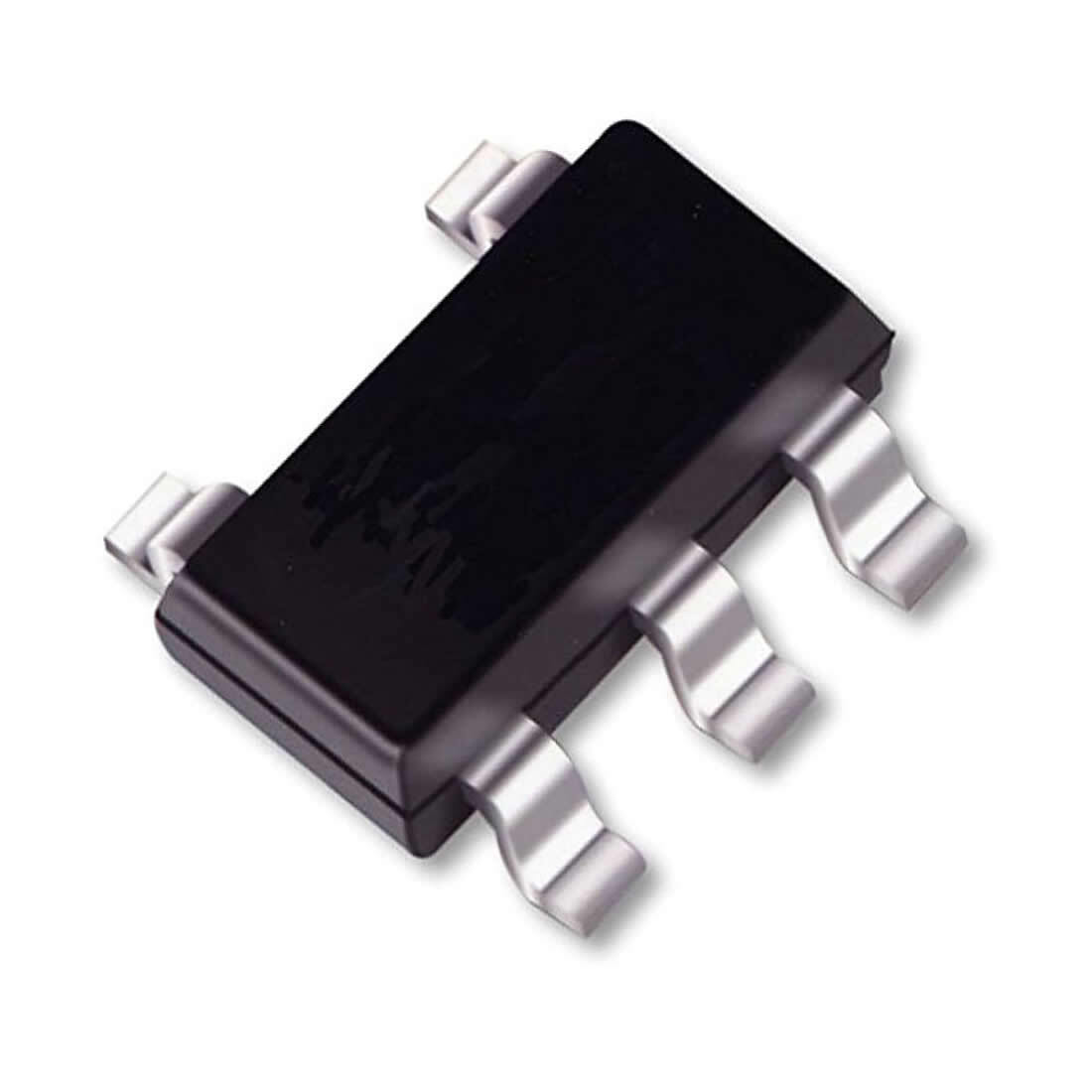

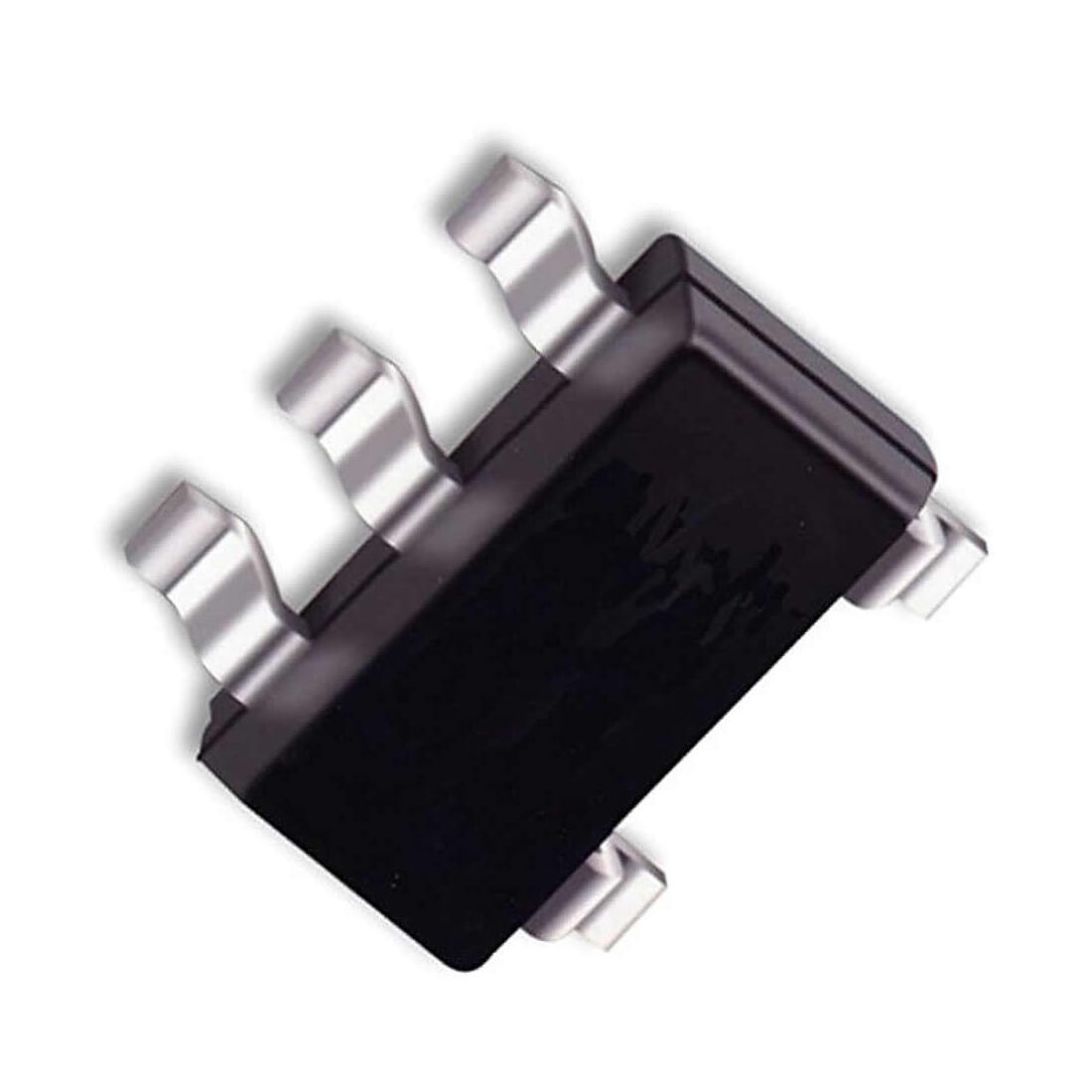

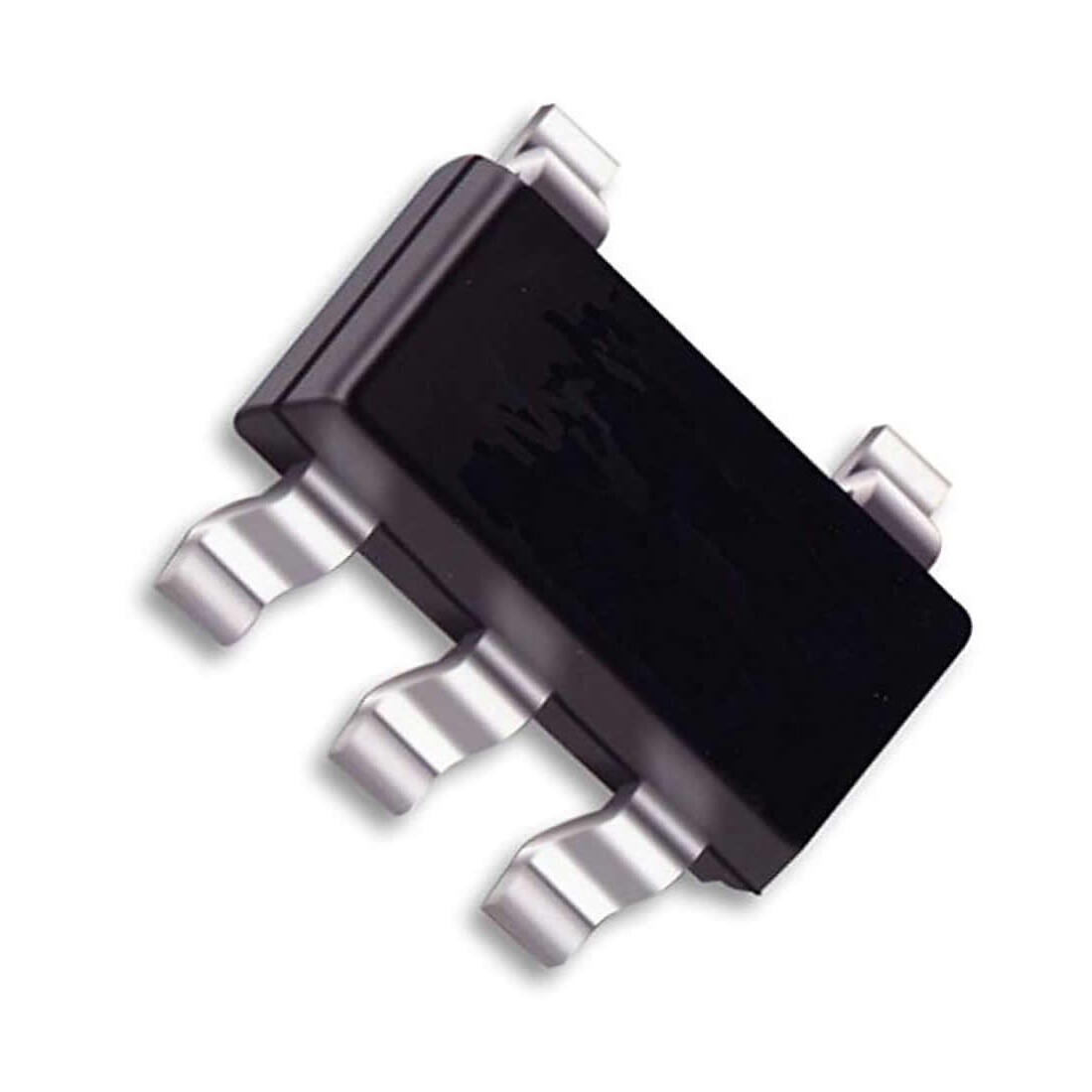

BF195 Transistor Silicon NPN CASE: SOT25 MAKE: Siemens Semiconductors
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 102 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN

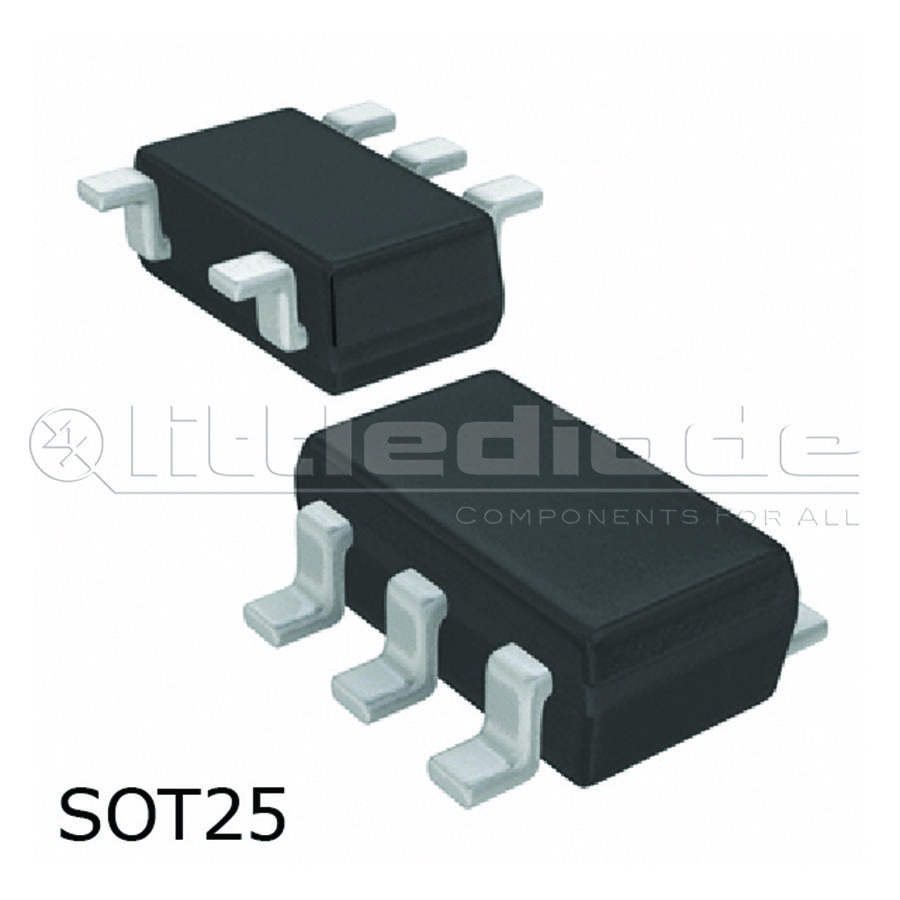

Case SOT25
Manufacturer Siemens Semiconductors
Vbr CBO 30
Vbr CEO 20
Max. PD (W) 220m
C(ob) (F) 950f
Derate (Amb) (W/°C) 2.2m
hfe 67
Ic Max. (A) 30m
Polarity NPN
Trans. Freq (Hz) Min. 200M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 1.0m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 1.9 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 36
SKU 79852
