BF196
View detailed images (5)

BF196

SKU: BF196

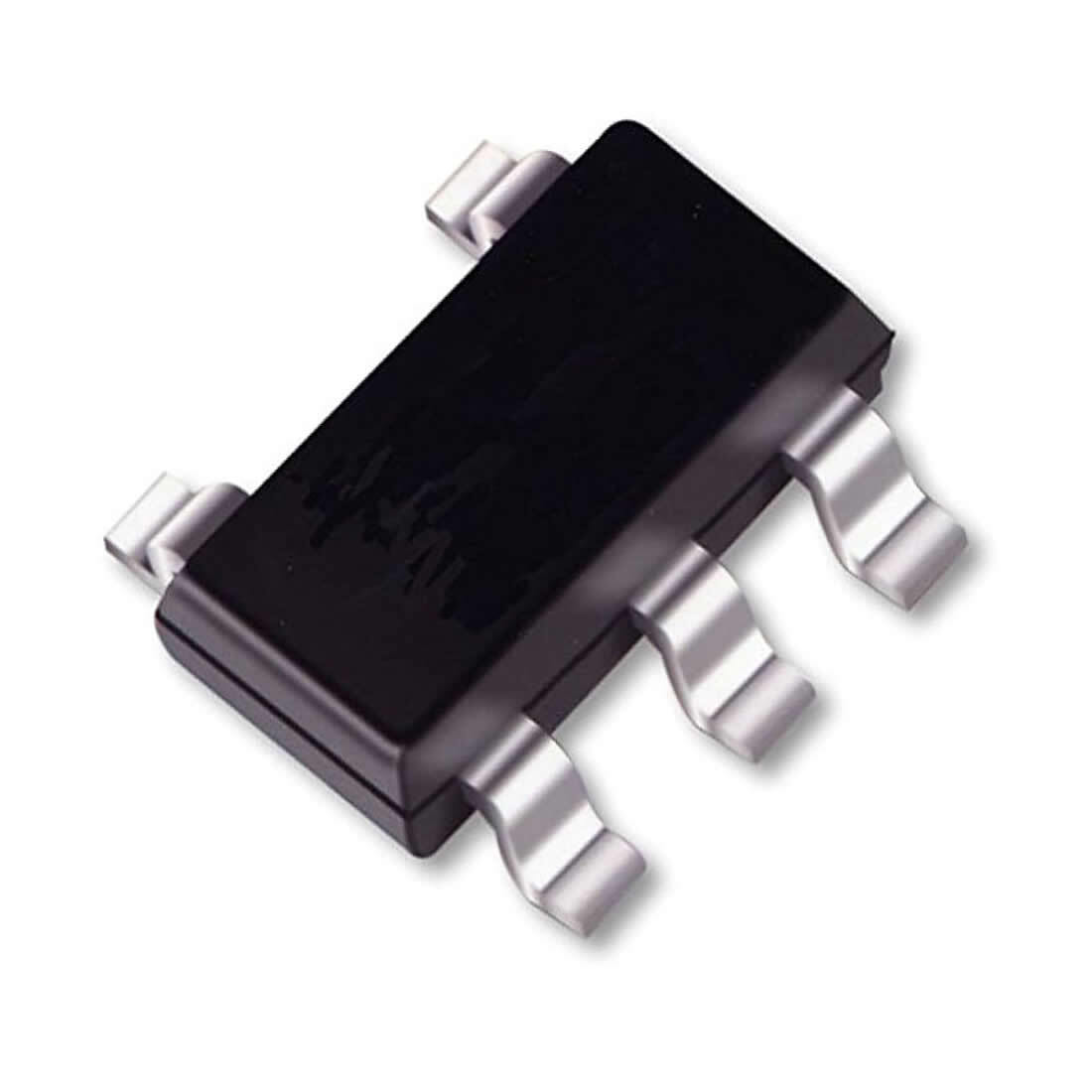

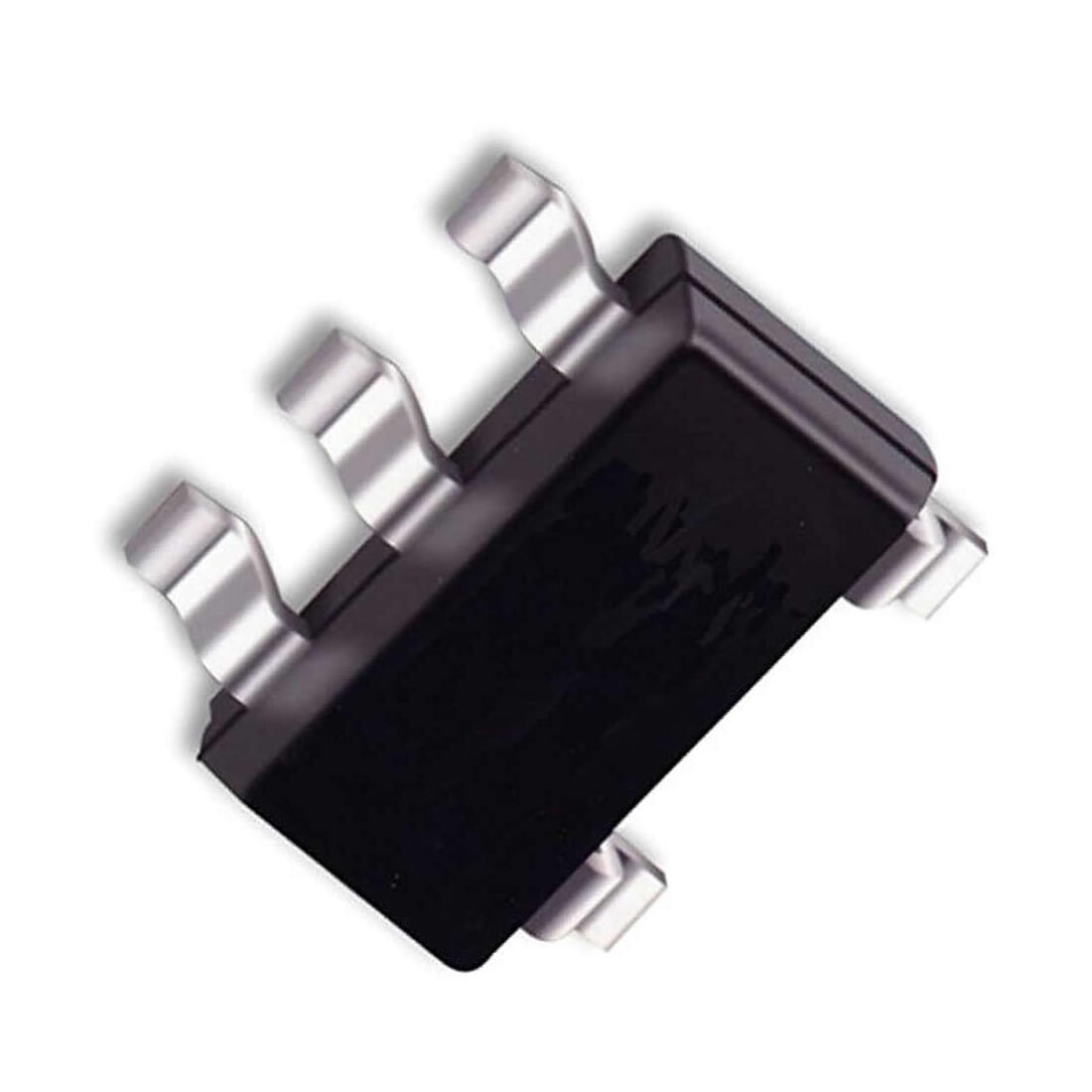

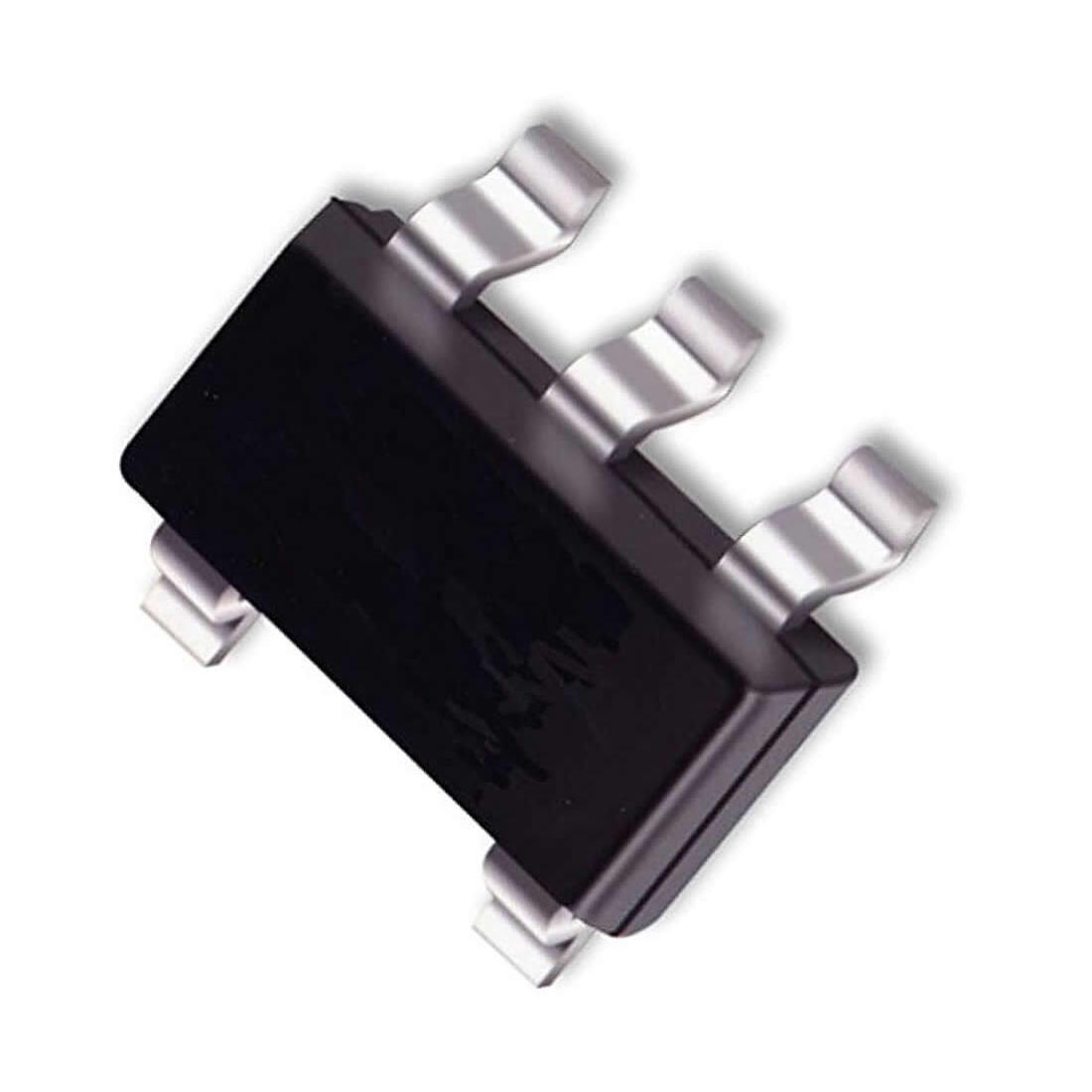

BF196 Transistor Silicon NPN CASE: SOT25 MAKE: Cooper Bussmann
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 131 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BF196 Datasheet
Product specifications
Type Transistor Silicon NPN

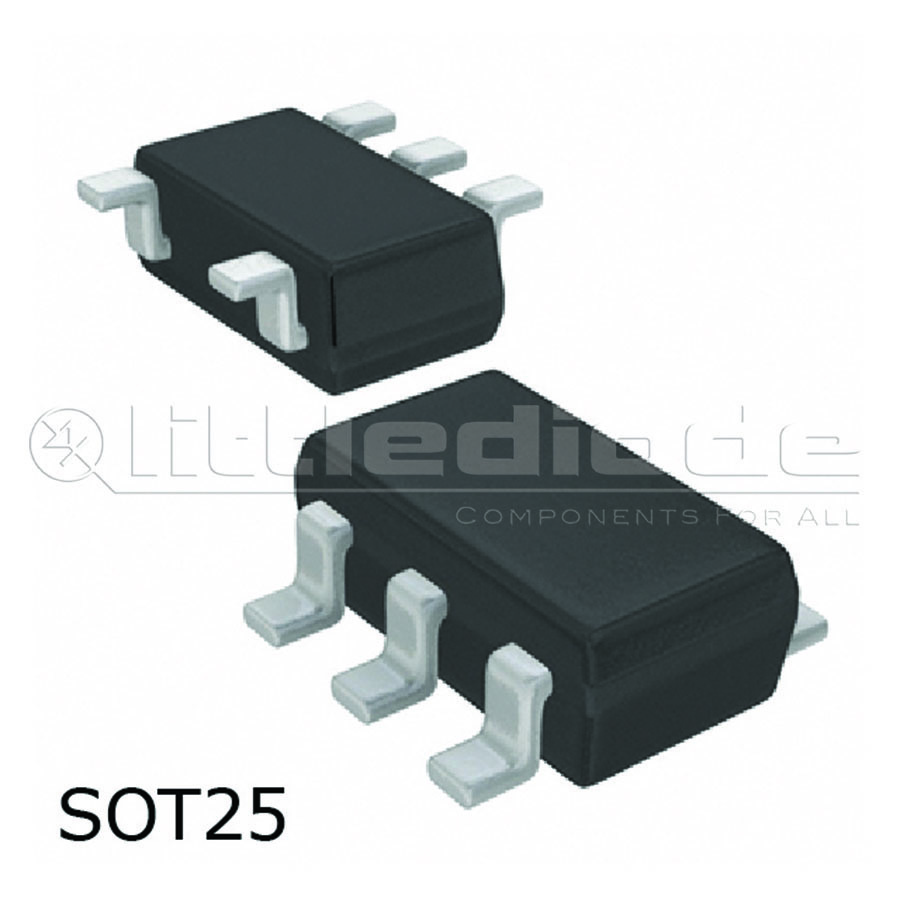

Case SOT25
Manufacturer Cooper Bussmann
Vbr CBO 40
Vbr CEO 30
Max. PD (W) 250m
C(ob) (F) 200f
Derate (Amb) (W/°C) 2.5m
hfe 57
Ic Max. (A) 25m
Polarity NPN
Trans. Freq (Hz) Min. 400M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 4.0m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.025 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.2 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 27
SKU 79853
