BF197
View detailed images (5)

BF197

SKU: BF197

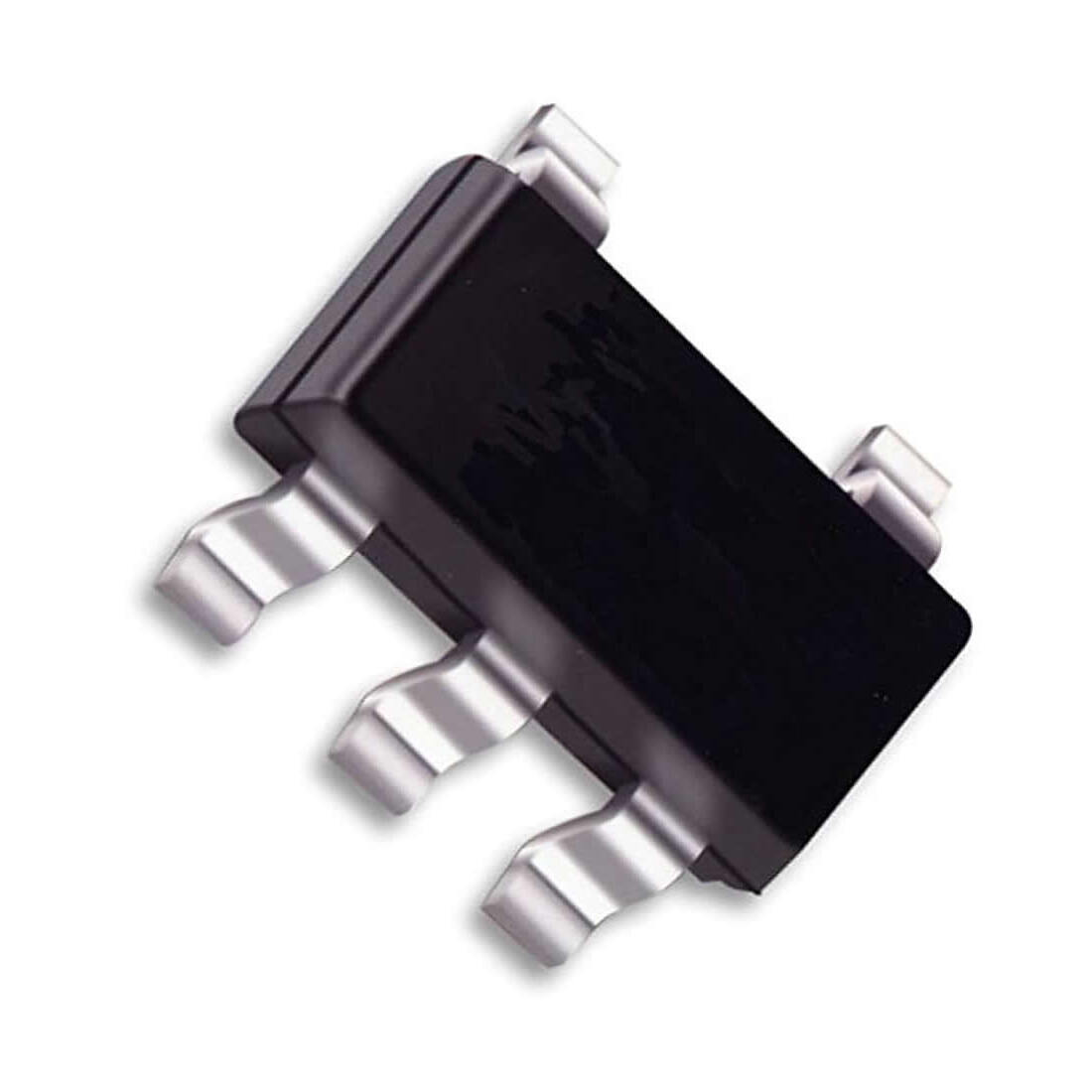

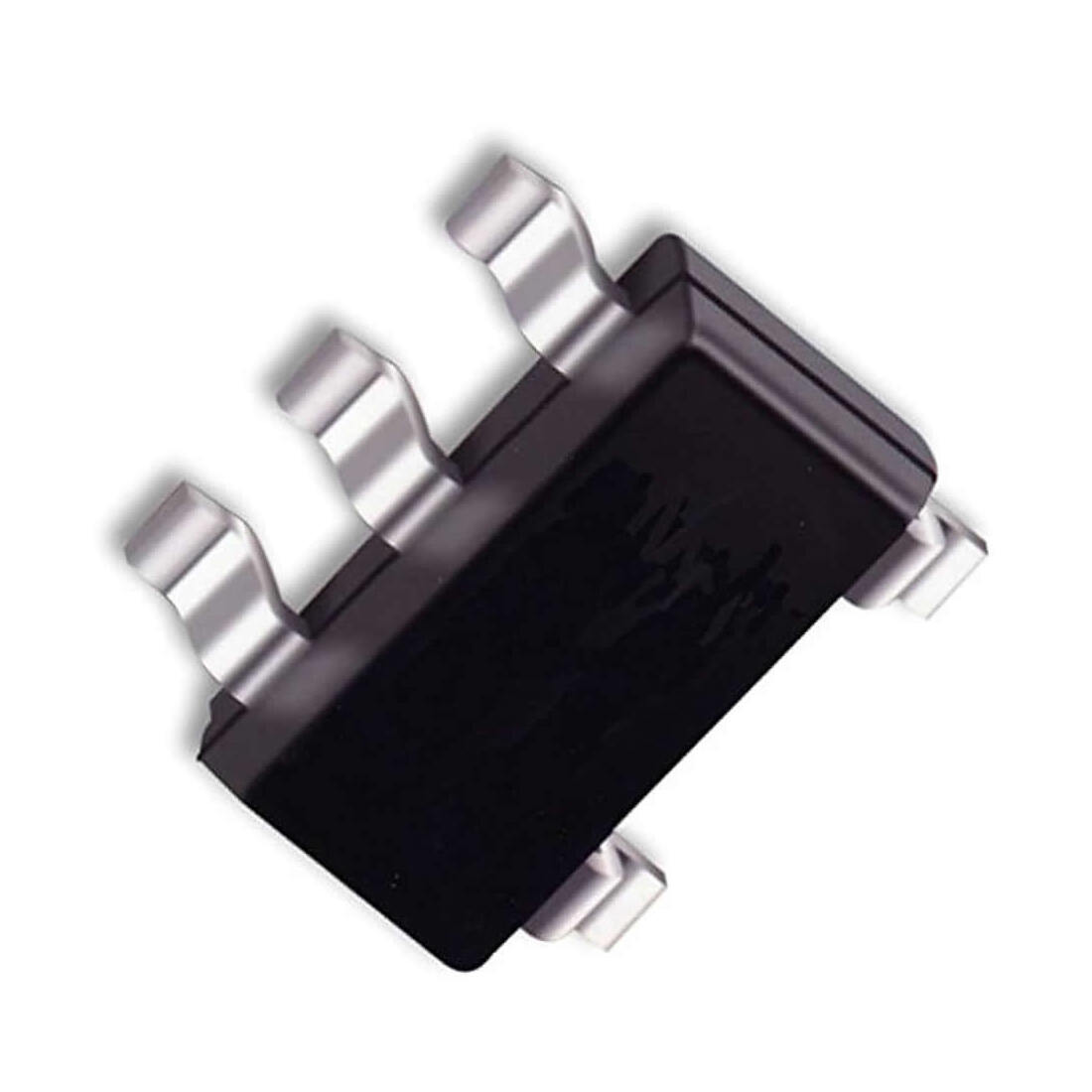

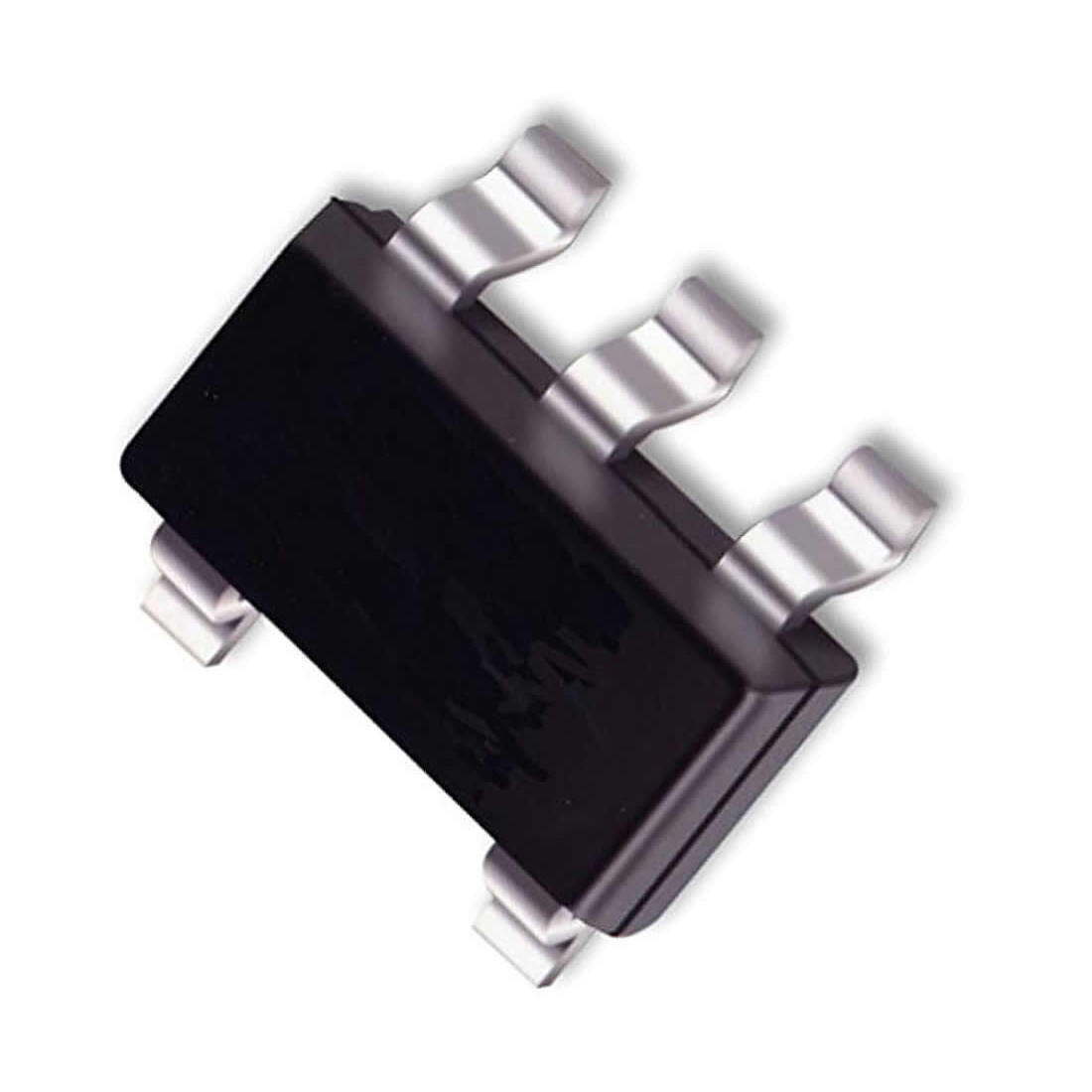

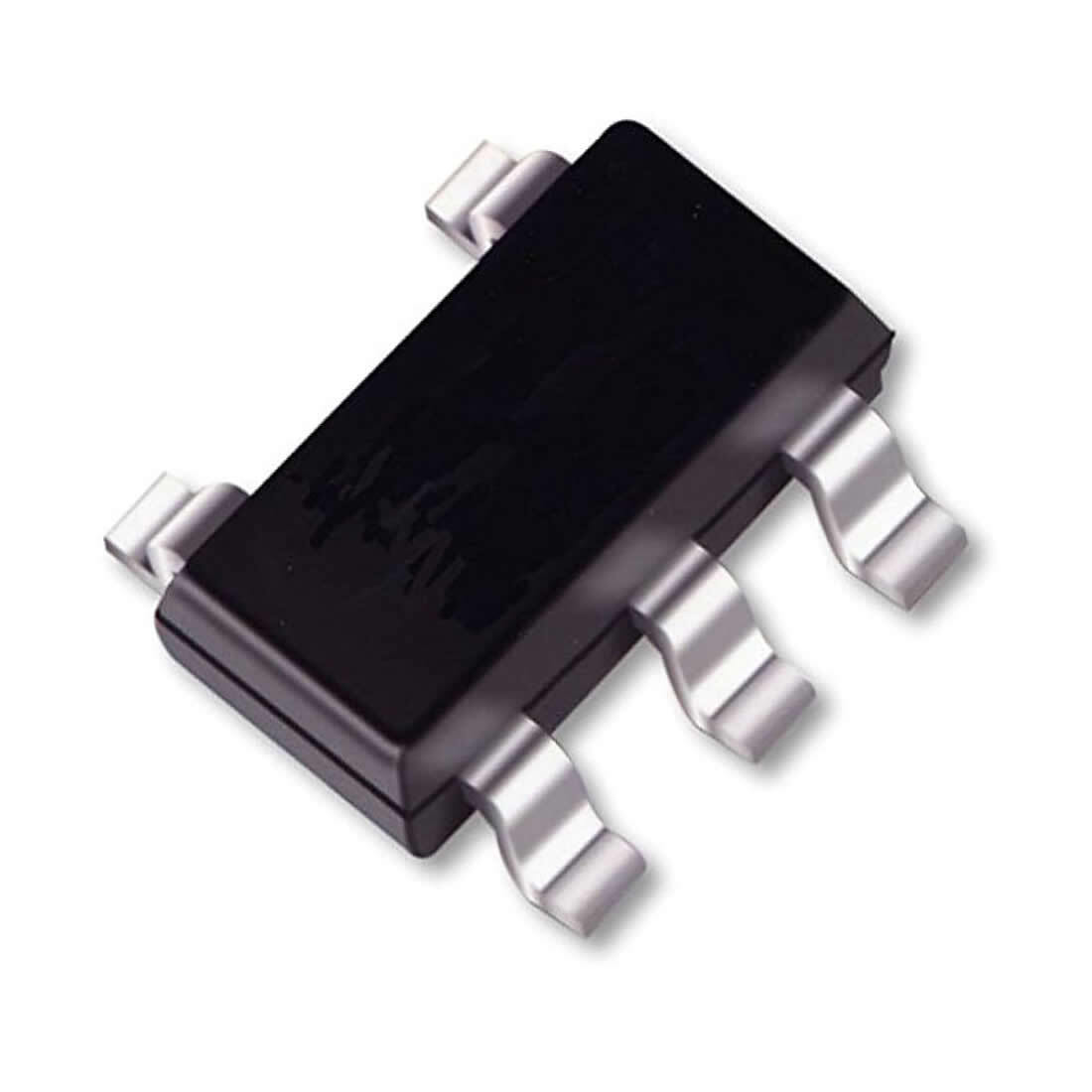

BF197 Transistor Silicon NPN CASE: SOT25 MAKE: NXP Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 23 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BF197 Datasheet
Product specifications
Type Transistor Silicon NPN

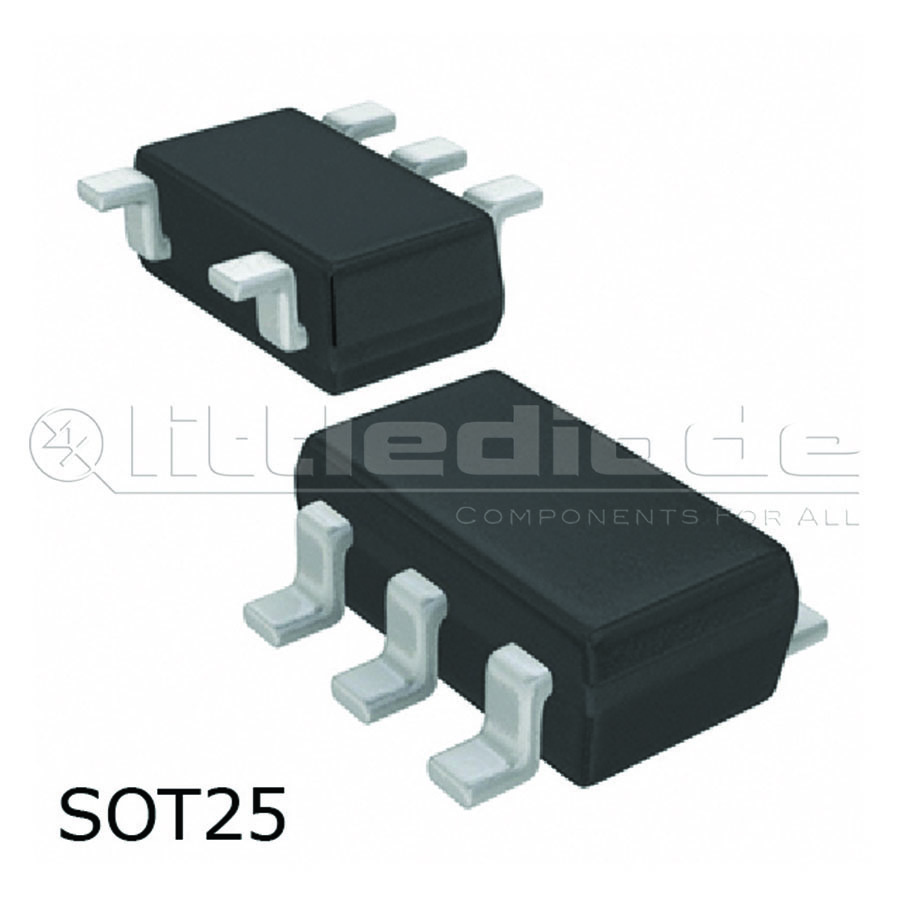

Case SOT25
Manufacturer NXP Semiconductors
Vbr CBO 40
Vbr CEO 25
Max. PD (W) 250m
C(ob) (F) 300f
Derate (Amb) (W/°C) 2.5m
hfe 88
Ic Max. (A) 25m
Polarity NPN
Trans. Freq (Hz) Min. 550M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 7.0m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.025 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.3 pF
Transition Frequency (ft): 275 MHz
Forward Current Transfer Ratio (hFE), MIN 38
SKU 115636
