BF363
View detailed images (4)

BF363

SKU: BF363

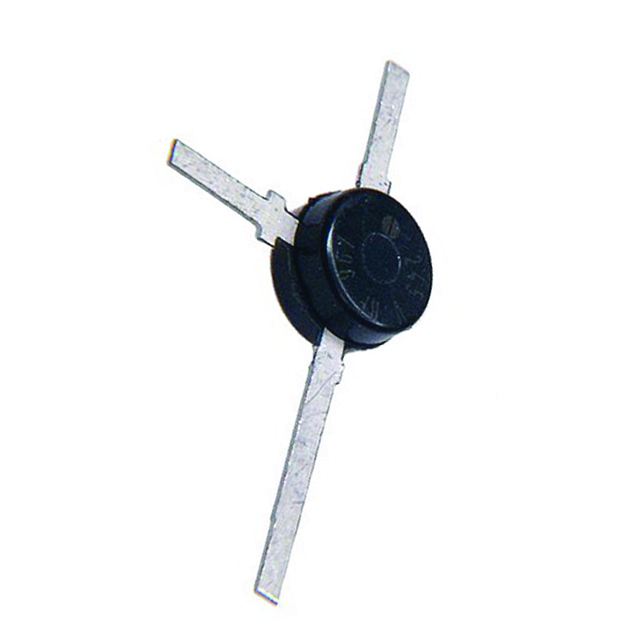

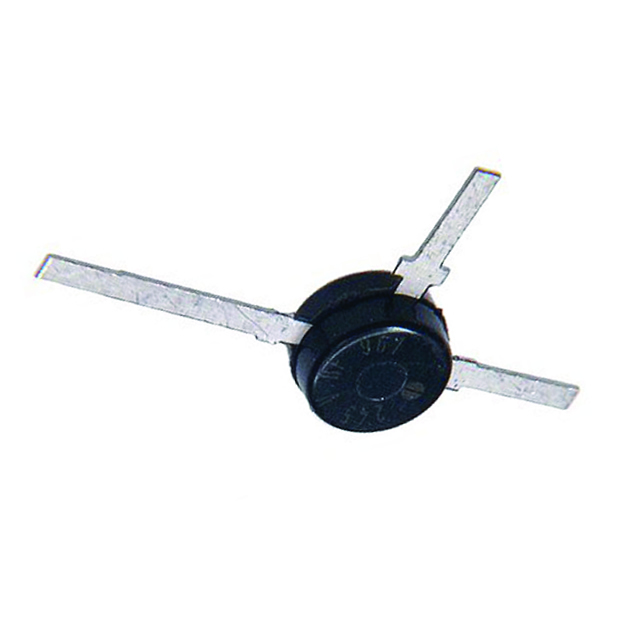

BF363 Transistor Silicon NPN CASE: SOT37 MAKE: NXP Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 35 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BF363 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT37
Manufacturer NXP Semiconductors
Vbr CBO 30
Vbr CEO 20
Max. PD (W) 120m
C(ob) (F) 500f
Derate (Amb) (W/°C) 1.7m
Ic Max. (A) 20m
Polarity NPN
Trans. Freq (Hz) Min. 600M
Oper. Temp (°C) Max. 125
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.12 W
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.02 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 0.5 pF
Transition Frequency (ft): 600 MHz
Forward Current Transfer Ratio (hFE), MIN 12
SKU 79879
