BF679
View detailed images (4)

BF679

SKU: BF679

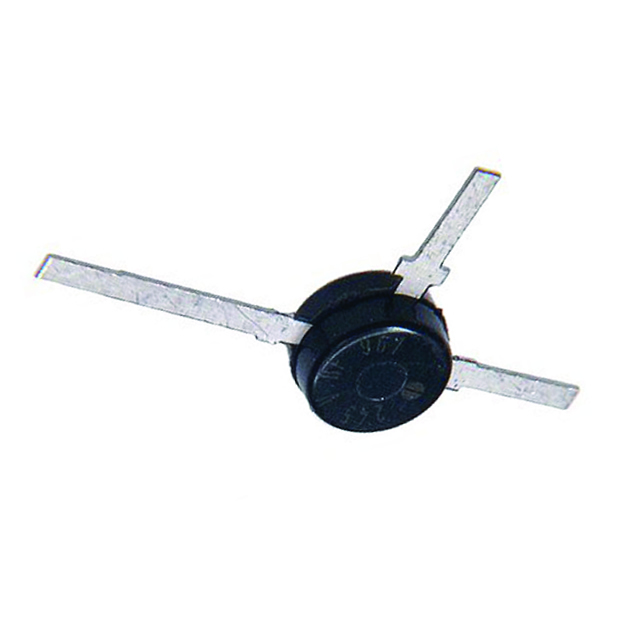

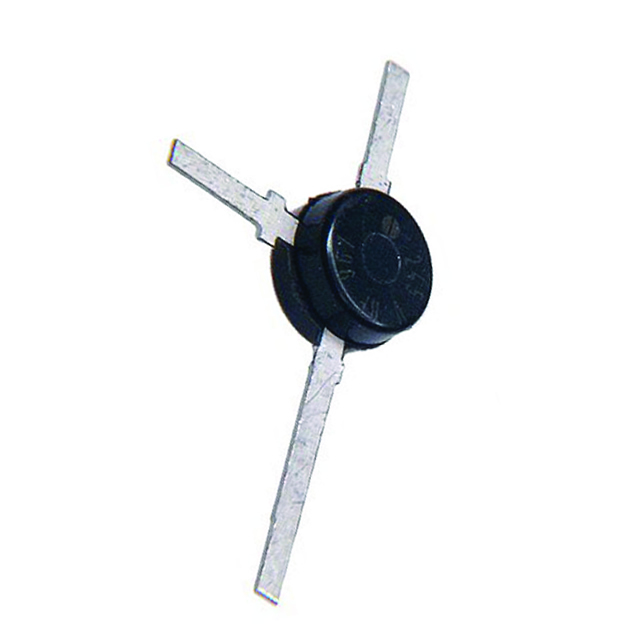

BF679 Transistor Silicon PNP CASE: SOT37 MAKE: Vishay Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 5 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case SOT37
Manufacturer Vishay Semiconductor
Vbr CBO 40
Vbr CEO 35
Max. PD (W) 170m
Derate (Amb) (W/°C) 1.6m
hfe 35
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 1.0G
@VCE (test) (V) 10i
Oper. Temp (°C) Max. 140
@Ic (A) 3.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.17 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1 pF
Transition Frequency (ft): 700 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 79891
