BF788
View detailed images (5)

BF788

SKU: BF788

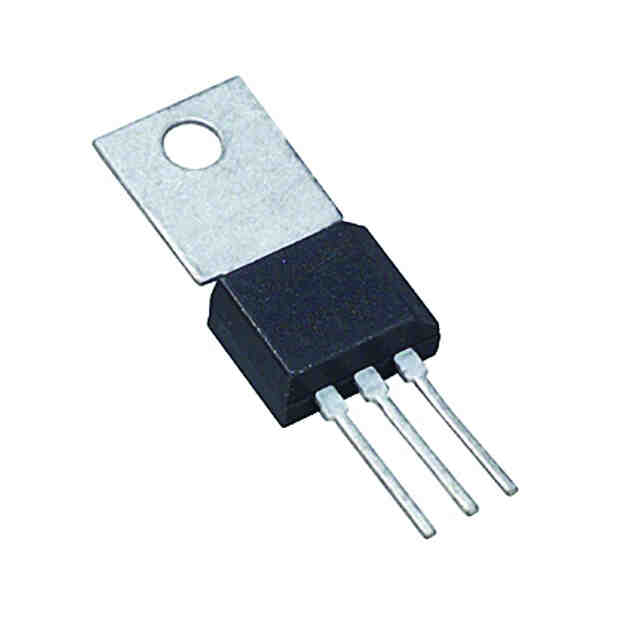

BF788 Transistor Silicon NPN CASE: SOT128 MAKE: Motorola Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT128
Manufacturer Motorola Semiconductor
Polarity NPN
Maximum Collector Power Dissipation (Pc) 2 W
Maximum Collector-Base Voltage |Vcb| 300 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.8 pF
Transition Frequency (ft): 80 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 85460
