BF968
View detailed images (4)

BF968

SKU: BF968

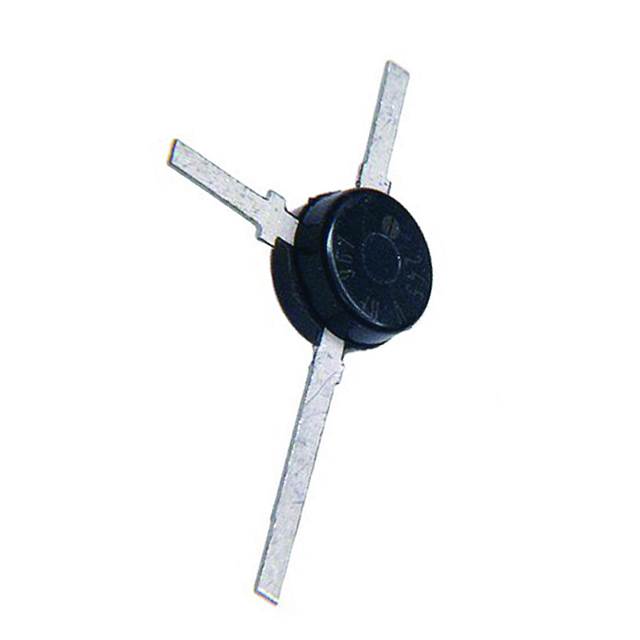

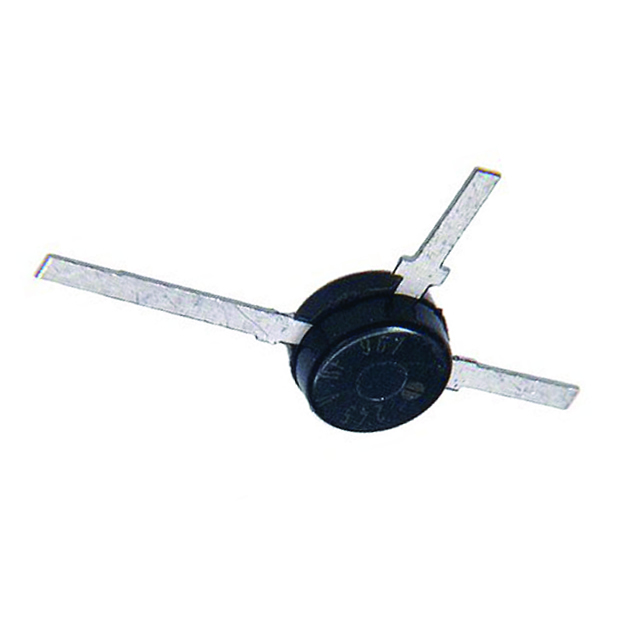

BF968 Transistor Silicon PNP CASE: SOT37 MAKE: Baldwin Filters
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 73 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BF968 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT37
Manufacturer Baldwin Filters
Vbr CBO 40
Mat. Silicon Logic
f(osc) Max. (Hz) 1.1G
Polarity PNP
PD Max. (W) 160m
Coll. (or drain) Current Max. 30m
Oper. Temp (°C) Max. 150
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.18 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 30 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.4 pF
Transition Frequency (ft): 1100 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 313825
