BF979-SMD
View detailed images (4)

BF979-SMD

SKU: BF979-SMD

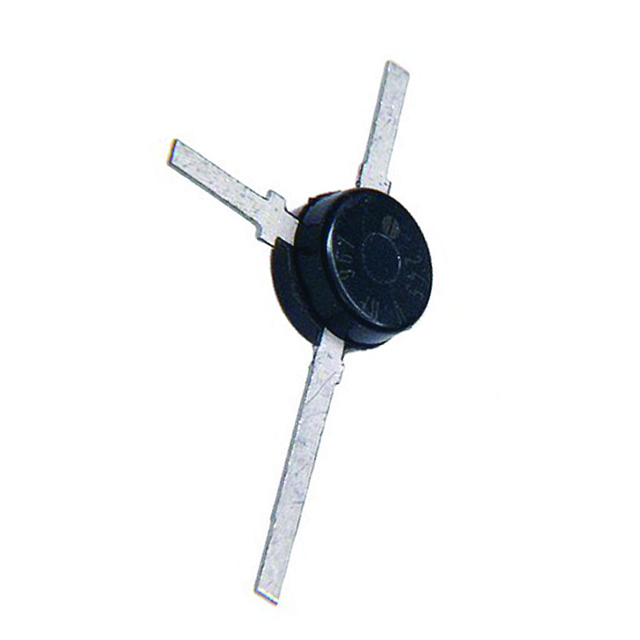

BF979-SMD Transistor Silicon PNP CASE: SOT37 MAKE: Baldwin Filters
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 12 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent BF979
Replacement For BF979
Type Transistor Silicon PNP
Case SOT37
Manufacturer Baldwin Filters
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 140m
hfe 15
Ic Max. (A) 30m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 1.0G
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 2.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.14 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 20 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.6 pF
Transition Frequency (ft): 1300 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 475051
