BF979S
View detailed images (4)

BF979S

SKU: BF979S

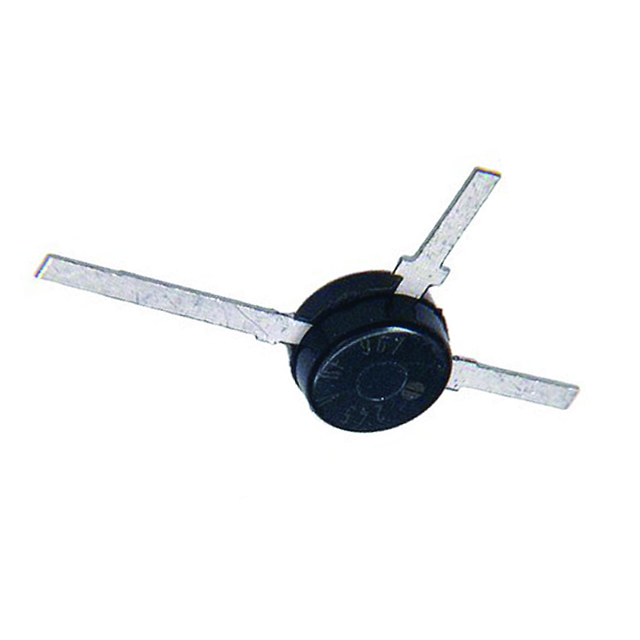

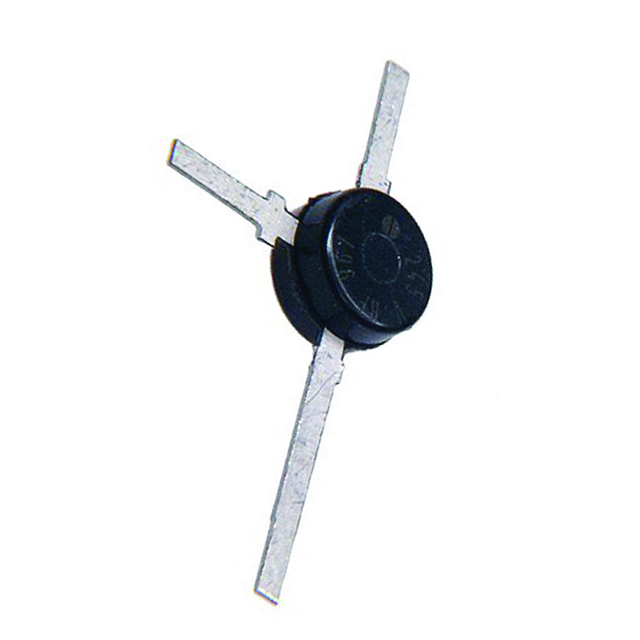

BF979S Transistor Silicon PNP CASE: SOT37 MAKE: Philips
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BF979S Datasheet
Product specifications
Type Transistor Silicon PNP
Case SOT37
Manufacturer Philips
Vbr CBO 30
@Ic (A) 10m
Mat. Silicon Logic
Noise Fig. 4.5
f(osc) Max. (Hz) 1.6G
Polarity PNP
PD Max. (W) 160m
Coll. (or drain) Current Max. 50m
@Freq. (test) 800M
@VCE (test) 10
Oper. Temp (°C) Max. 150
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.16 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.5 pF
Transition Frequency (ft): 1800 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 407474
