BFG135
View detailed images (8)

BFG135

SKU: BFG135

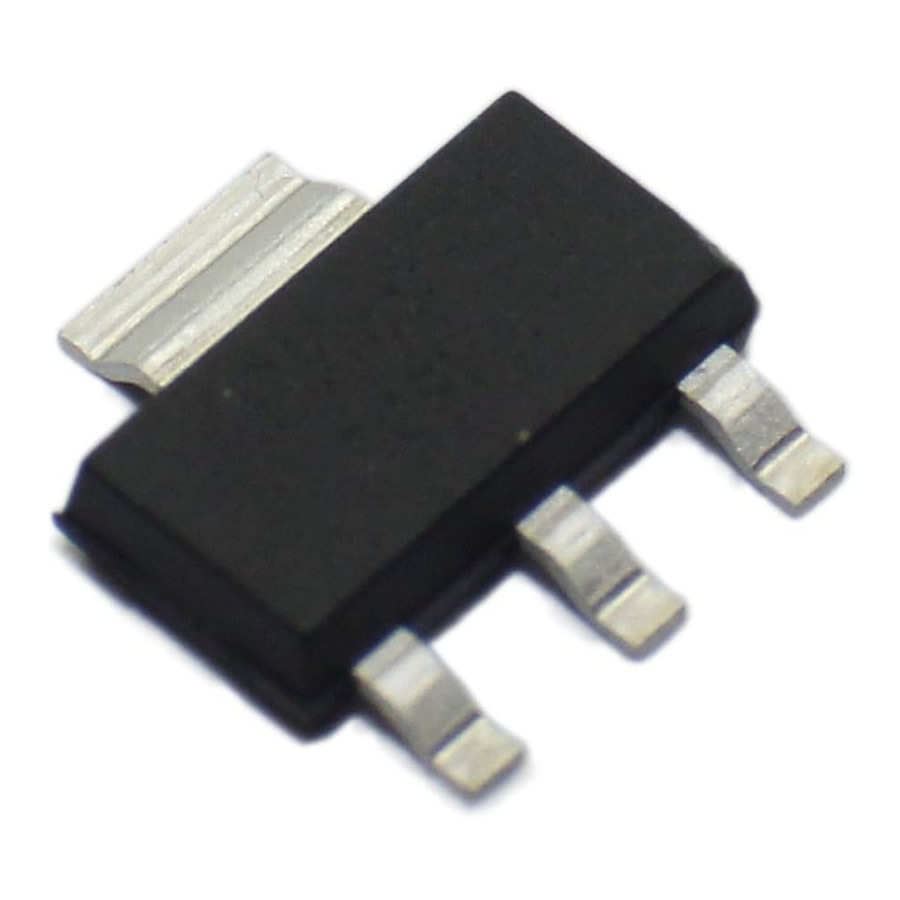

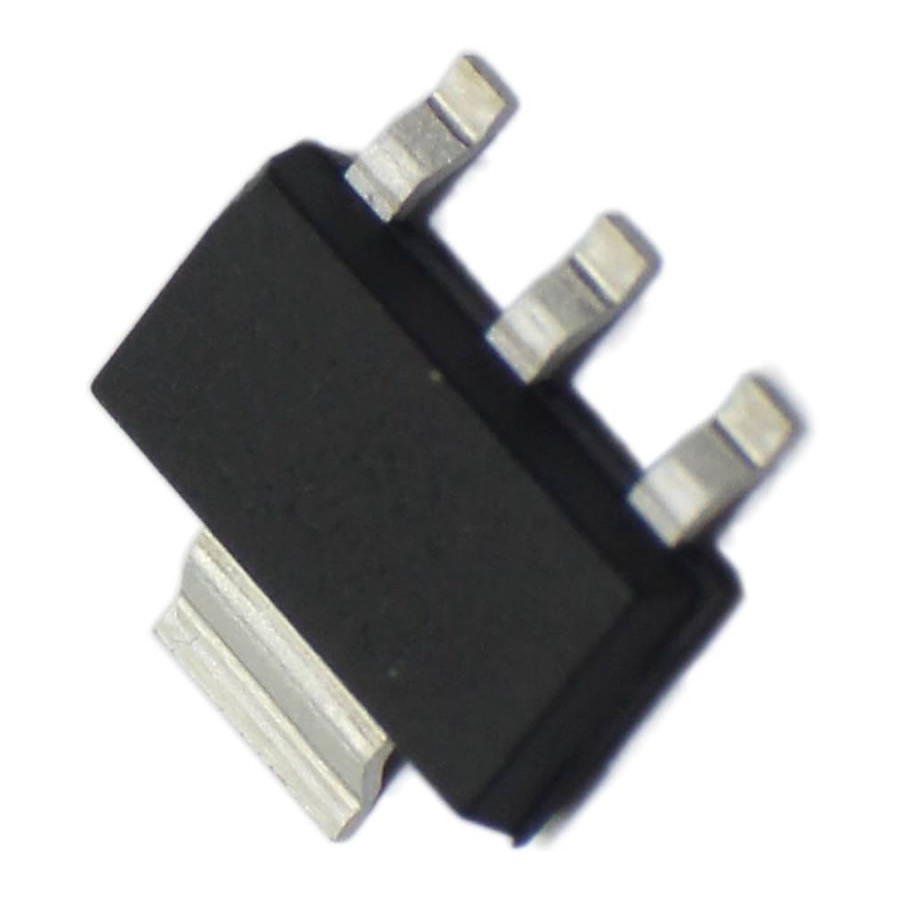

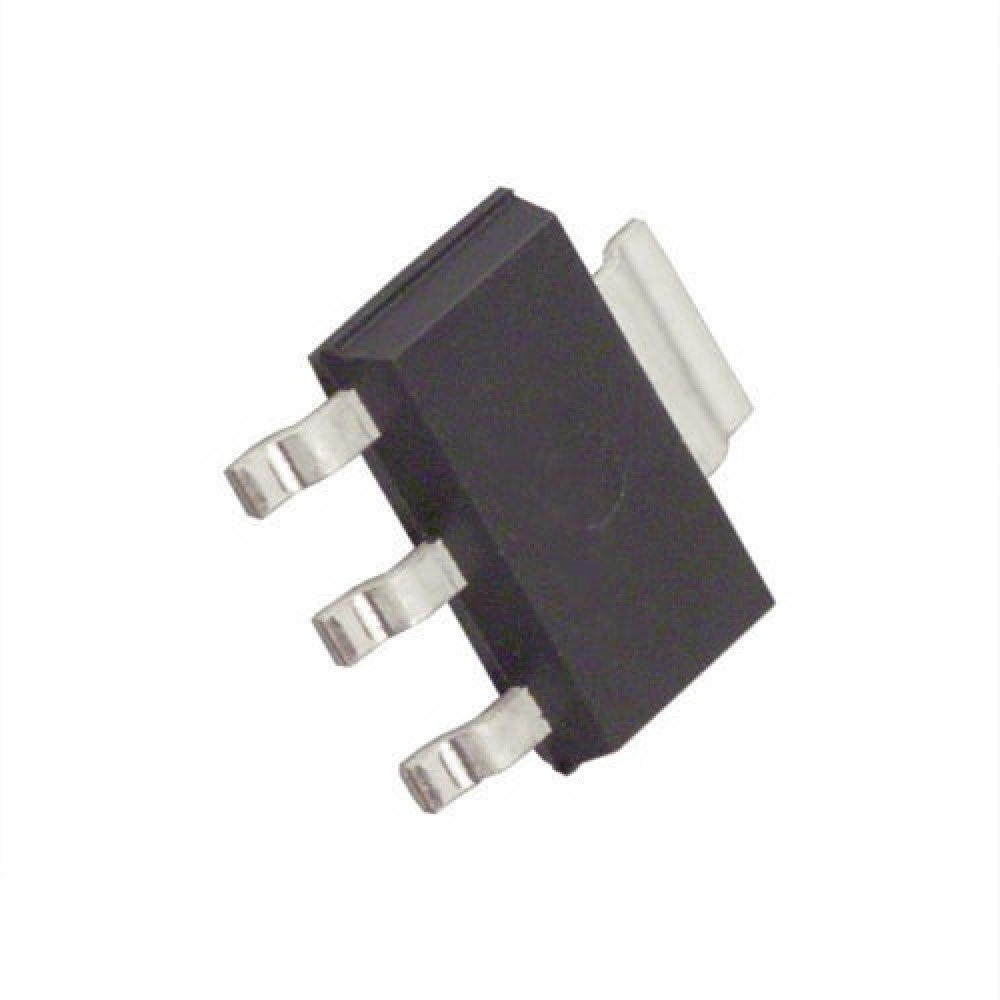

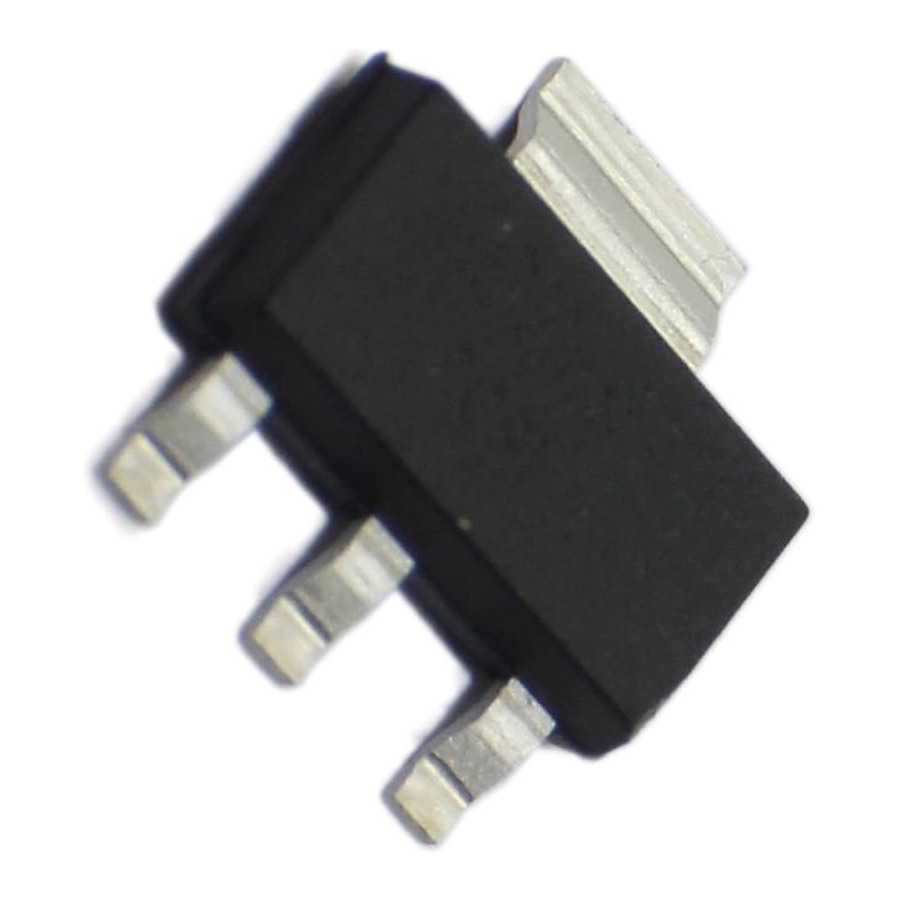

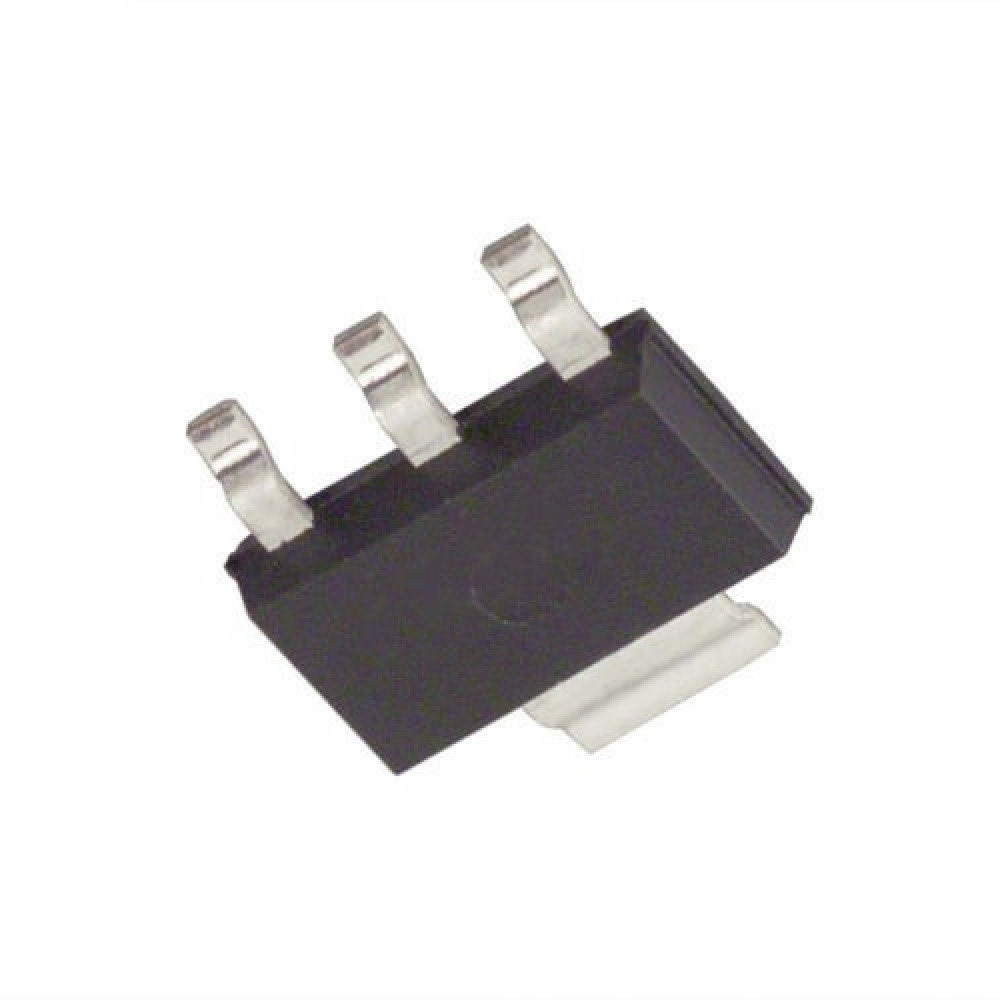

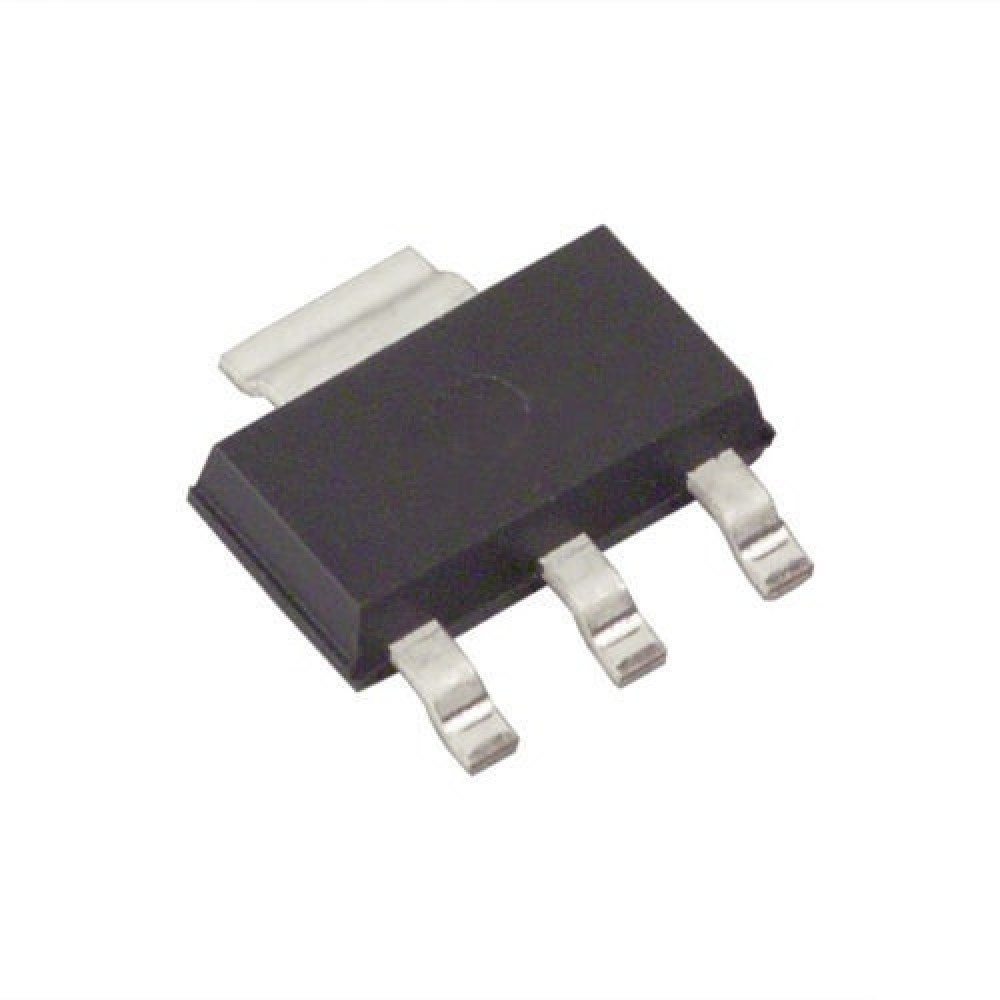

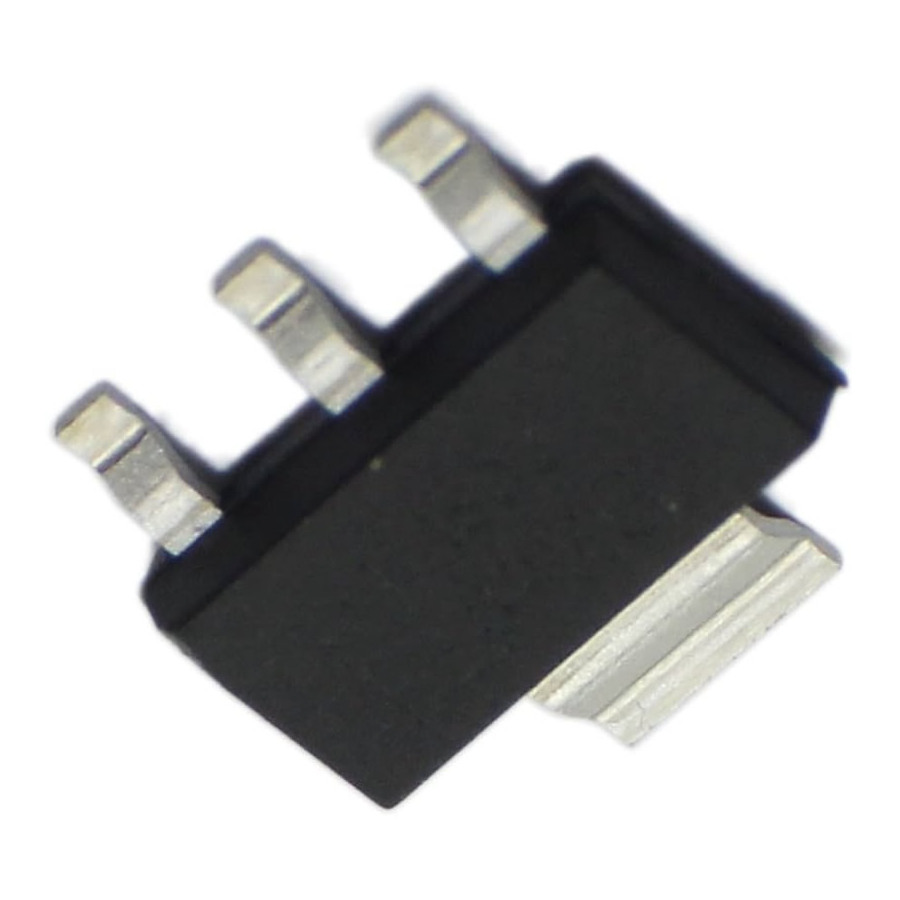

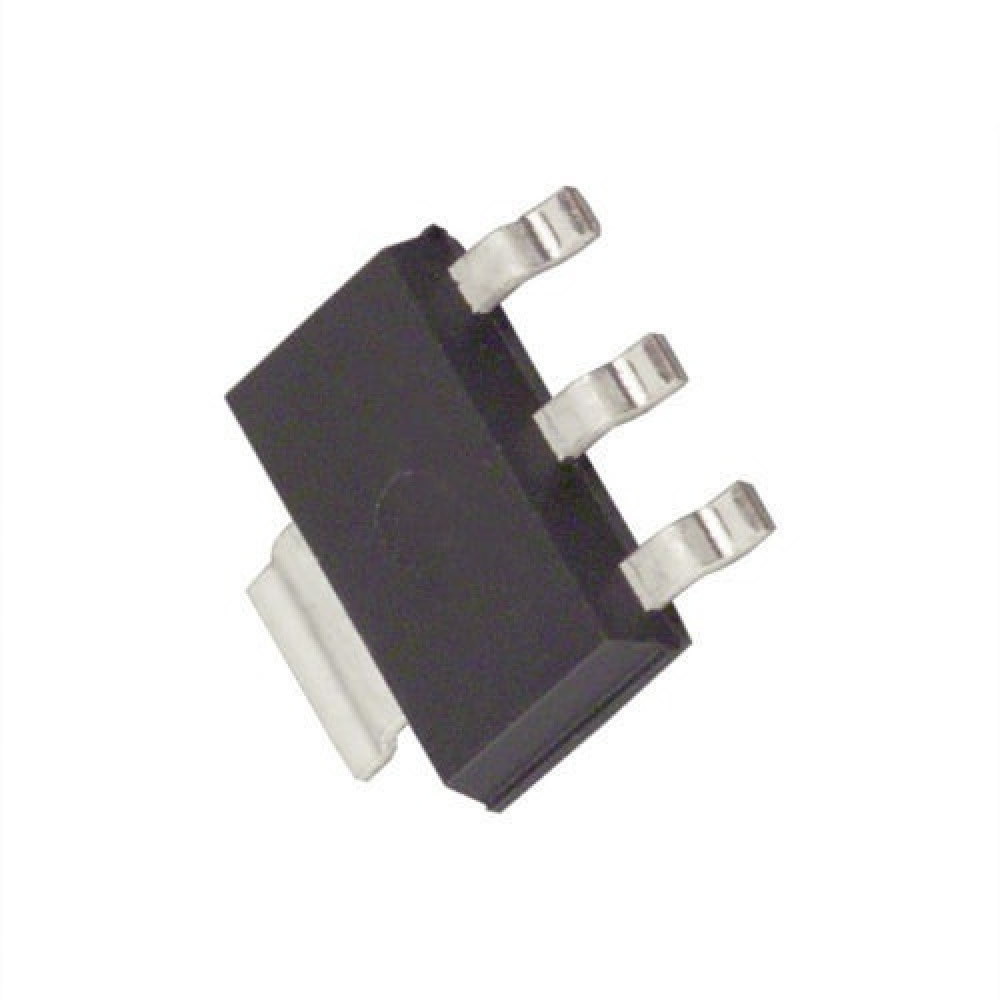

BFG135 Transistor Silicon NPN CASE: SOT223 MAKE: Siemens Semiconductors
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BFG135 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer Siemens Semiconductors
Vbr CBO 25
@Freq. (test) 800m
@Ic (A) 100m
Mat. Silicon Logic
Oper. Gain Typ (S21) 12
Polarity NPN
PD Max. (W) 1.0
S11 Deg. (Typ) 149
S11 Mag Typ. .59
S22 Deg. Typ. -170
S22 Mag Typ. .17
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 150m
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 4-28
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.2 pF
Transition Frequency (ft): 7000 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 115664
