BFG195
View detailed images (13)

BFG195

SKU: BFG195

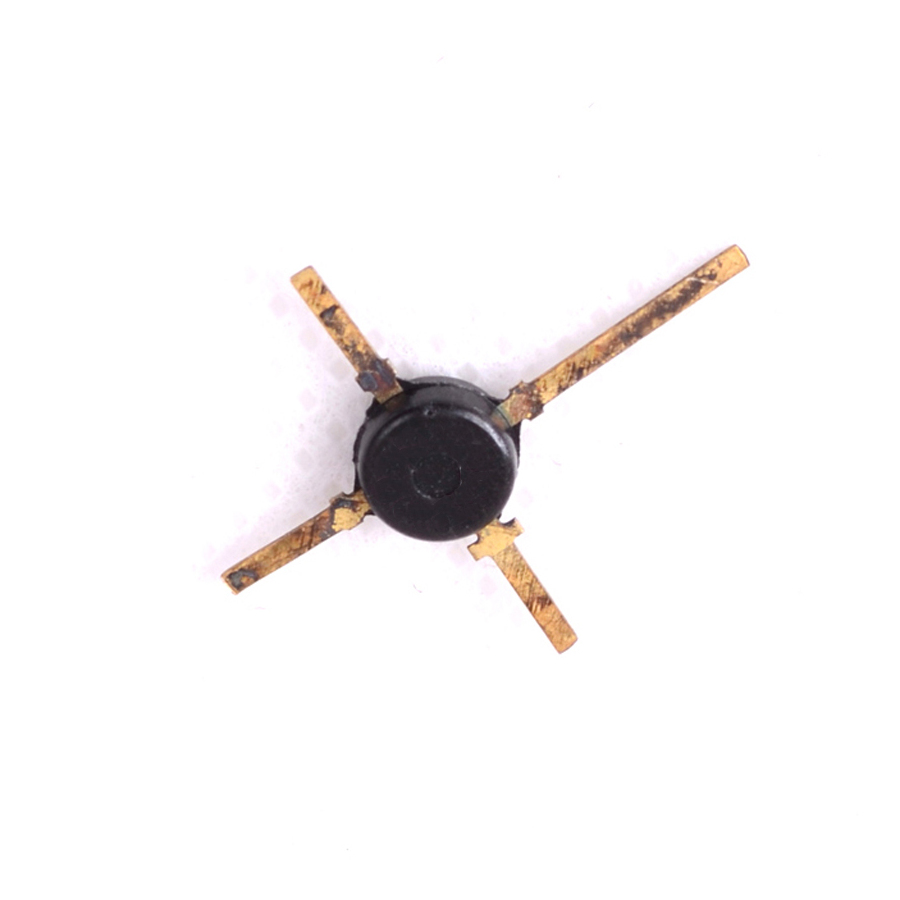

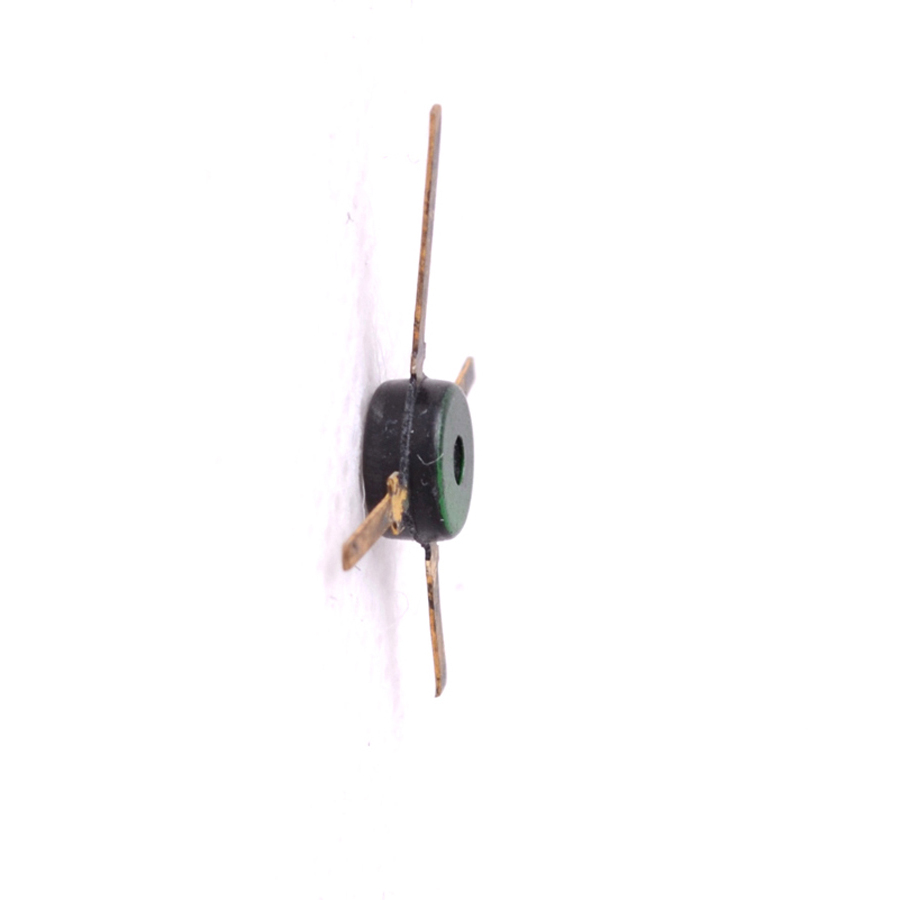

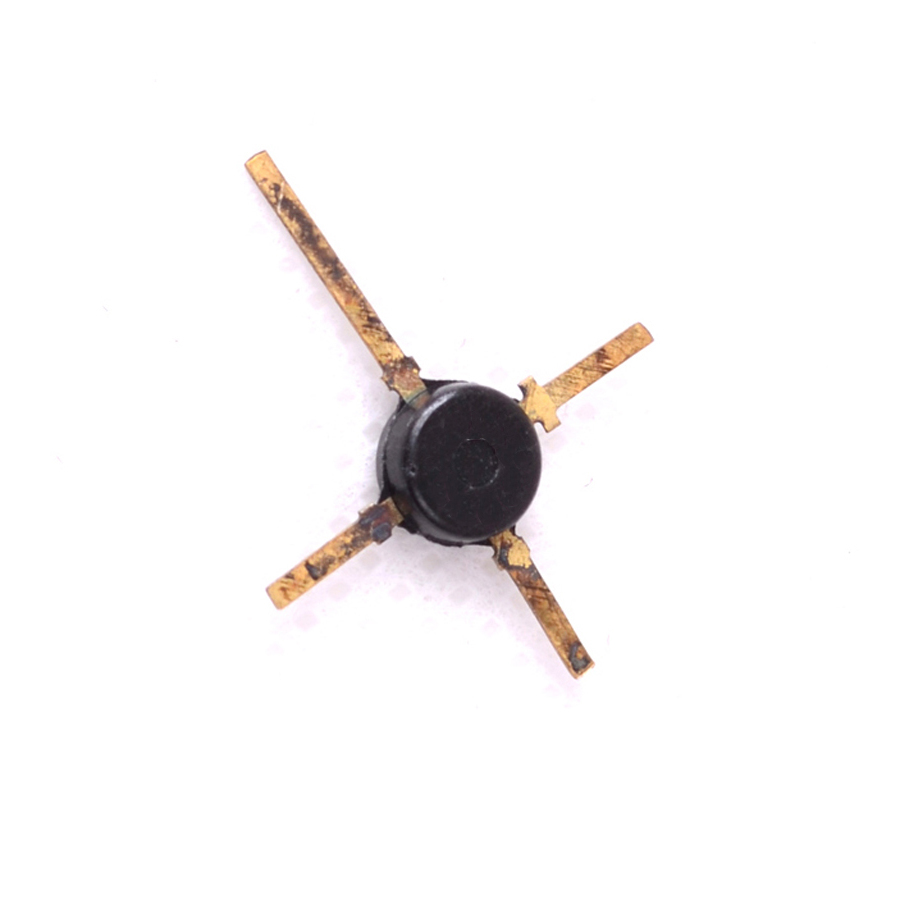

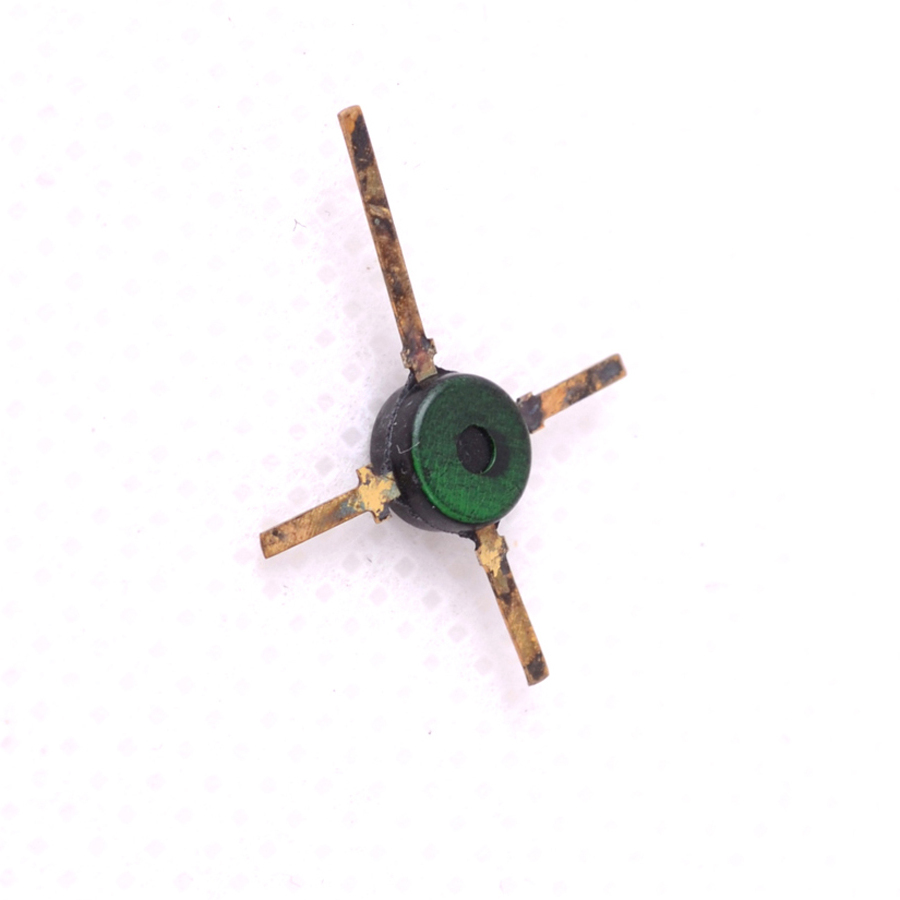

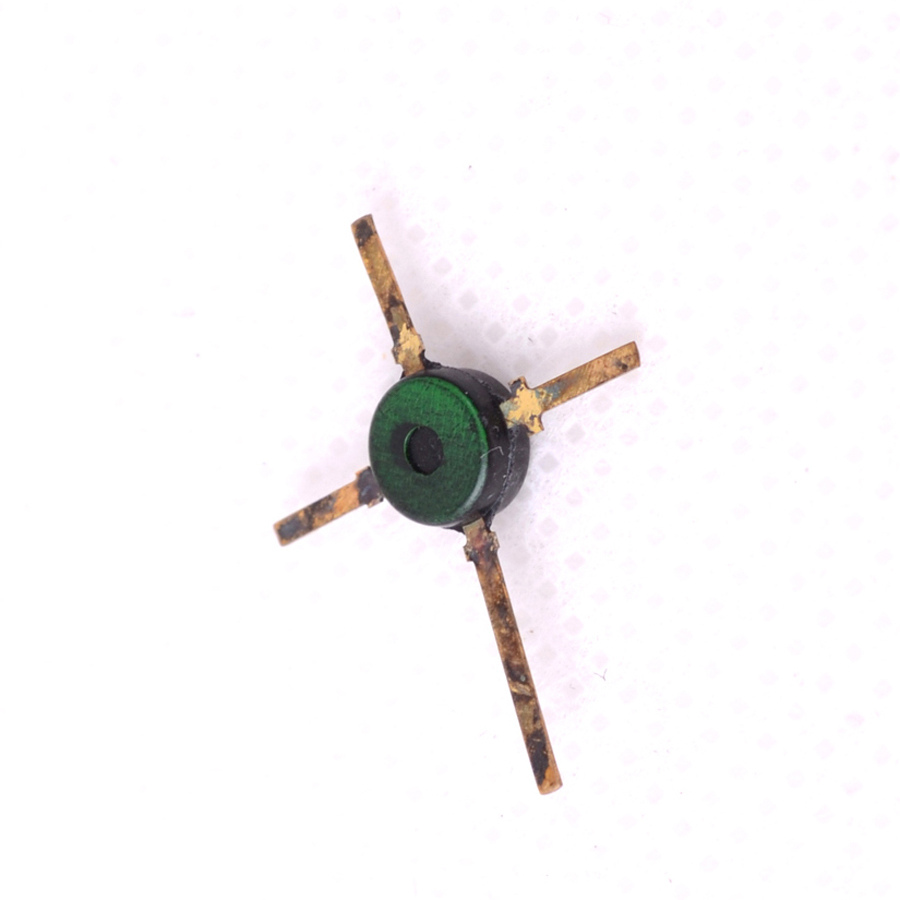

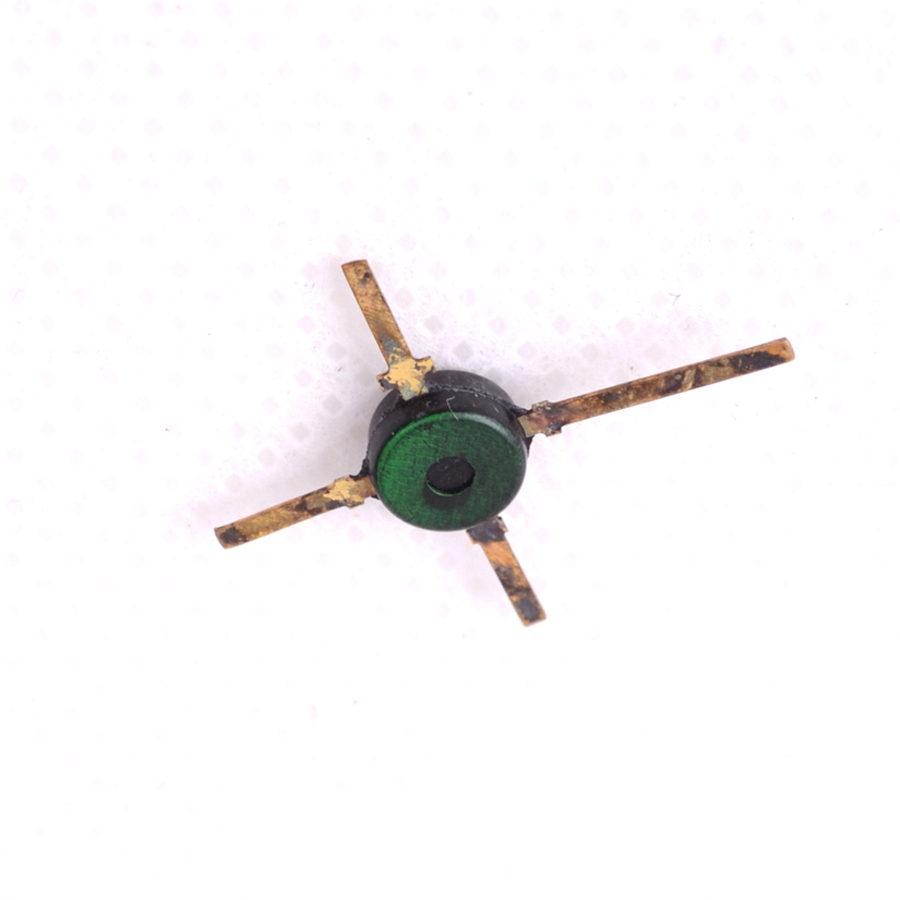

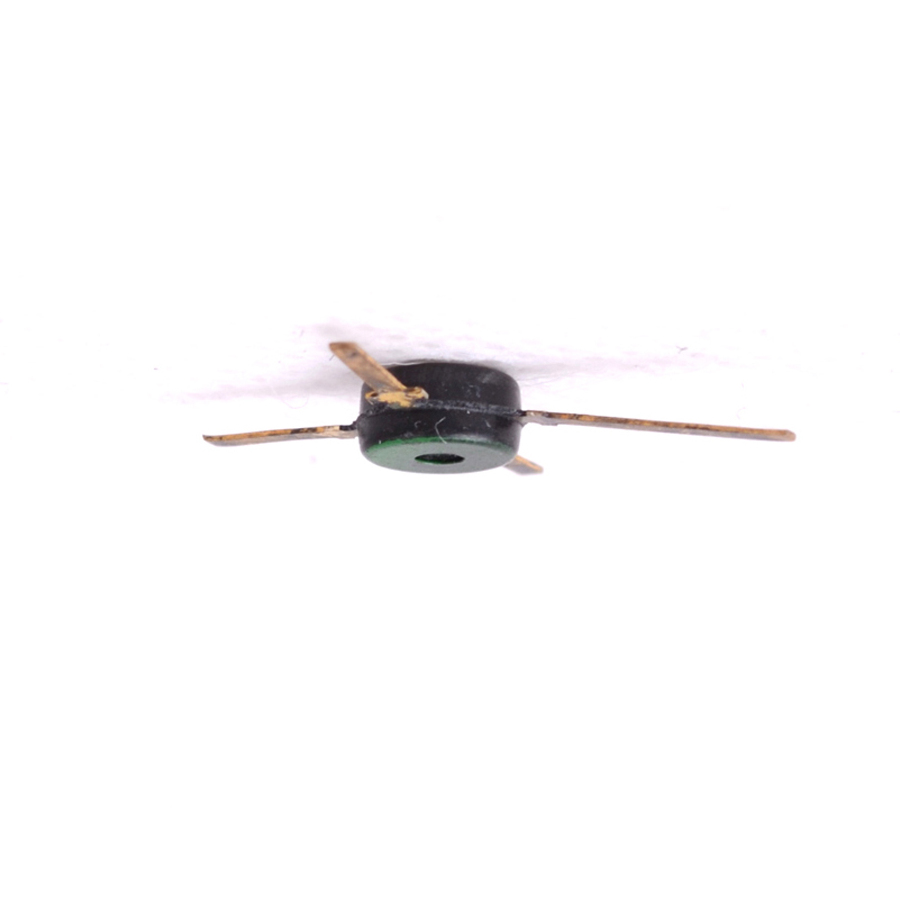

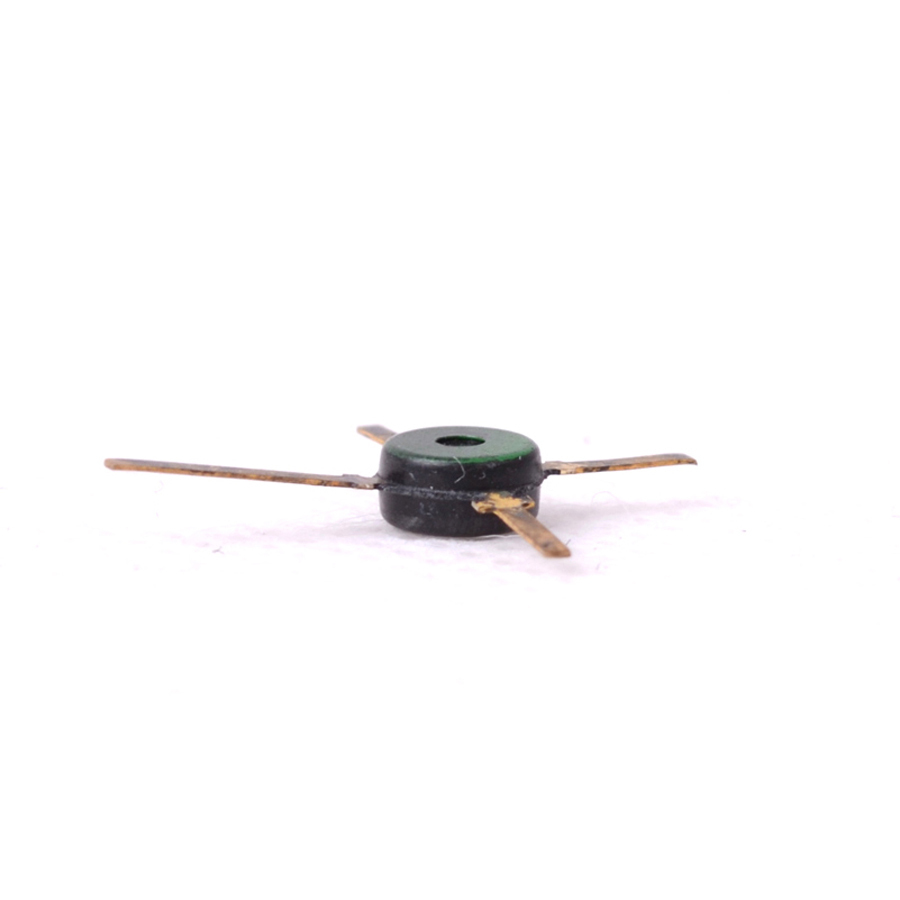

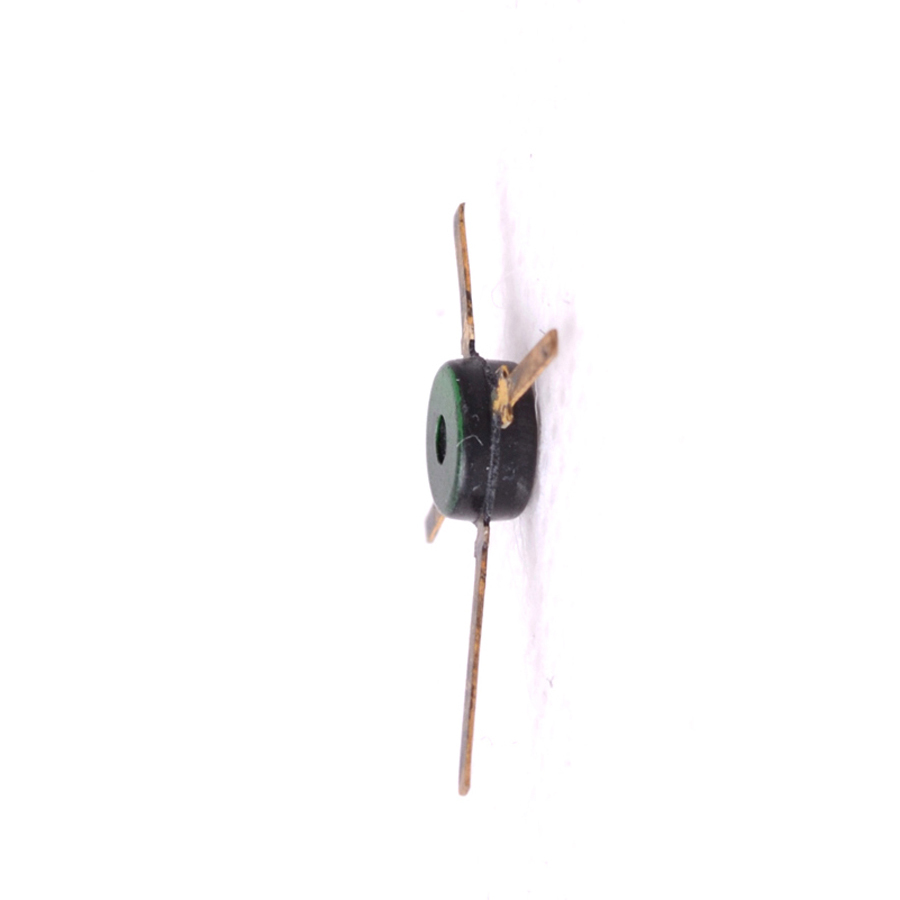

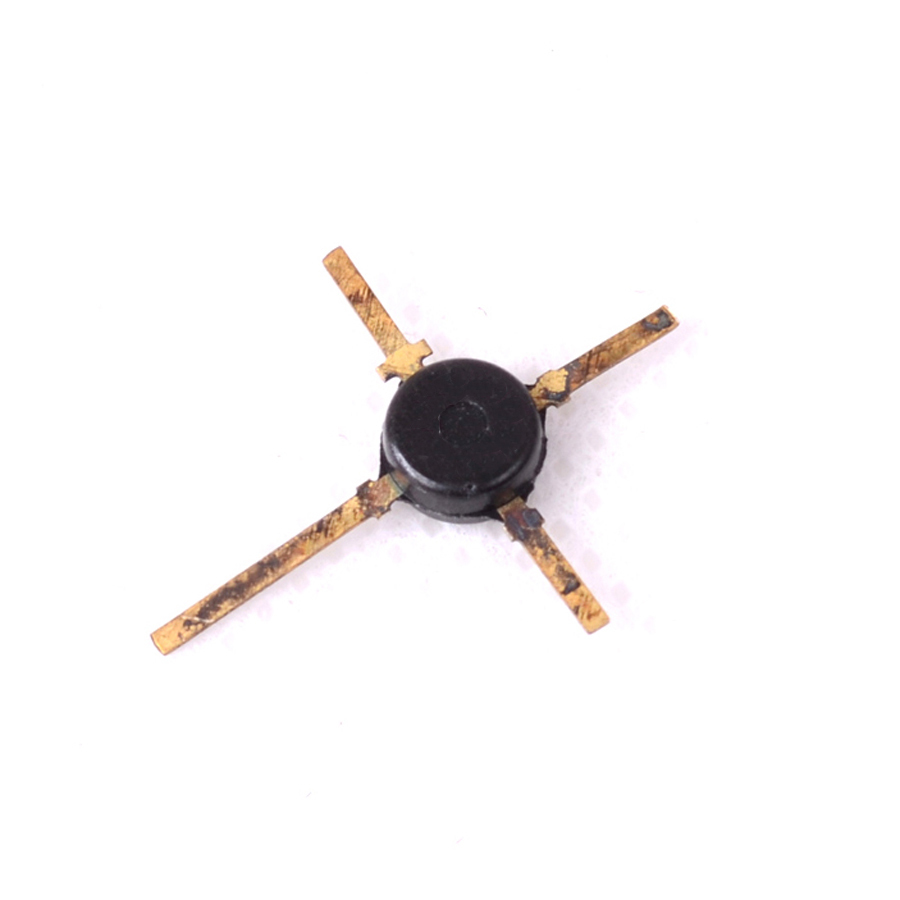

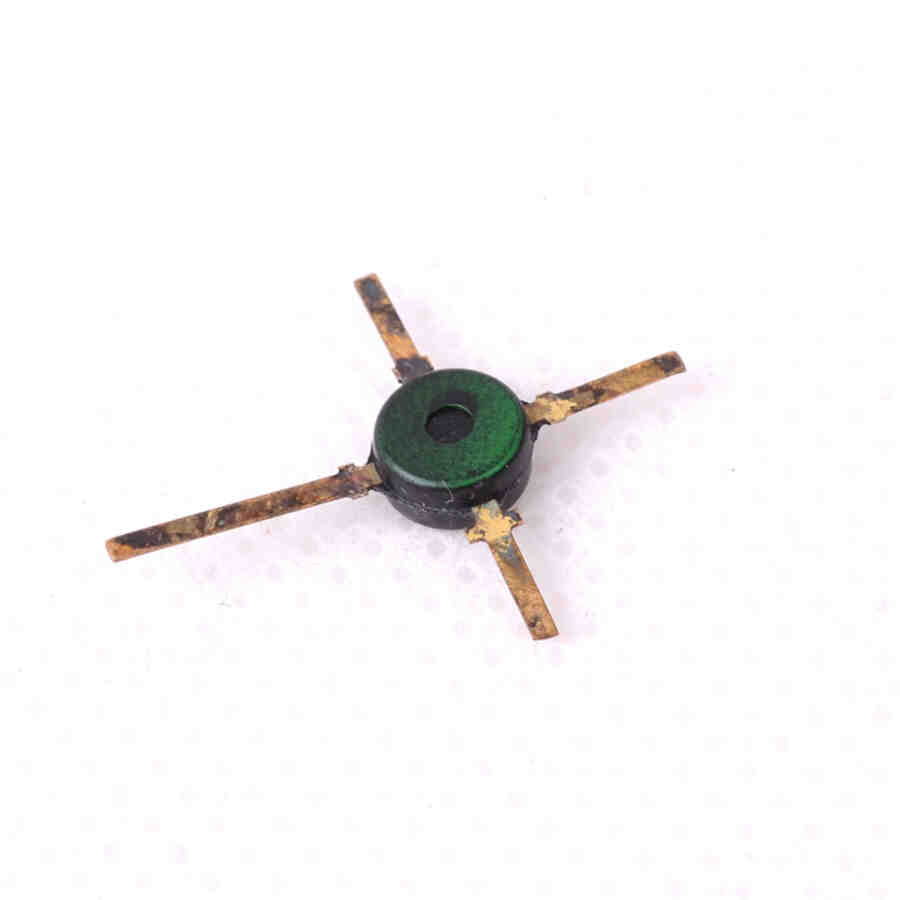

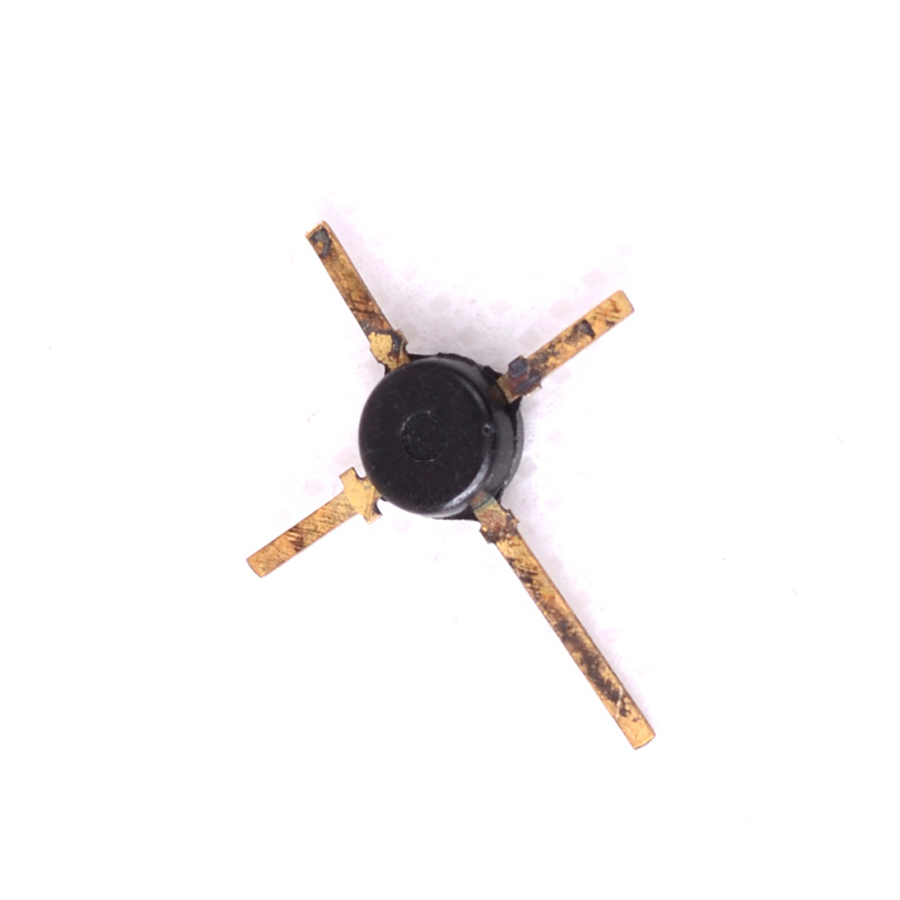

BFG195 Transistor Silicon NPN CASE: SOT103 MAKE: Valvo
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Valvo
Vbr CBO 20
@Ic (A) 50m
Mat. Silicon Logic
Noise Fig. 1.9
Oper. Gain Typ (S21) 11
Polarity NPN
PD Max. (W) 500m
Coll. (or drain) Current Max. 100m
@Freq. (test) 800M
@VCE (test) 8.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 4-29
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.5 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 7500 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 407487
