BFG34
View detailed images (13)

BFG34

SKU: BFG34

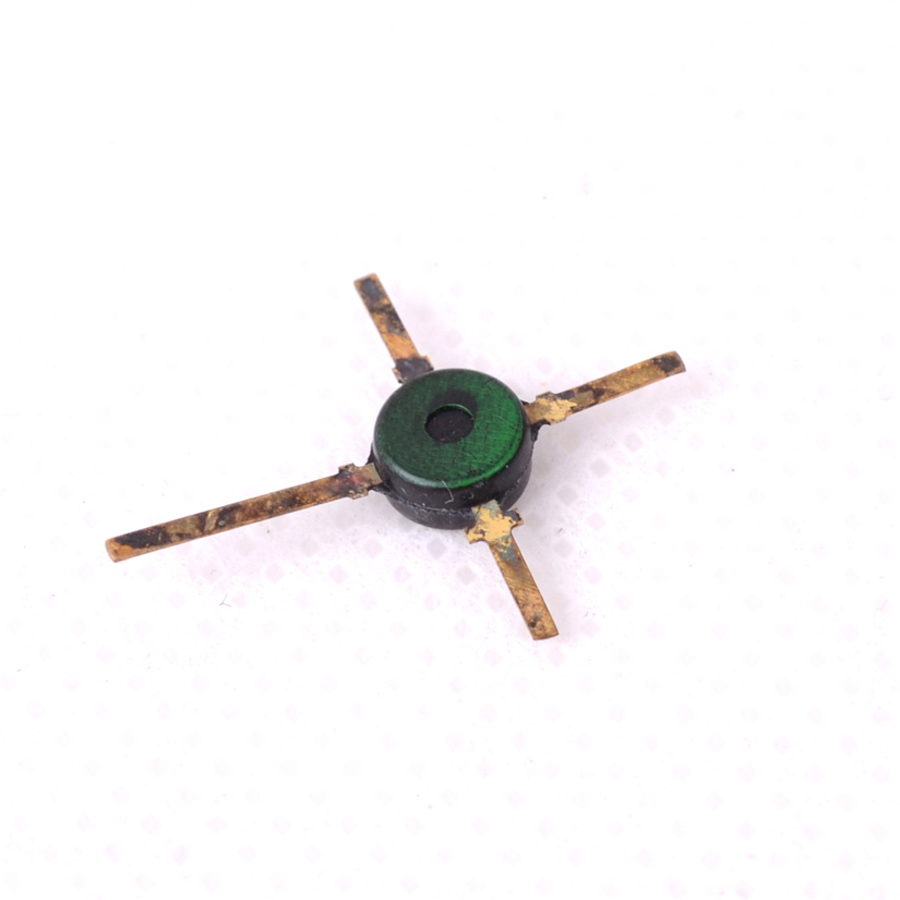

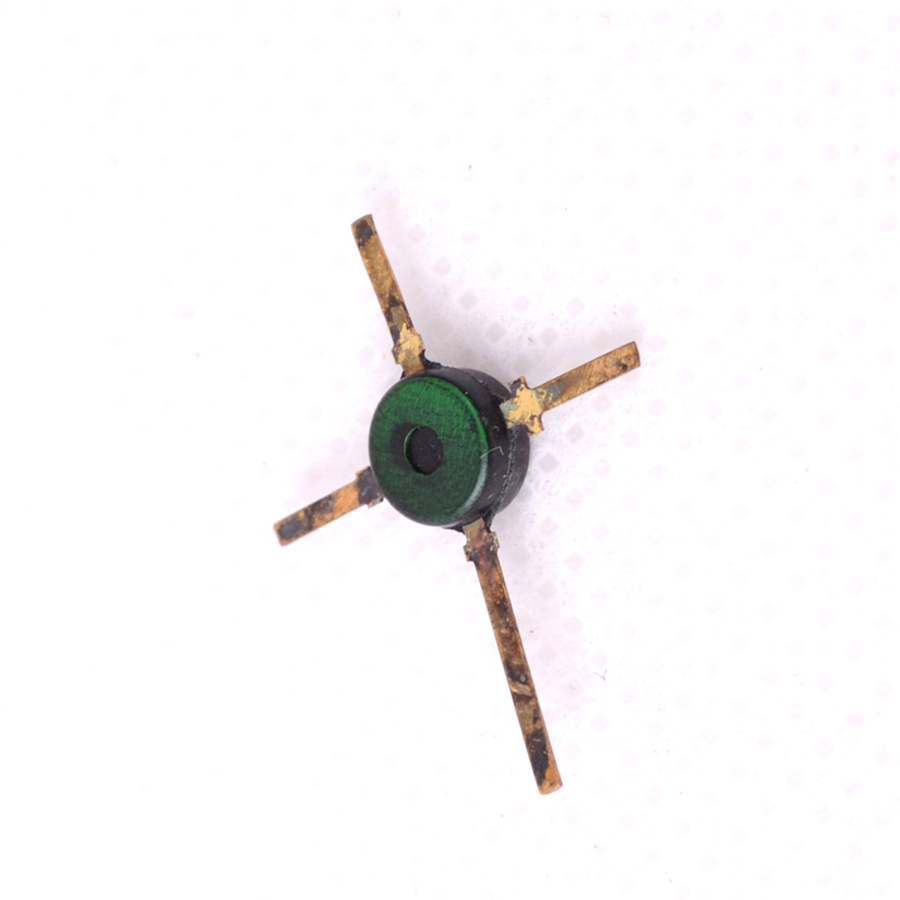

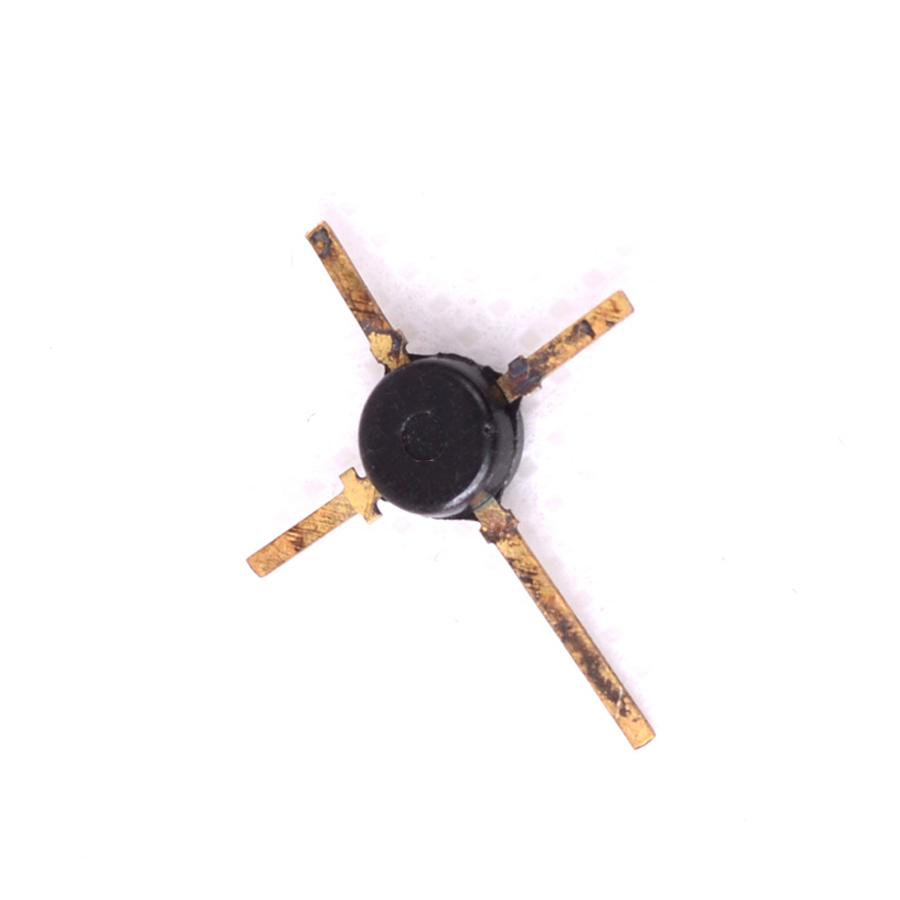

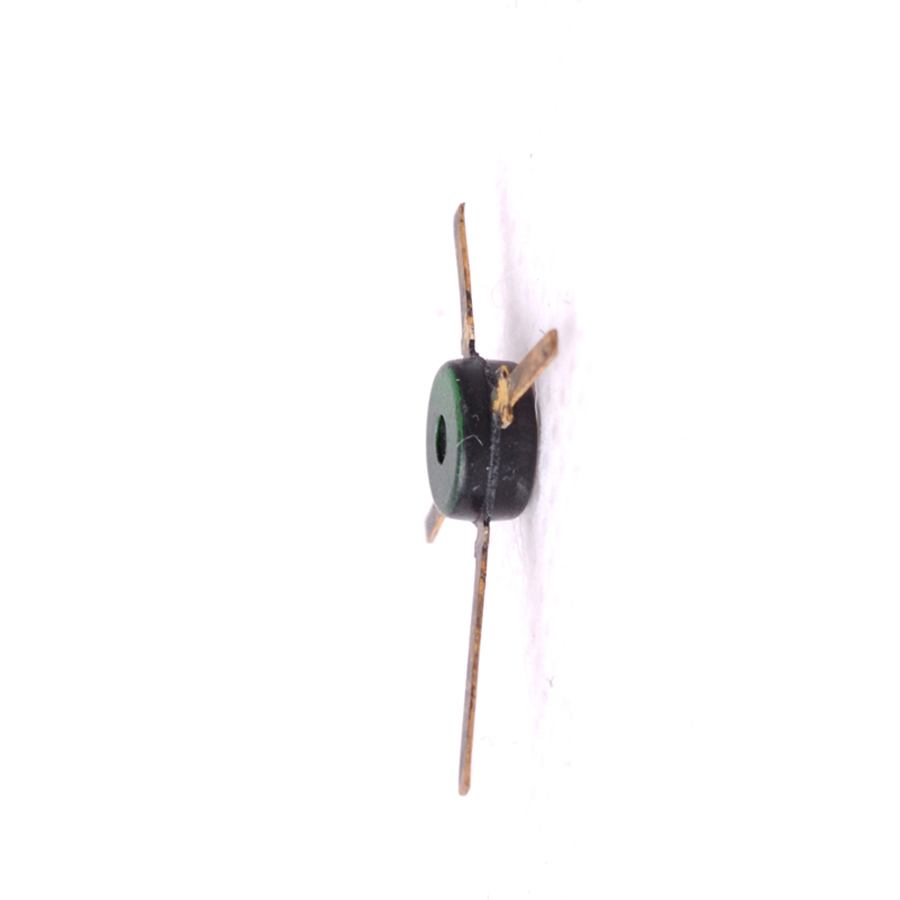

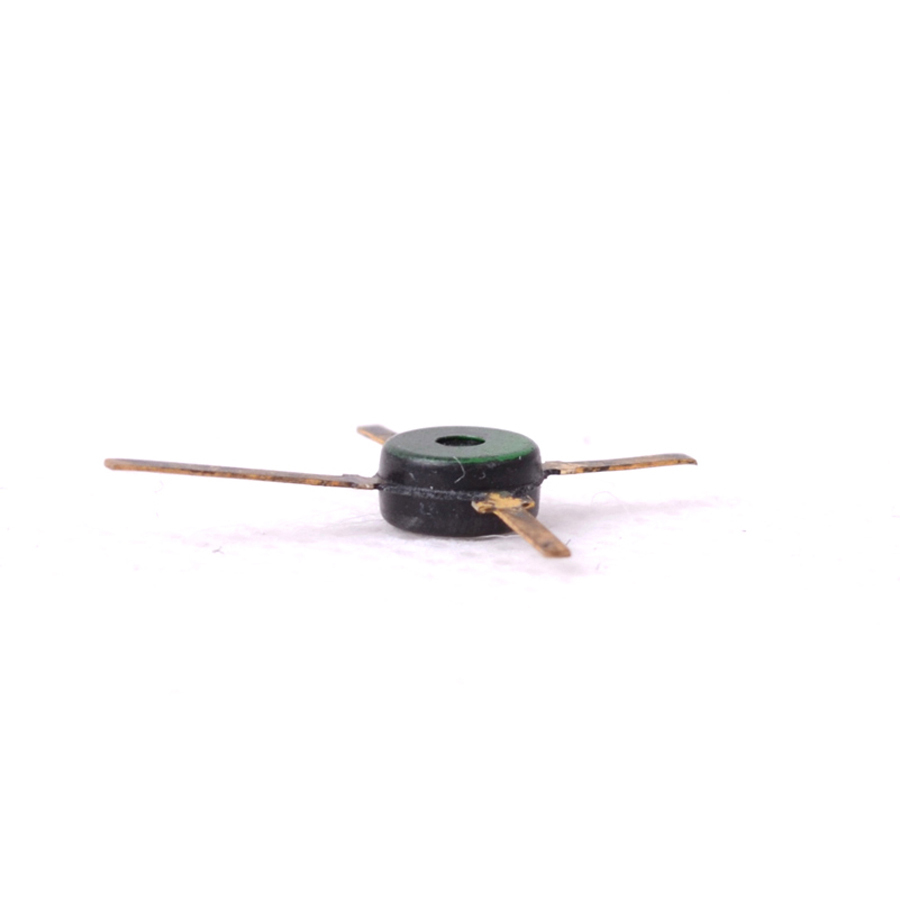

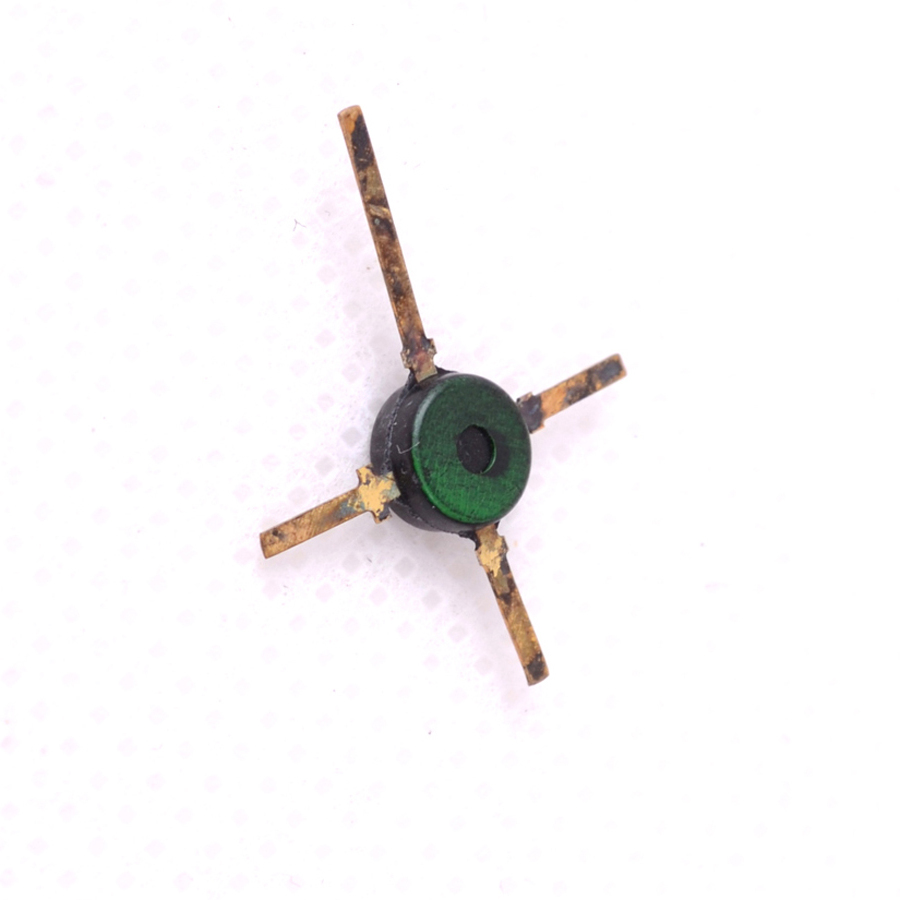

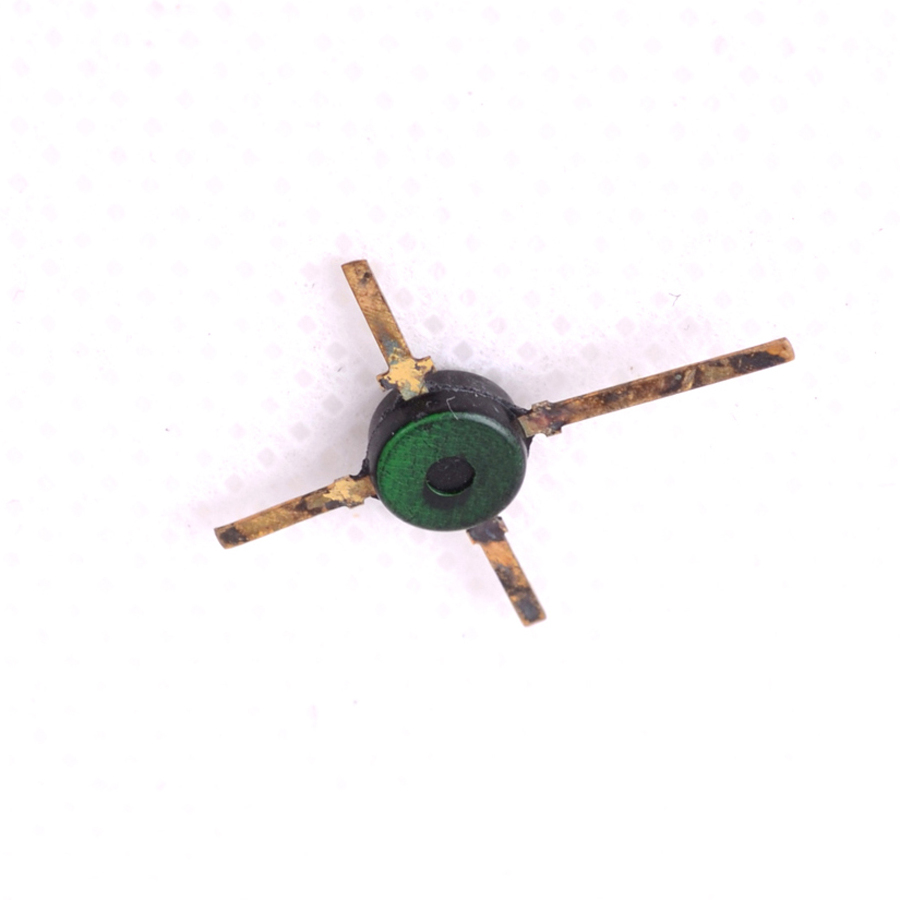

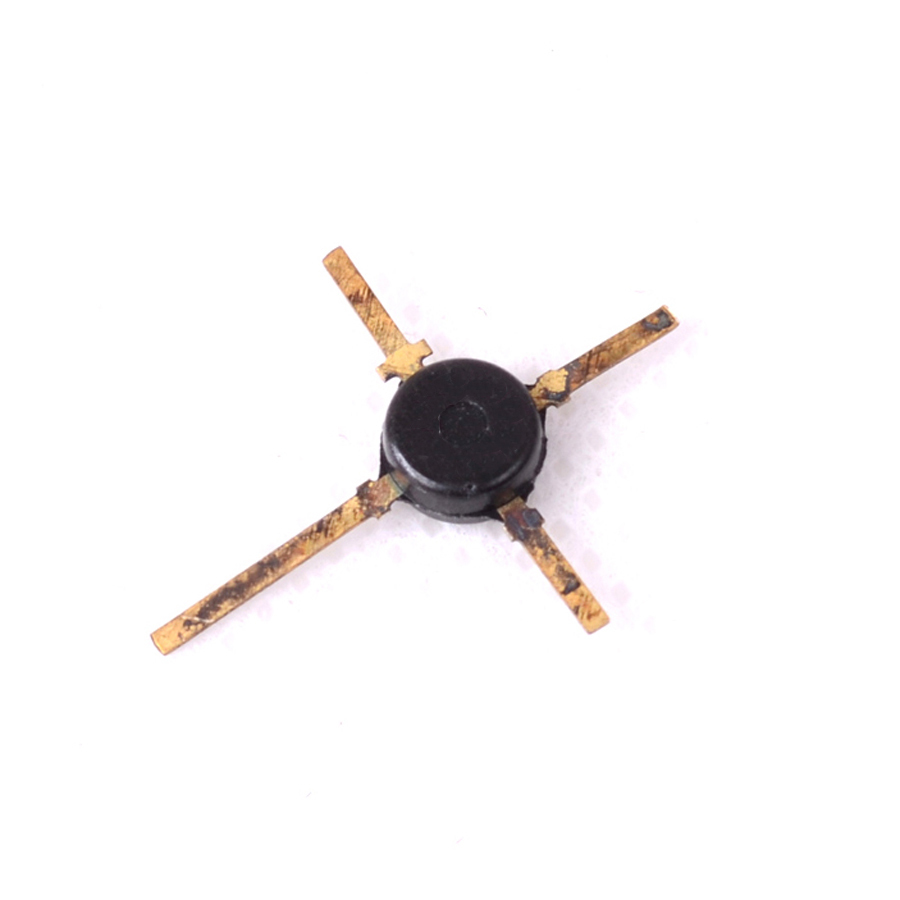

BFG34 Transistor Silicon NPN CASE: SOT103 MAKE: Philips
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Philips
Vbr CBO 25
@Freq. (test) 2.0G
@Ic (A) 20
@Ic (A) 100m
Mat. Silicon Logic
Noise Fig. 2.3
Oper. Gain Typ (S21) 7.0
Oper. Pwr Out Typ. 22
Polarity NPN
PD Max. (W) 1.0
S11 Deg. (Typ) 139
S11 Mag Typ. .75
S22 Deg. Typ. 175
S22 Mag Typ. .24
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 150m
@Freq. (test) 800M
@VCE (test) 10
Oper. Temp (°C) Max. 175
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 18 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 3700 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 407490
