BFG480W
View detailed images (4)

BFG480W

SKU: BFG480W

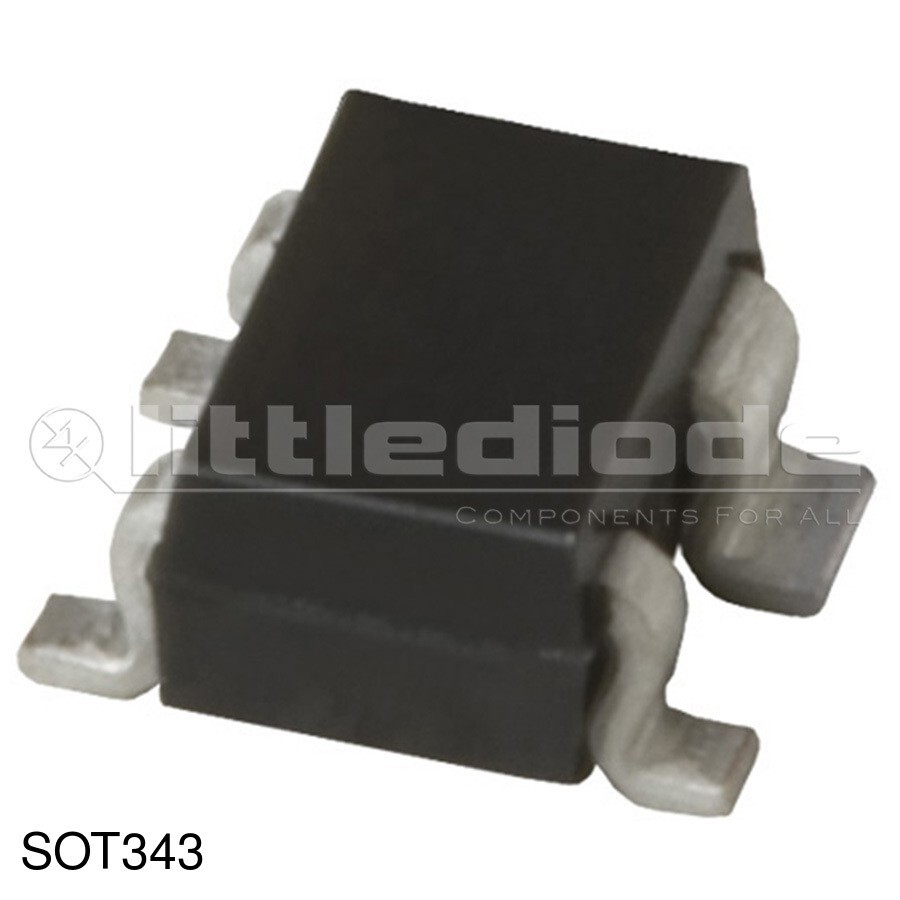

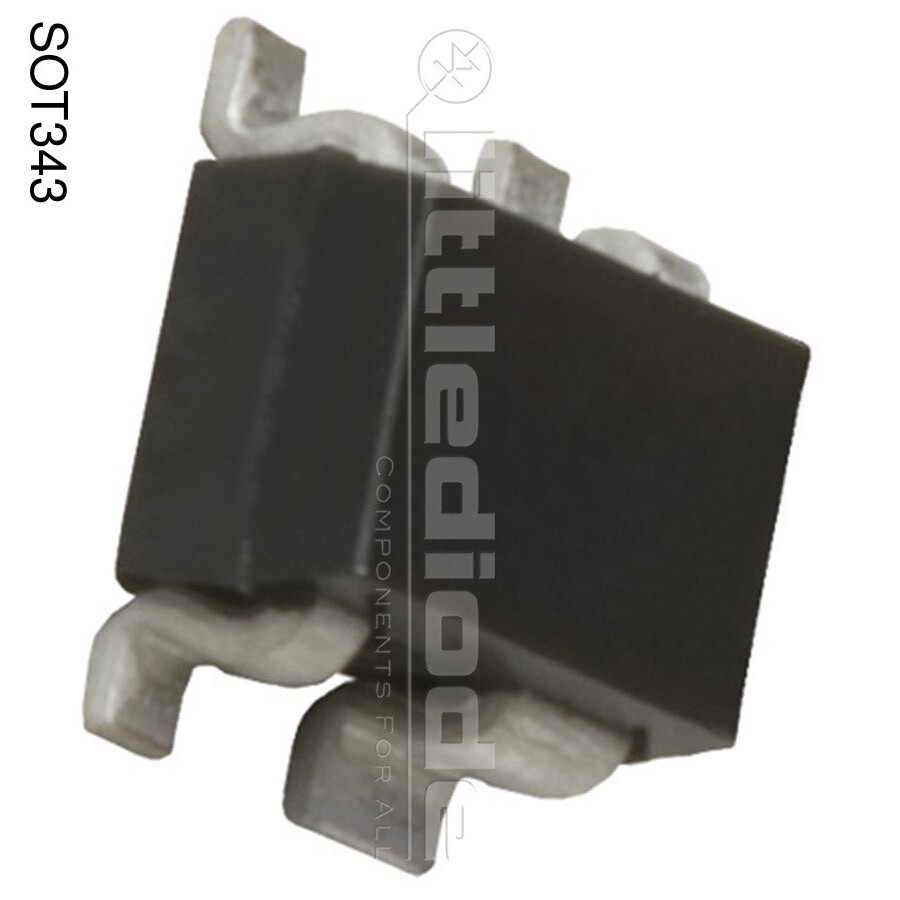

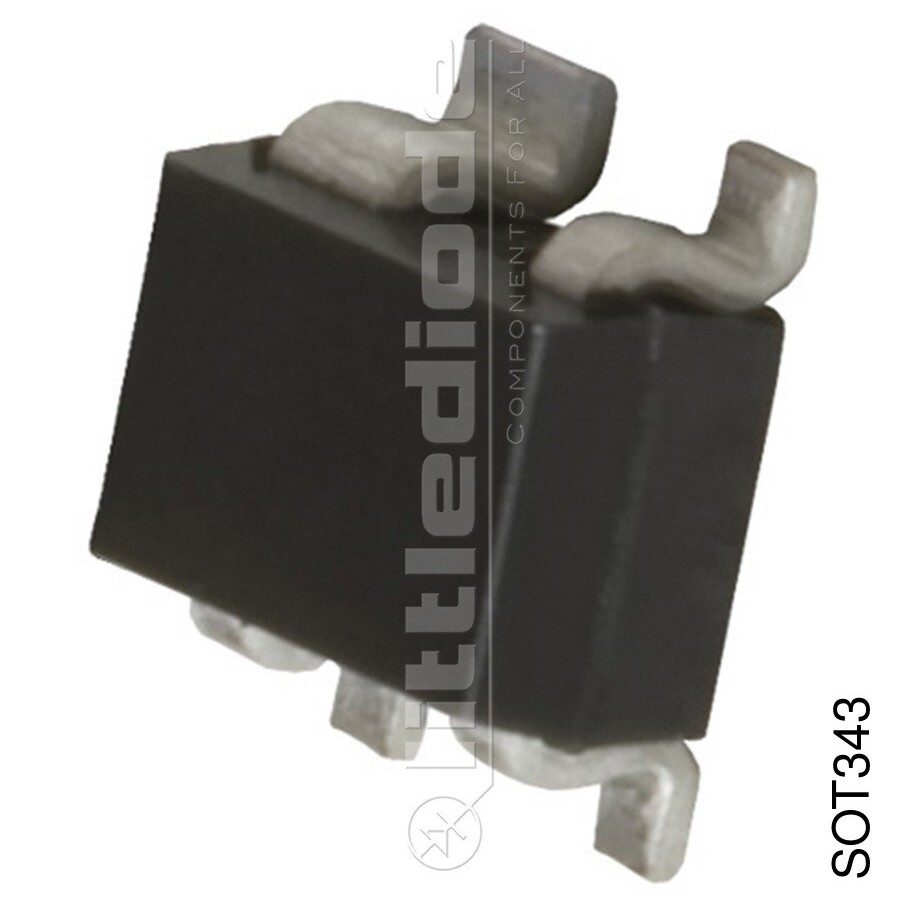

BFG480W Transistor Silicon NPN CASE: SOT343 MAKE: Philips
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case SOT343
Manufacturer Philips
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 14.5 V
Maximum Collector-Emitter Voltage |Vce| 4.5 V
Maximum Emitter-Base Voltage |Veb| 1 V
Maximum Collector Current |Ic max| 0.25 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 1.4 pF
Transition Frequency (ft): 23000 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 562354
