BFG91A
View detailed images (13)

BFG91A

SKU: BFG91A

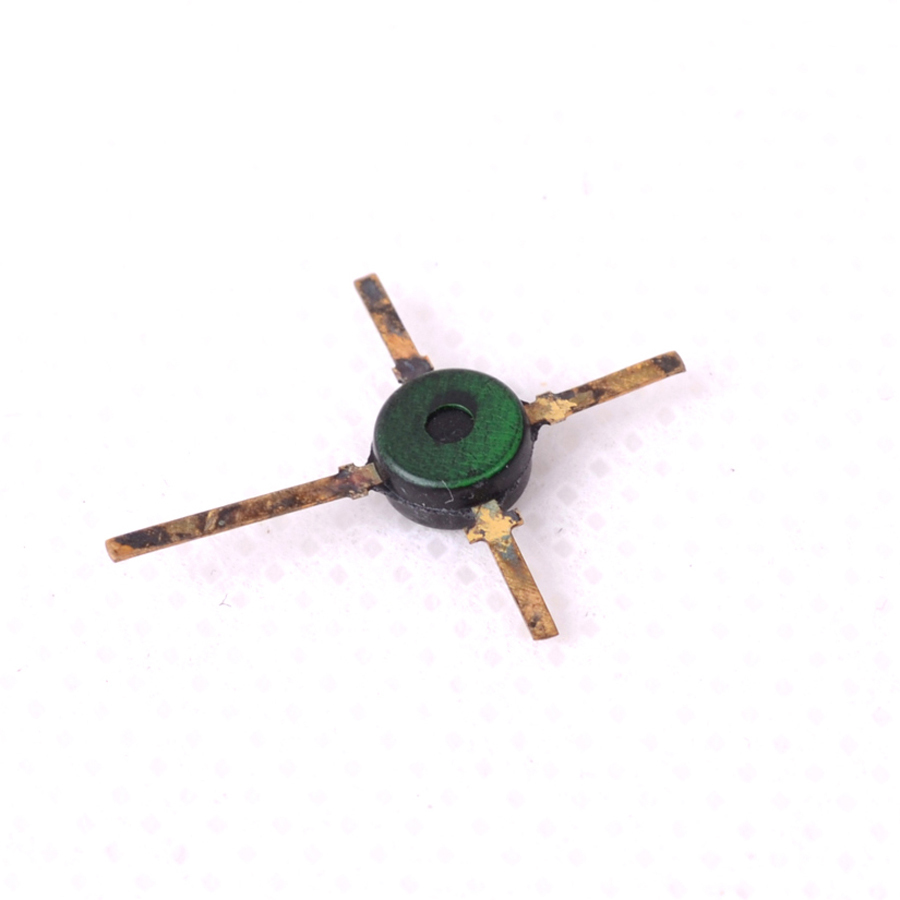

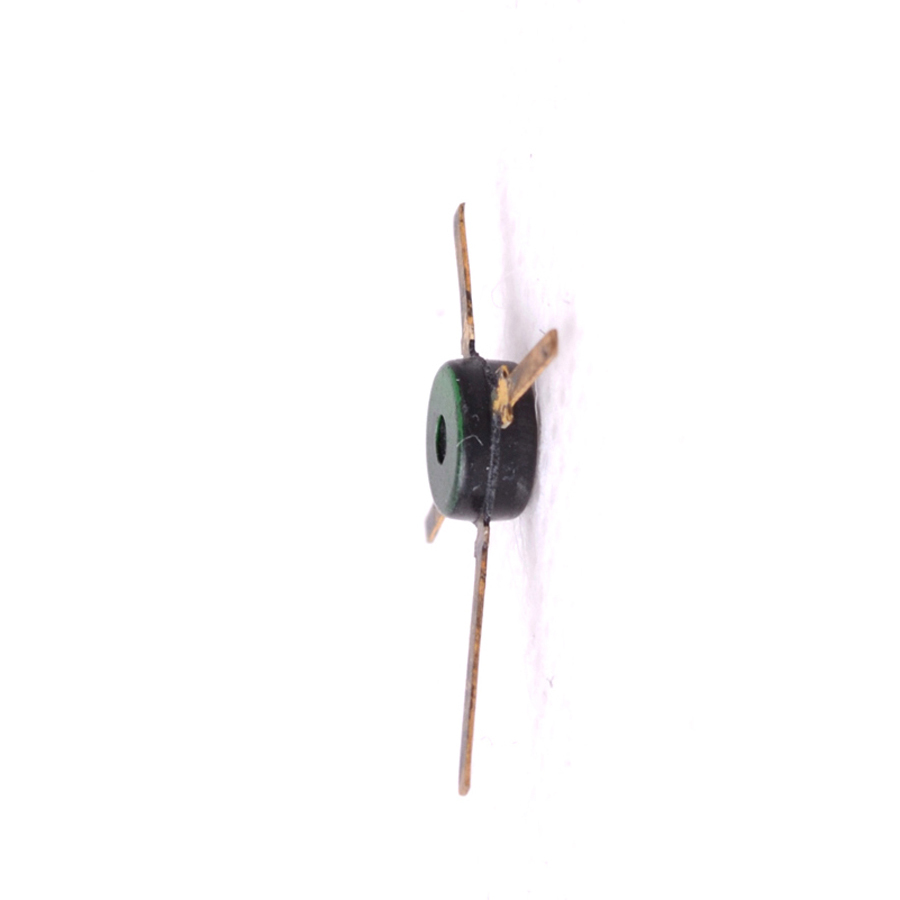

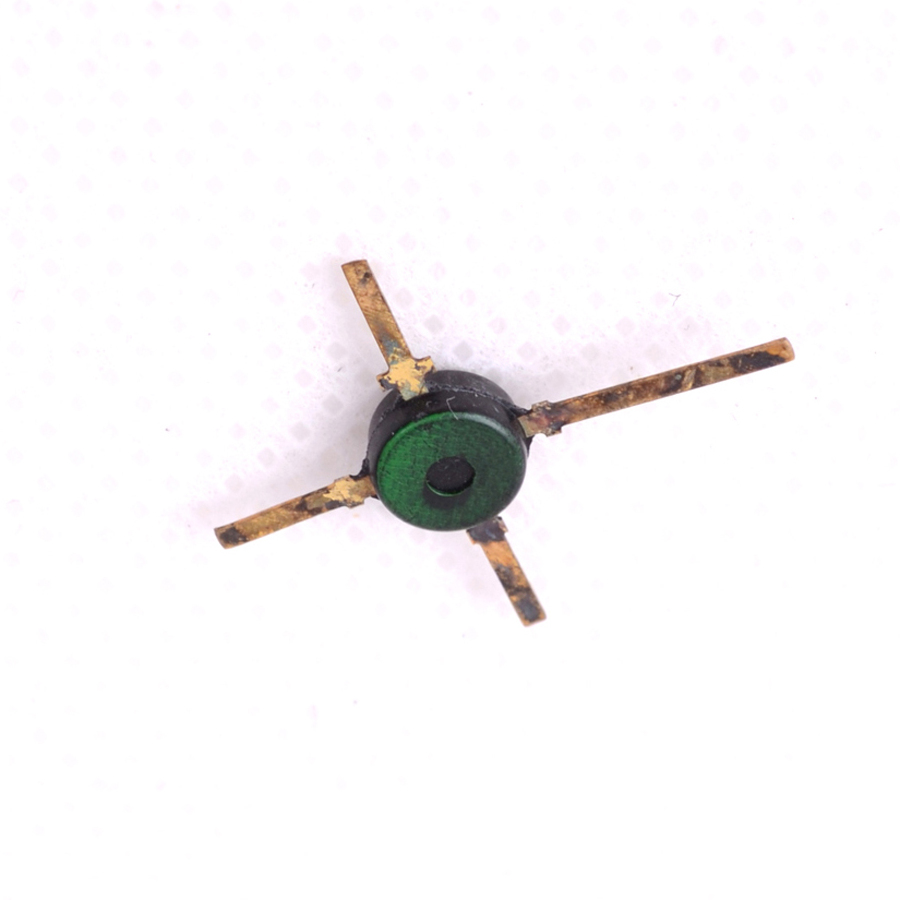

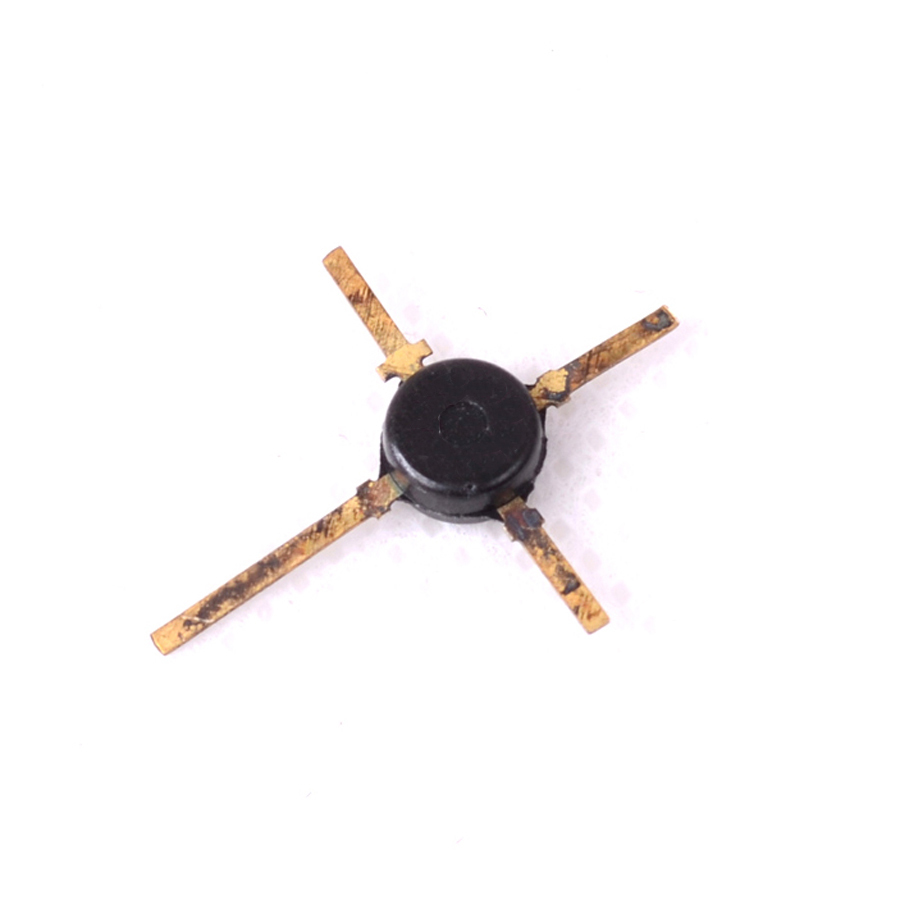

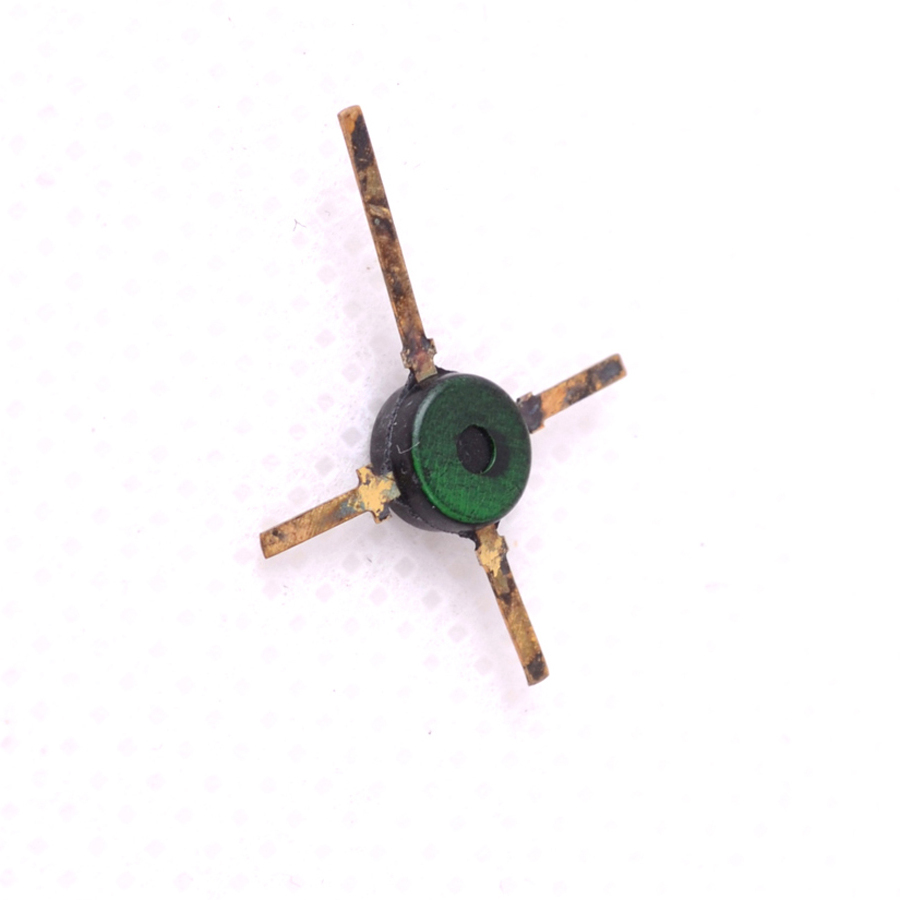

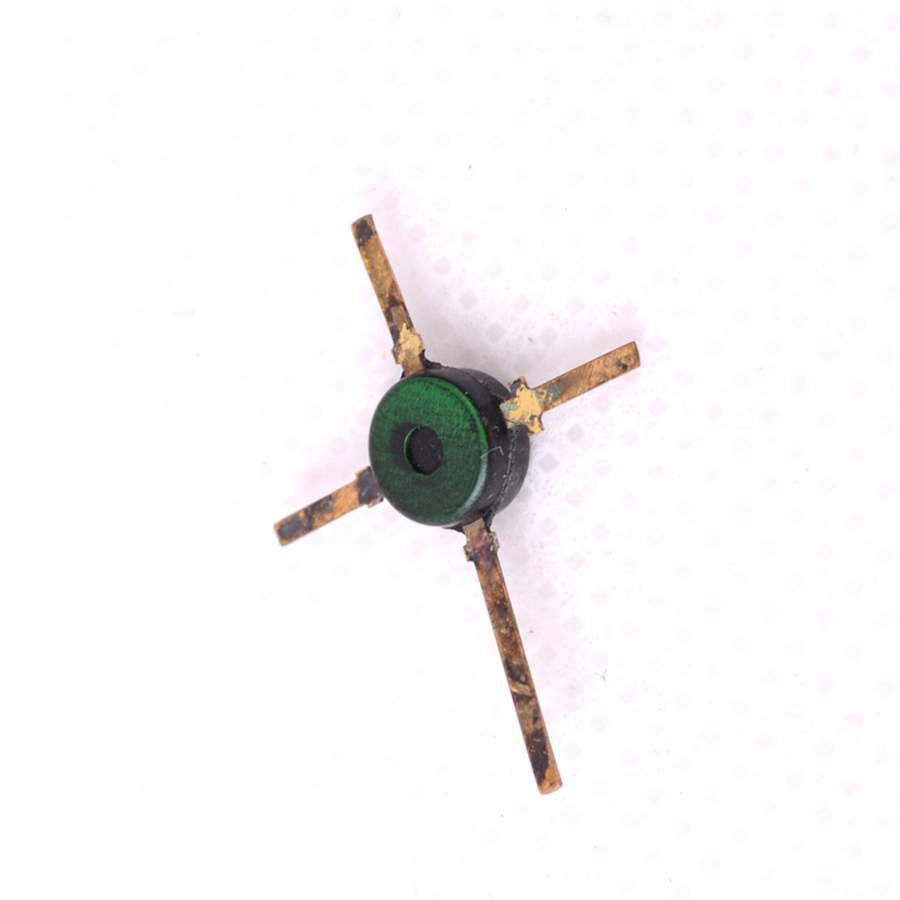

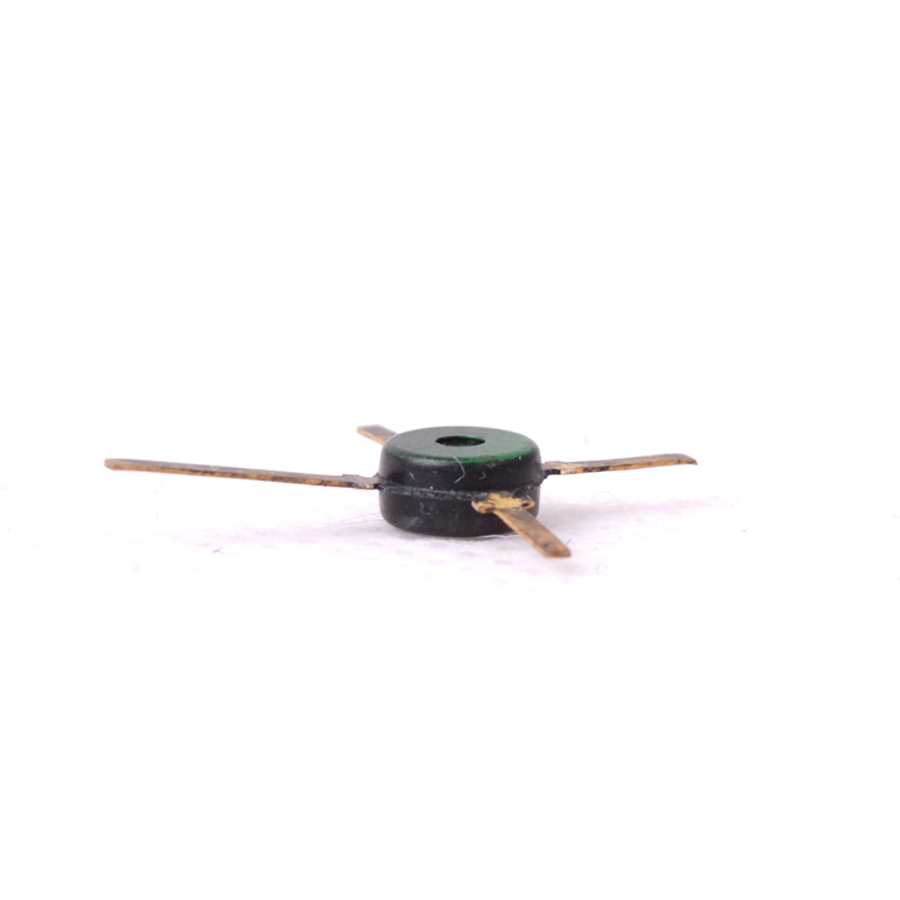

BFG91A Transistor - CASE: SOT103 MAKE: Philips
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer Philips
Vbr CBO 15
@Freq. (test) 800M
@Ic (A) 30m
@Ic (A) 30m
Mat. Silicon Logic
Noise Fig. 2.3
Oper. Gain Typ (S21) 18
Oper. Pwr Out Typ. 17+
Polarity NPN
PD Max. (W) 300m
S11 Deg. (Typ) 172
S11 Mag Typ. 0.57
S22 Deg. Typ. -50
S22 Mag Typ. .270
@VDS (VCE) (test) (V) 8
Coll. (or drain) Current Max. 35m
@Freq. (test) 800M
@VCE (test) 8
Oper. Temp (°C) Max. 175
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Collector Current |Ic max| 0.035 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 6000 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 407496
