BFG96
View detailed images (13)

BFG96

SKU: BFG96

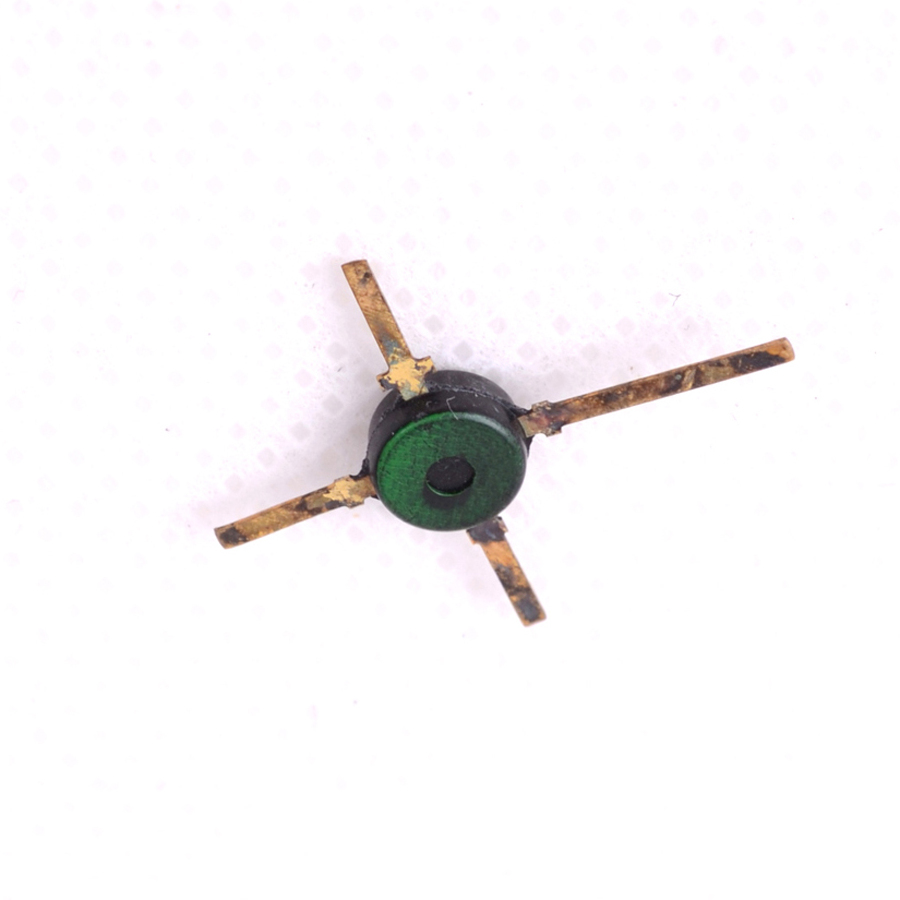

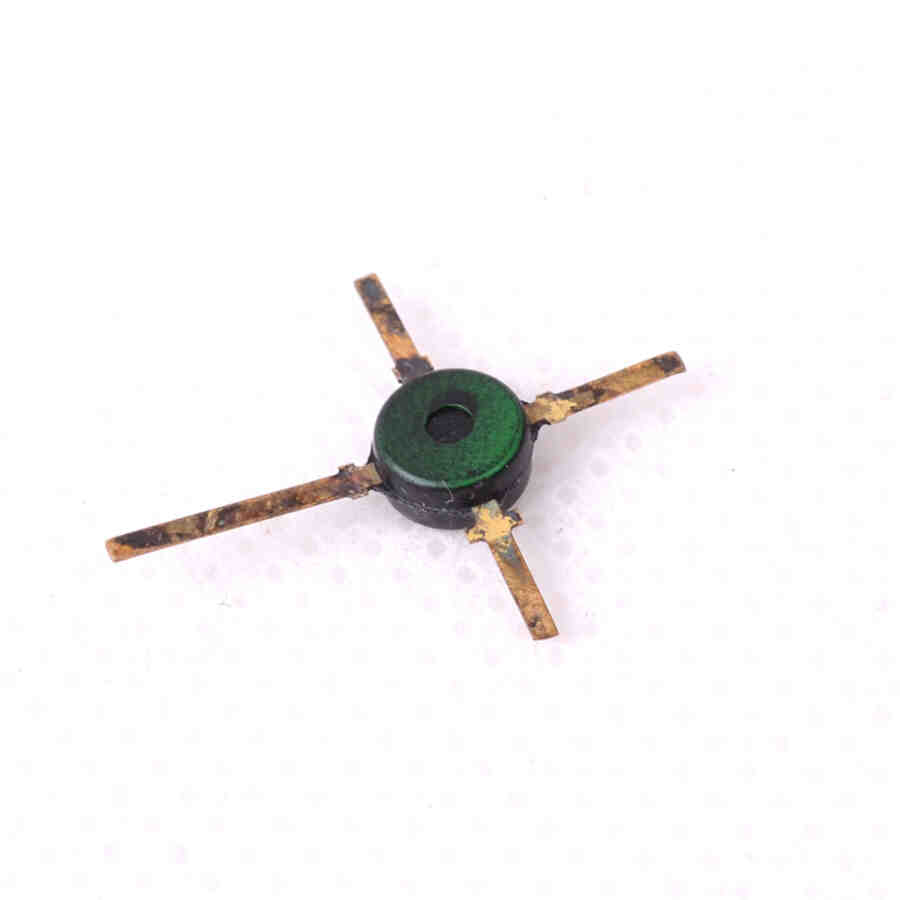

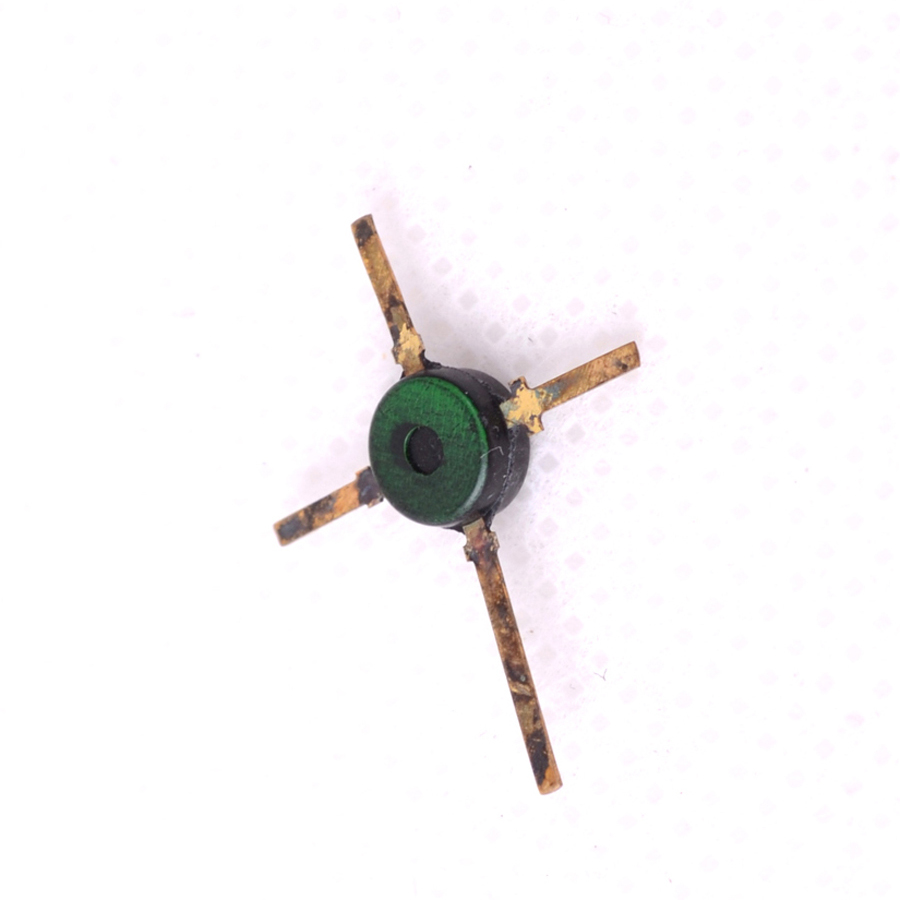

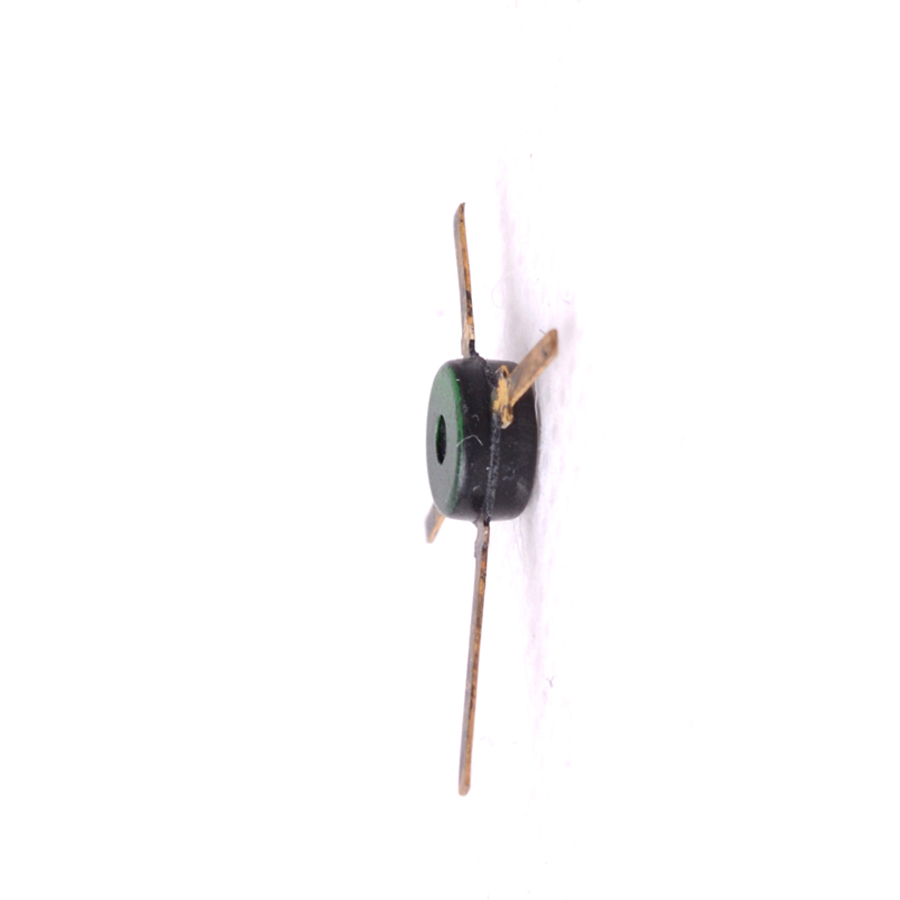

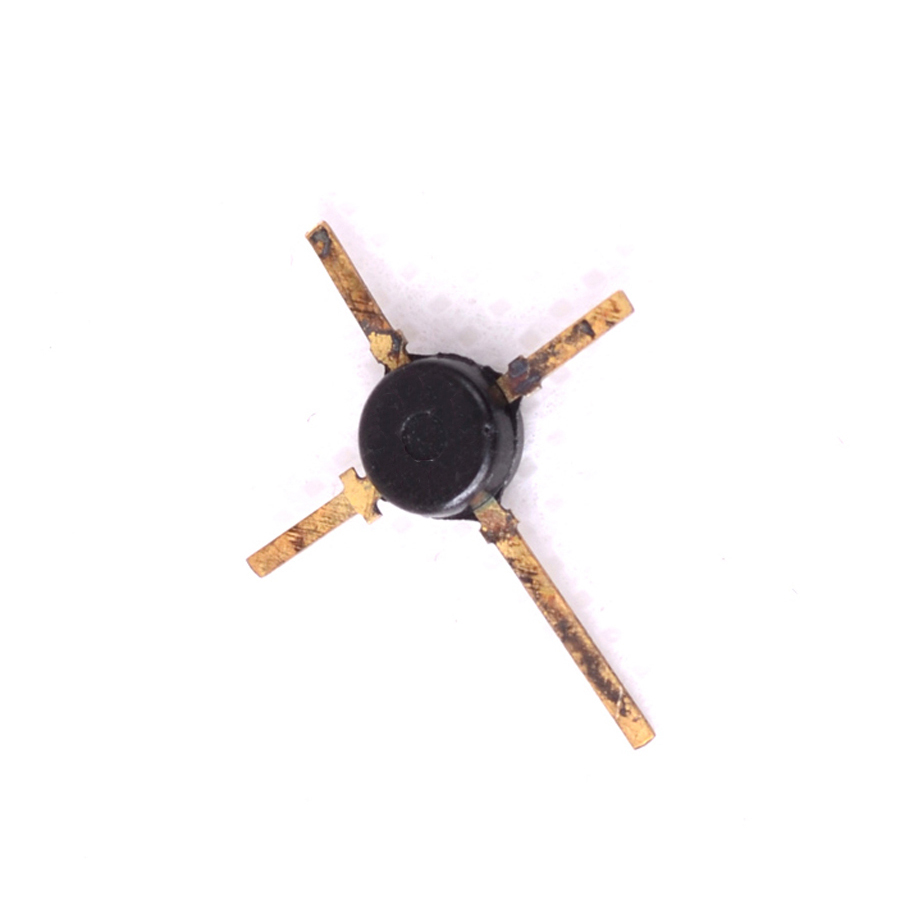

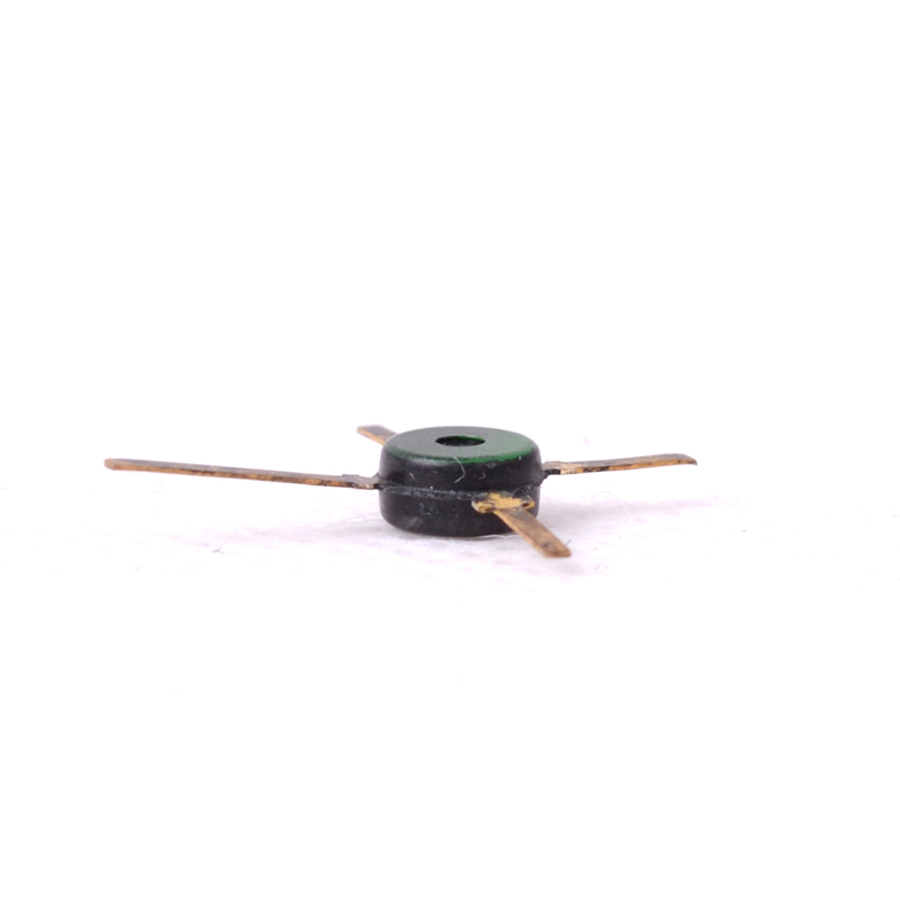

BFG96 Transistor Silicon NPN CASE: SOT103 MAKE: NXP Semiconductors
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT103
Manufacturer NXP Semiconductors
Vbr CBO 20
@Freq. (test) 800M
@Ic (A) 70m
@Ic (A) 50m
Mat. Silicon Logic
Noise Fig. 4.0
Oper. Gain Typ (S21) 15
Oper. Pwr Out Typ. 21+
Polarity NPN
PD Max. (W) 700m
S11 Deg. (Typ) 167
S11 Mag Typ. .67
S22 Deg. Typ. 155
S22 Mag Typ. .19
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 75m
@Freq. (test) 800m
@VCE (test) 10
Oper. Temp (°C) Max. 175
Pinout Equivalence Number N/A
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.7 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Collector Current |Ic max| 0.075 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 5000 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 366365
