BFP67W
View detailed images (4)

BFP67W

SKU: BFP67W

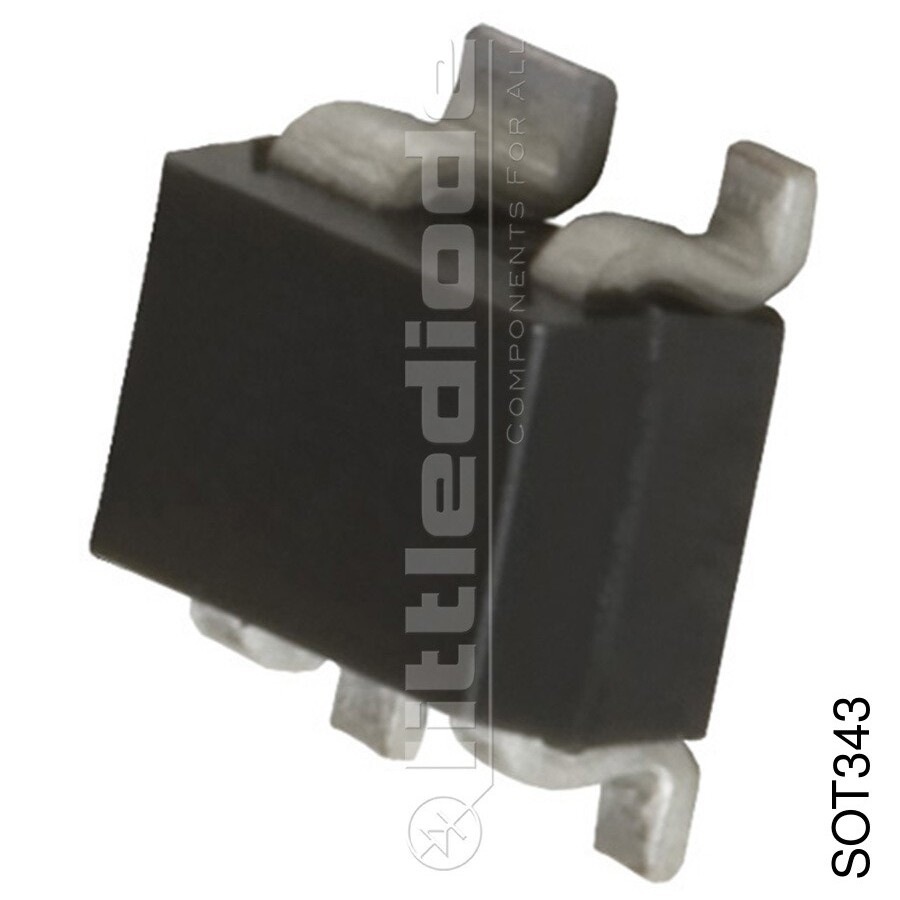

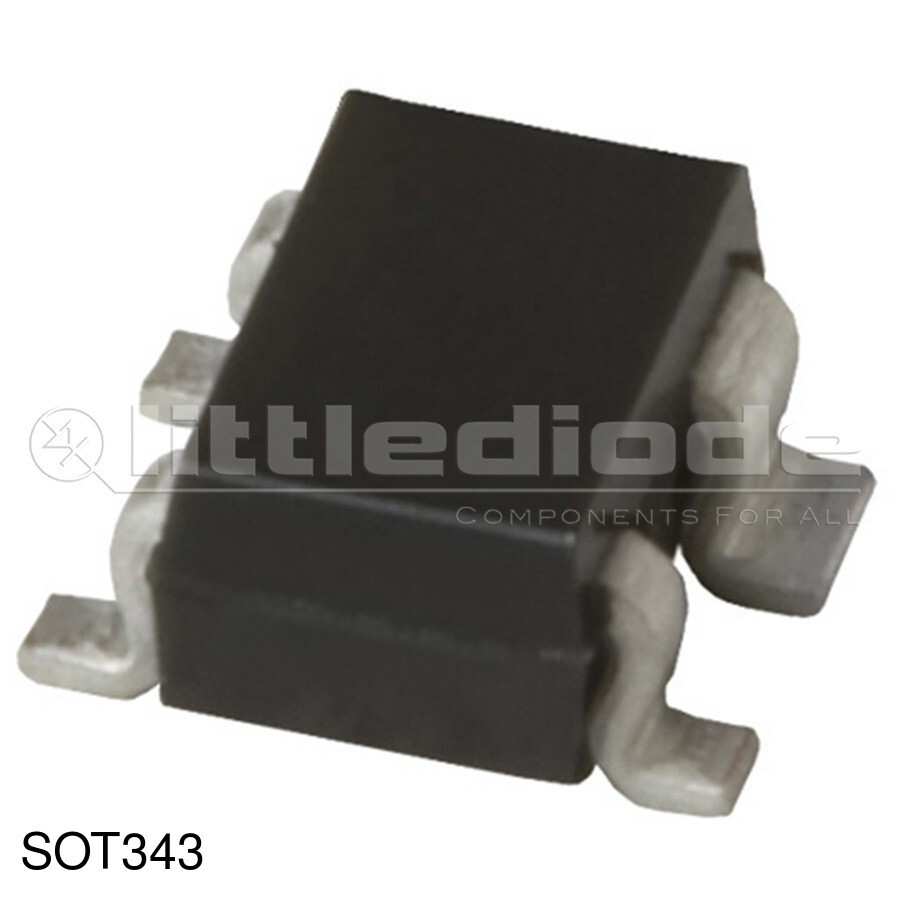

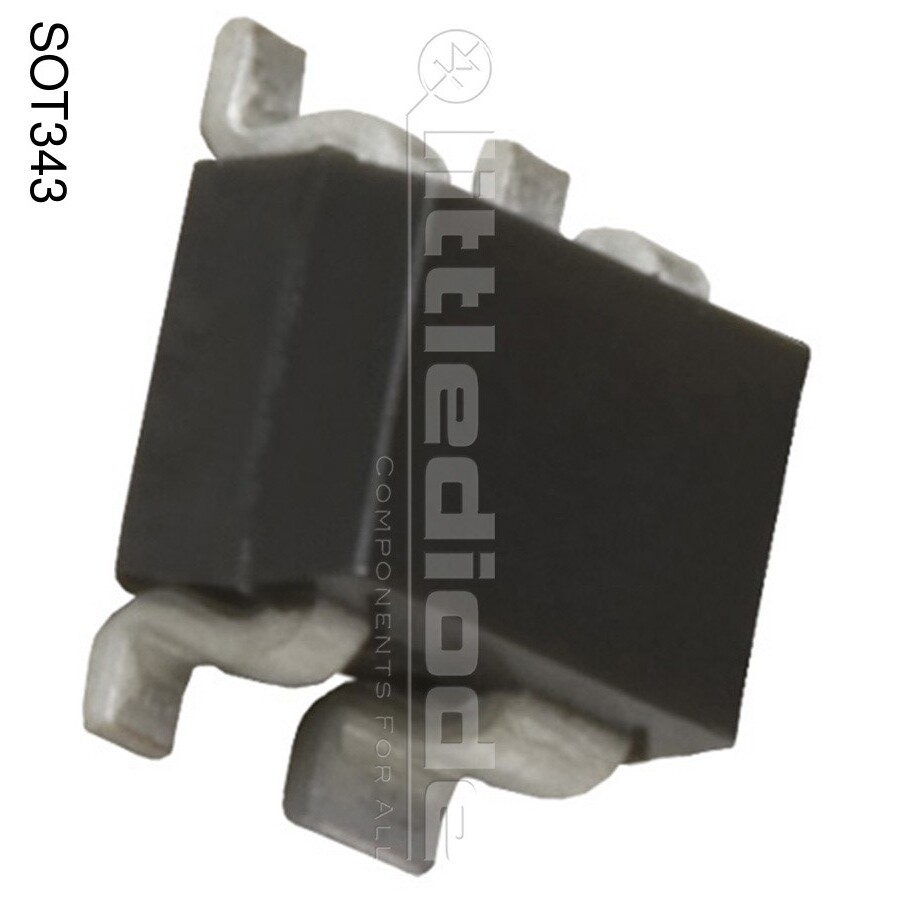

BFP67W Transistor Silicon NPN CASE: SOT343 MAKE: Temic
Datasheet
BFP67W Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT343
Manufacturer Temic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.5 pF
Transition Frequency (ft): 7500 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SMD Transistor Code W67
SKU 582253
