BFQ265A
View detailed images (5)

BFQ265A

SKU: BFQ265A

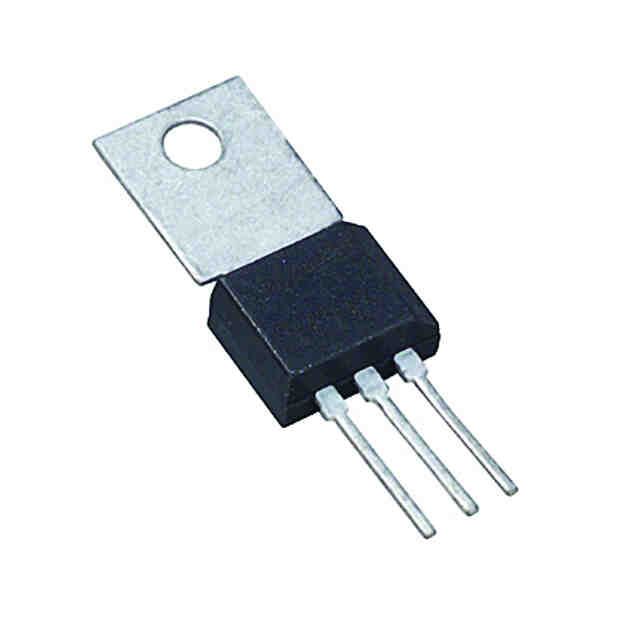

BFQ265A Transistor Silicon PNP CASE: SOT128 MAKE: Philips
Product specifications
Type Transistor Silicon PNP
Case SOT128
Manufacturer Philips
Vbr CBO 115
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 5.0
Coll. (or drain) Current Max. 400m
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 5 W
Maximum Collector-Base Voltage |Vcb| 115 V
Maximum Collector-Emitter Voltage |Vce| 70 V
Maximum Collector Current |Ic max| 0.4 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 1400 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SKU 136616
