BFQ69
View detailed images (4)

BFQ69

SKU: BFQ69

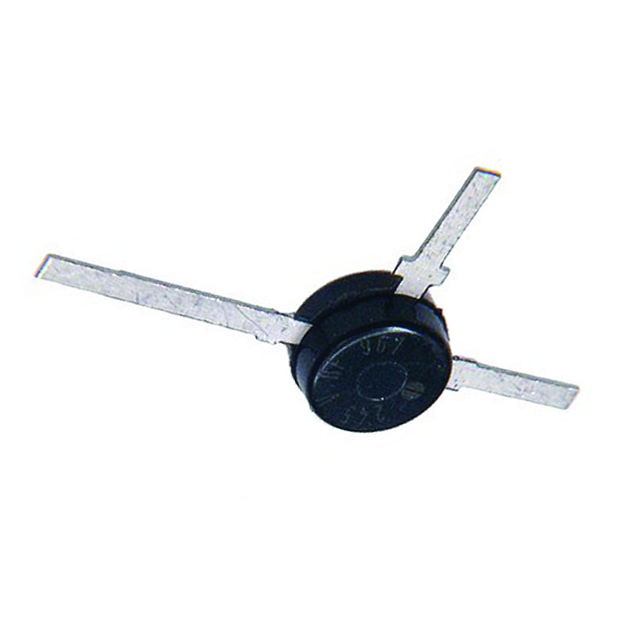

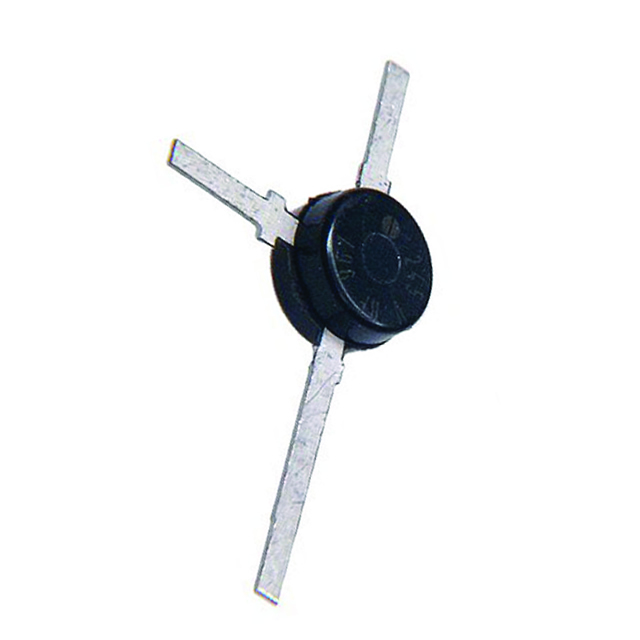

BFQ69 Transistor Silicon NPN CASE: SOT37 MAKE: Siemens Semiconductors
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 360 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT37
Manufacturer Siemens Semiconductors
Vbr CBO 25
@Ic (A) 15m
Mat. Silicon Logic
Noise Fig. 1.6
Oper. Gain Typ (S21) 11
f(osc) Max. (Hz) 5.5G
Polarity NPN
PD Max. (W) 200m
Coll. (or drain) Current Max. 30m
@Freq. (test) 800M
@VCE (test) 10
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 5800 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 83154
