BFQ77
View detailed images (4)

BFQ77

SKU: BFQ77

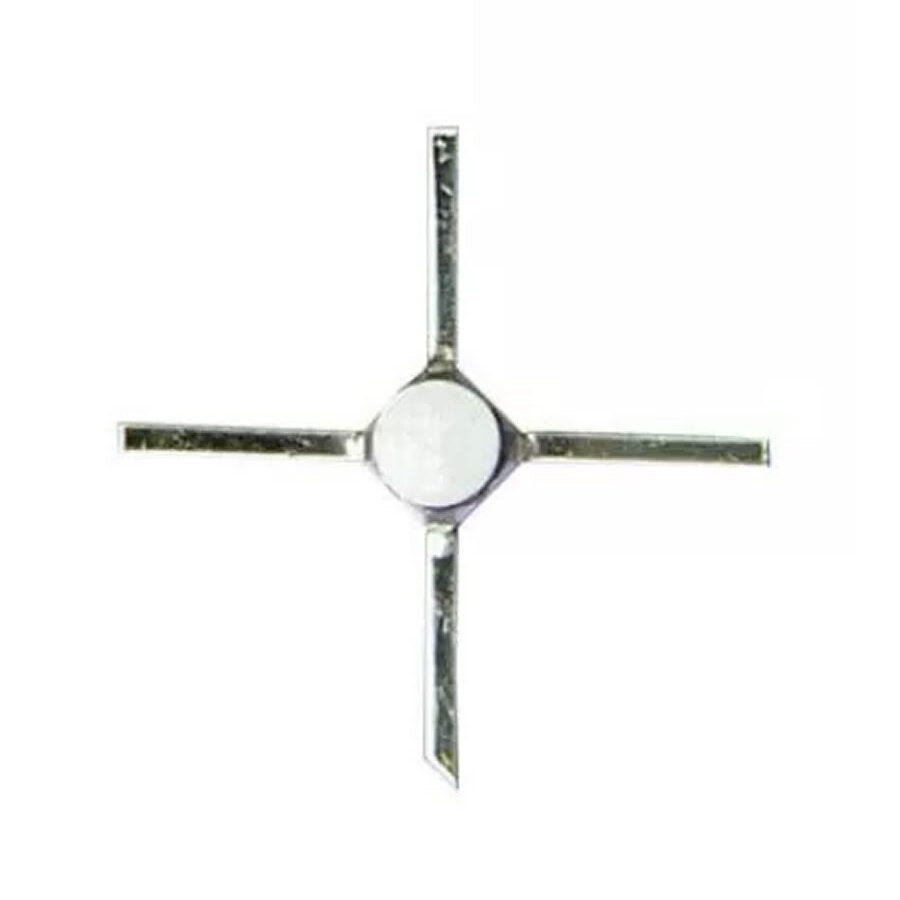

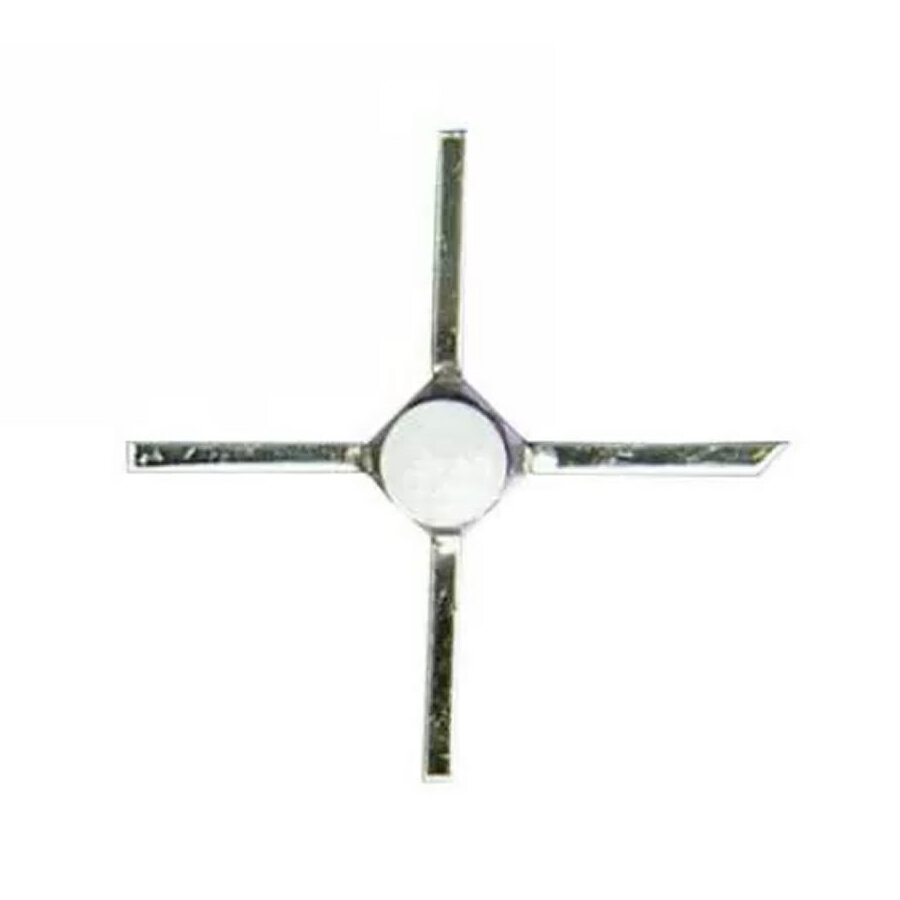

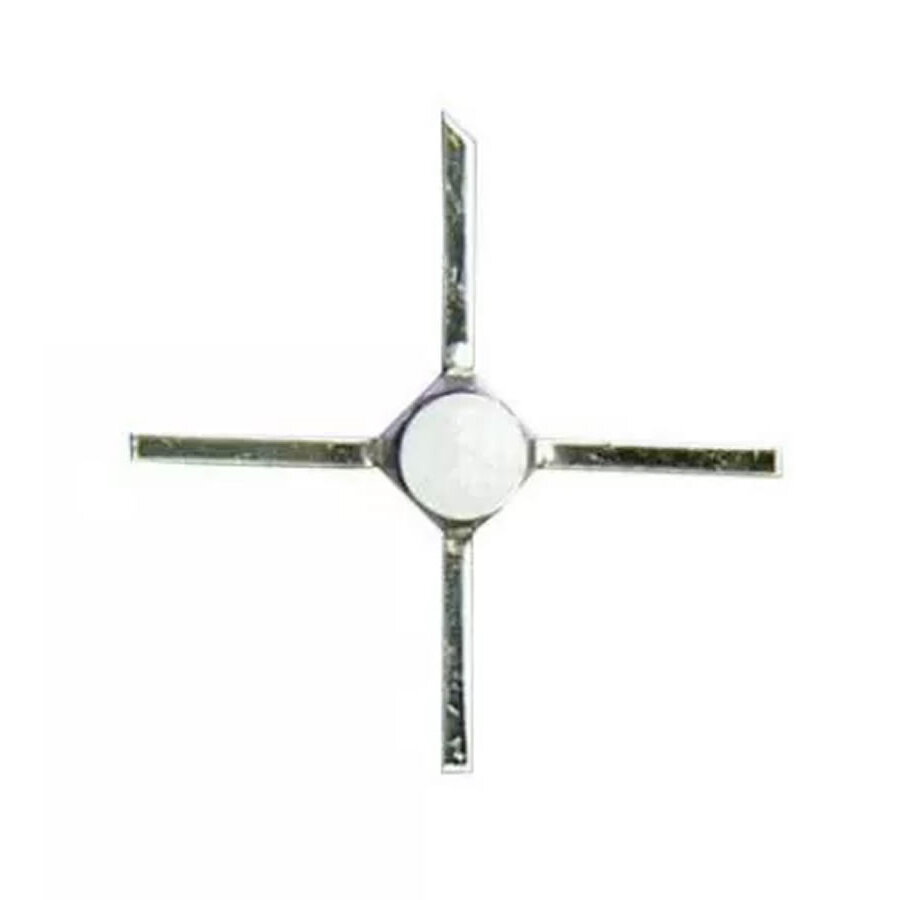

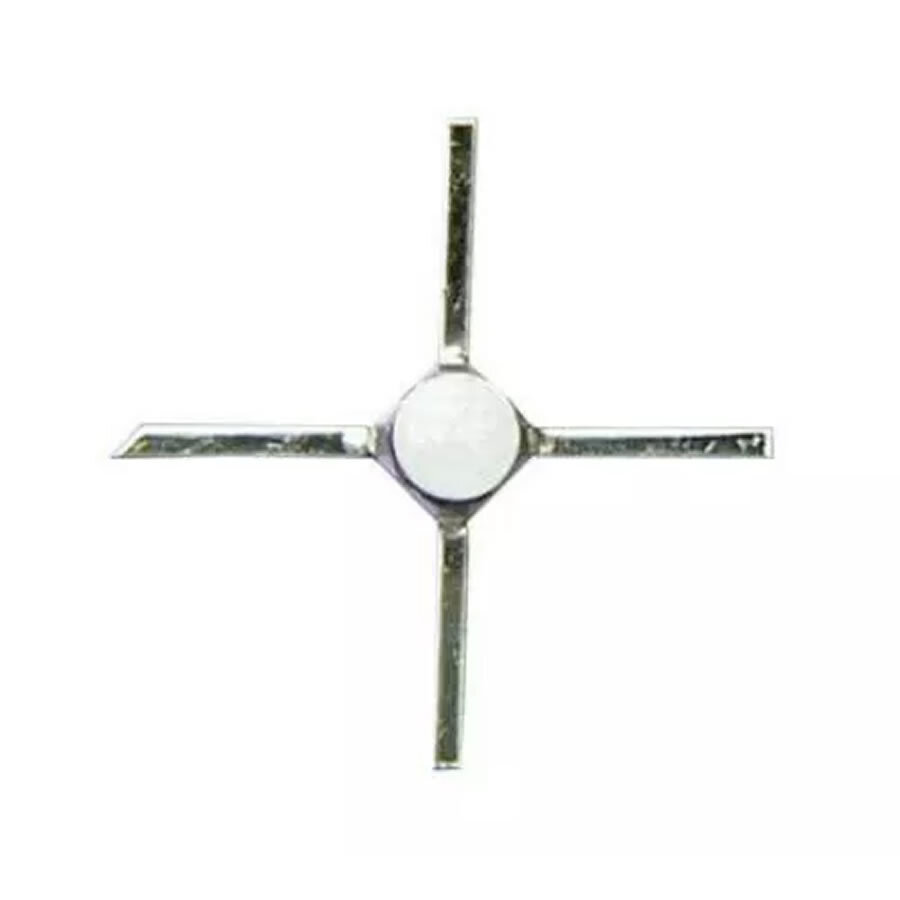

BFQ77 Transistor Silicon NPN CASE: SOT173 MAKE: Siemens Semiconductors
Product specifications
Type Transistor Silicon NPN
Case SOT173
Manufacturer Siemens Semiconductors
Vbr CBO 25
@Freq. (test) 6.0G
@Ic (A) 4.0m
@Ic (A) 2.5m
Mat. Silicon Logic
Noise Fig. 1.8
Oper. Gain Typ (S21) 13
f(osc) Max. (Hz) 7.0G
Polarity NPN
PD Max. (W) 250m
S11 Deg. (Typ) 121
S11 Mag Typ. .622
S22 Deg. Typ. -121
S22 Mag Typ. .576
@VDS (VCE) (test) (V) 6.0
Coll. (or drain) Current Max. 20m
@Freq. (test) 2.0G
@VCE (test) 10
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 4-29
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Collector Current |Ic max| 0.02 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 7000 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SMD Transistor Code 77
SKU 577307
