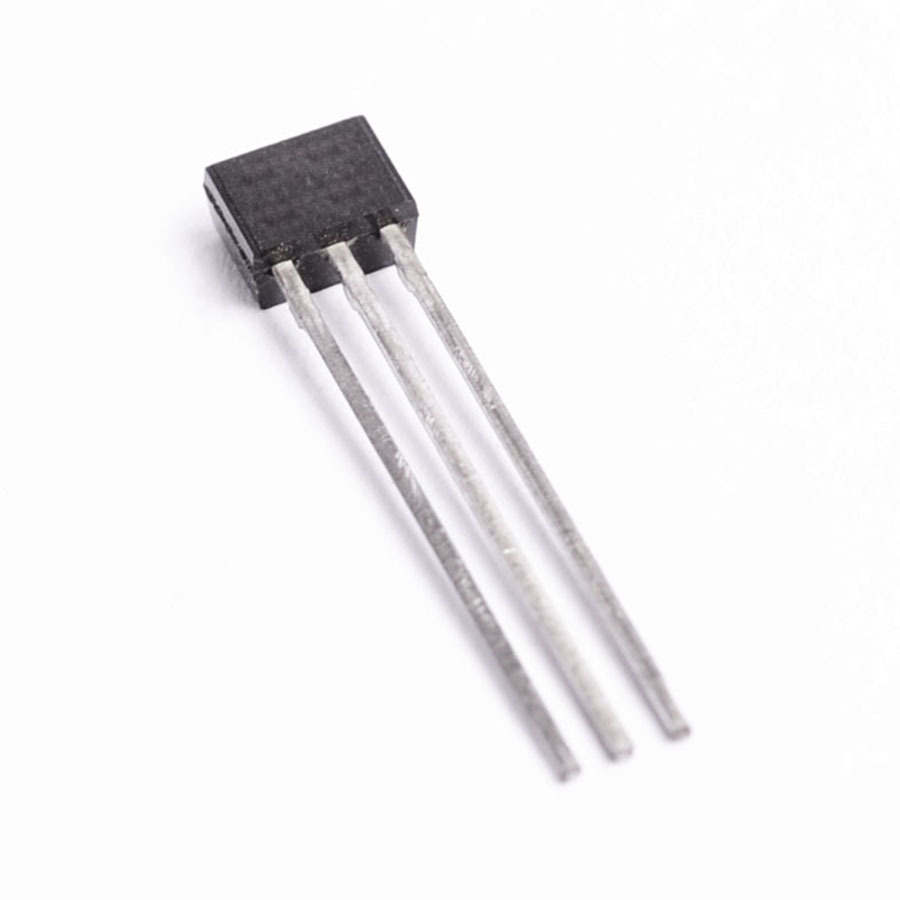

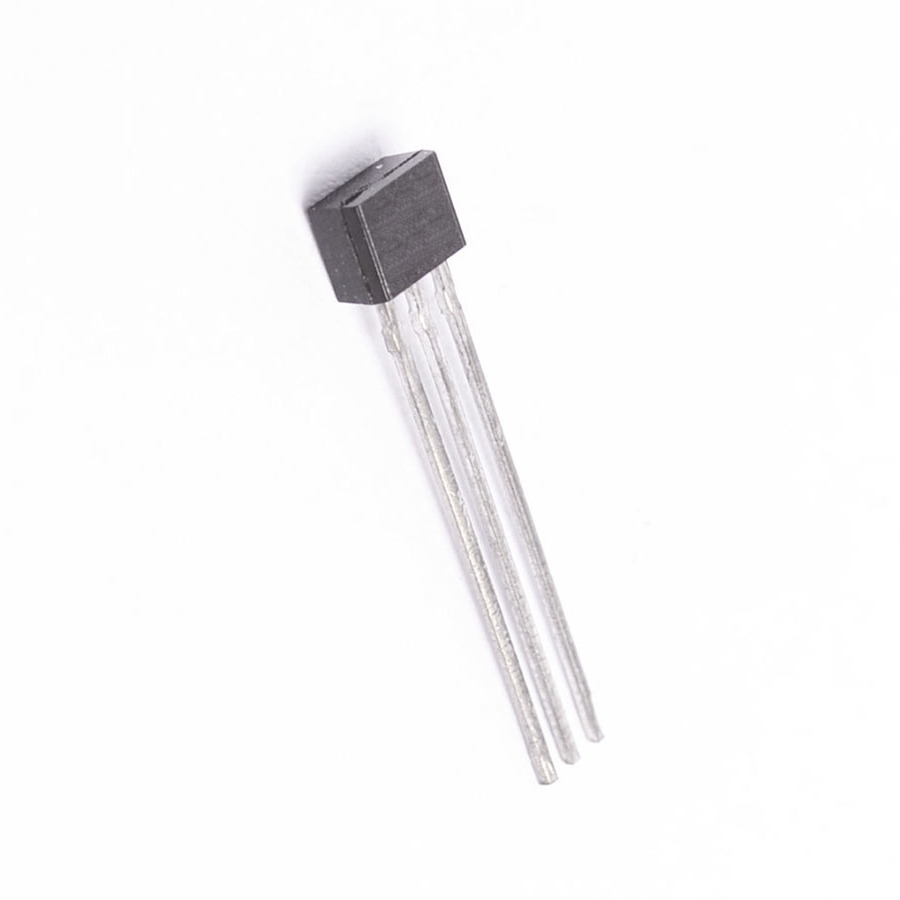

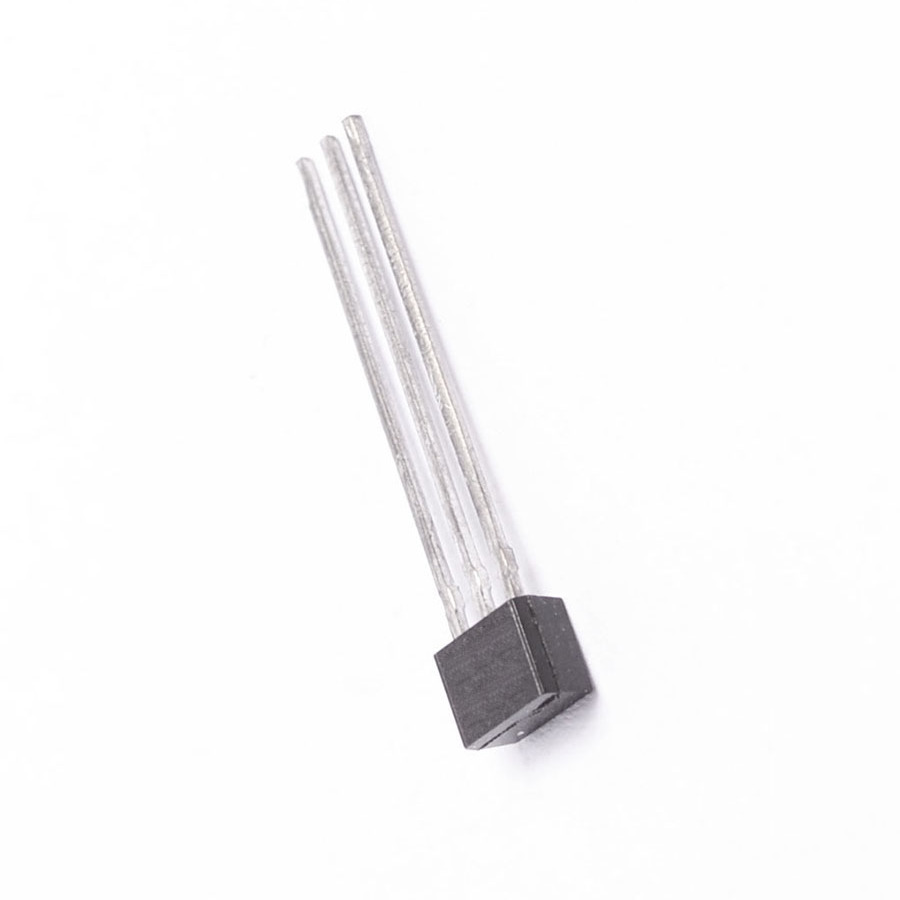

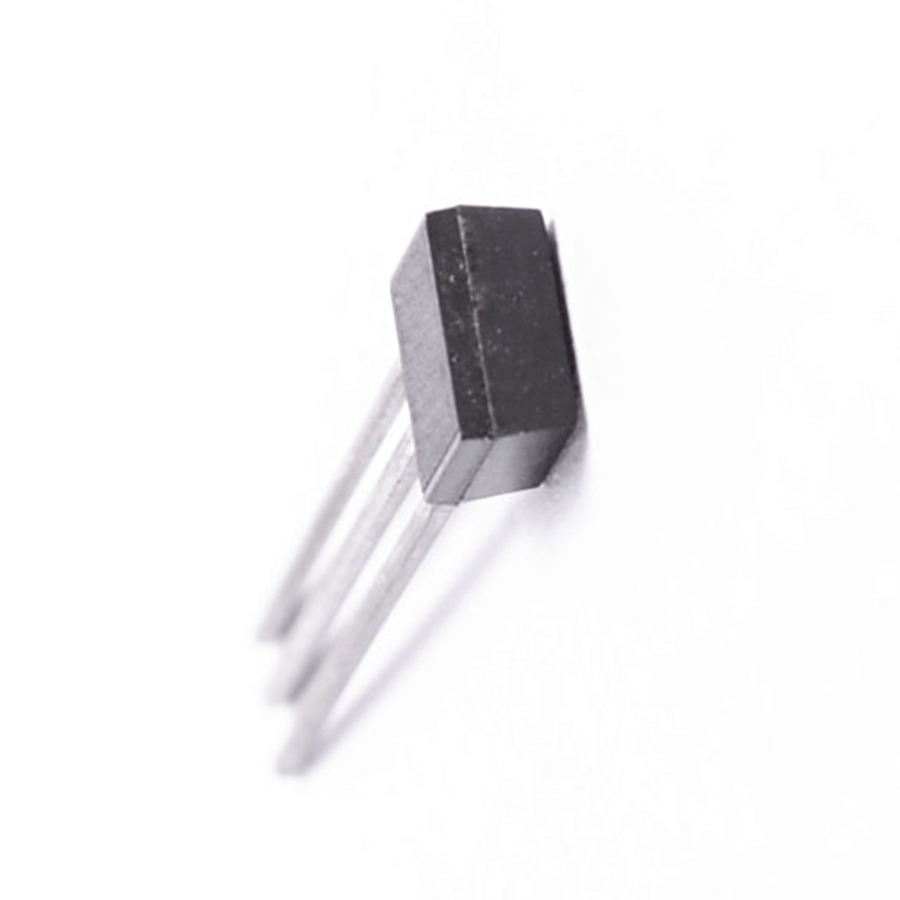

BFR14B Transistor Silicon NPN CASE: SOT100 MAKE: Siemens Semiconductors
Datasheet
BFR14B Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT100
Manufacturer Siemens Semiconductors
Vbr CBO 20
@Freq. (test) 2.0G
@Ic (A) 3.0m
@Ic (A) 15m
Mat. Silicon Logic
Noise Fig. 3.2
Oper. Gain Typ (S21) 12
f(osc) Max. (Hz) 6.0G
Polarity NPN
PD Max. (W) 250m
S11 Deg. (Typ) -175
S11 Mag Typ. .43
S22 Deg. Typ. -50
S22 Mag Typ. 0.48
@VDS (VCE) (test) (V) 10
Coll. (or drain) Current Max. 30m
@Freq. (test) 2.0G
@VCE (test) 10
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 4-28
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 3000 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SMD Transistor Code 14B
