BFR15A
View detailed images (4)

BFR15A

SKU: BFR15A

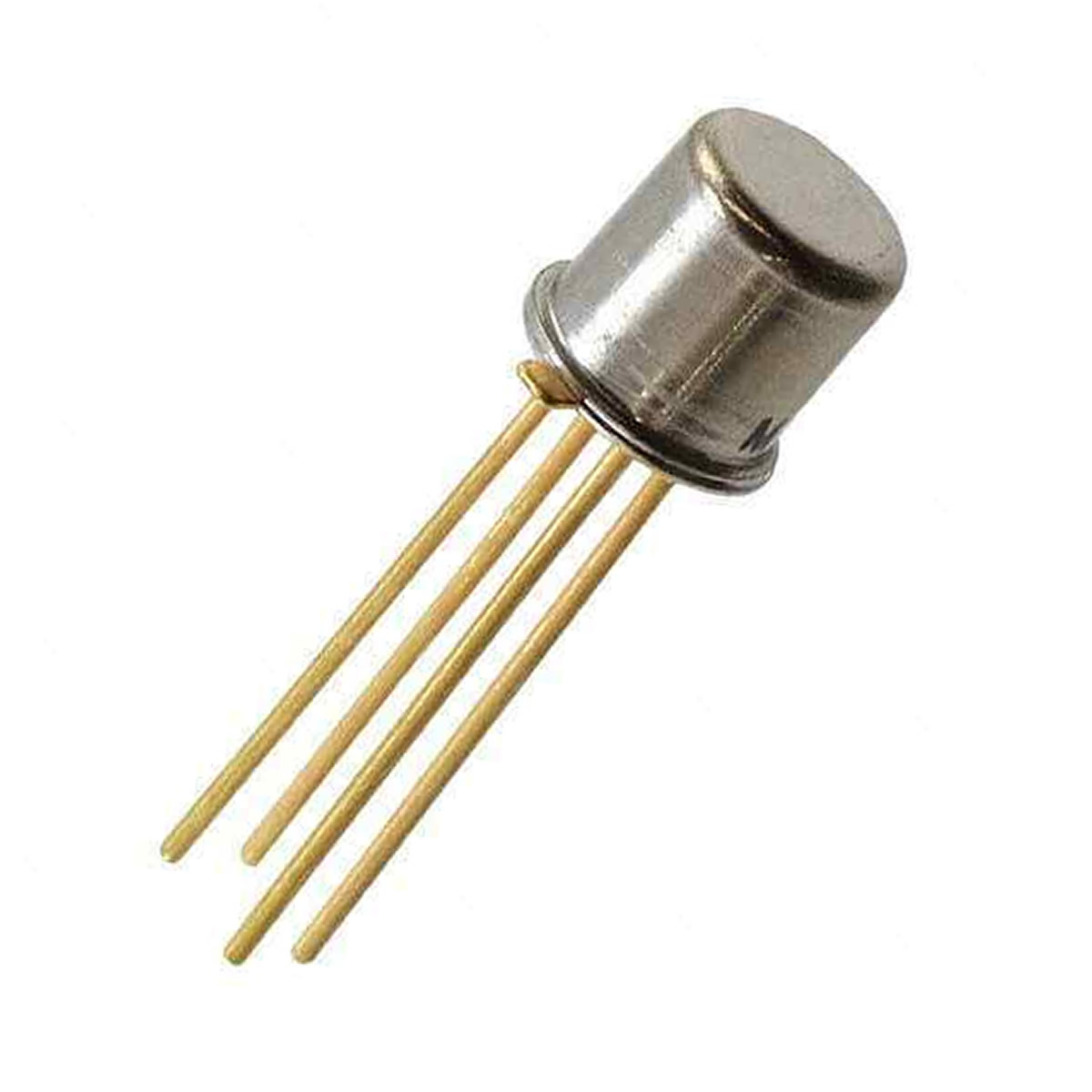

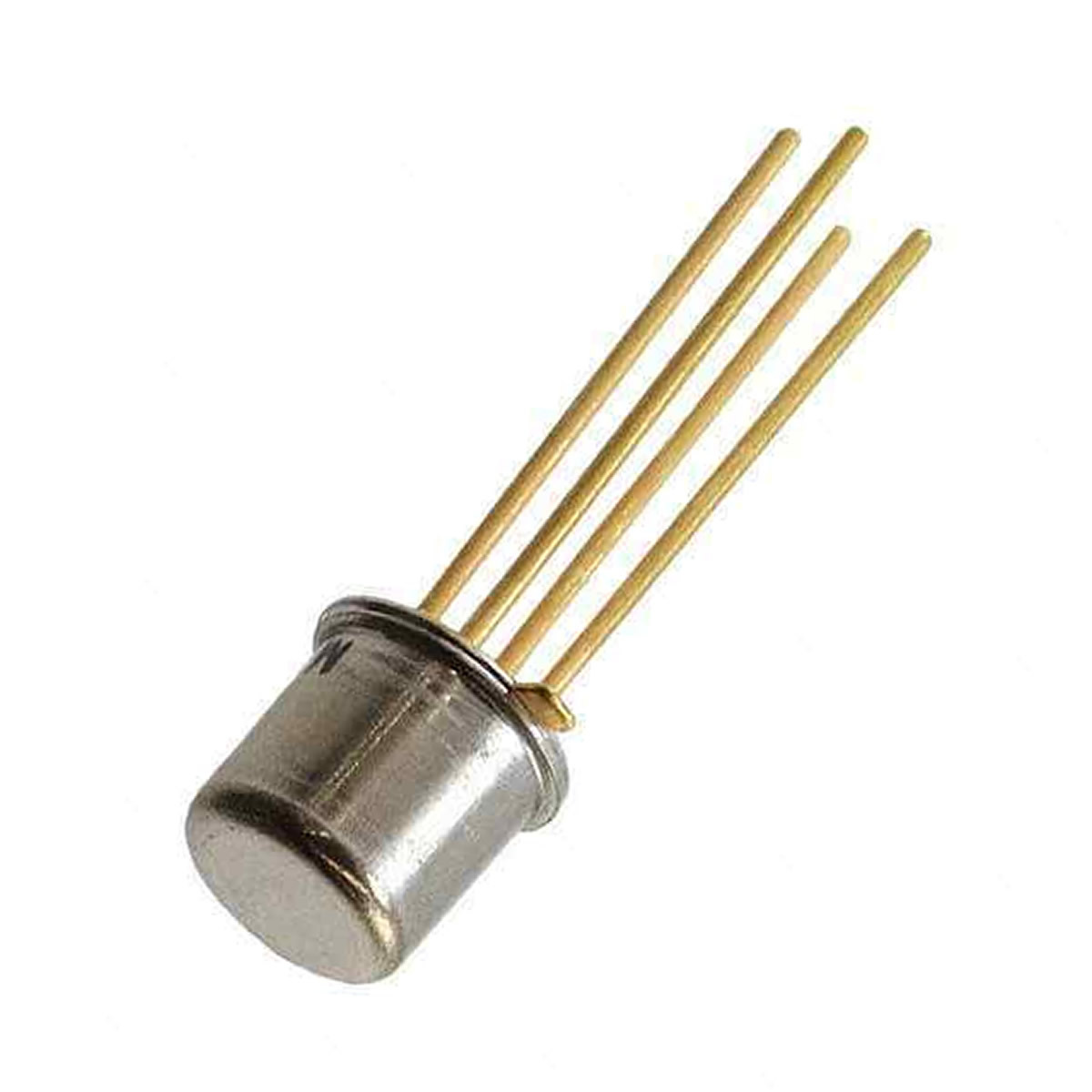

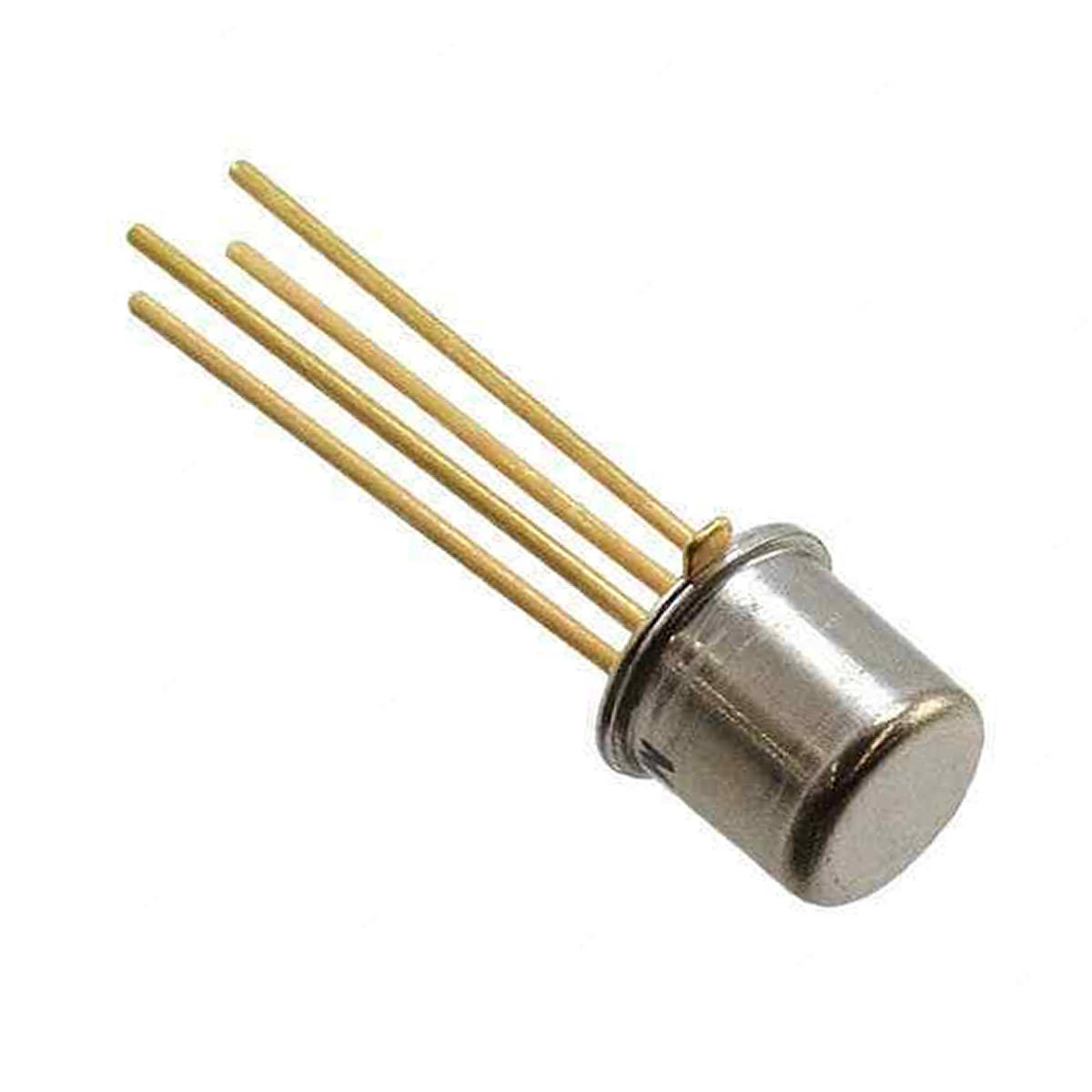

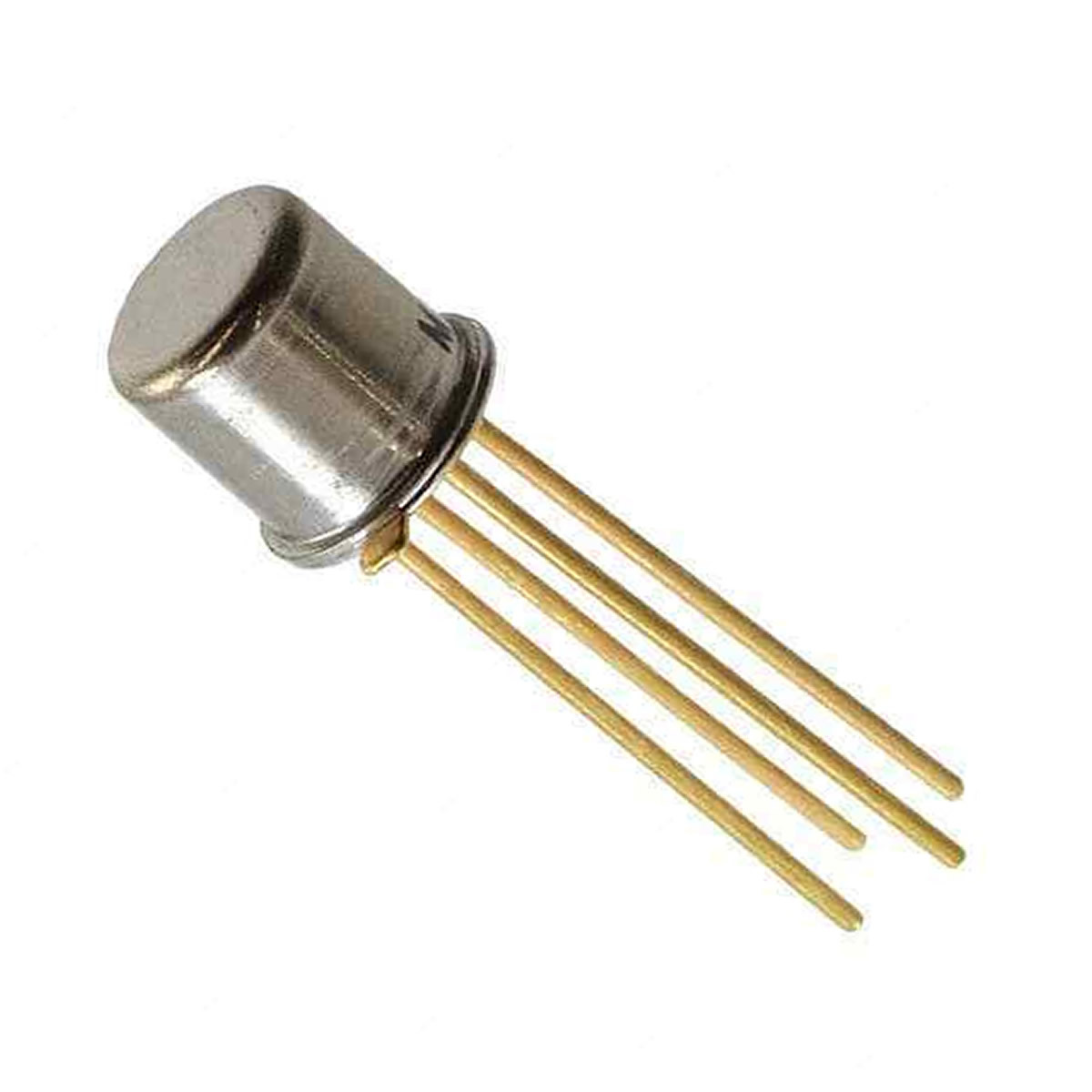

BFR15A Transistor Silicon NPN CASE: TO72-4 MAKE: Siemens Semiconductors
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO72-4
Manufacturer Siemens Semiconductors
Vbr CBO 12
@Freq. (test) 800M
@Ic (A) 2.0m
@Ic (A) 12m
Mat. Silicon Logic
Noise Fig. 3.0
Oper. Gain Typ (S21) 12
f(osc) Max. (Hz) 1.5G
Polarity NPN
PD Max. (W) 200m
S11 Deg. (Typ) 12
S11 Mag Typ. 0.13
S22 Deg. Typ. 10
S22 Mag Typ. 0.53
@VDS (VCE) (test) (V) 6.0
Coll. (or drain) Current Max. 30m
@Freq. (test) 800M
@VCE (test) 6.0
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 4-22
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 2 V
Maximum Collector Current |Ic max| 0.03 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 2200 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 407543
