BFR64

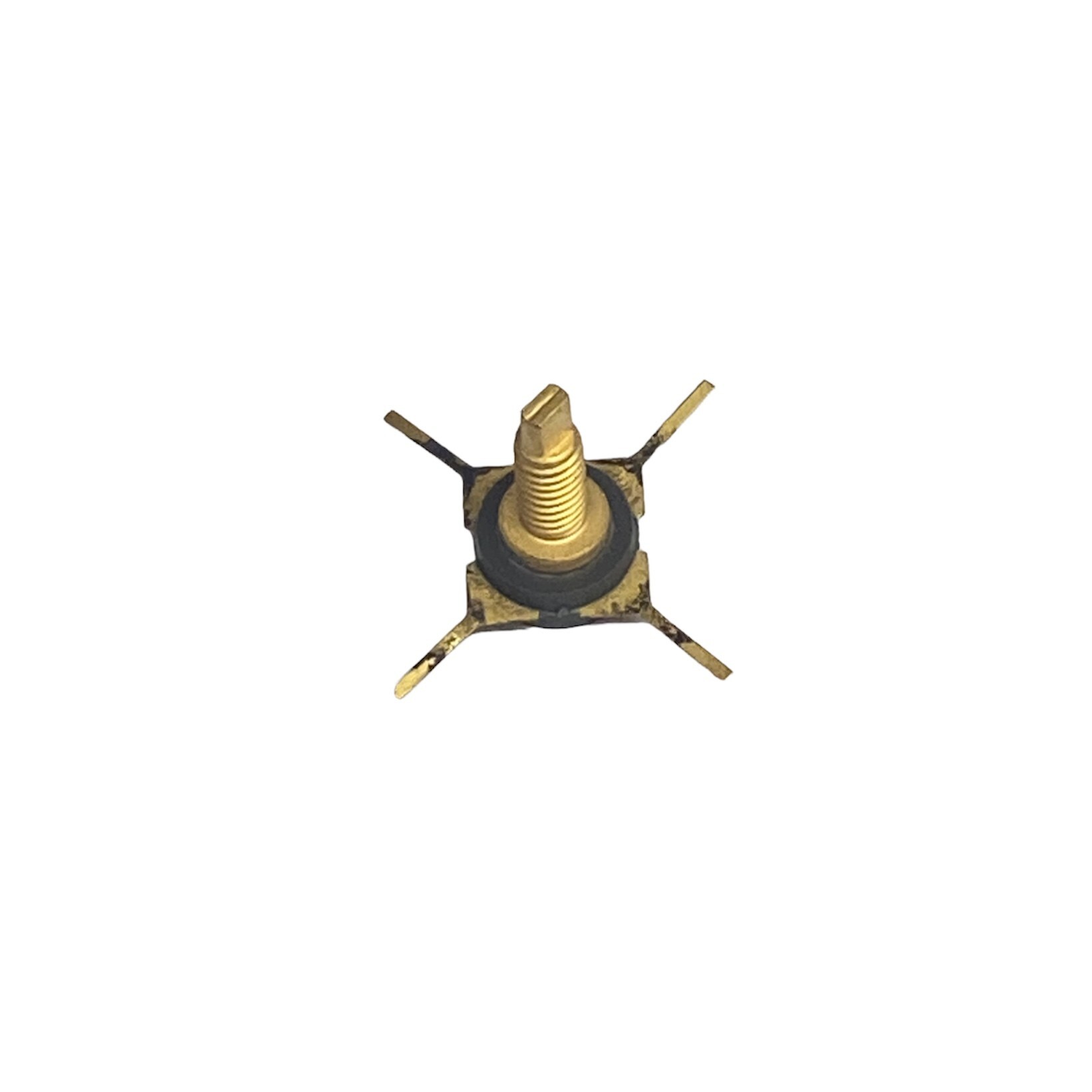

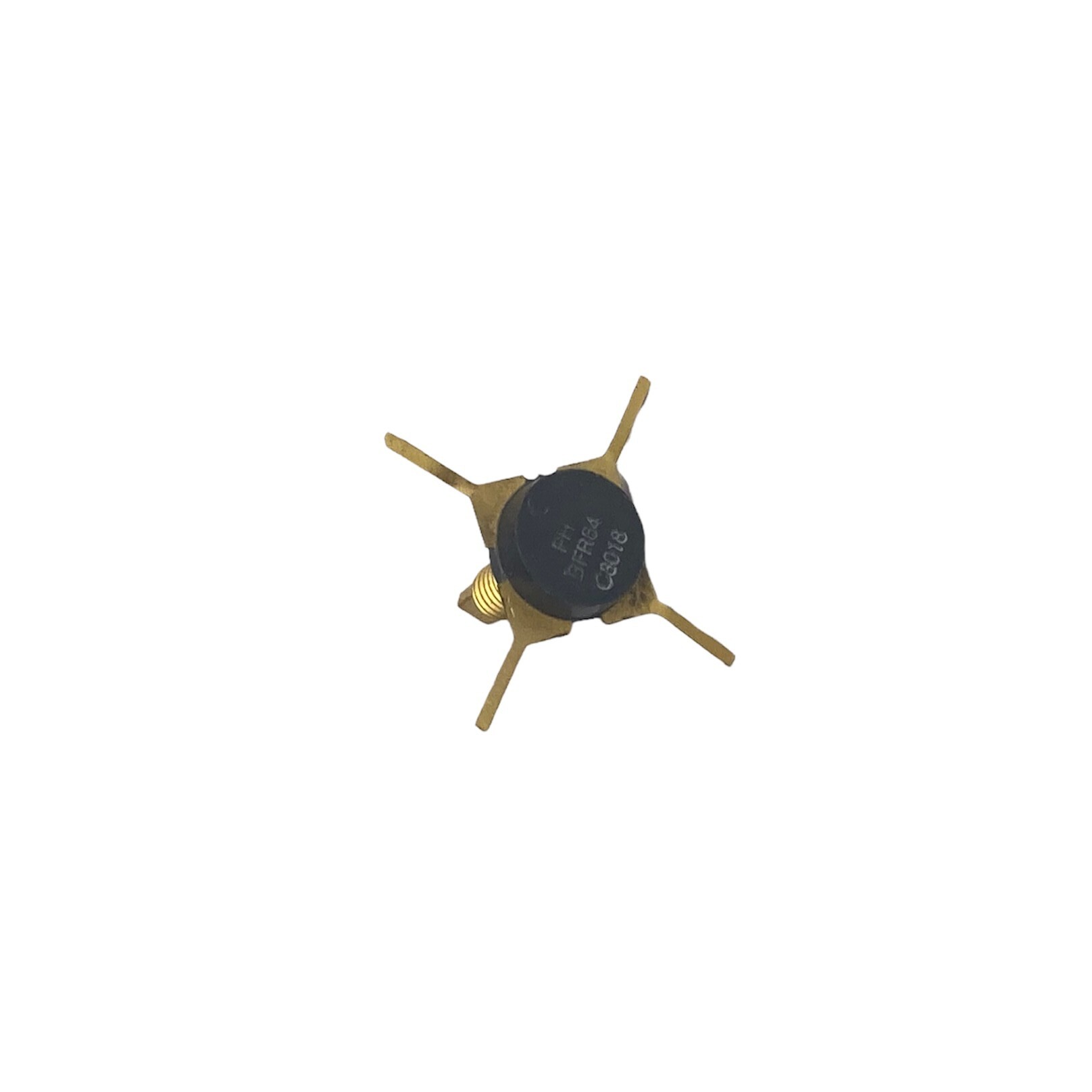

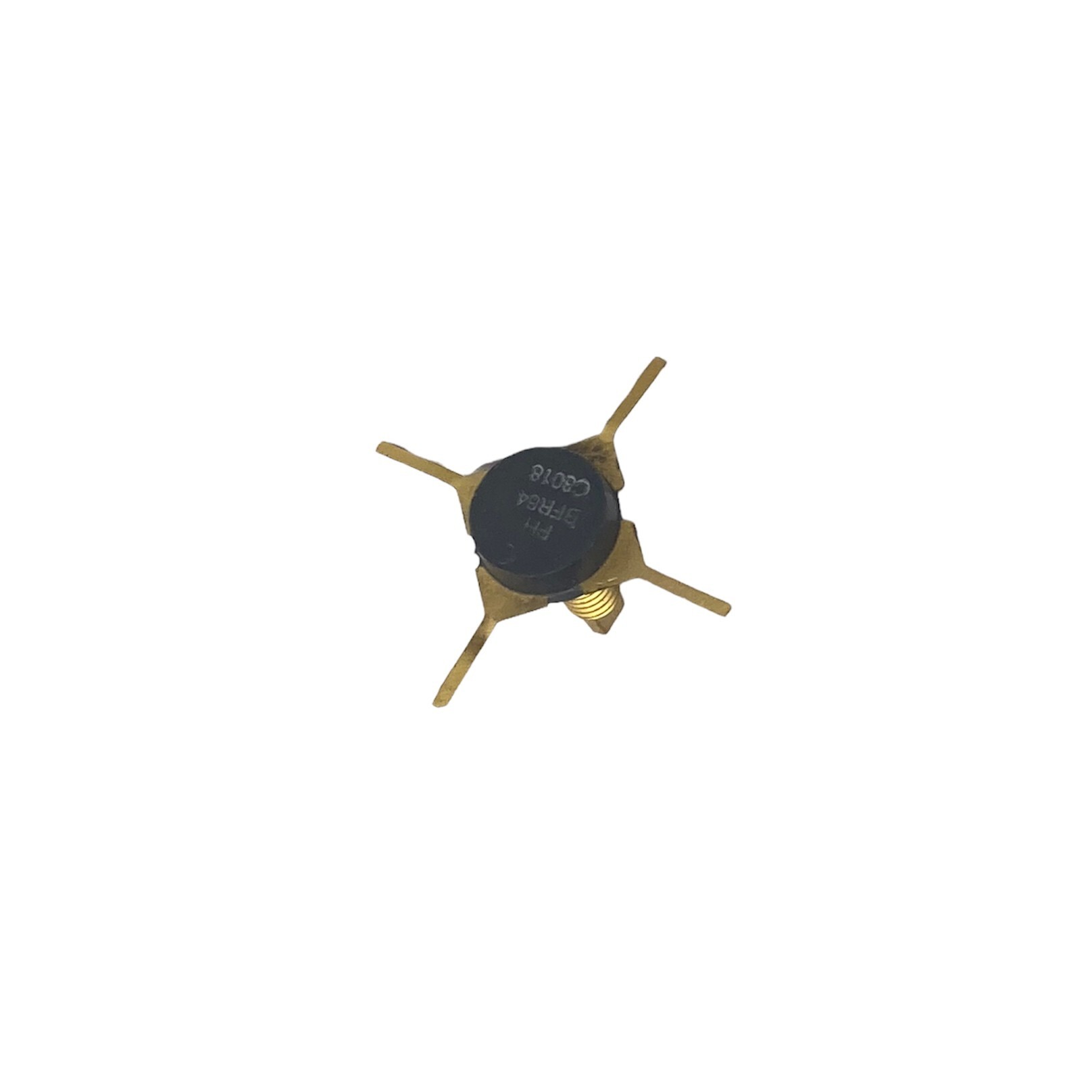

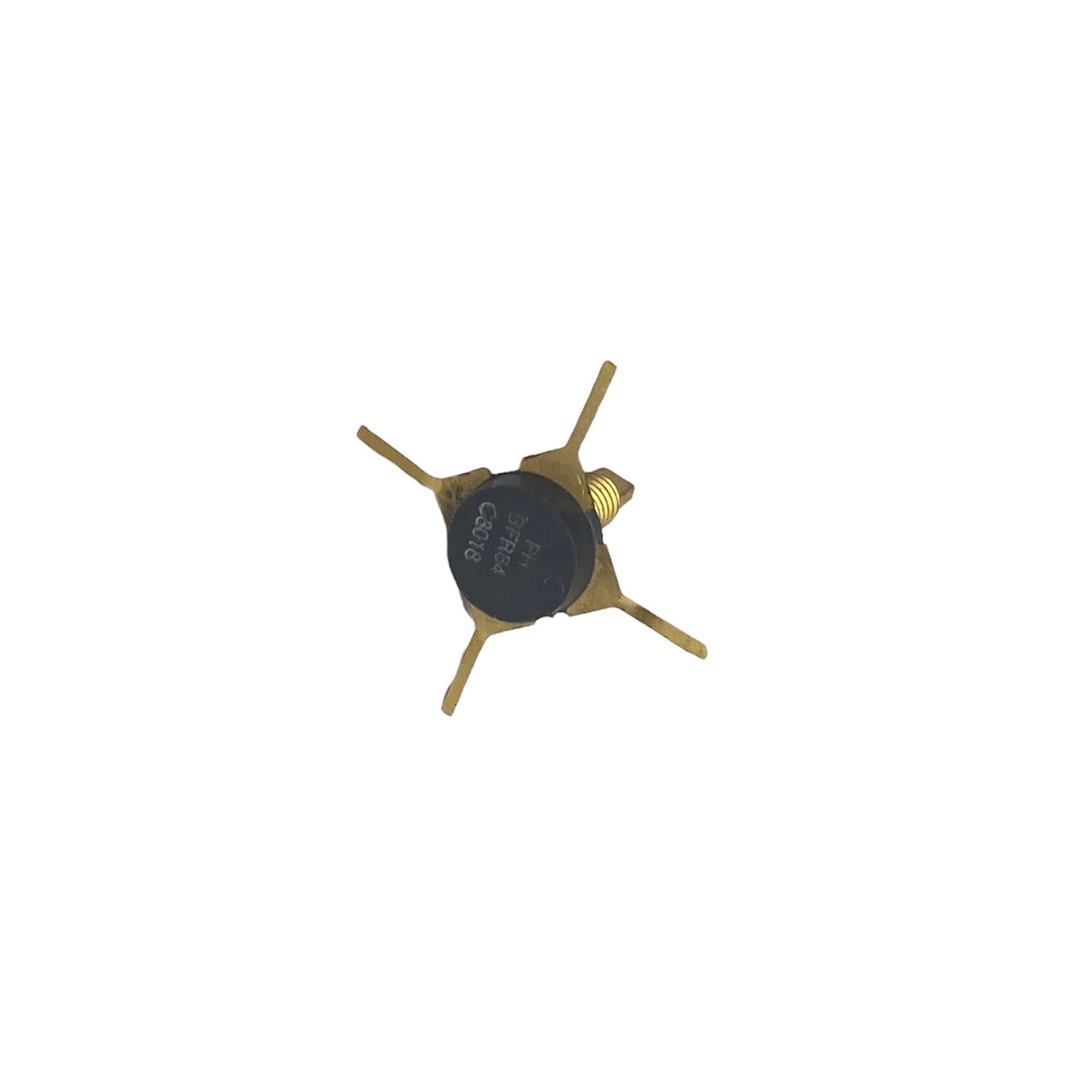

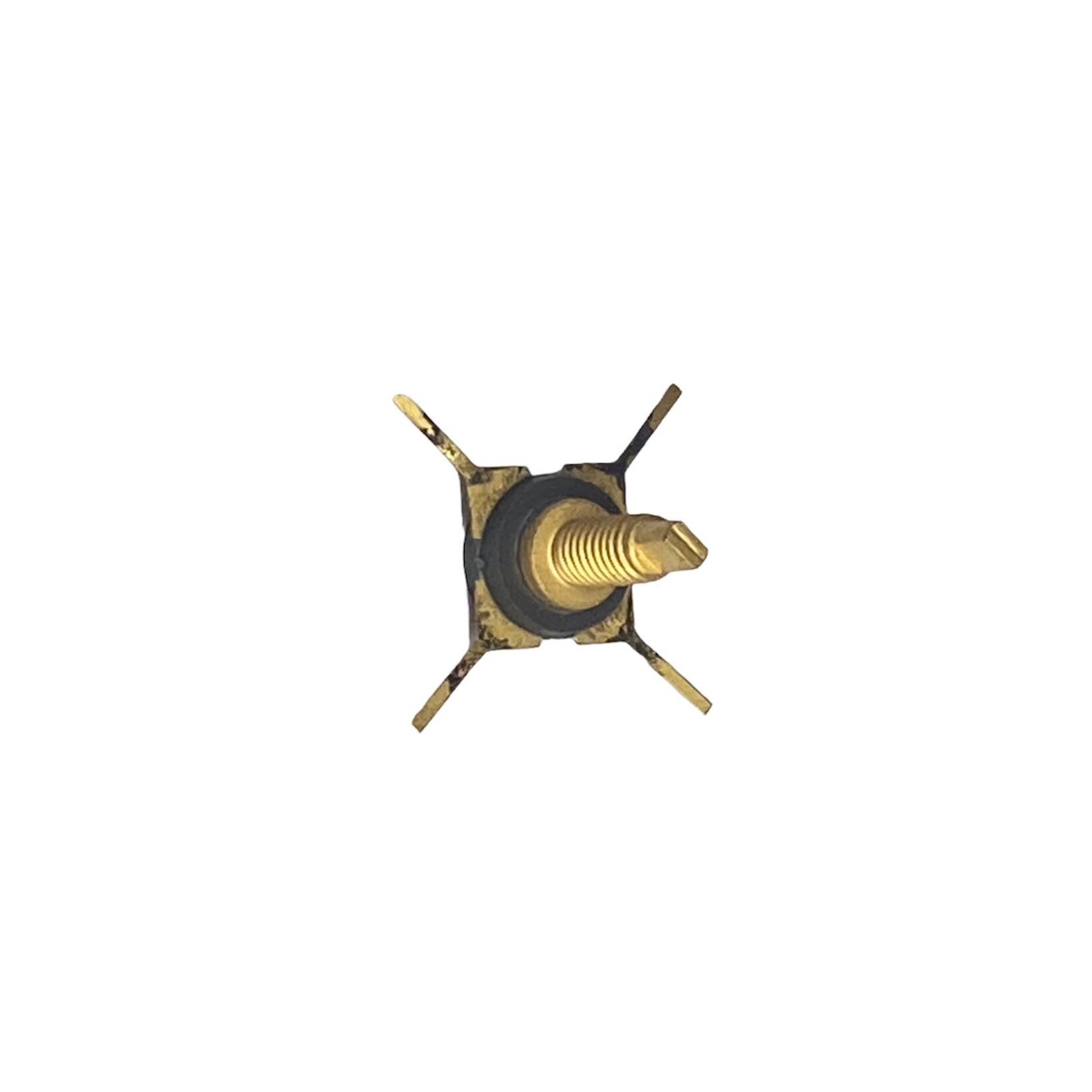

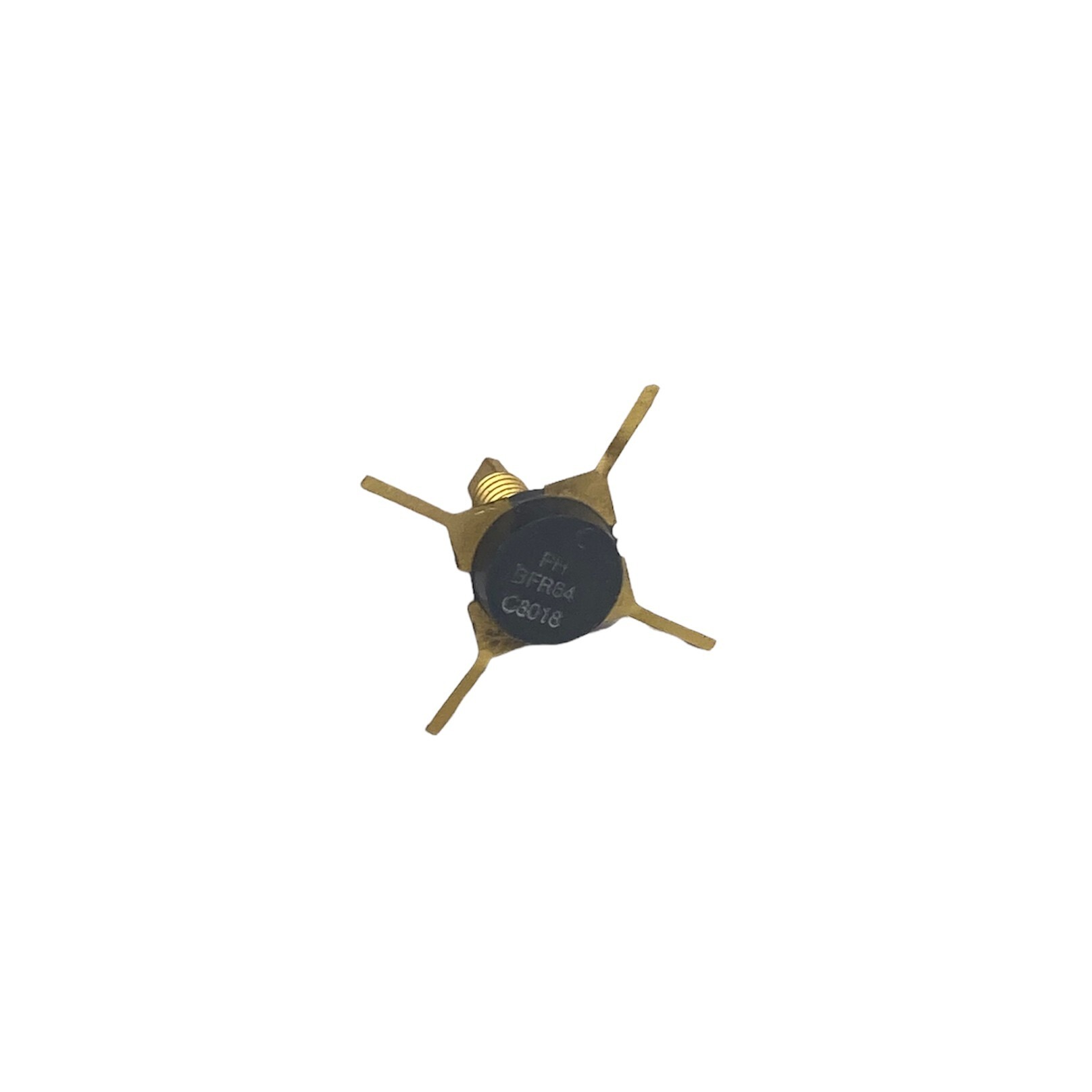

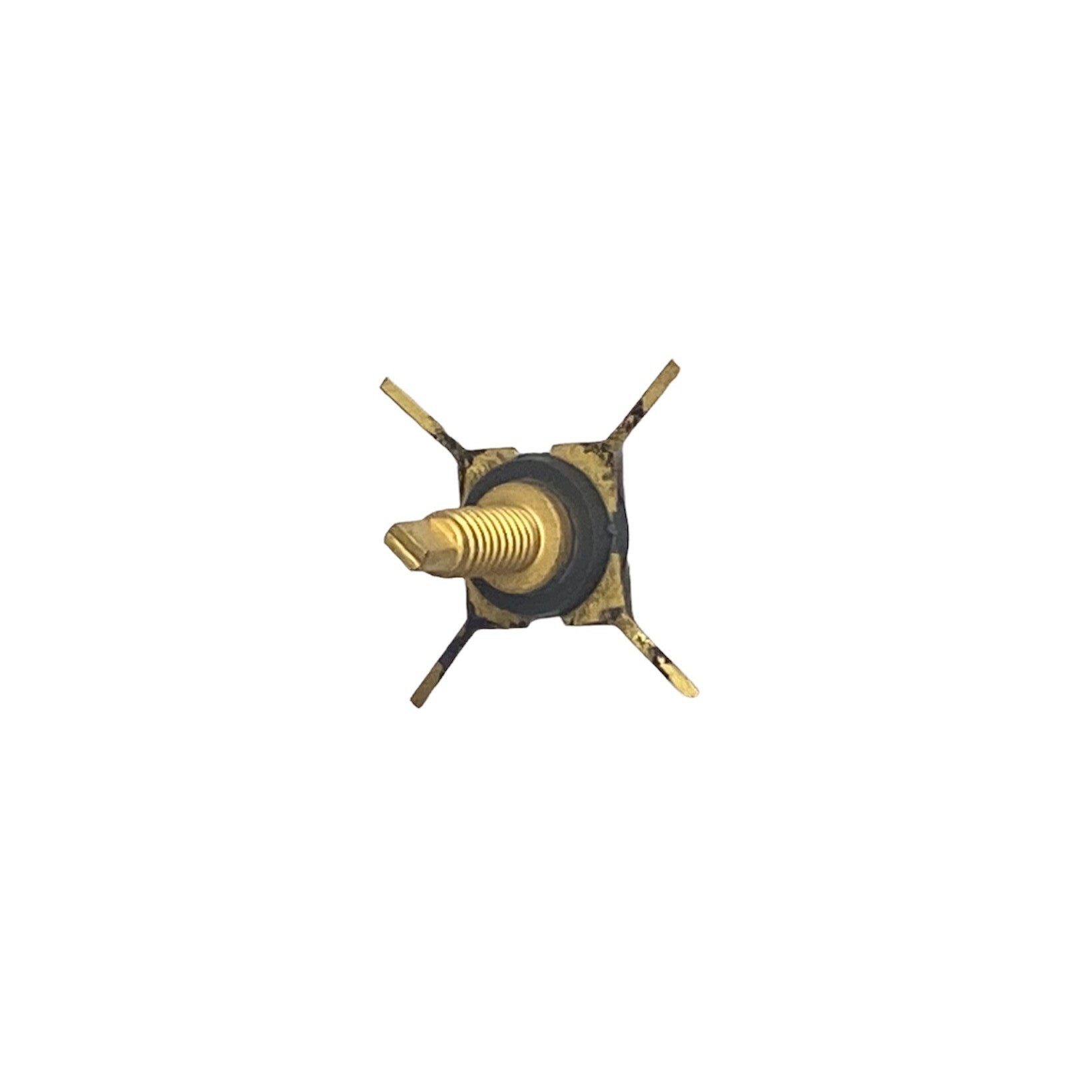

View detailed images (8)

BFR64

SKU: BFR64
BFR64 Transistor Silicon NPN CASE: TO218 MAKE: Philips
Price:
£23.99 Inc. VAT (£19.99 Ex. VAT)
£23.99 Inc. VAT (£19.99 Ex. VAT)
Qty
  • 10 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case TO218
Manufacturer Philips
Vbr CBO 40
@Ic (A) 40m
Mat. Silicon Logic
Noise Fig. 6.0
Oper. Gain Typ (S21) 6.5
Oper. Pwr Out Typ. 90m
Polarity NPN
PD Max. (W) 3.5
Coll. (or drain) Current Max. 500m
@Freq. (test) 200M
@VCE (test) 20
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 4-32
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 3.5 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4.5 pF
Transition Frequency (ft): 1000 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 82430
