BFR83

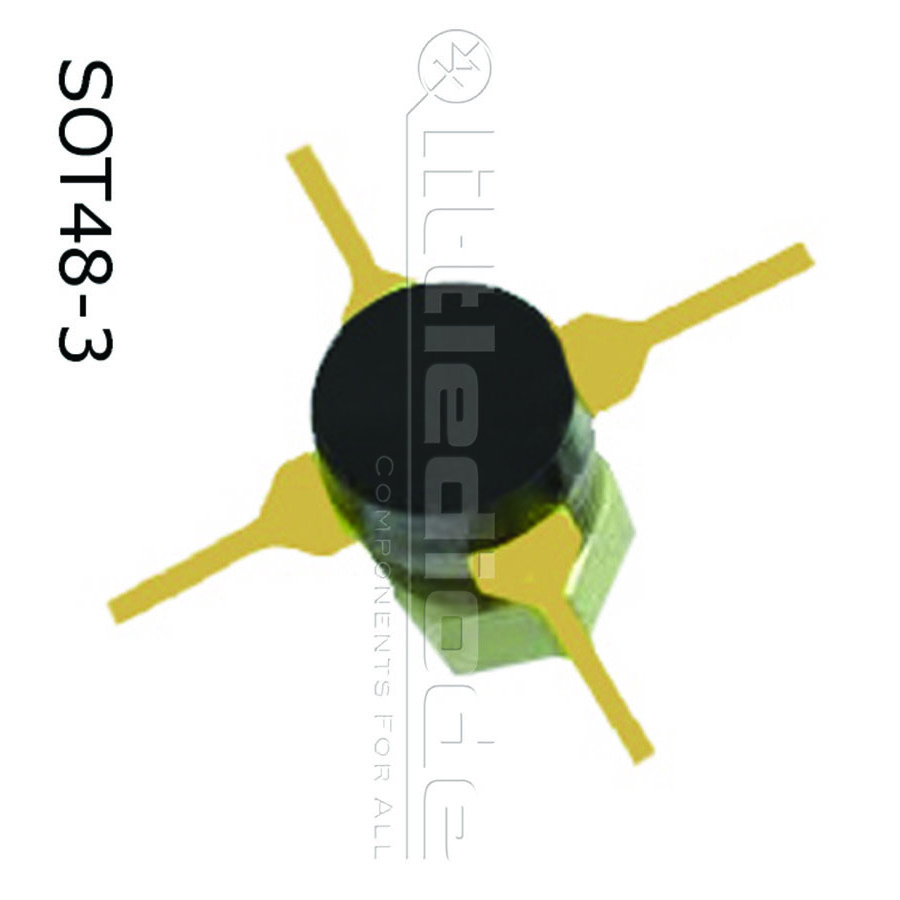

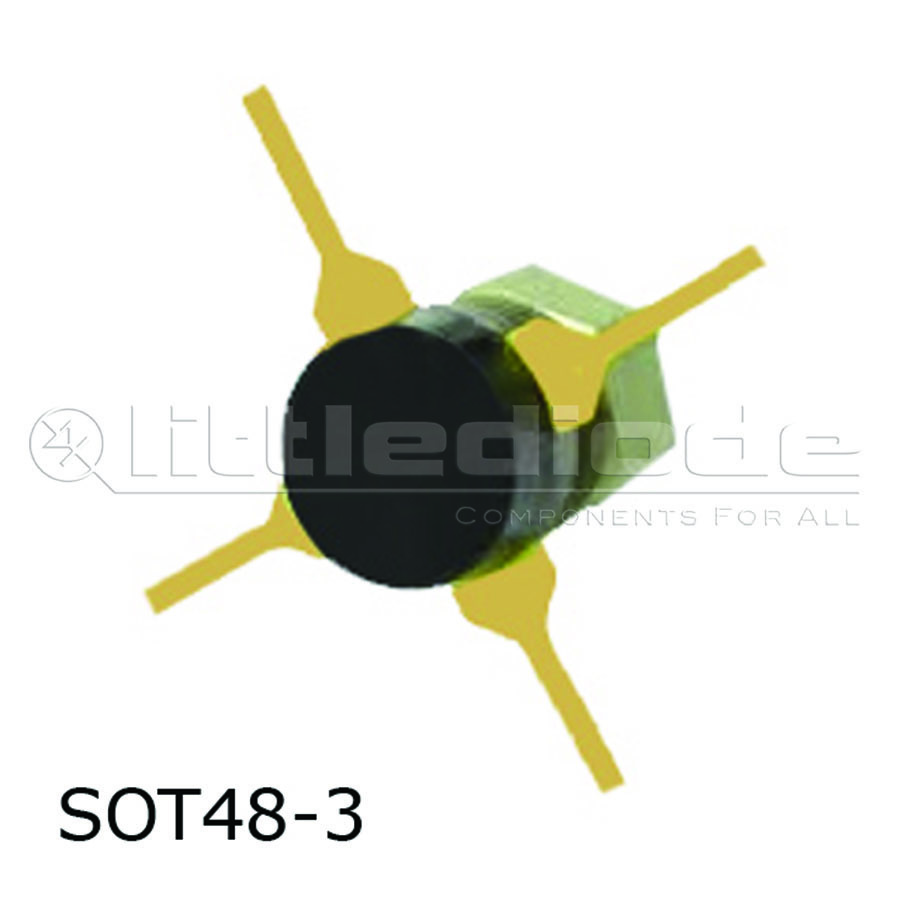

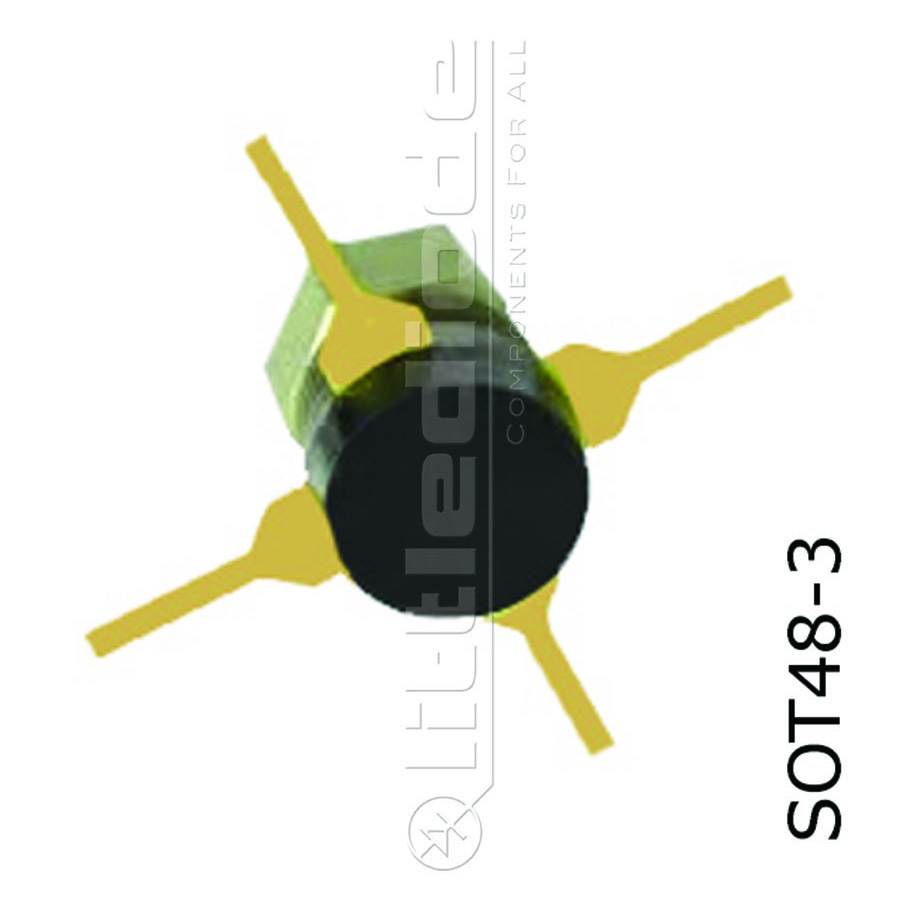

View detailed images (4)

BFR83

SKU: BFR83
BFR83 Transistor Silicon NPN CASE: SOT48-3 MAKE: Amperex Electronic
Product specifications
Type Transistor Silicon NPN
Case SOT48-3
Manufacturer Amperex Electronic
Vbr CBO 40
Vbr CEO 25
Max. PD (W) 5.0
Min hFE 25
Ic Max. (A) 200m
@Ic (test) (A) 150m
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
R(sat) (Û) 7.5
Derate Above 25°C 28m
Trans. Freq (Hz) Min. 1.4G
Oper. Temp (°C) Max. 175
@VCE (V) 5.0
Pinout Equivalence Number 4-28
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 5 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 1400 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 533615
