BFR99A
View detailed images (4)

BFR99A

SKU: BFR99A

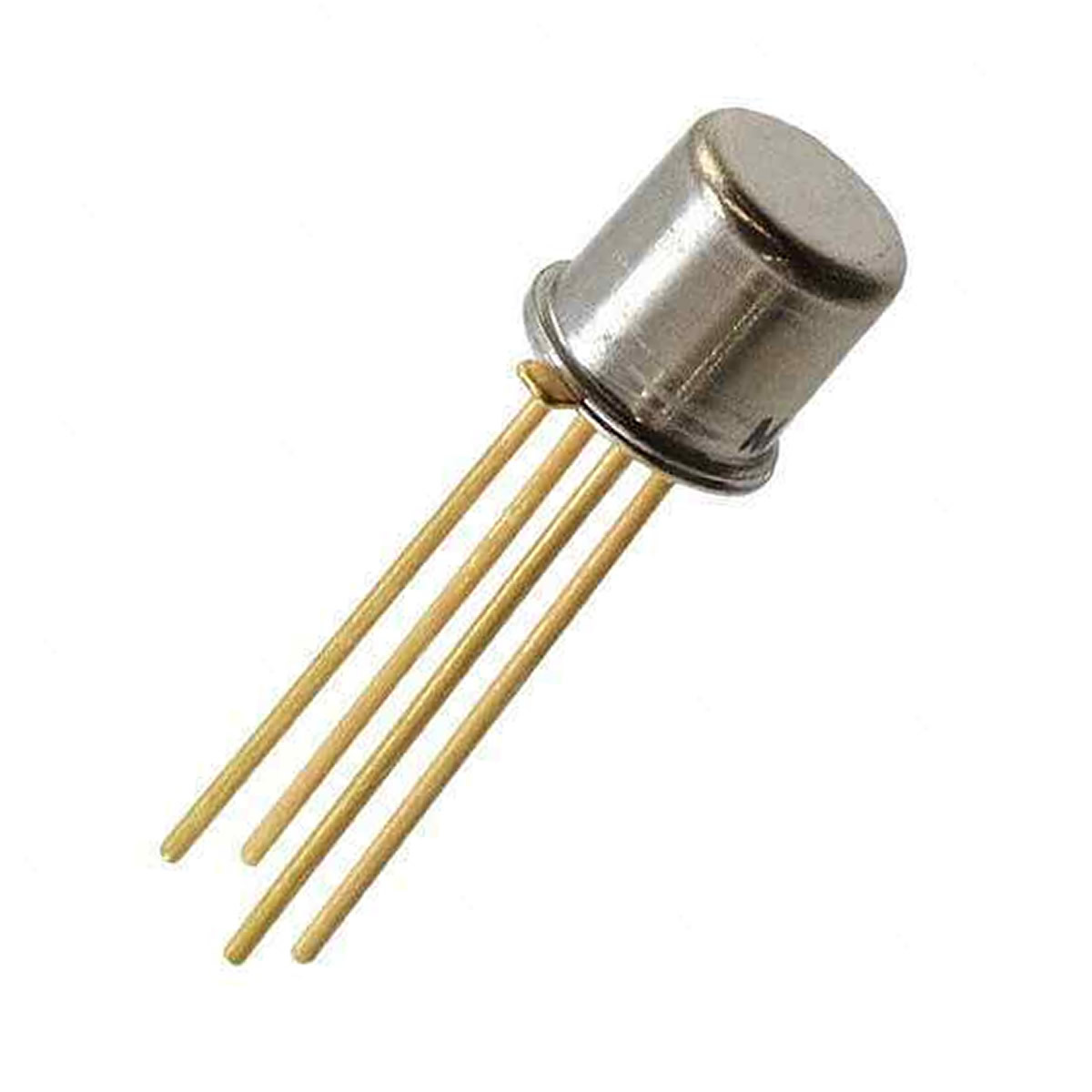

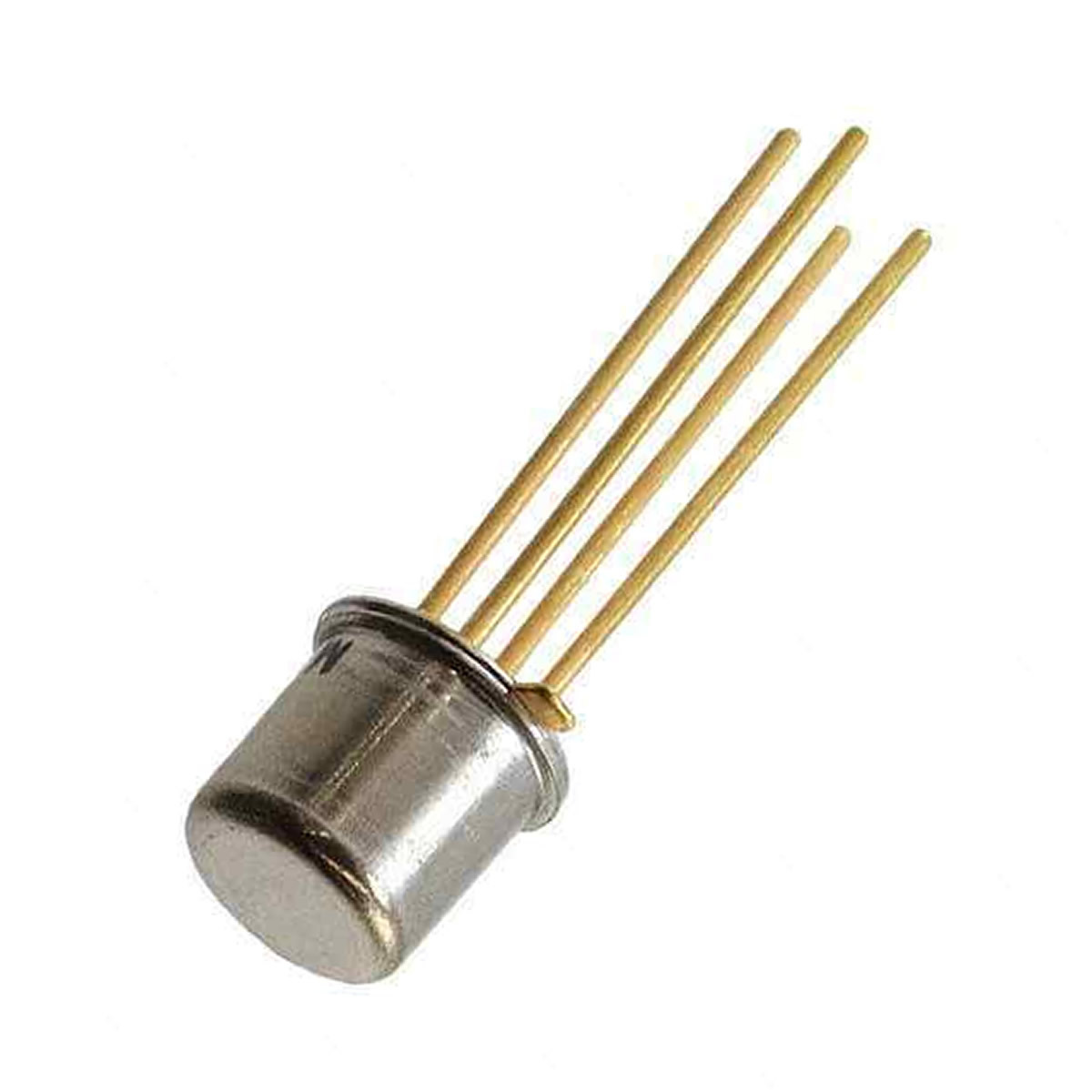

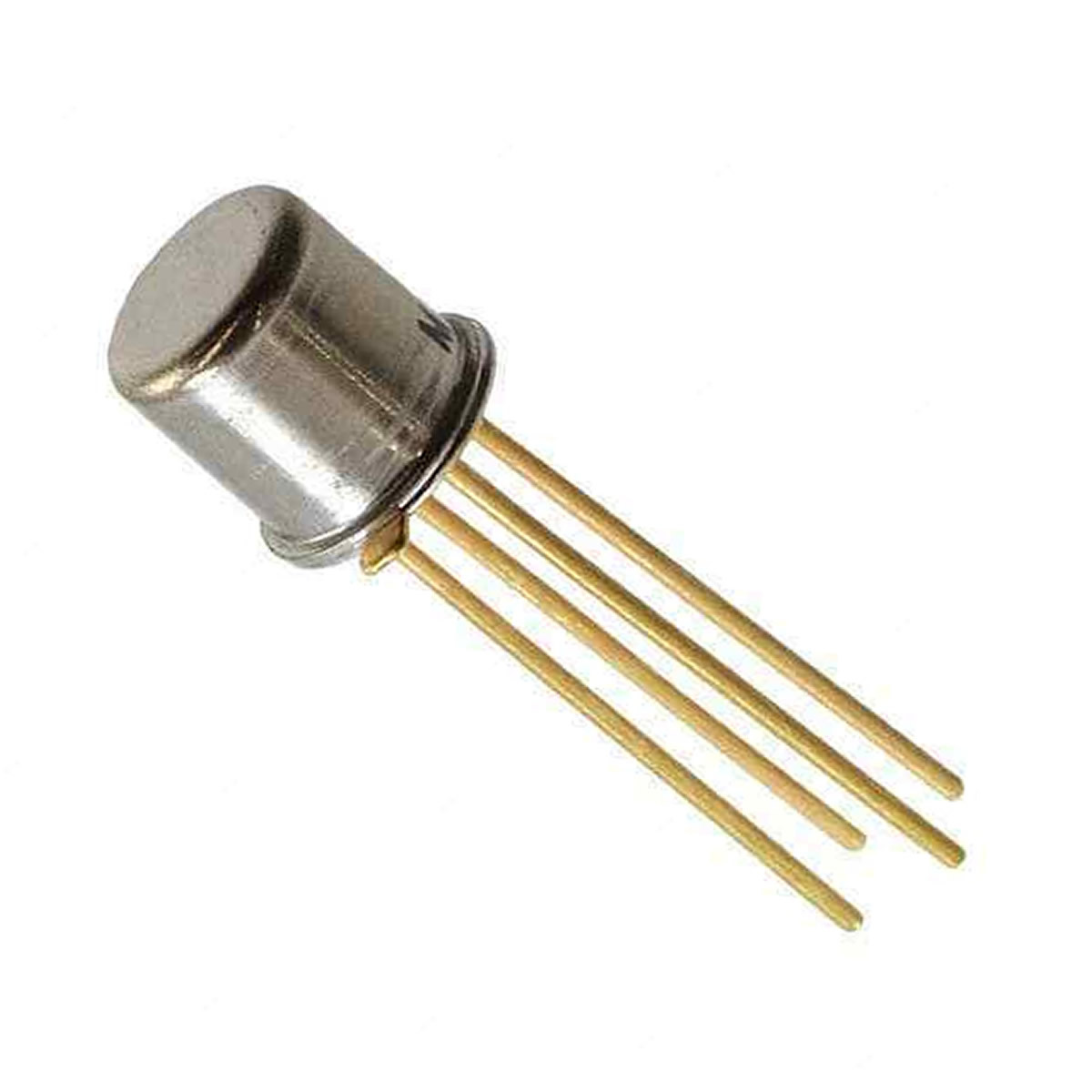

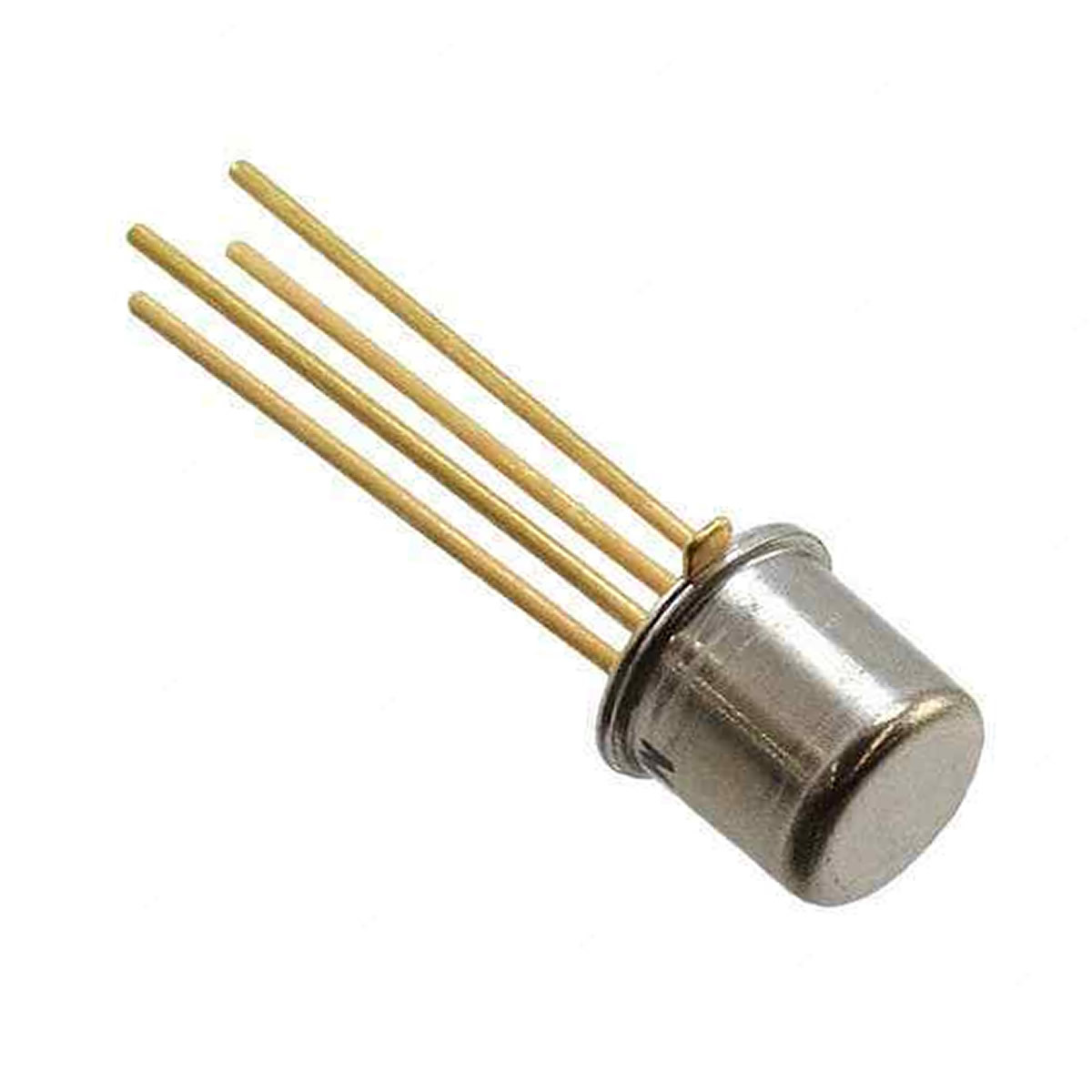

BFR99A Transistor Silicon PNP CASE: TO72-4 MAKE: ST Microelectronics - STM
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case TO72-4
Manufacturer ST Microelectronics - STM
Vbr CBO 25
@Ic (A) 10m
Mat. Silicon Logic
Noise Fig. 4.0=
Oper. Gain Typ (S21) 8.0
Oper. Pwr Out Typ. 14m
Polarity PNP
PD Max. (W) 360m
Coll. (or drain) Current Max. 50m
@Freq. (test) 800M
@VCE (test) 15
Oper. Temp (°C) Max. 200
Pinout Equivalence Number 4-20
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.36 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 25 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 2 pF
Transition Frequency (ft): 1400 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 136716
