BFV78N

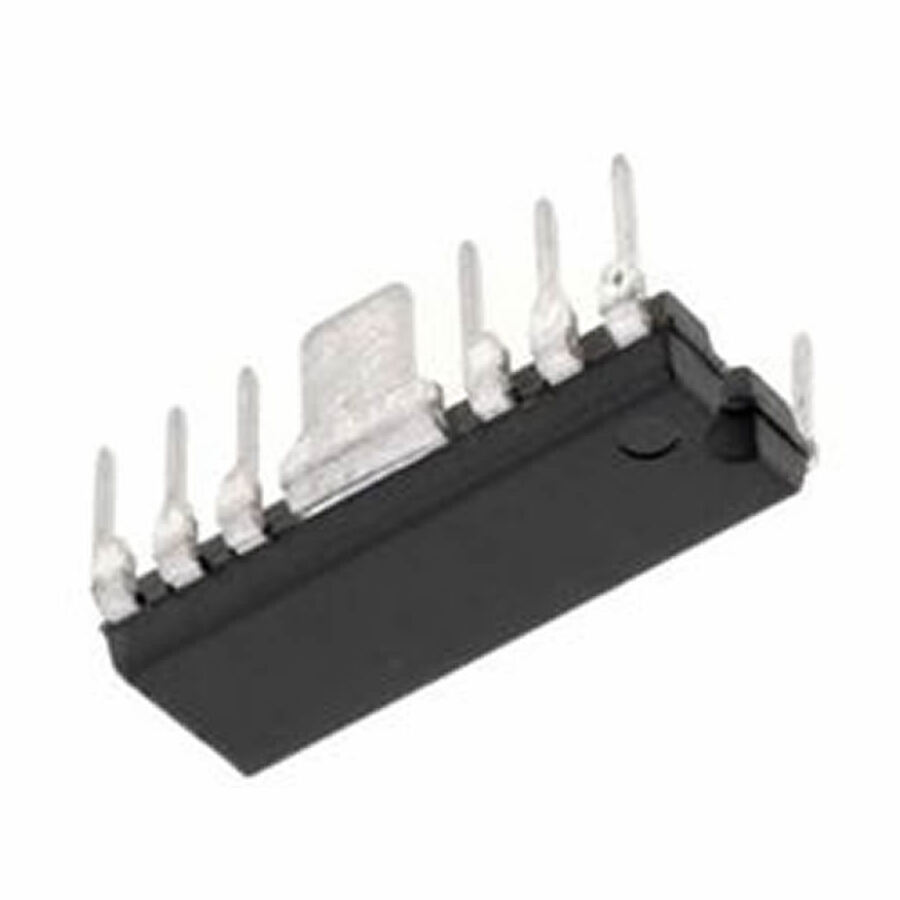

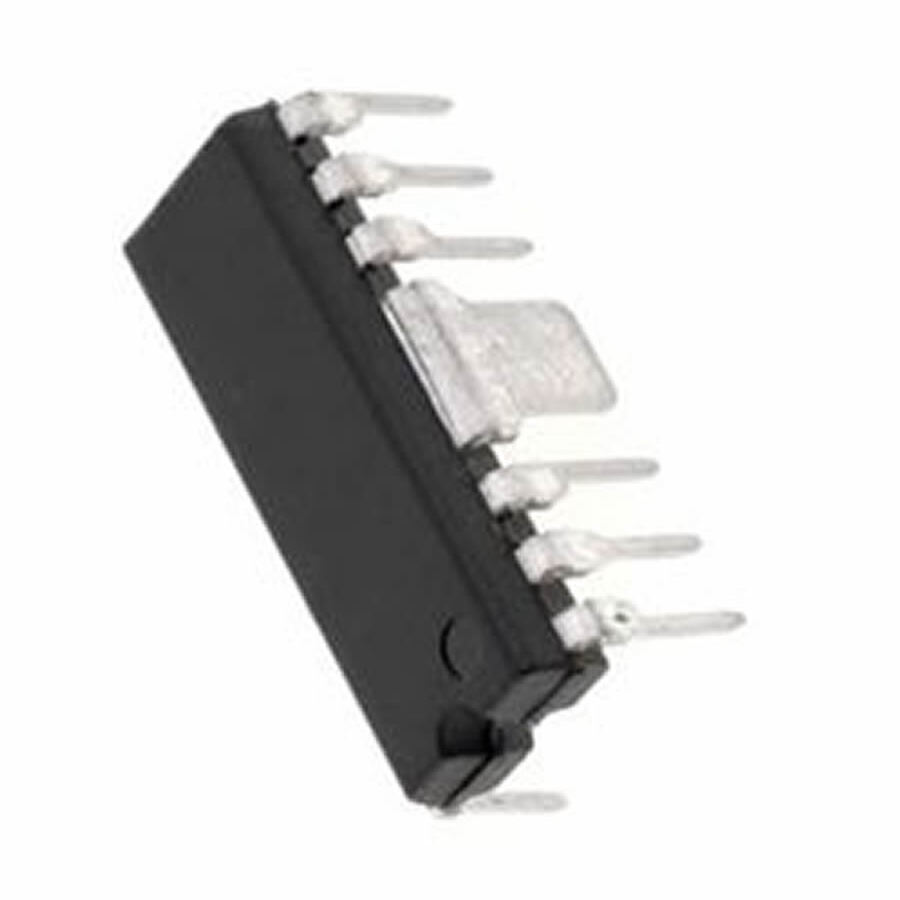

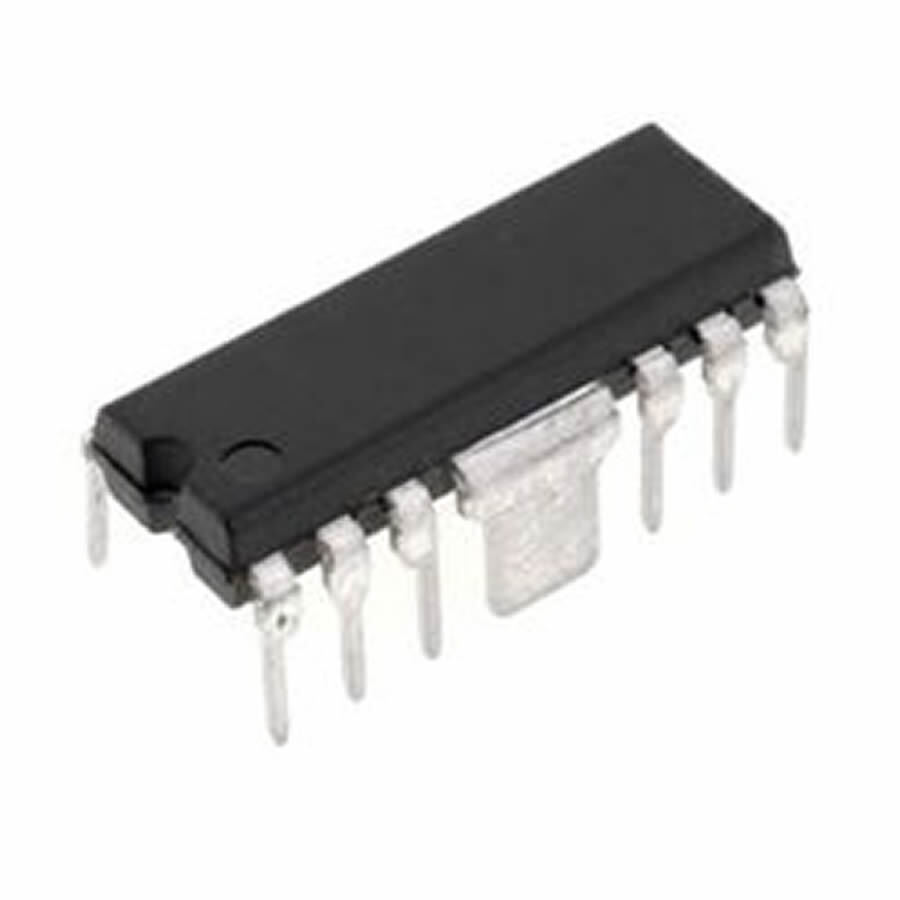

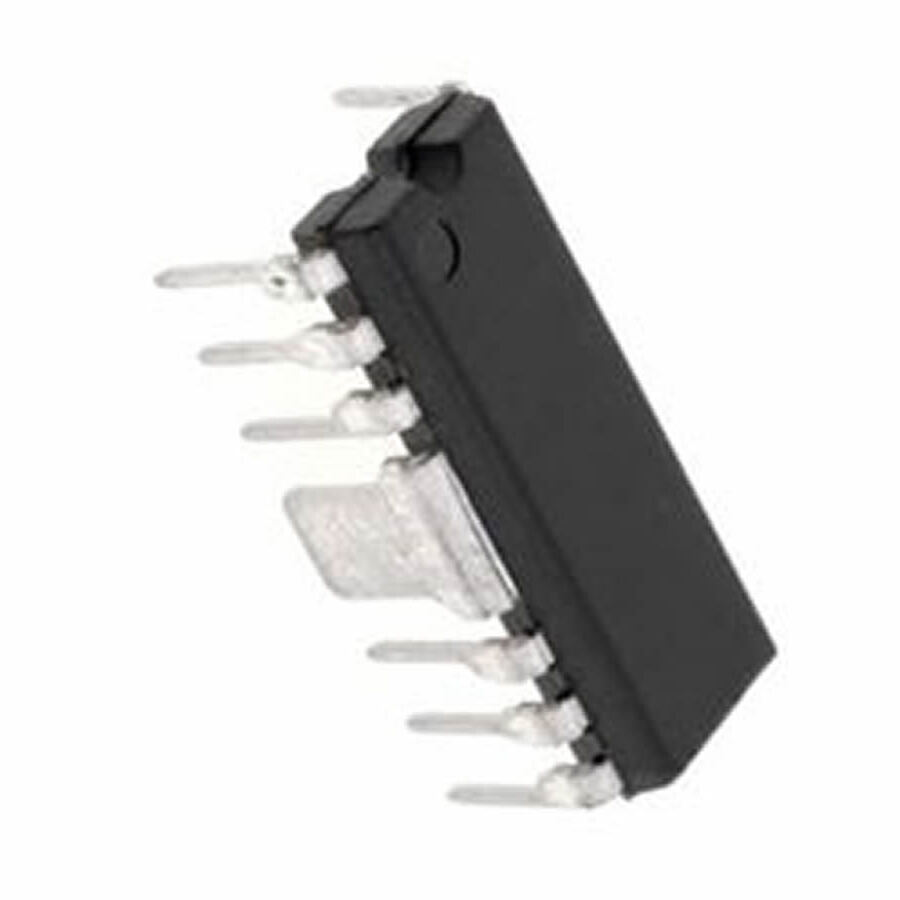

View detailed images (4)

BFV78N

SKU: BFV78N
BFV78N Transistor Silicon NPN CASE: DIP12 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case DIP12
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.4 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 350 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 735857
