BLY16
View detailed images (12)

BLY16

SKU: BLY16

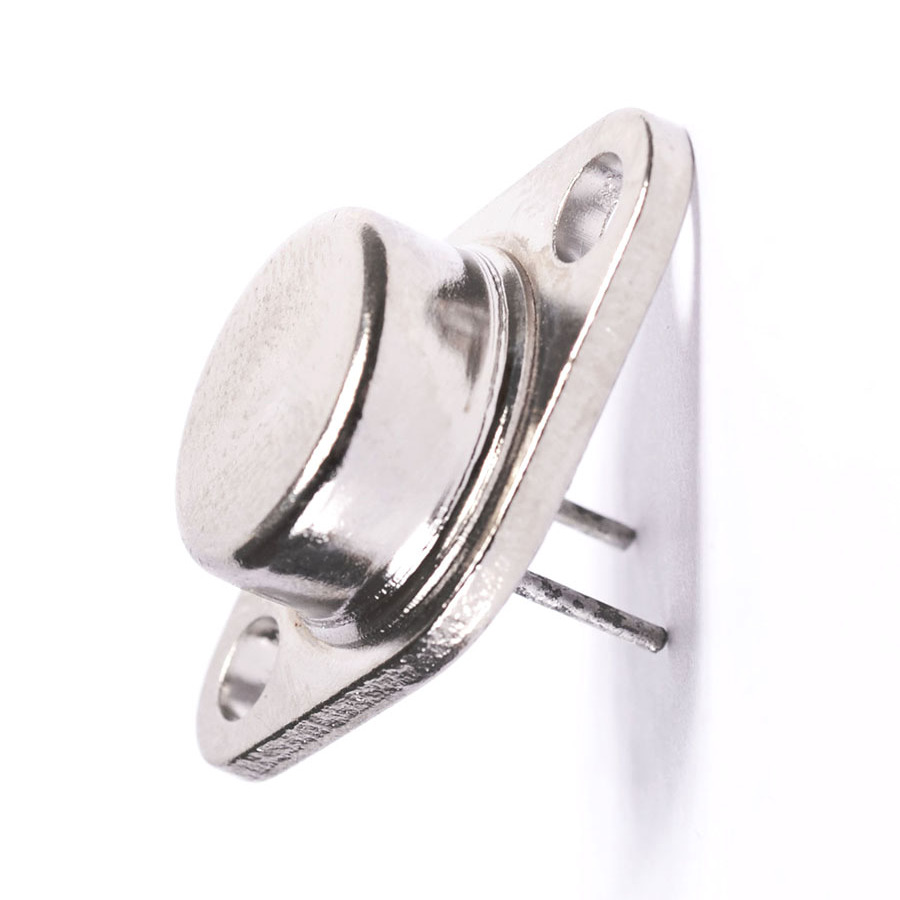

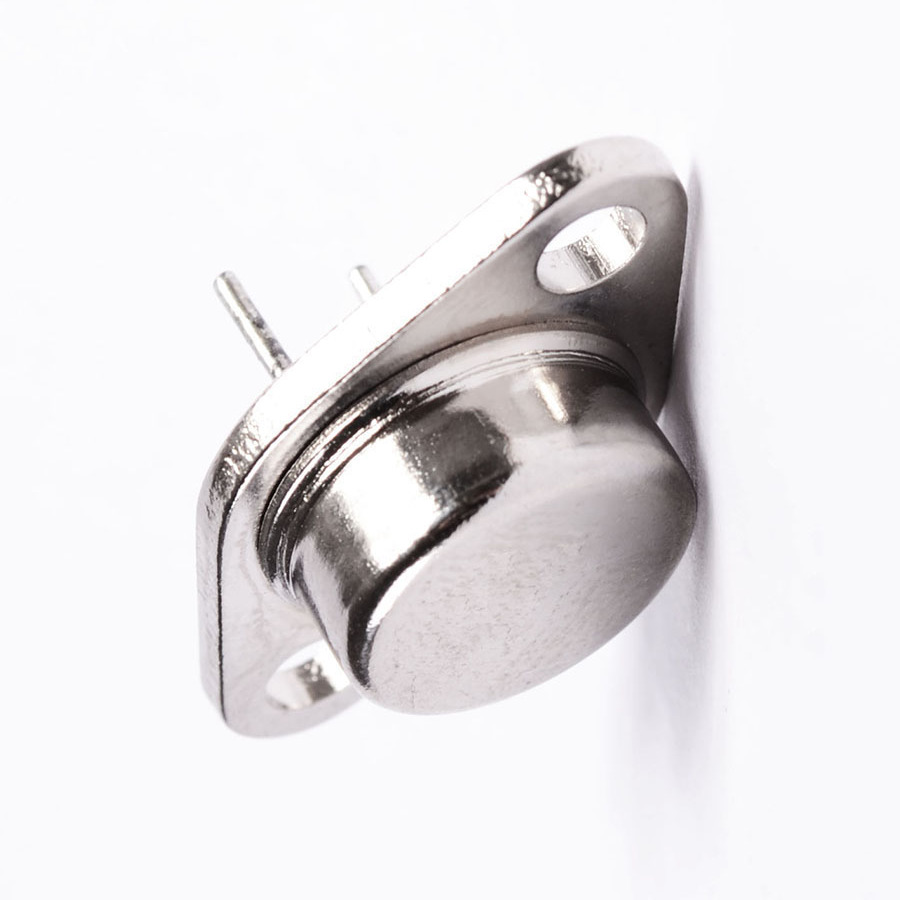

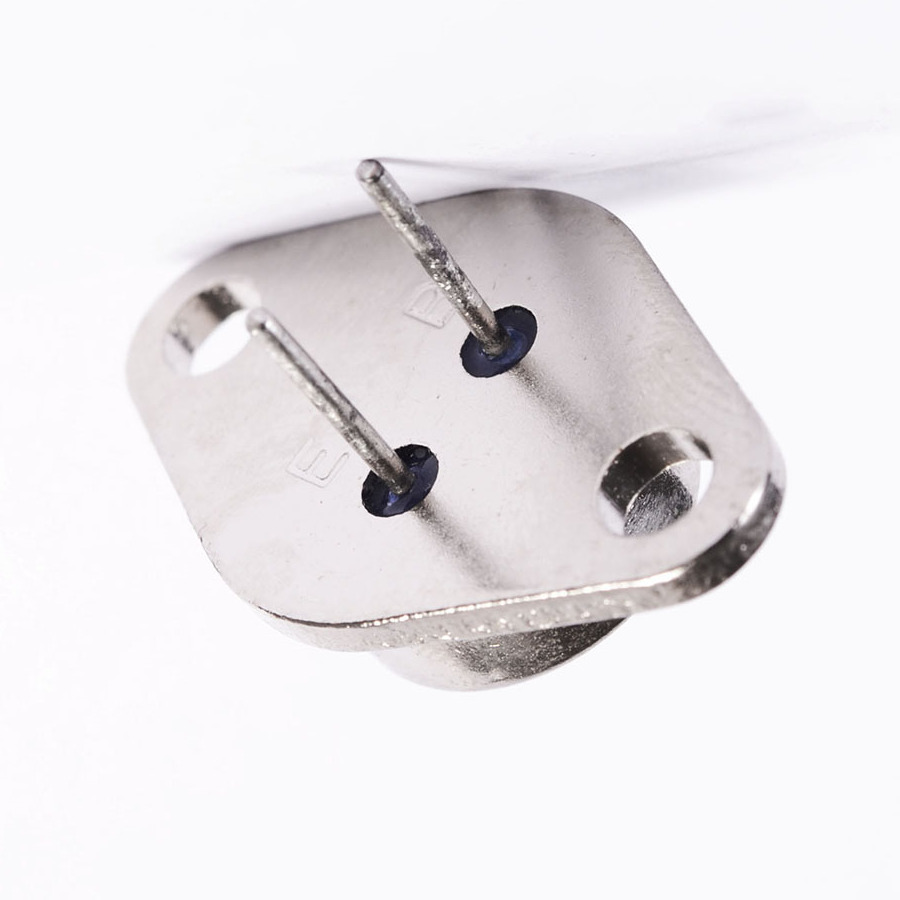

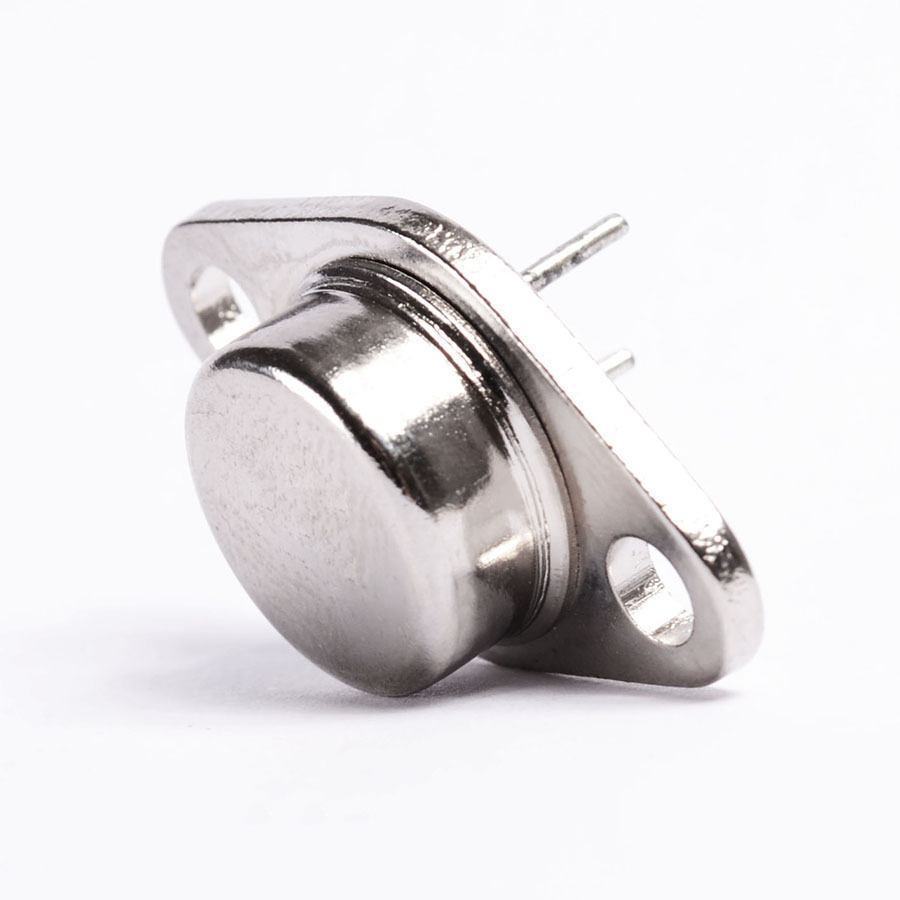

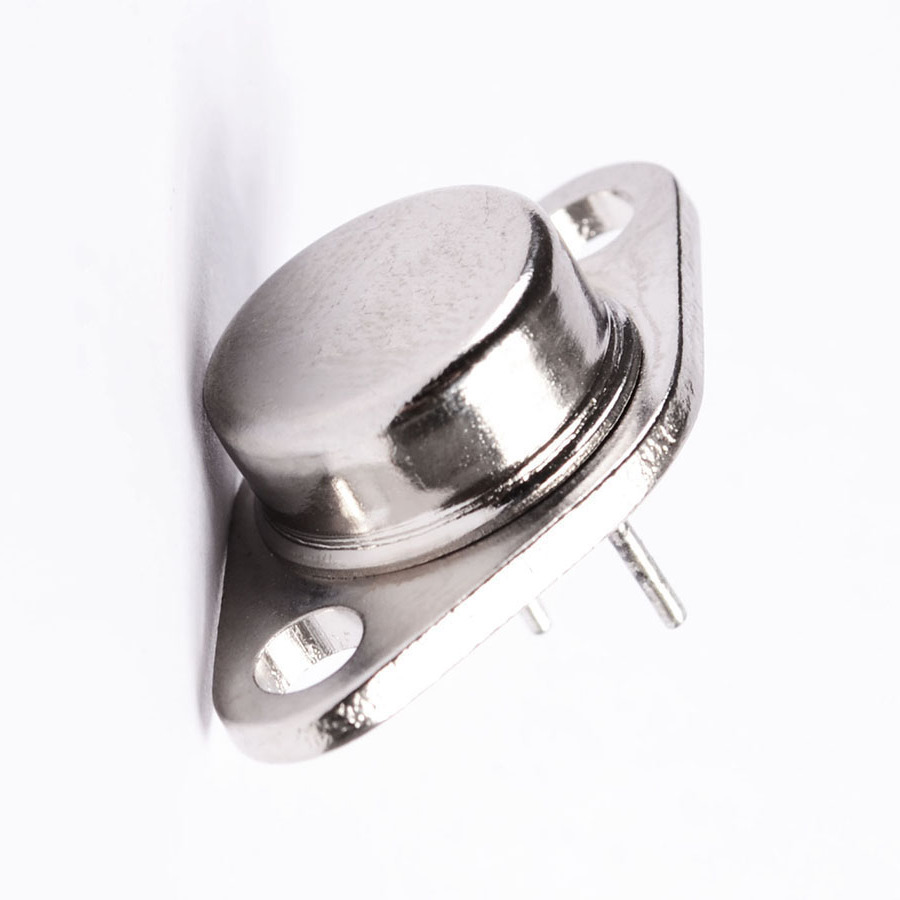

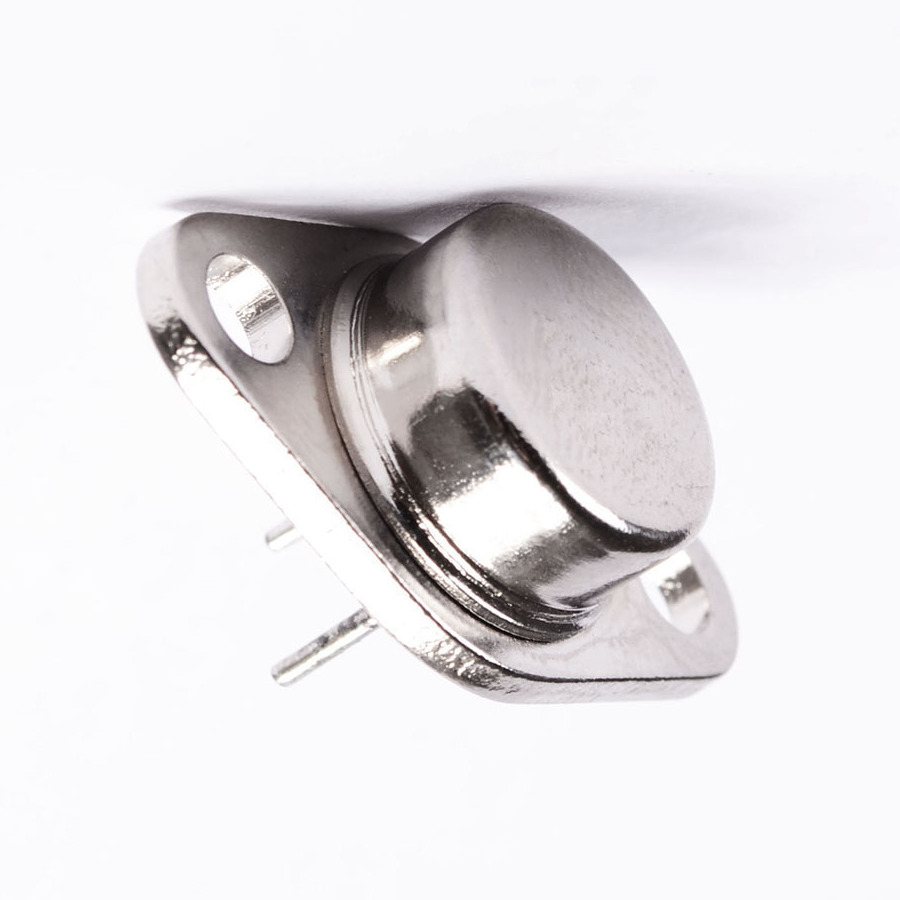

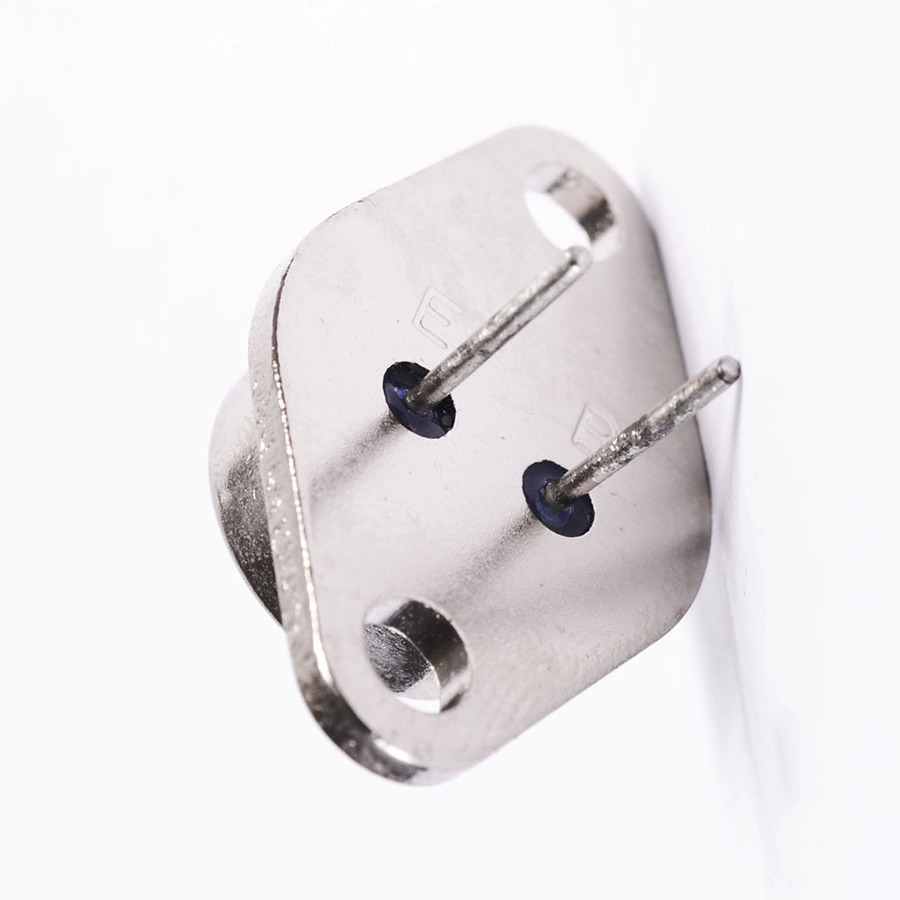

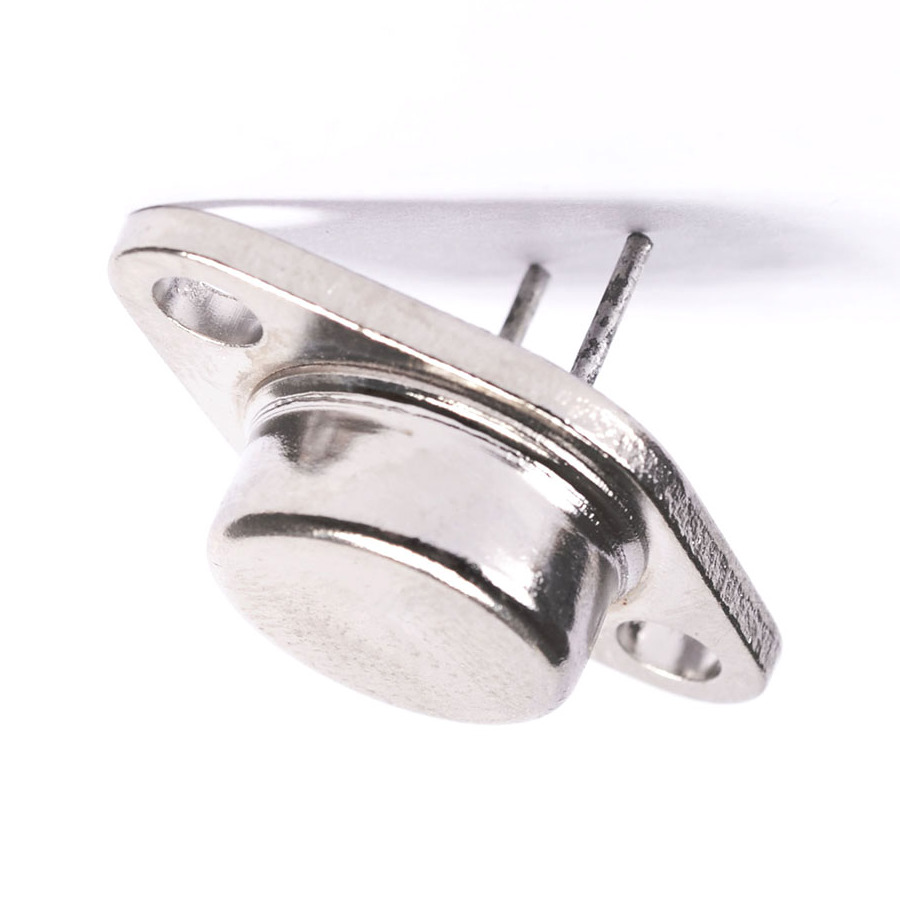

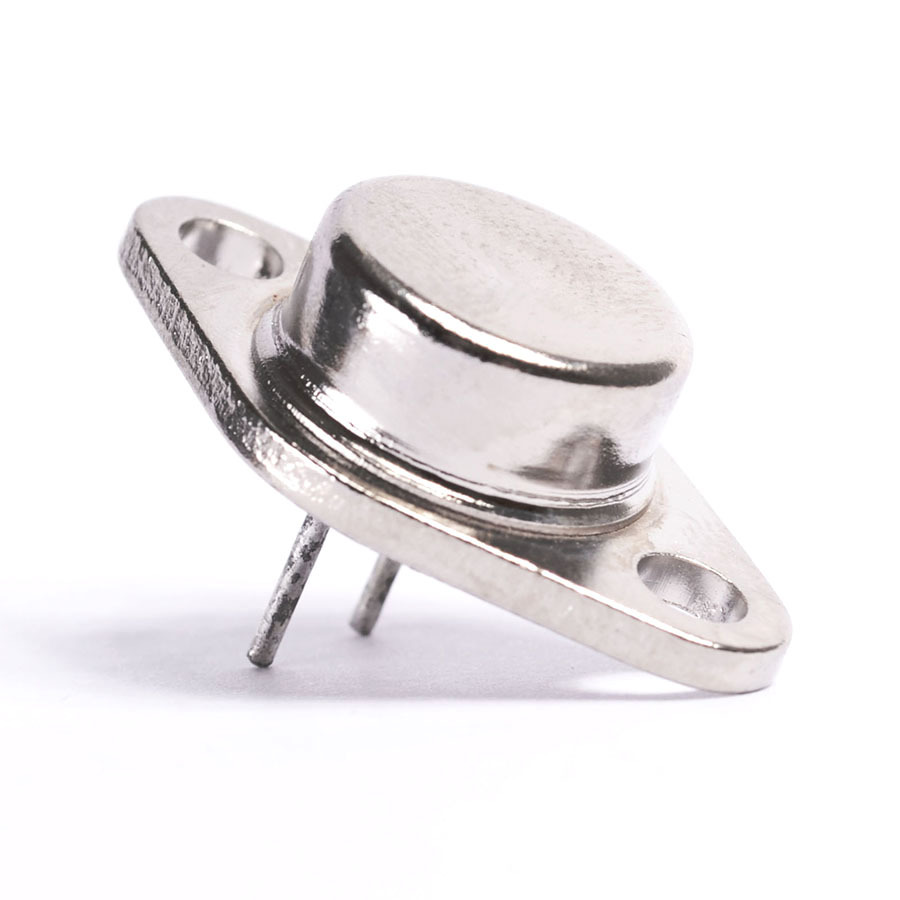

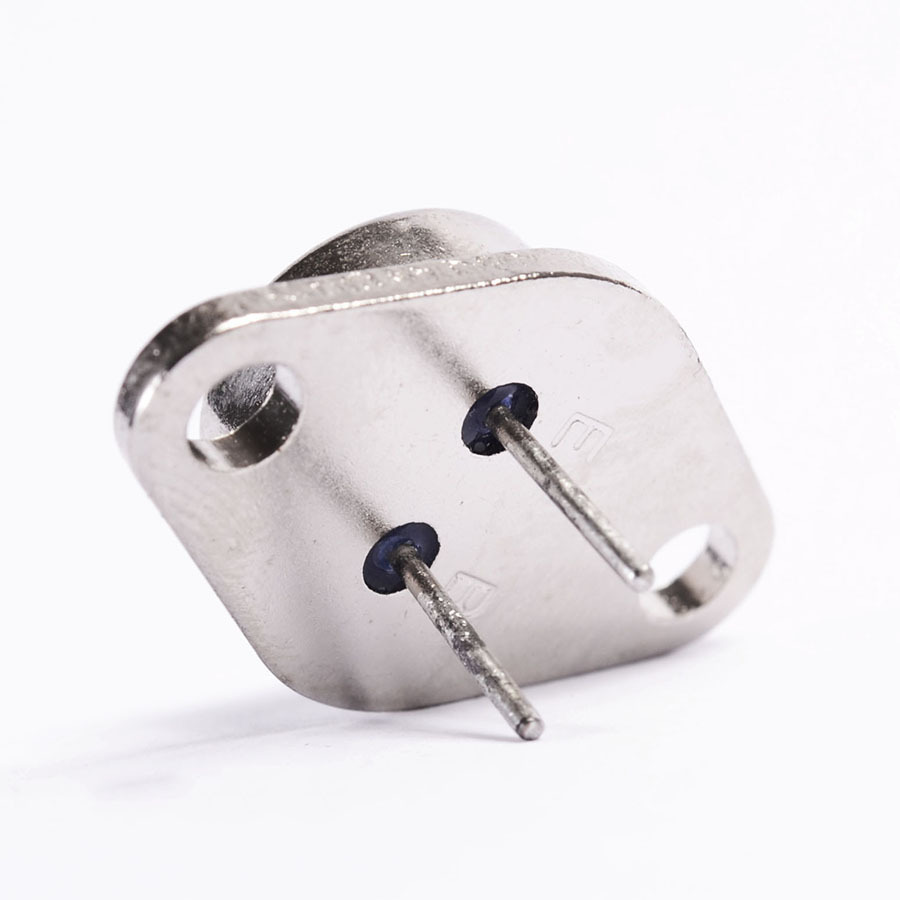

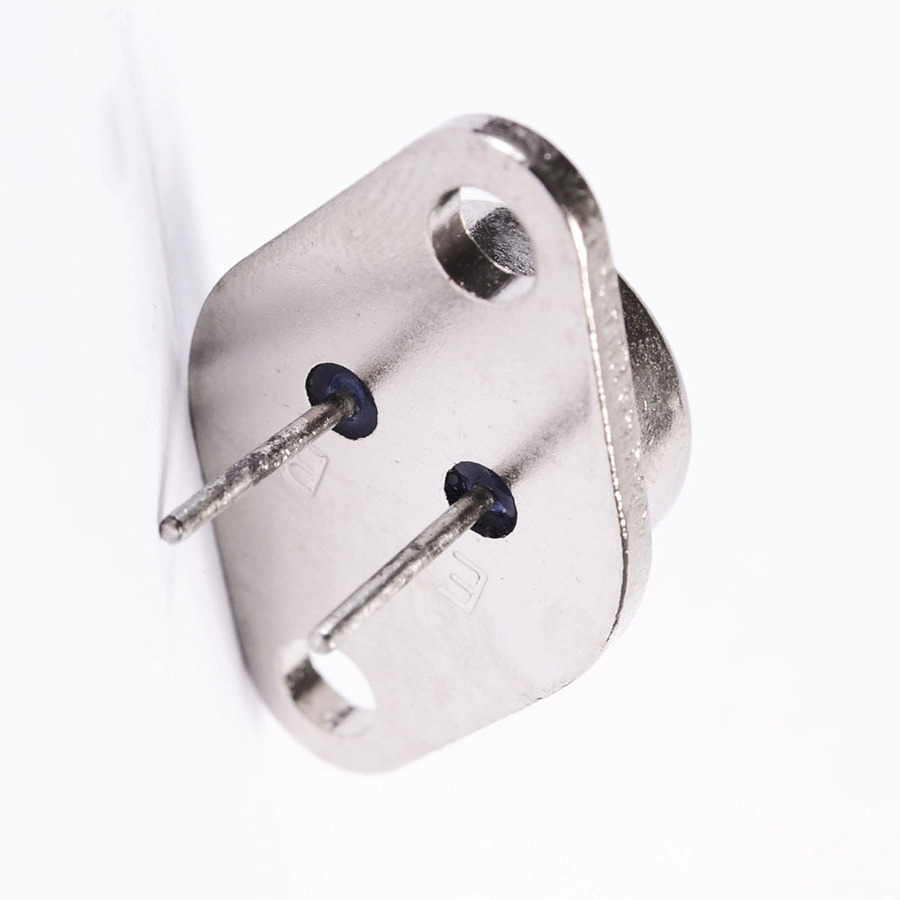

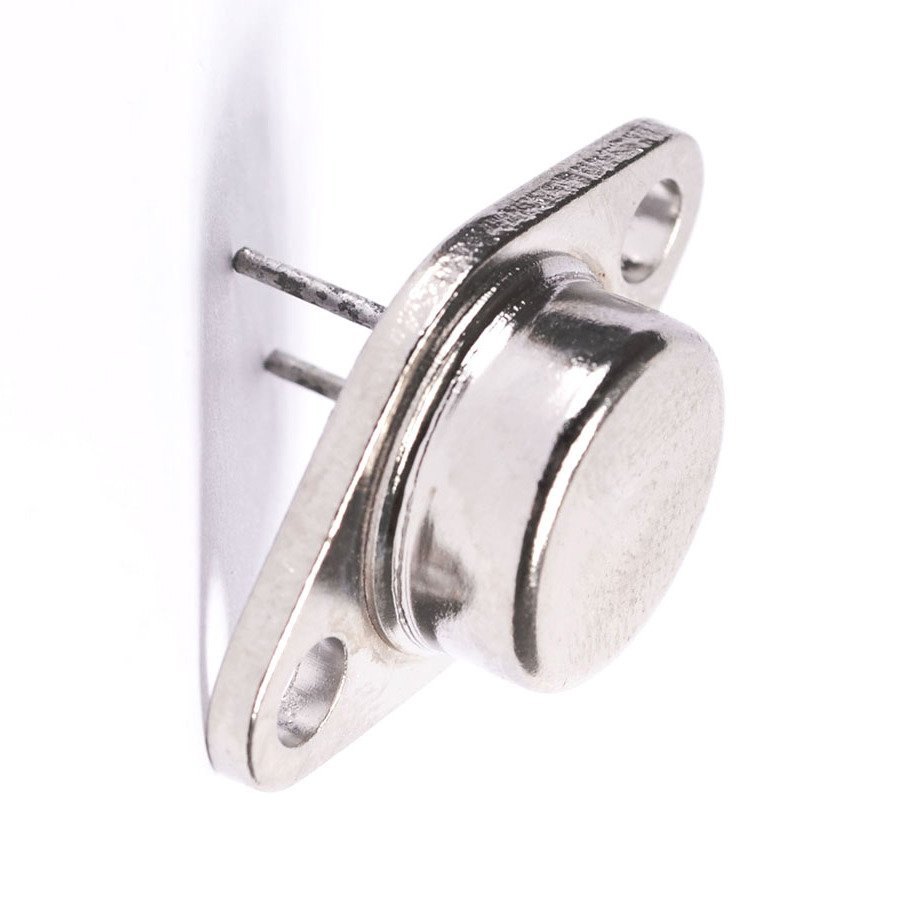

BLY16 Transistor Silicon NPN CASE: SOT9 MAKE: ITT Industries
Product specifications
Type Transistor Silicon NPN
Case SOT9
Manufacturer ITT Industries
Vbr CBO 64
Vbr CEO 64
Max. PD (W) 11
Min hFE 10
Ic Max. (A) 1.5
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 10u
Polarity NPN
Derate Above 25°C 74m
Trans. Freq (Hz) Min. 250M
Oper. Temp (°C) Max. 175
@VCE (V) 10i
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 11 W
Maximum Collector-Base Voltage |Vcb| 64 V
Maximum Collector-Emitter Voltage |Vce| 64 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 1.5 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 25 pF
Transition Frequency (ft): 125 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SKU 546000
