BSS44
View detailed images (4)

BSS44

SKU: BSS44

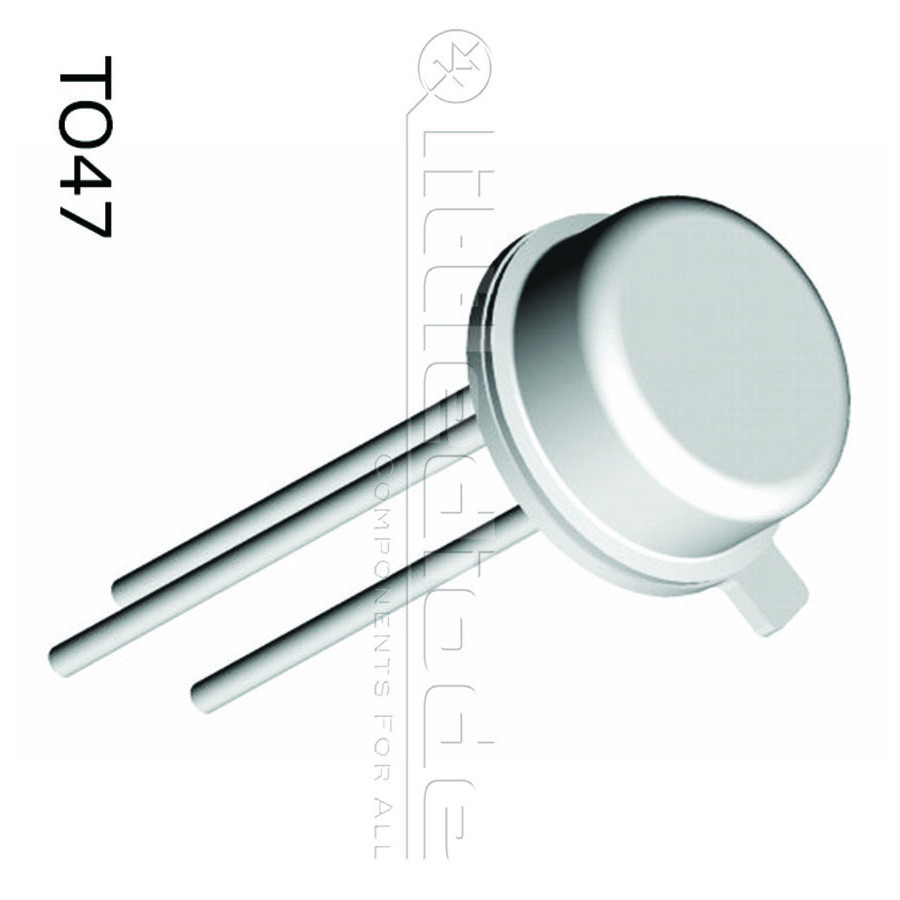

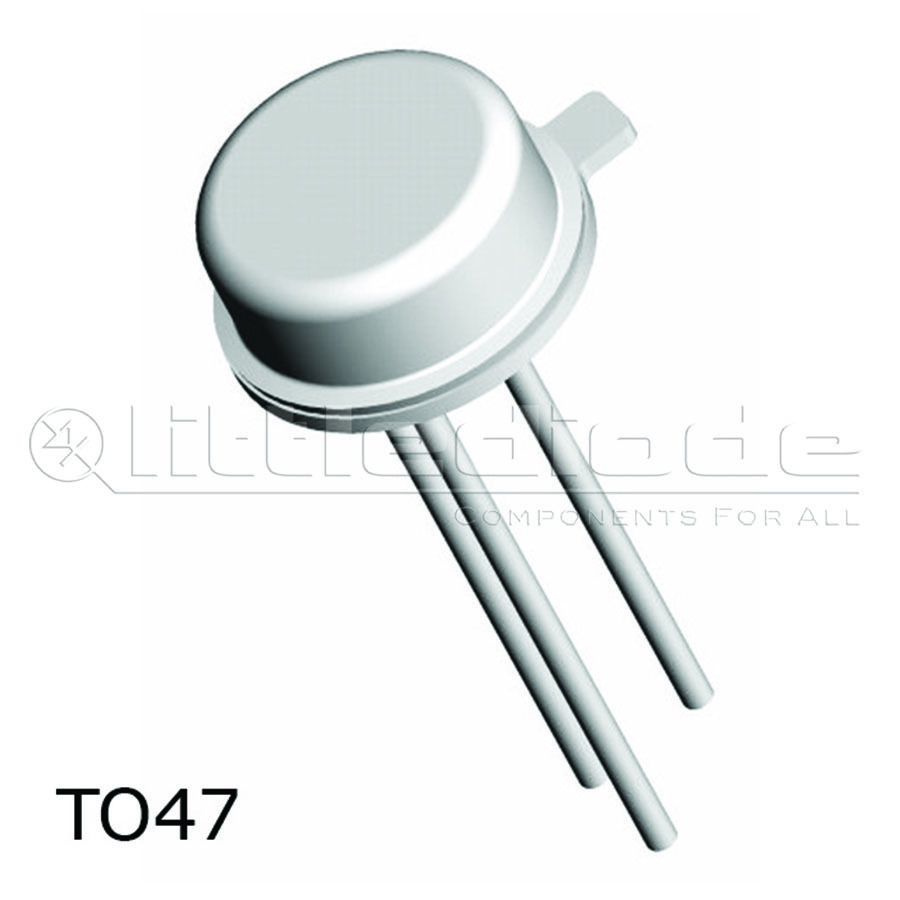

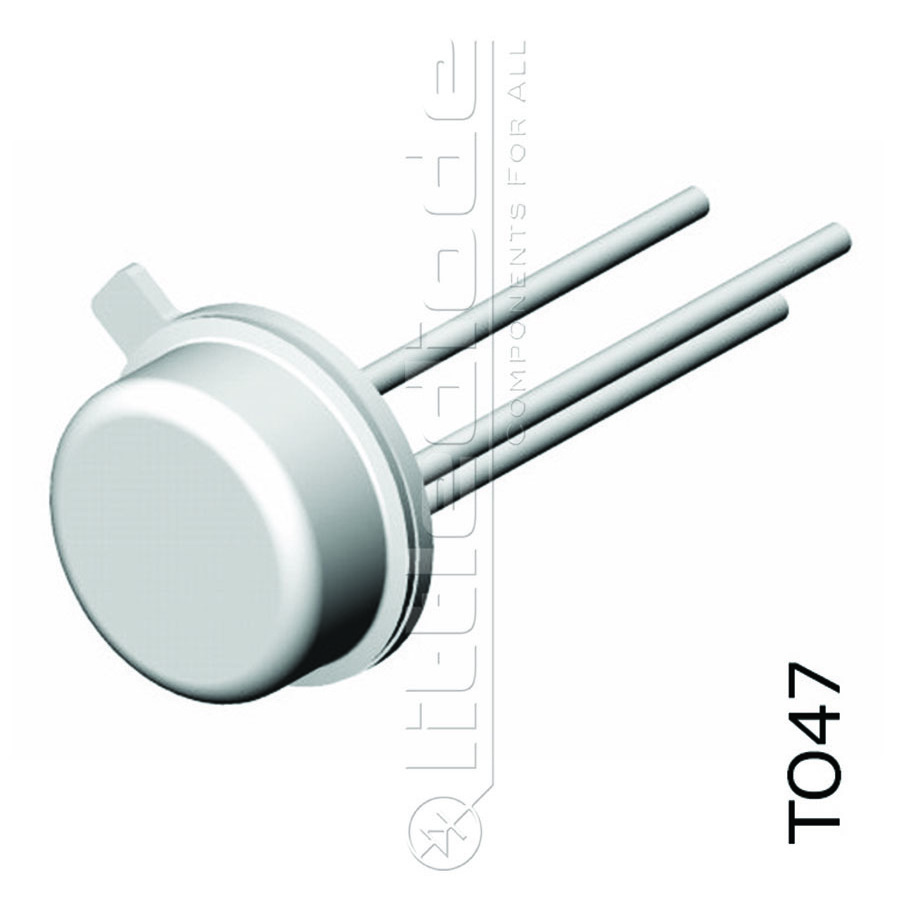

BSS44 Transistor Silicon PNP CASE: TO47 MAKE: ST Microelectronics - STM
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BSS44 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO47
Manufacturer ST Microelectronics - STM
Vbr CBO 65
Vbr CEO 60
Max. PD (W) 870m
Derate (Amb) (W/°C) 5.0m
hfe 30
Ic Max. (A) 5.0
Icbo Max. @Vcb Max. (A) 500n
Polarity PNP
Trans. Freq (Hz) Min. 70M
@VCE (test) (V) 2.0
Oper. Temp (°C) Max. 175
@Ic (A) 500m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.8 W
Maximum Collector-Base Voltage |Vcb| 65 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 100 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 84860
