BSS56
View detailed images (12)

BSS56

SKU: BSS56

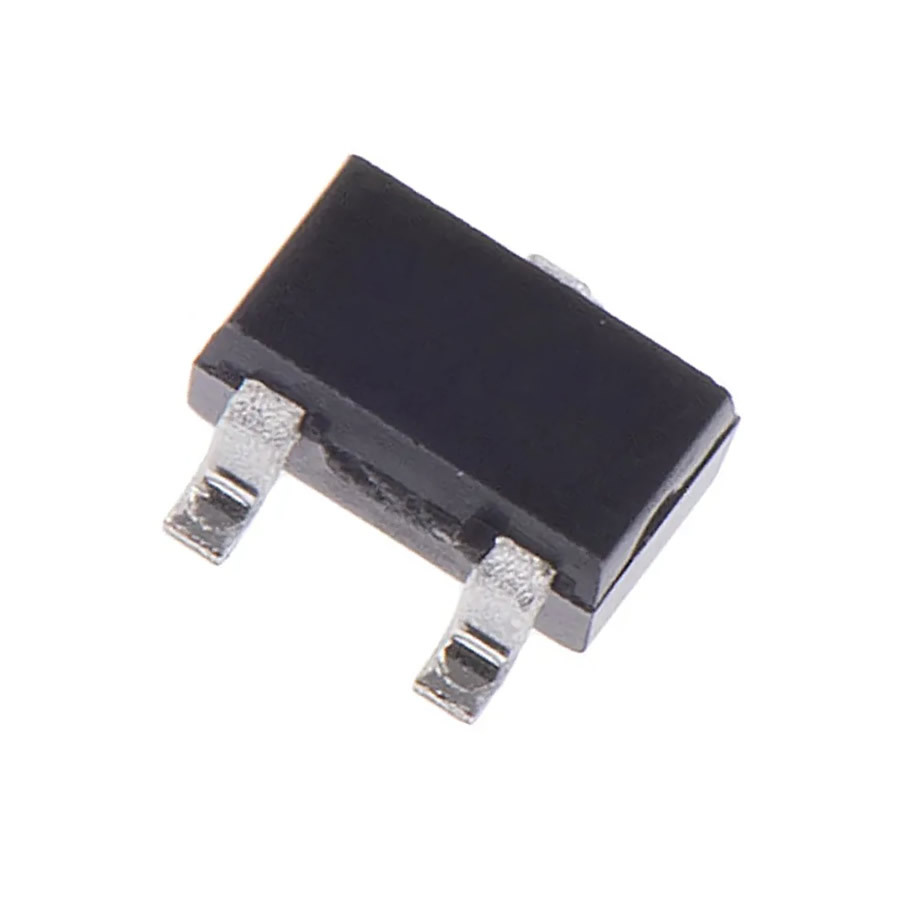

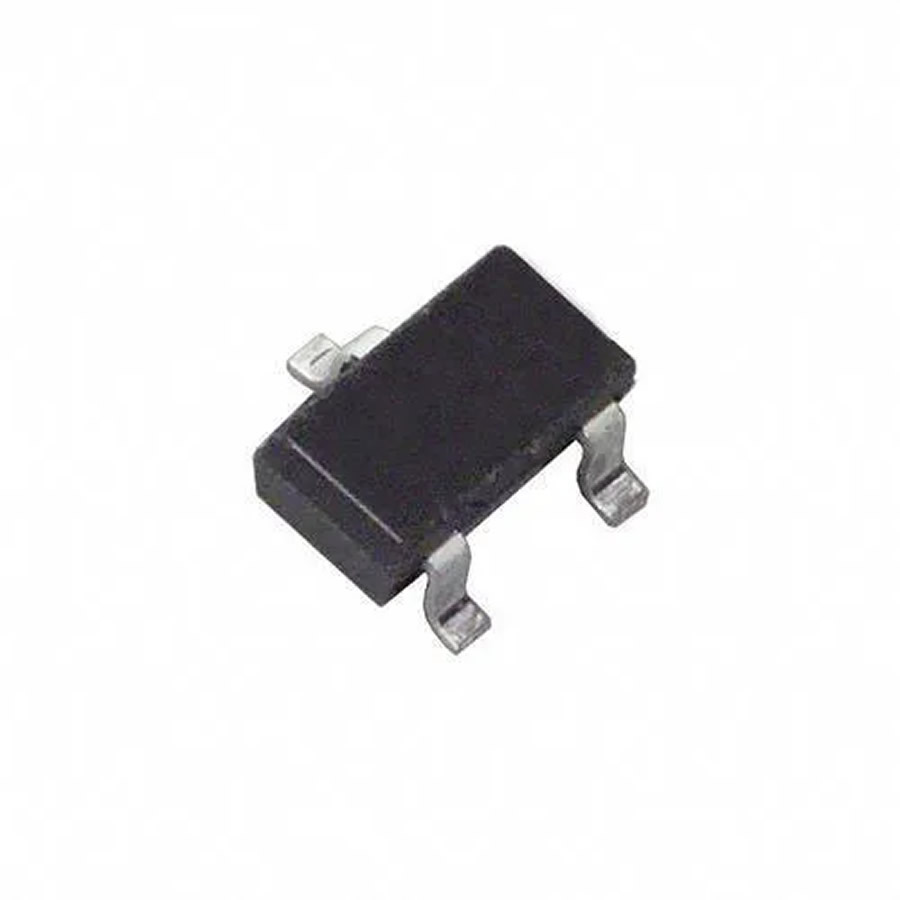

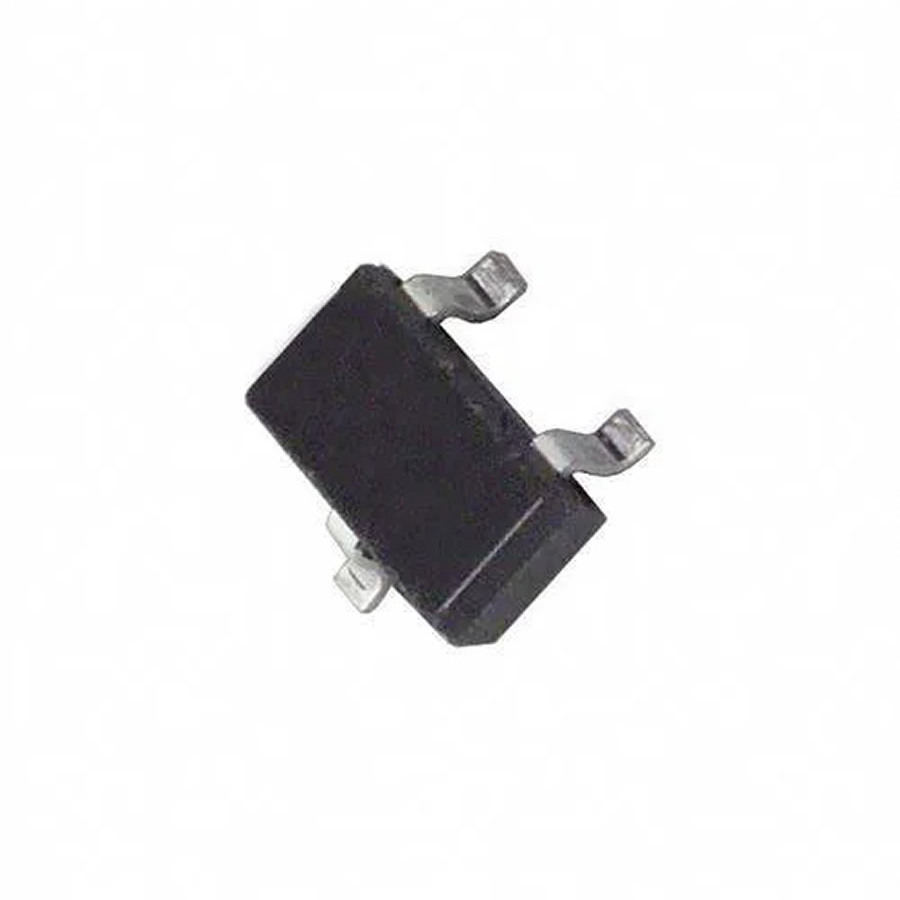

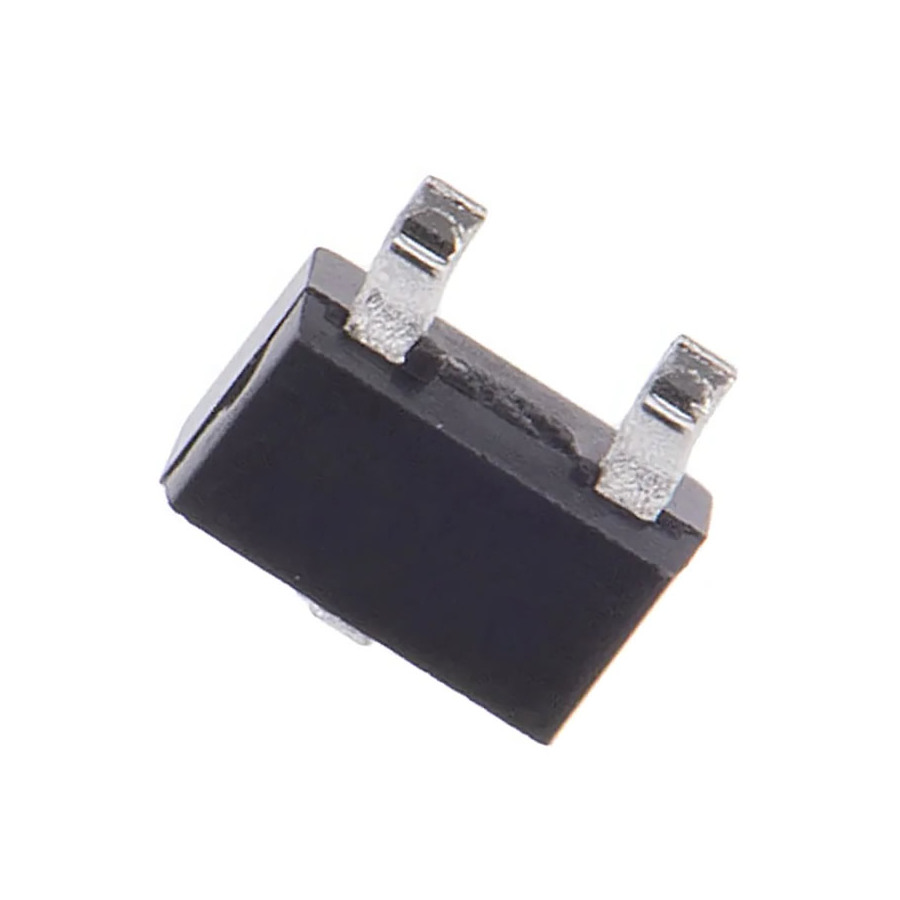

BSS56 Transistor Silicon NPN CASE: SOT323 MAKE: Ferranti - Zetex
Product specifications
Type Transistor Silicon NPN
Case SOT323
Manufacturer Ferranti - Zetex
Vbr CBO 120
Vbr CEO 120
Max. PD (W) 550m
C(ob) (F) 10p
Derate (Amb) (W/°C) 3.6m
hfe 30
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 500n
Polarity NPN
Trans. Freq (Hz) Min. 80M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 175
@Ic (A) 2.0m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.35 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 10 pF
Transition Frequency (ft): 80 MHz
Forward Current Transfer Ratio (hFE), MIN 15
SMD Transistor Code L7
SKU 138441
