BSS63

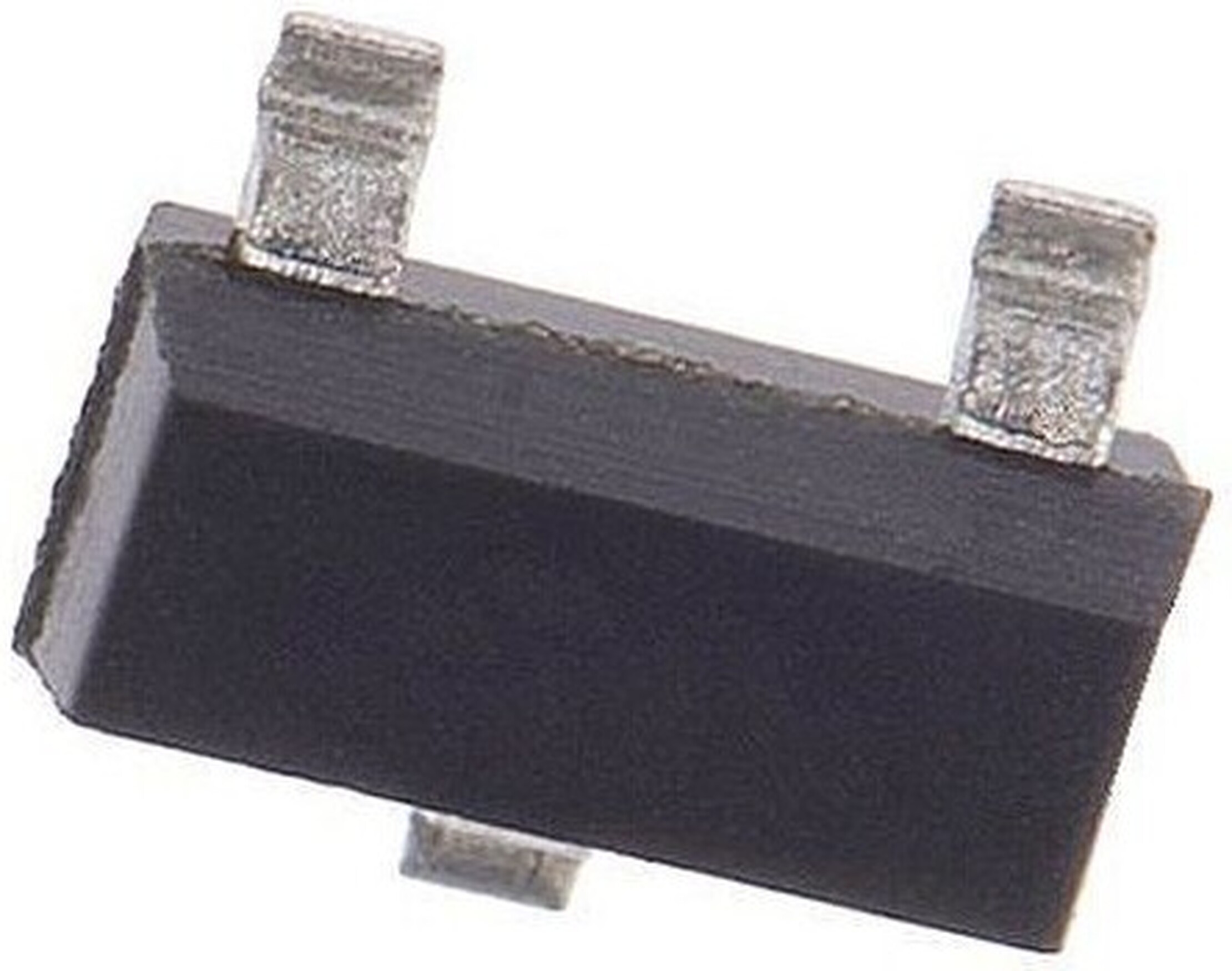

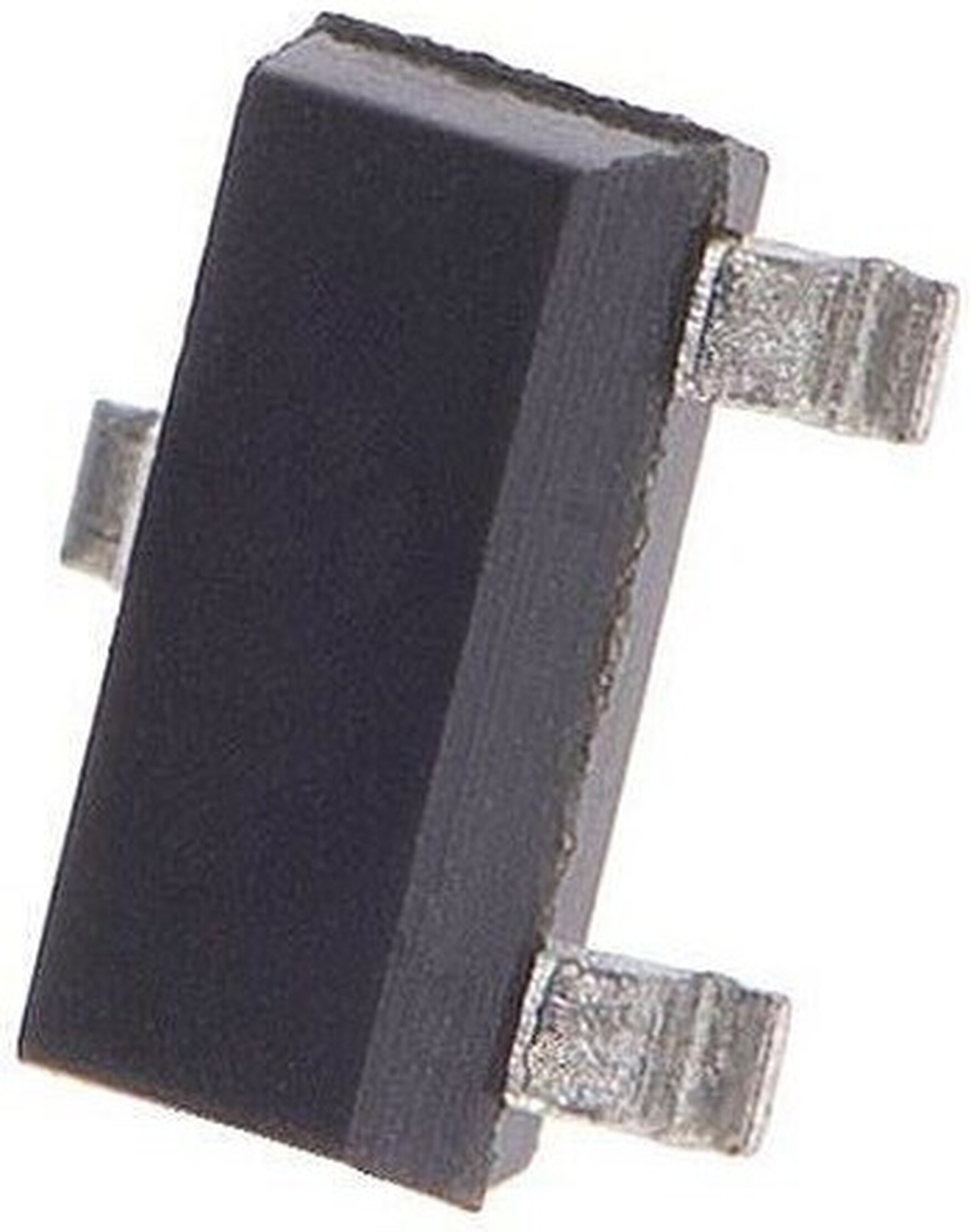

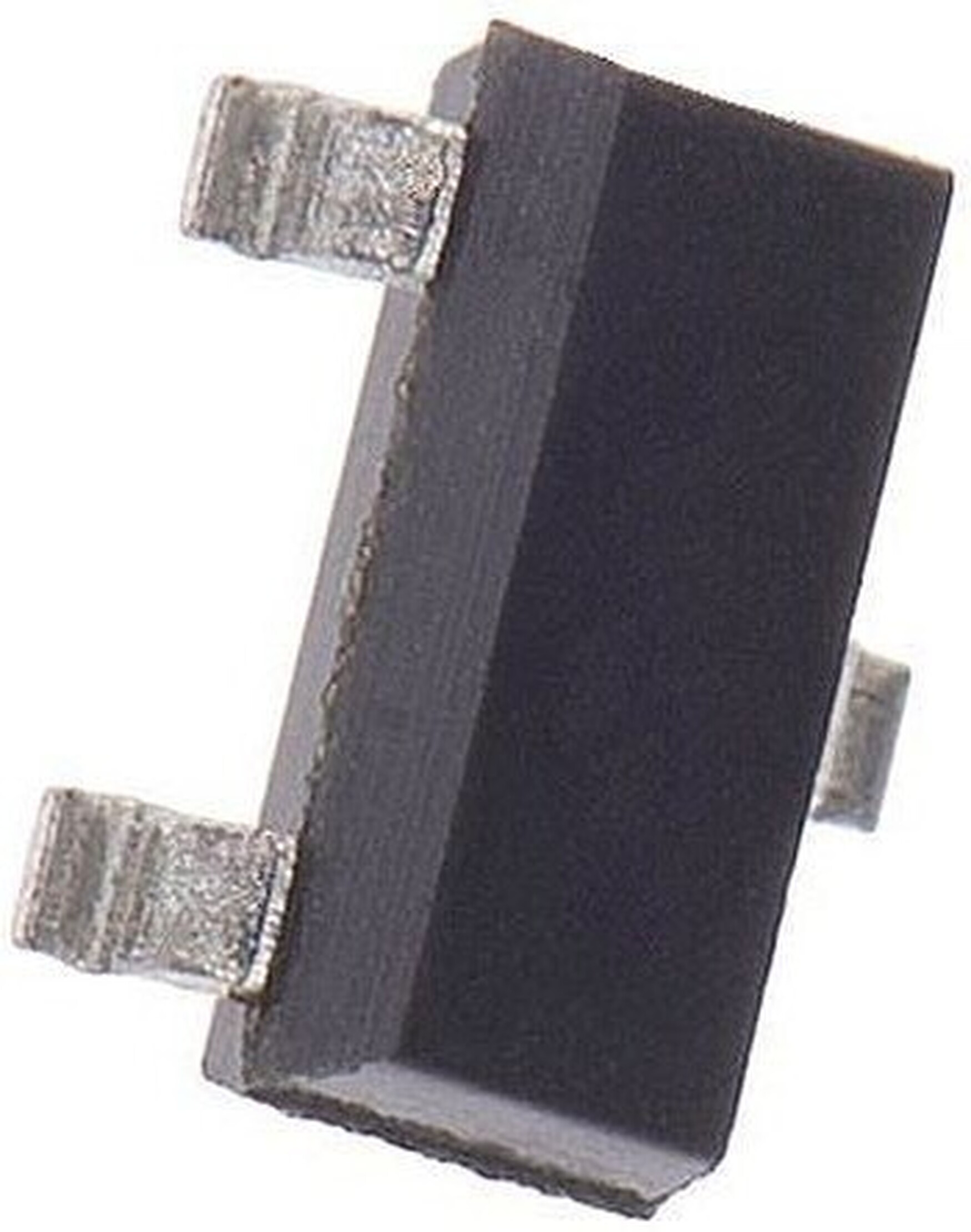

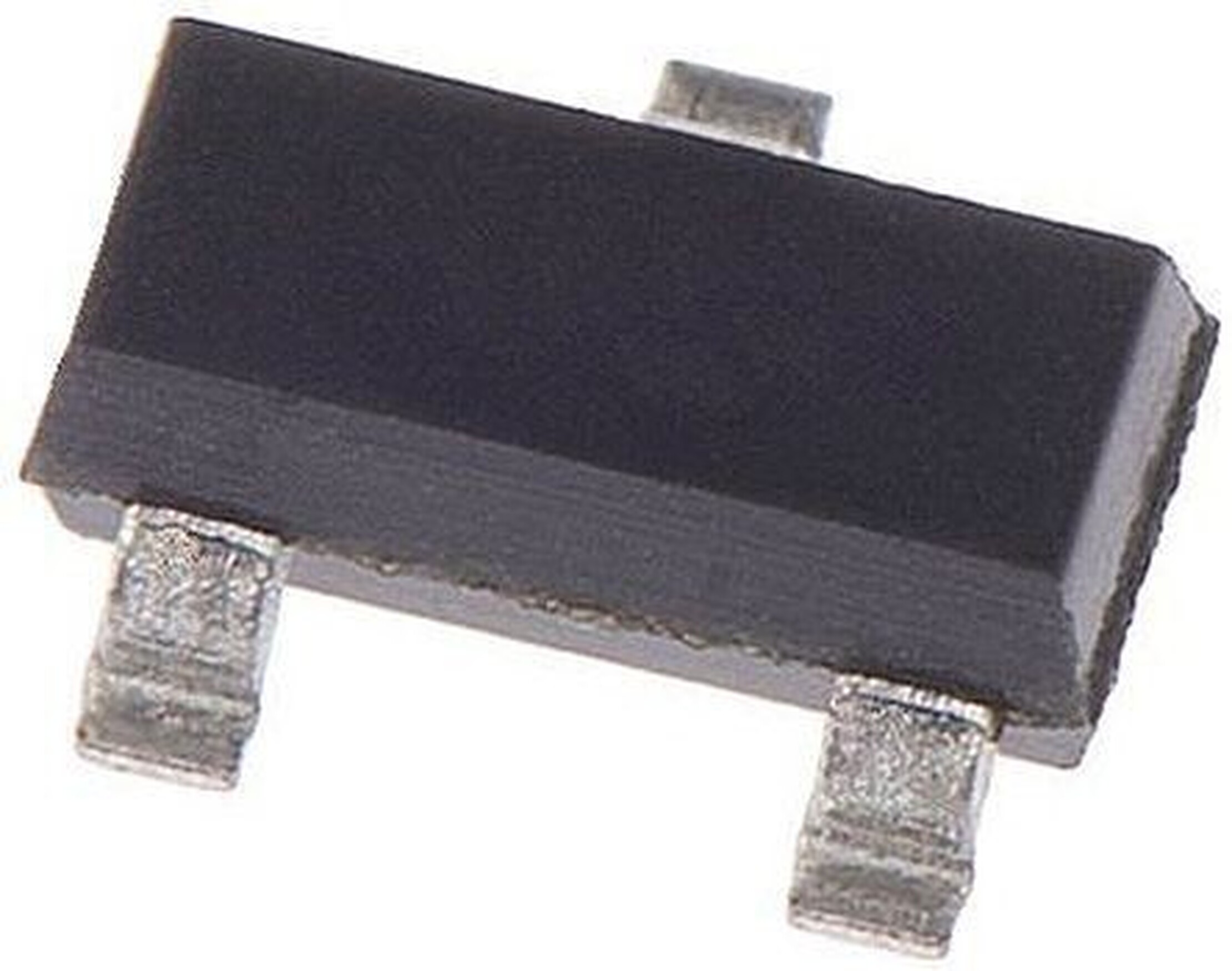

View detailed images (4)

BSS63

SKU: BSS63
BSS63 Transistor Silicon PNP CASE: TO236 MAKE: NXP Semiconductors
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BSS63 Datasheet
Product specifications
Type Transistor Silicon PNP
Case TO236
Manufacturer NXP Semiconductors
Vbr CBO 110
Vbr CEO 100
Max. PD (W) 225m
C(ob) (F) 3.0p
Derate (Amb) (W/°C) 1.8m
Ic Max. (A) 100m
Icbo Max. @Vcb Max. (A) 100n
Polarity PNP
Trans. Freq (Hz) Min. 85M-
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-14
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.225 W
Maximum Collector-Base Voltage |Vcb| 110 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 85 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SMD Transistor Code BM_BMp_BMs_BMt_BMW_T1_T3_T6
SKU 138445
