BSV36
View detailed images (12)

BSV36

SKU: BSV36

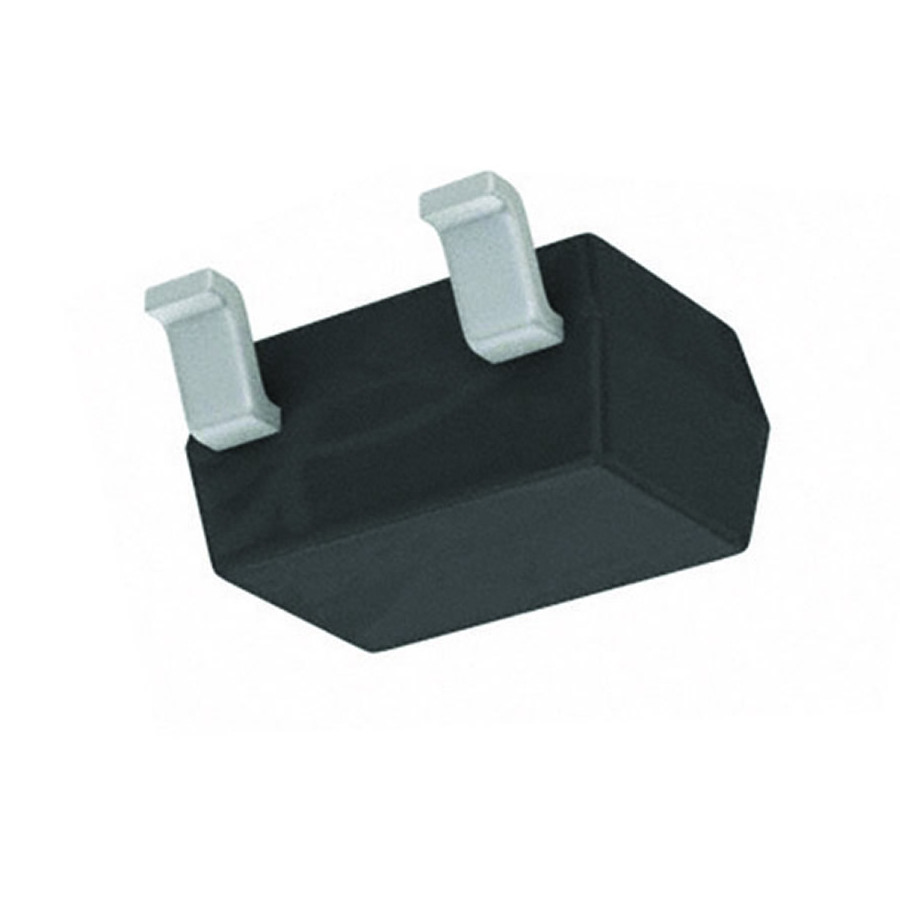

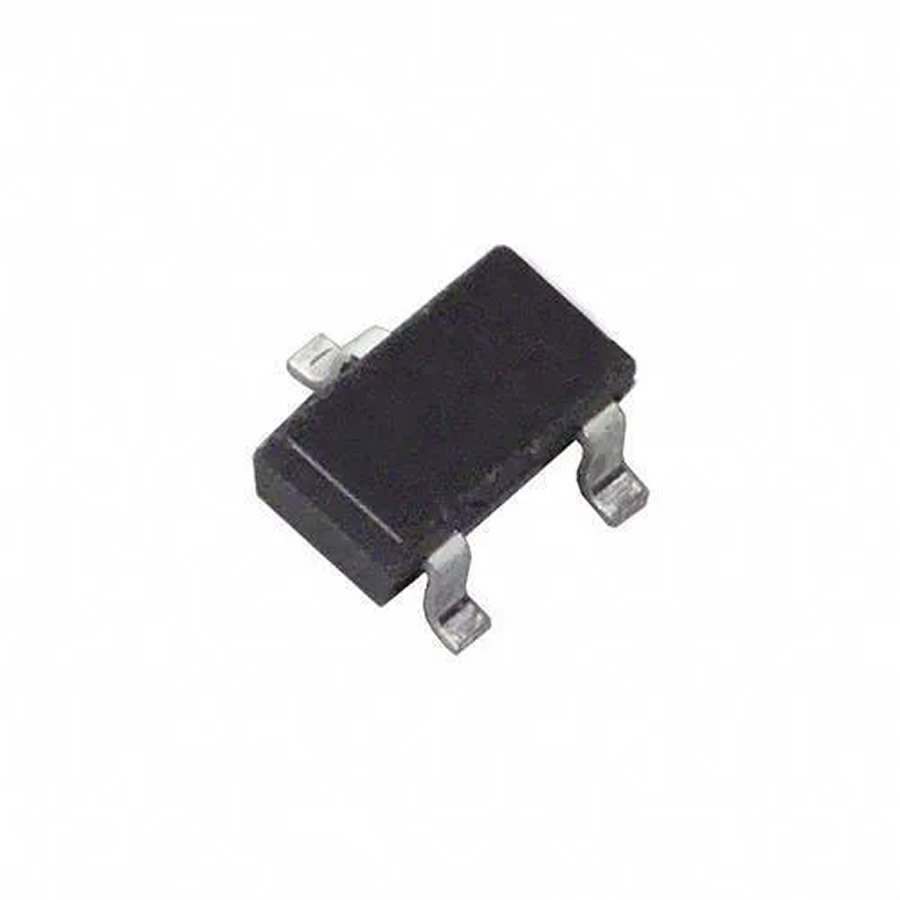

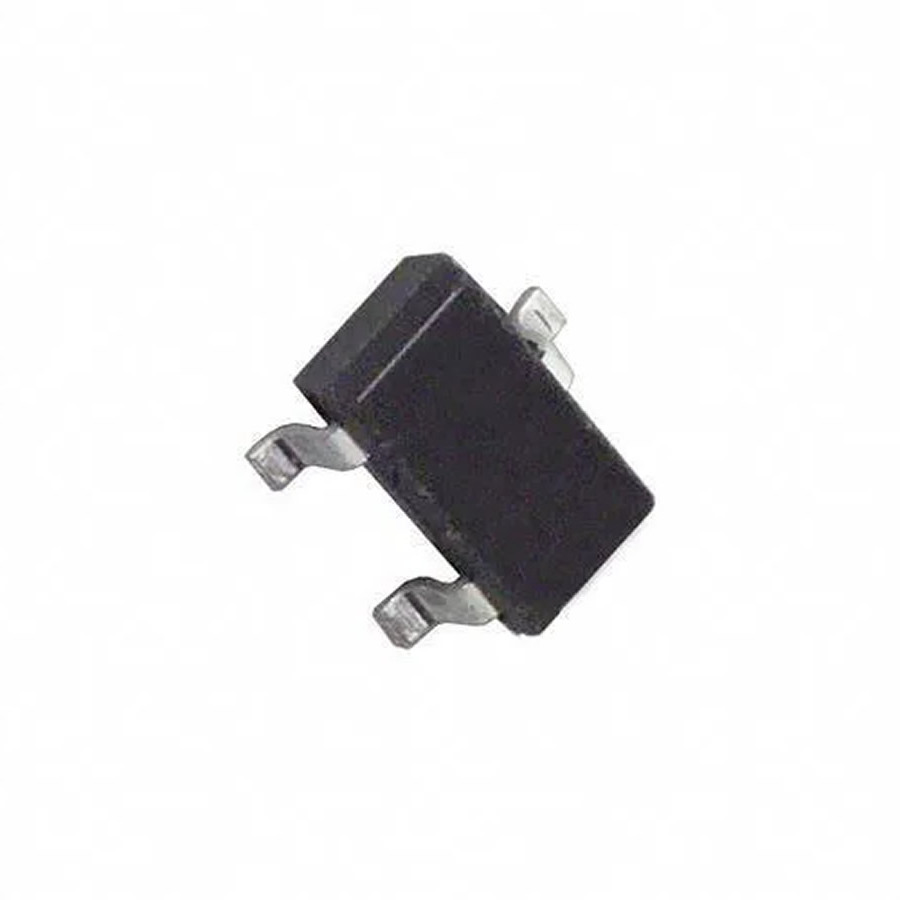

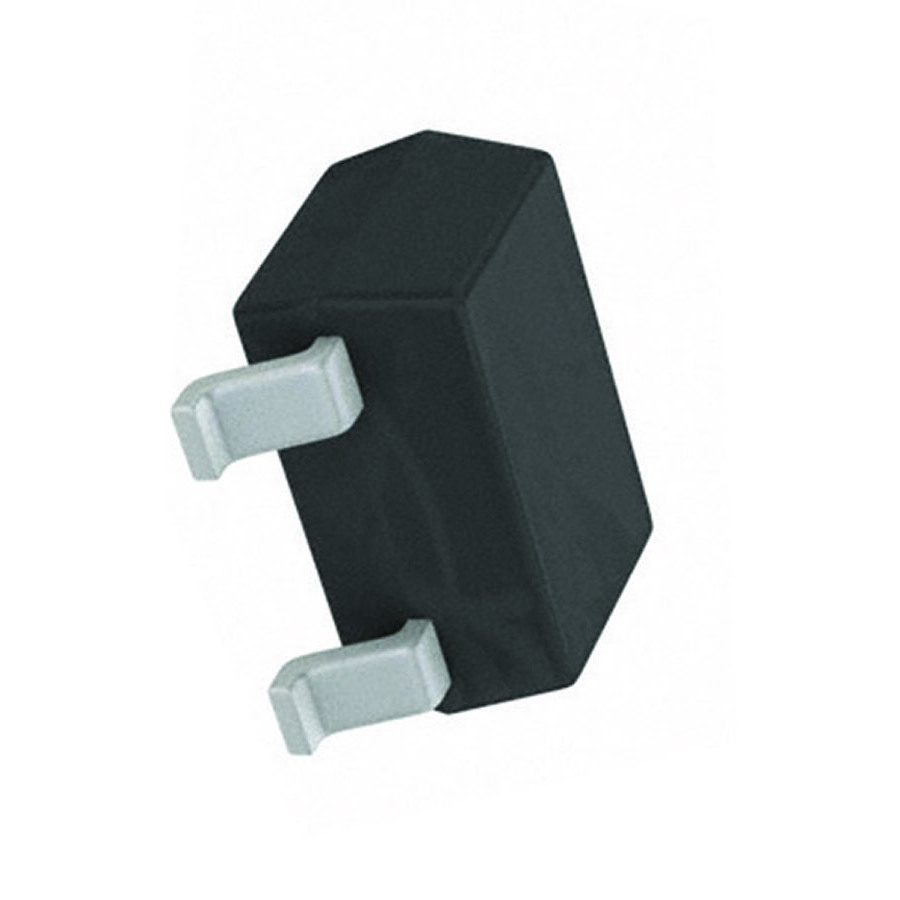

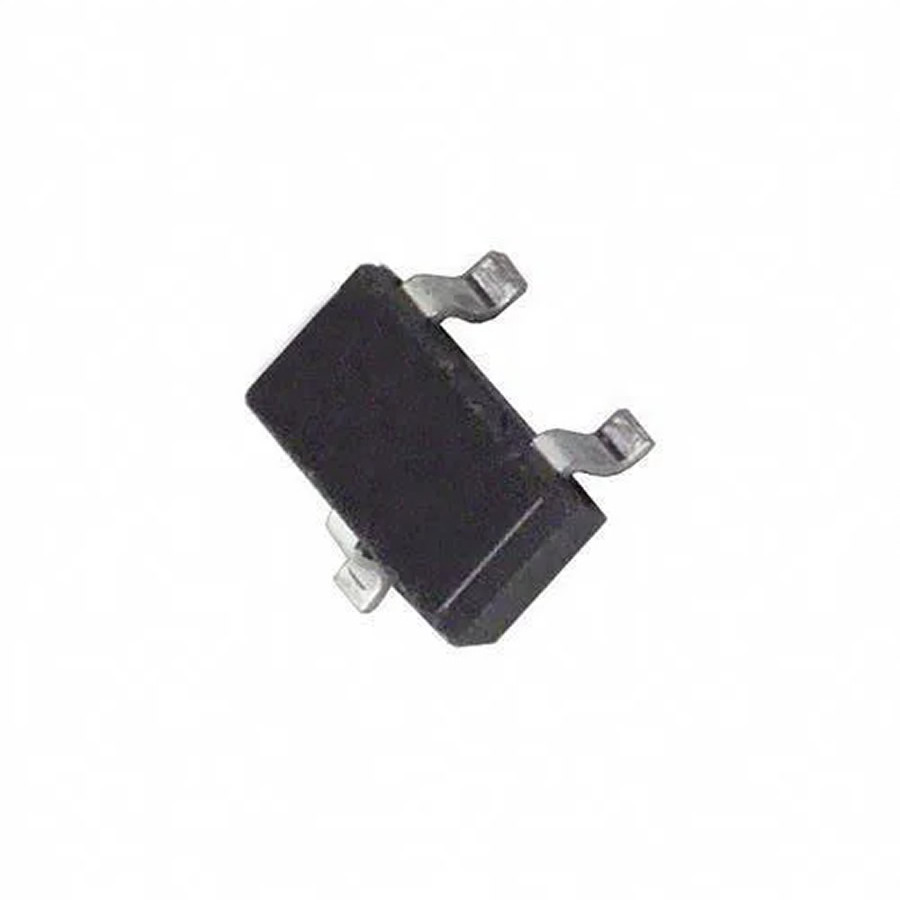

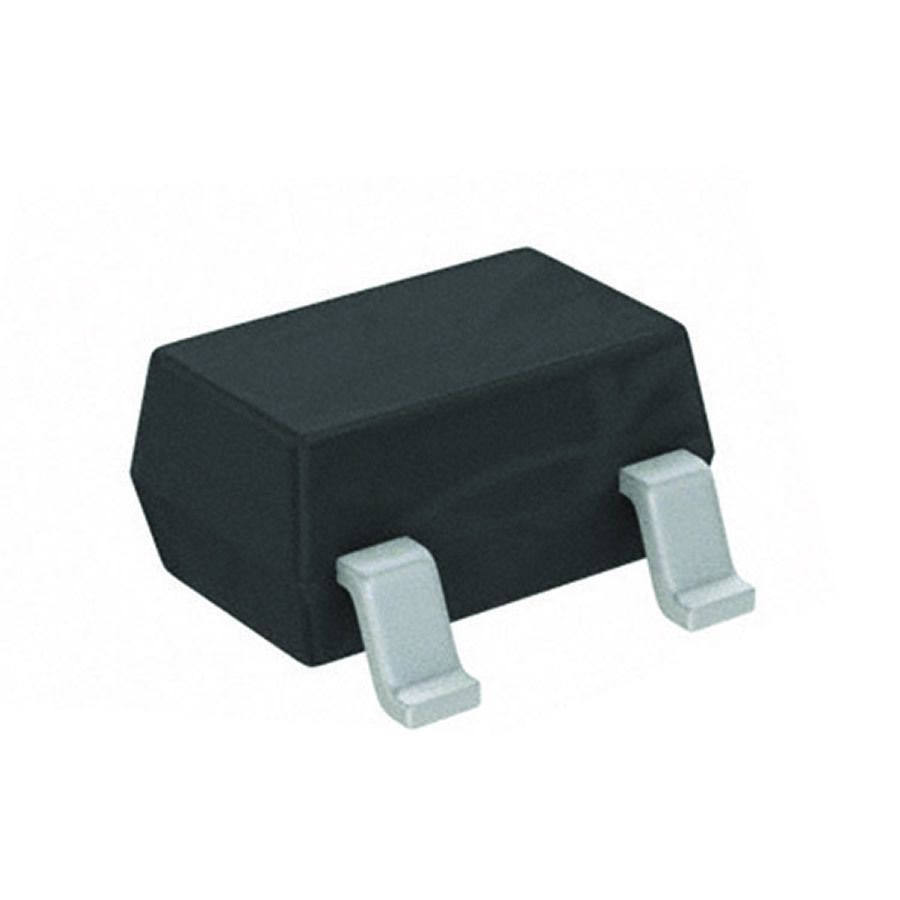

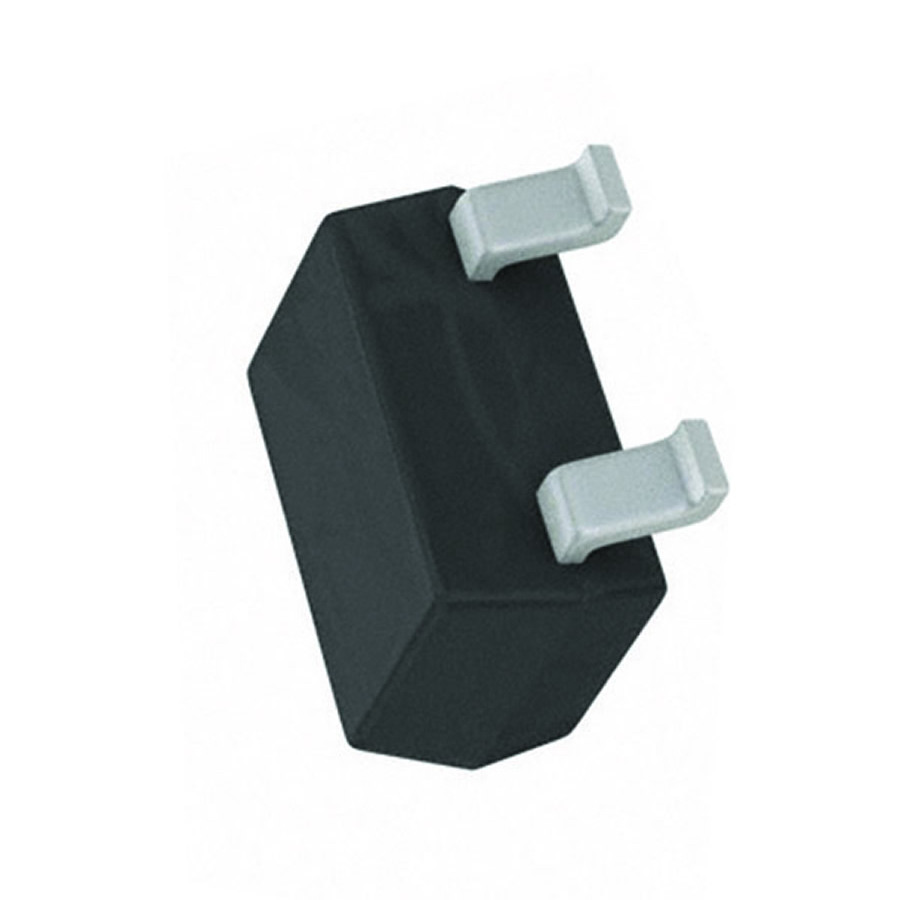

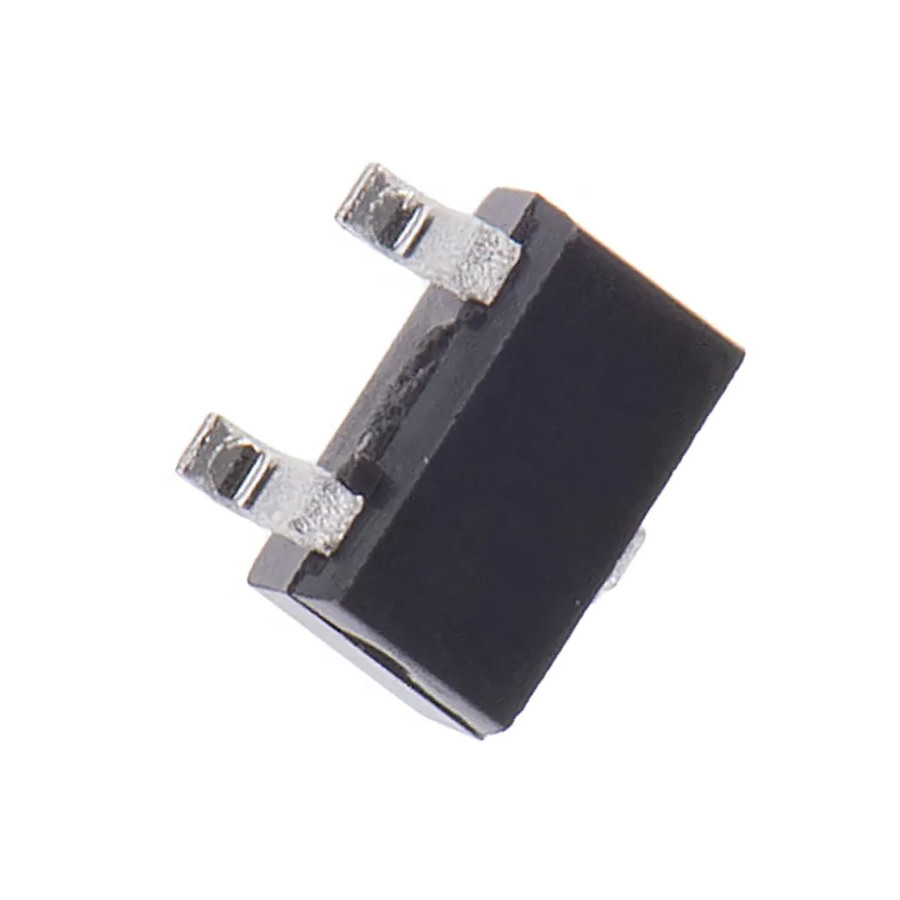

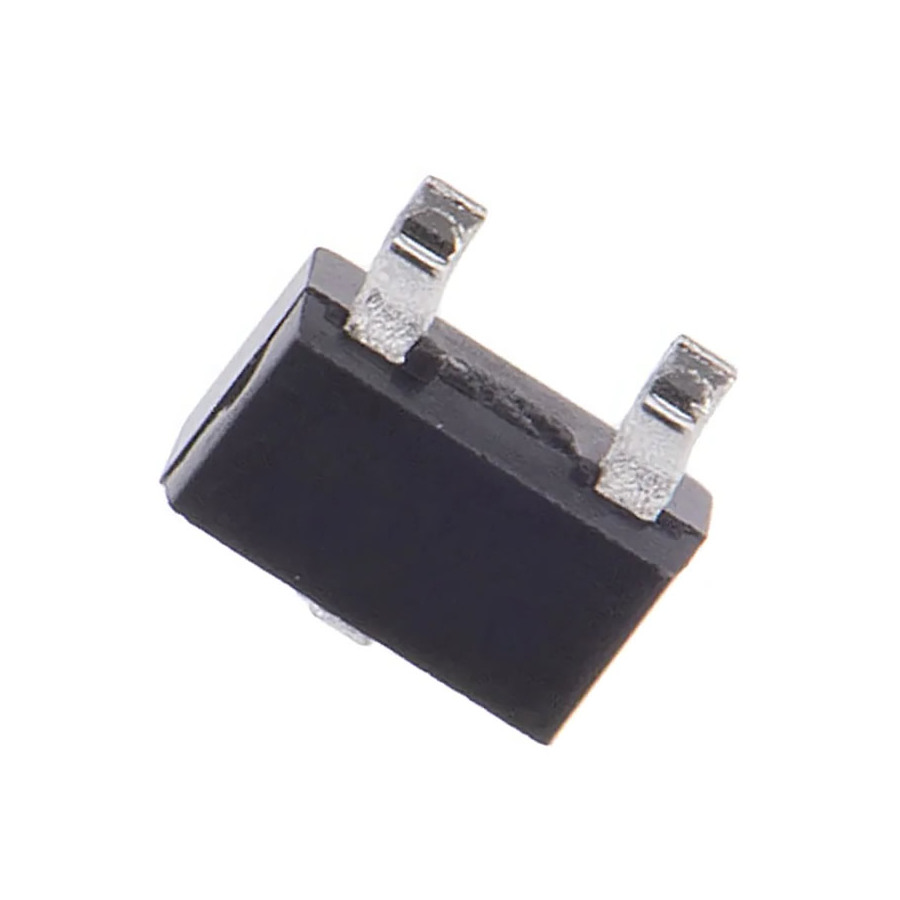

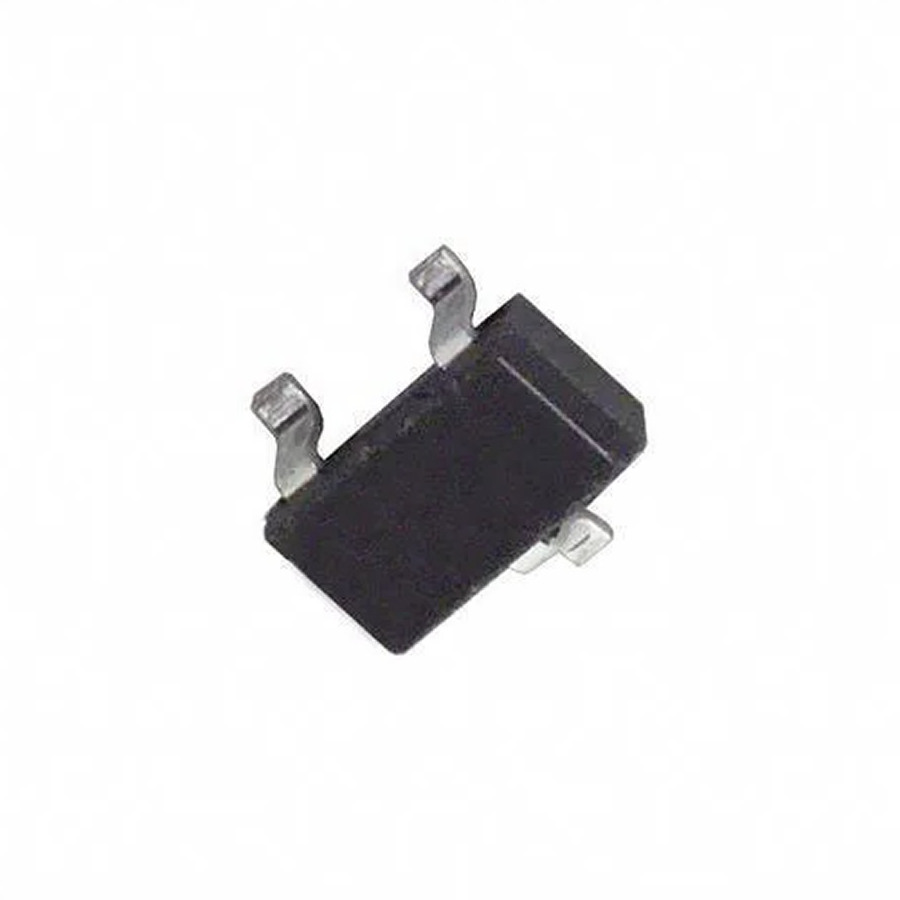

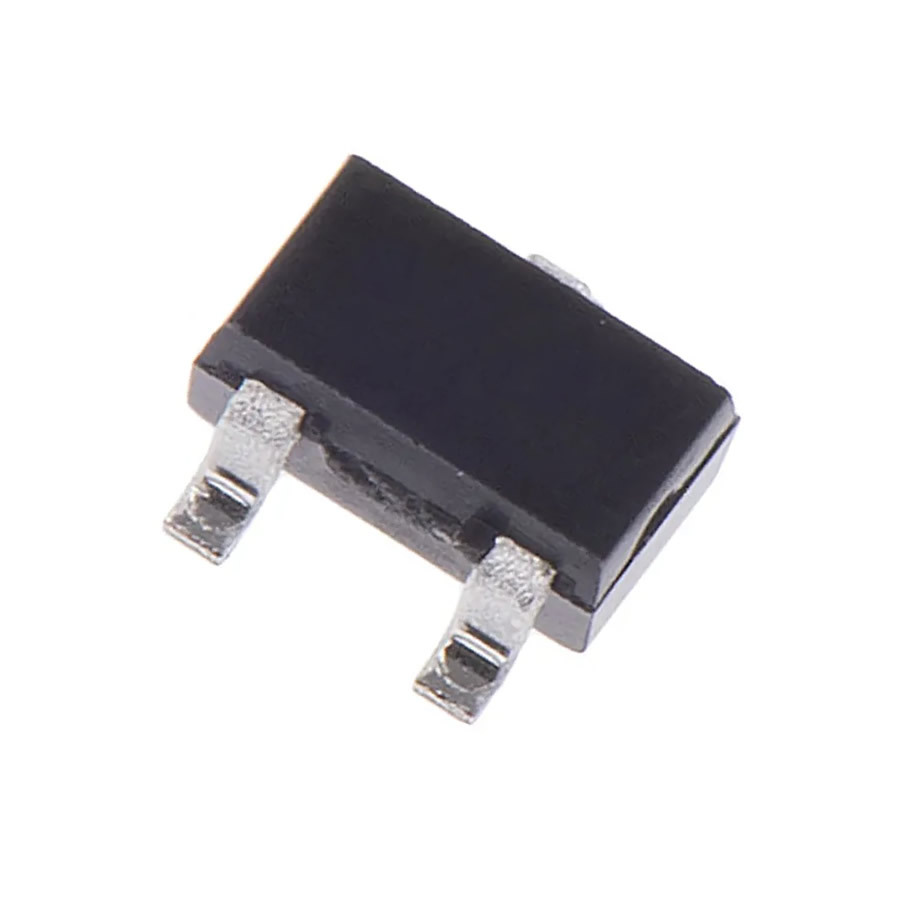

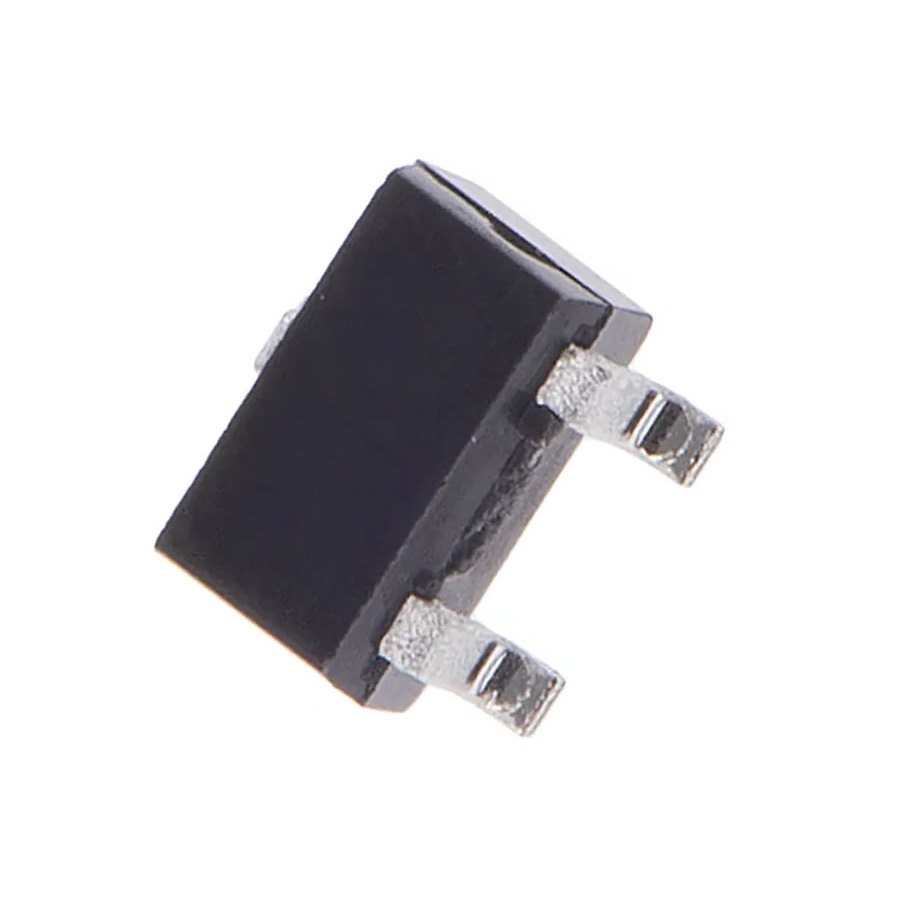

BSV36 Transistor Silicon NPN CASE: SOT323 MAKE: Ferranti - Zetex
Product specifications
Type Transistor Silicon NPN
Case SOT323
Manufacturer Ferranti - Zetex
Vbr CBO 15
Vbr CEO 6.0
Max. PD (W) 550m
C(ob) (F) 3.0p
Derate (Amb) (W/°C) 3.6m
t(f) Max. (S) 15n+
hfe 30
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 50n
Polarity NPN
Tr Max. (s) 20n
t(stor) Max. (S) 6.0n
Trans. Freq (Hz) Min. 600M
@VCE (test) (V) .40
Oper. Temp (°C) Max. 175
@Ic (A) 20m
Pinout Equivalence Number 3-14
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 0.55 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 6 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 175 °C
Transition Frequency (ft): 600 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SMD Transistor Code S3
SKU 538903
