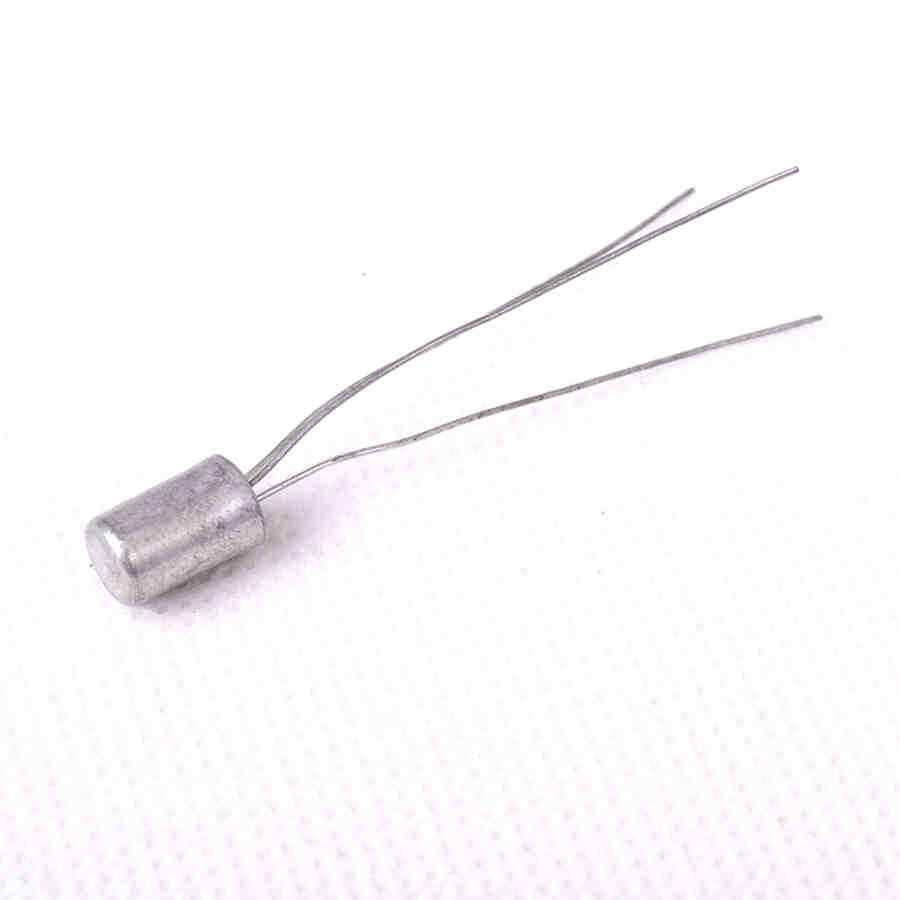

BSW13 Transistor Silicon NPN CASE: TO1 MAKE: Siemens Semiconductors
Product specifications
Type Transistor Silicon NPN
Case TO1
Manufacturer Siemens Semiconductors
Vbr CBO 20
Vbr CEO 15
Max. PD (W) 160m
C(ob) (F) 5.0p
Derate (Amb) (W/°C) 2.0m
t(f) Max. (S) 40n+
hfe 40
Ic Max. (A) 50m
Icbo Max. @Vcb Max. (A) 500n
Polarity NPN
Tr Max. (s) 20n
t(stor) Max. (S) 20n
Trans. Freq (Hz) Min. 280M
@VCE (test) (V) .35
Oper. Temp (°C) Max. 125
@Ic (A) 10m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.16 W
Maximum Collector-Base Voltage |Vcb| 25 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.05 A
Max. Operating Junction Temperature (Tj) 125 °C
Transition Frequency (ft): 280 MHz
Forward Current Transfer Ratio (hFE), MIN 40
