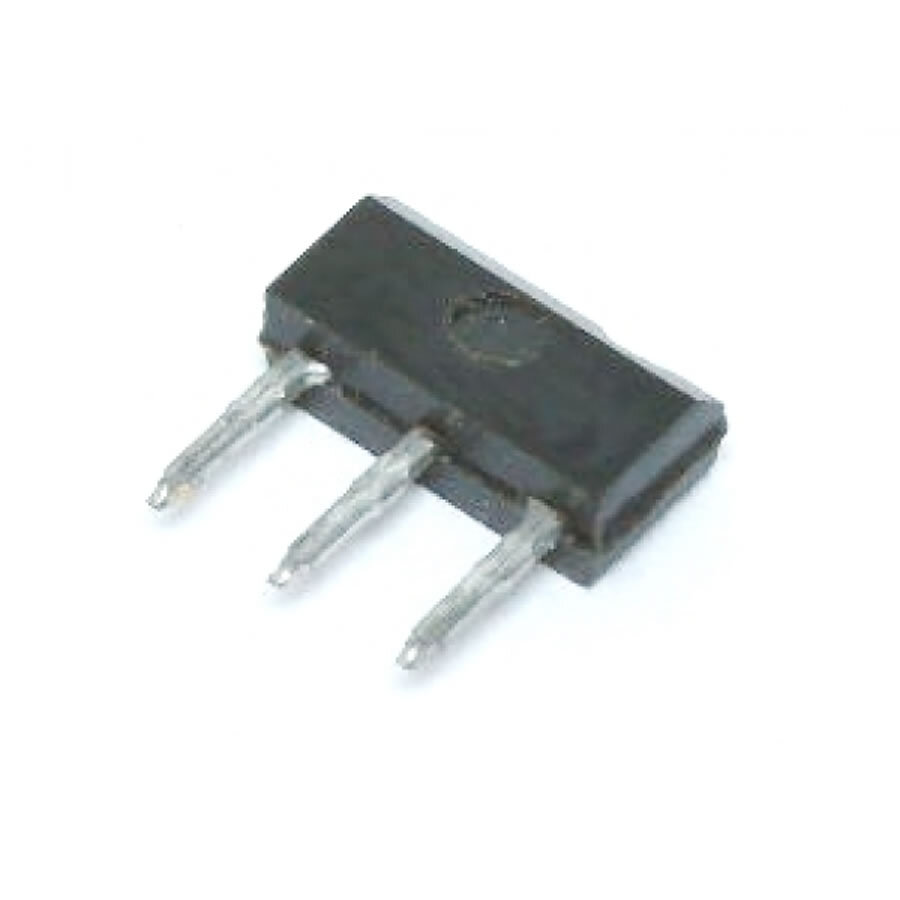

BSW59 Transistor Silicon NPN CASE: SOT33 MAKE: Valvo
Product specifications
Type Transistor Silicon NPN
Case SOT33
Manufacturer Valvo
Vbr CBO 30
Vbr CEO 12
Max. PD (W) 125m
C(ob) (F) 4.0p
Derate (Amb) (W/°C) 1.6m
t(f) Max. (S) 18n+
hfe 60
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 400n
Polarity NPN
Tr Max. (s) 12n
t(stor) Max. (S) 12n
Trans. Freq (Hz) Min. 600M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-17
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.125 W
Maximum Collector-Base Voltage |Vcb| 30 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 400 MHz
Forward Current Transfer Ratio (hFE), MIN 60
