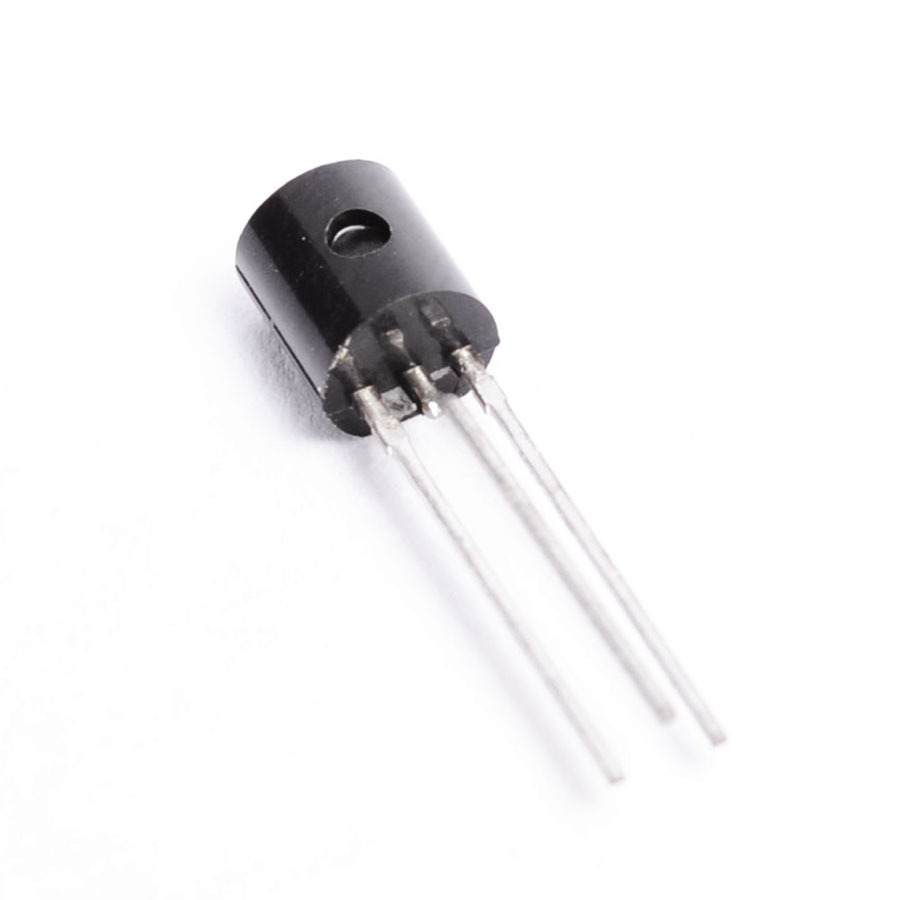

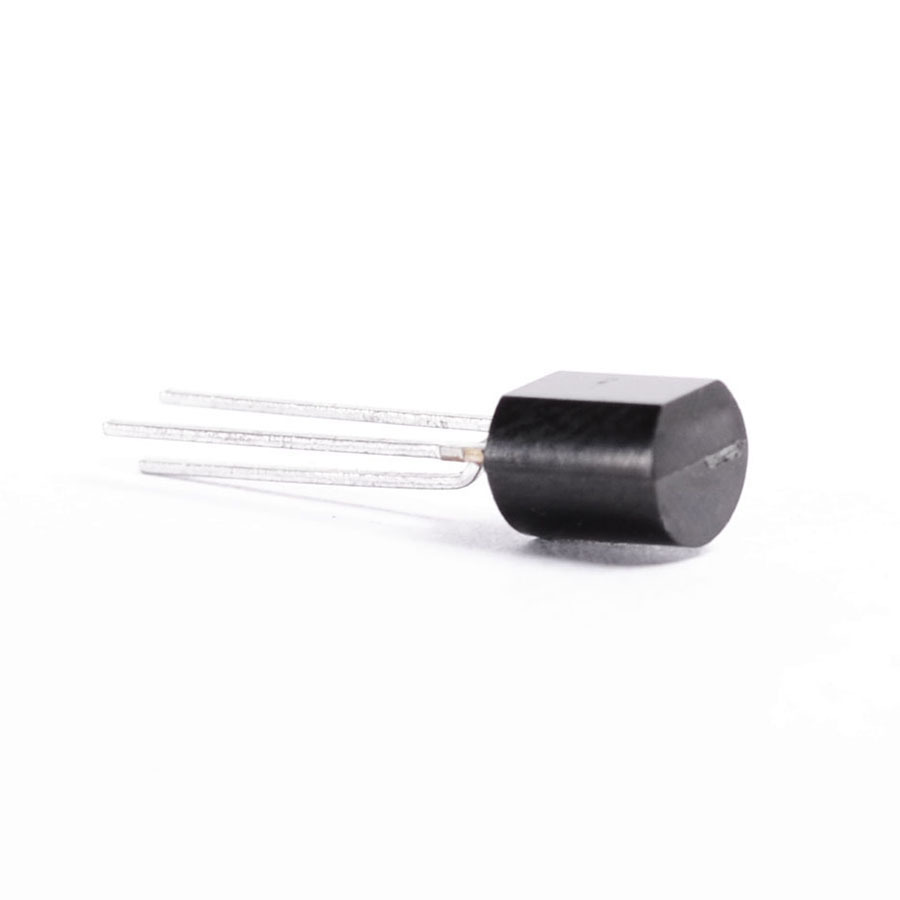

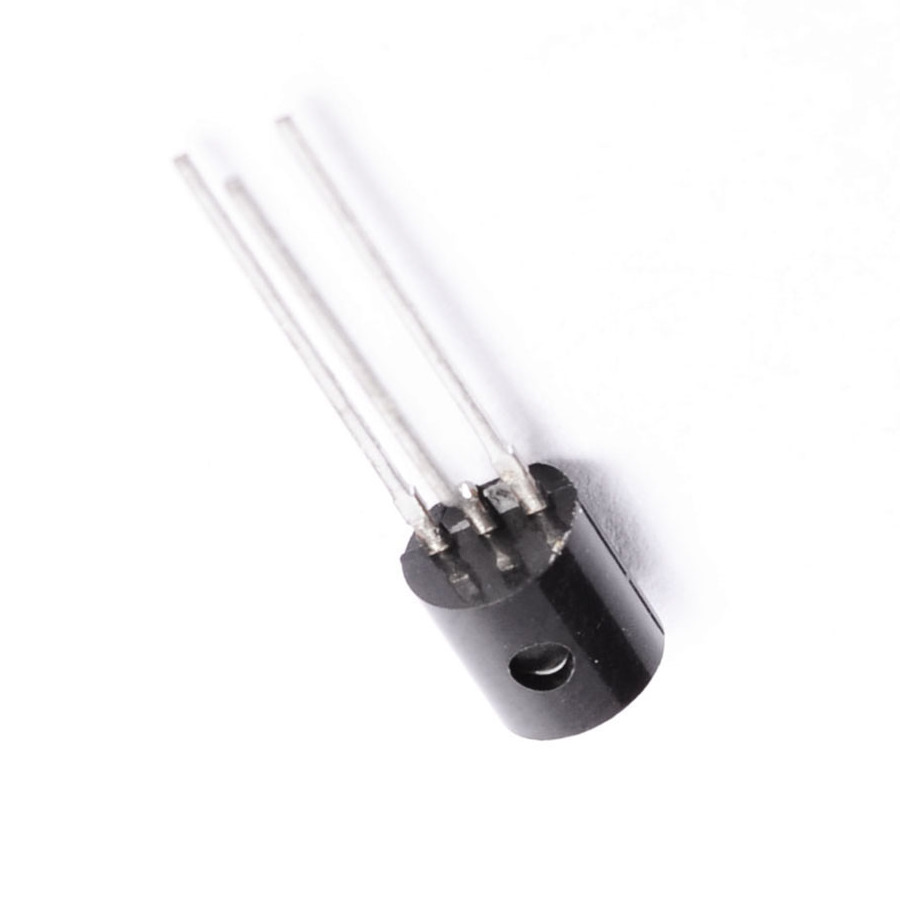

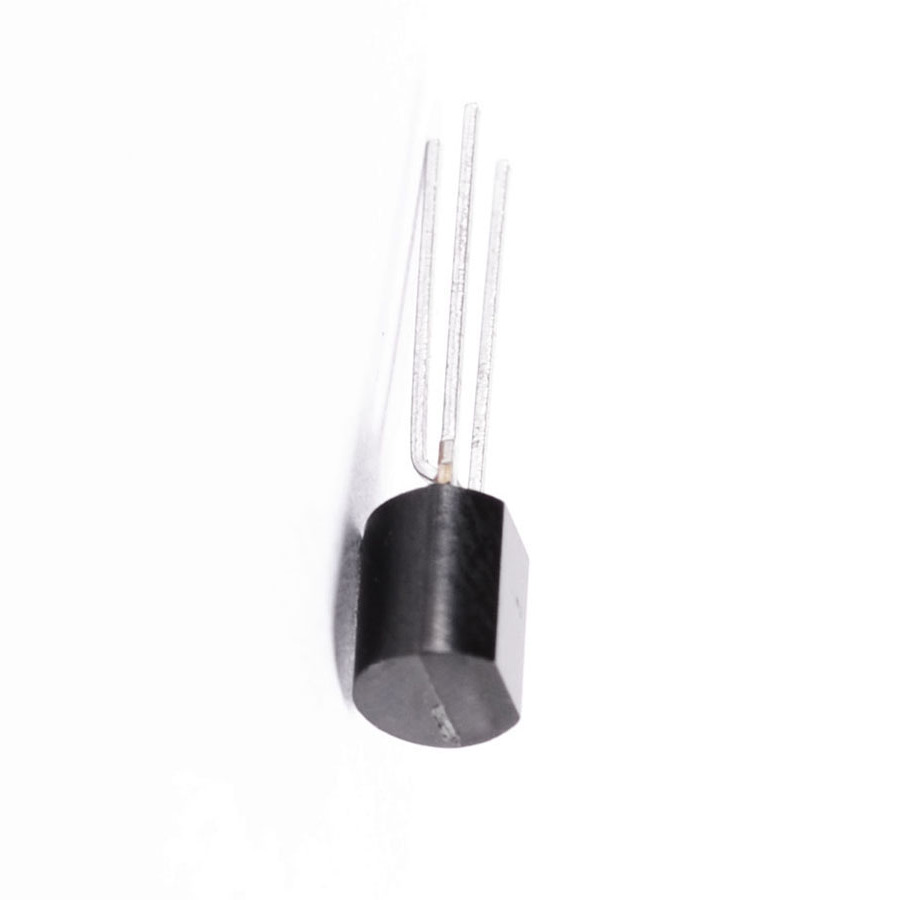

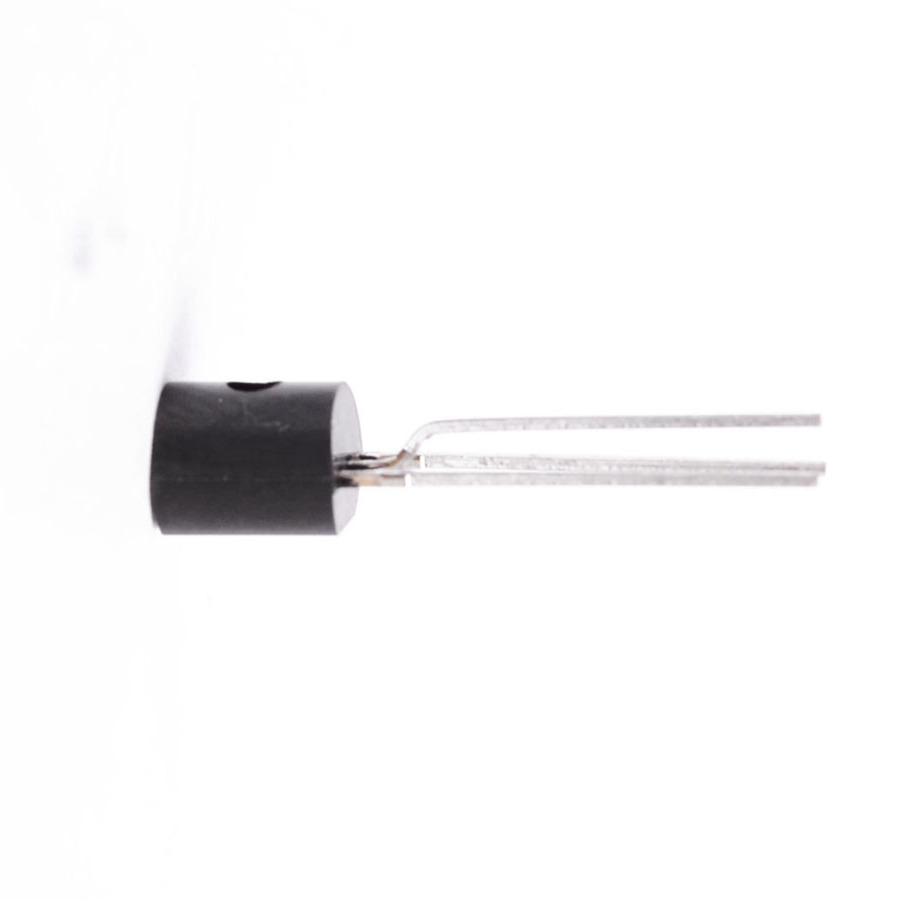

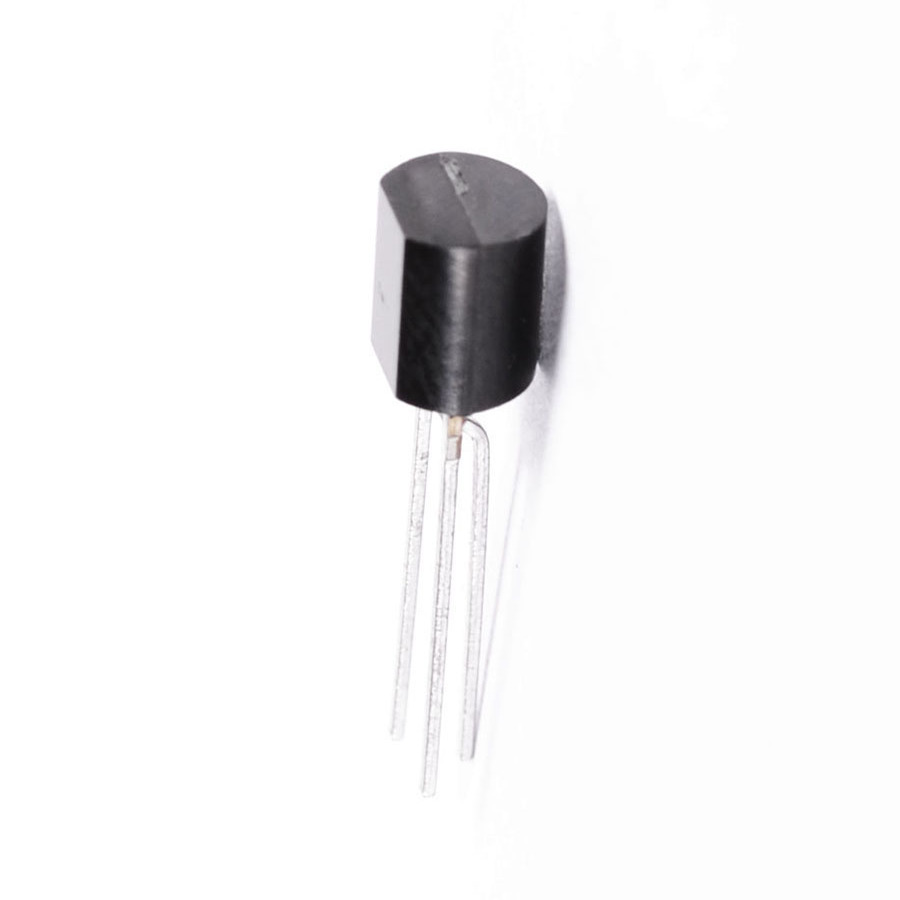

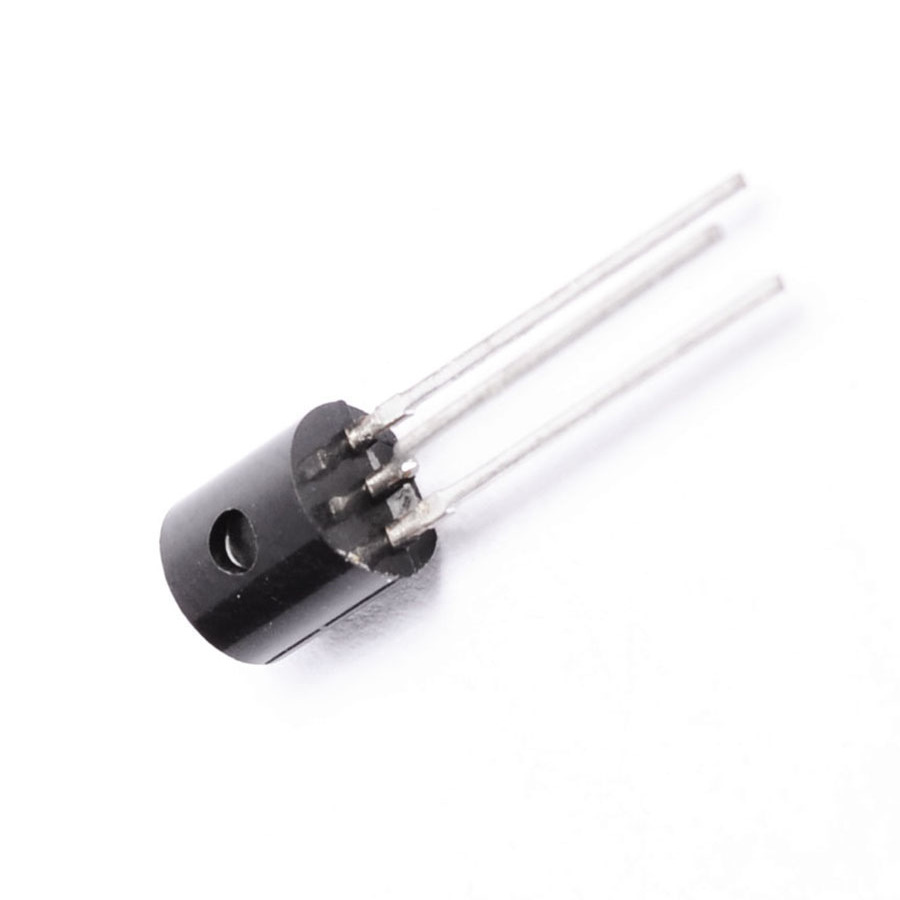

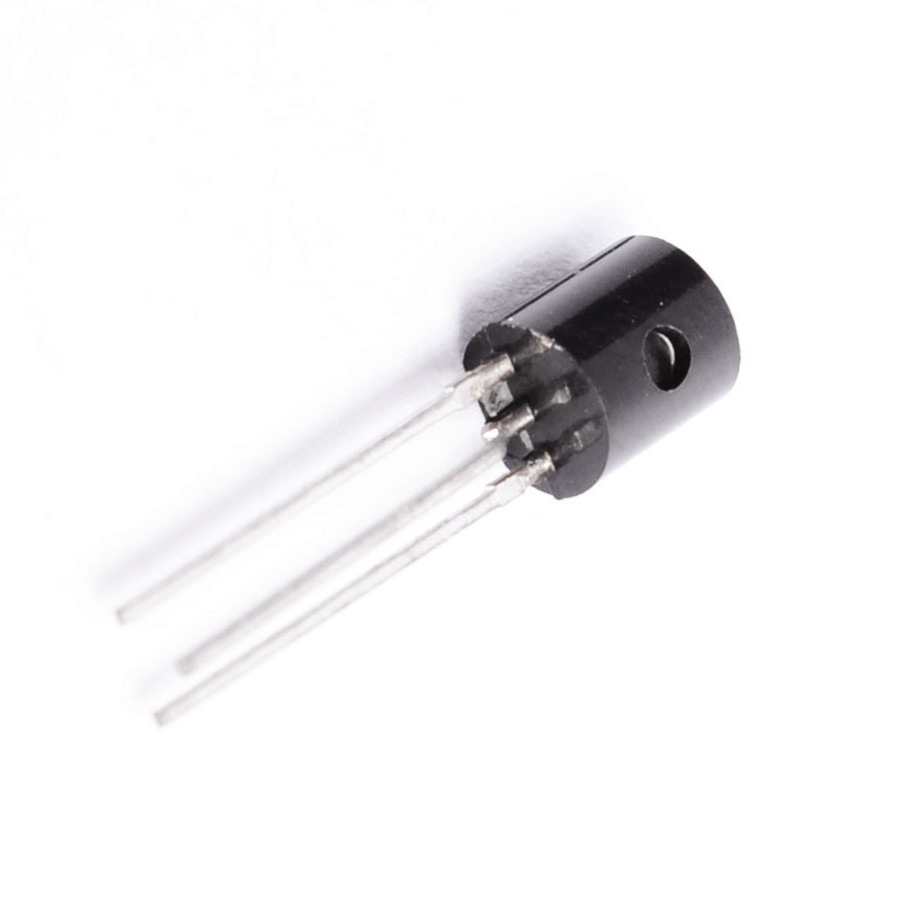

BSW78

SKU: BSW78
BSW78 Transistor Silicon NPN CASE: SOT30 MAKE: Motorola Semiconductor
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case SOT30
Manufacturer Motorola Semiconductor
Vbr CBO 40
Vbr CEO 15
Max. PD (W) 200m
C(ob) (F) 4.0p
Derate (Amb) (W/°C) 2.0m
t(f) Max. (S) 15n+
hfe 20
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 400n
Polarity NPN
Tr Max. (s) 12n
t(stor) Max. (S) 10n
Trans. Freq (Hz) Min. 400M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 125
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 400 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 138574
