BSW80
View detailed images (12)

BSW80

SKU: BSW80

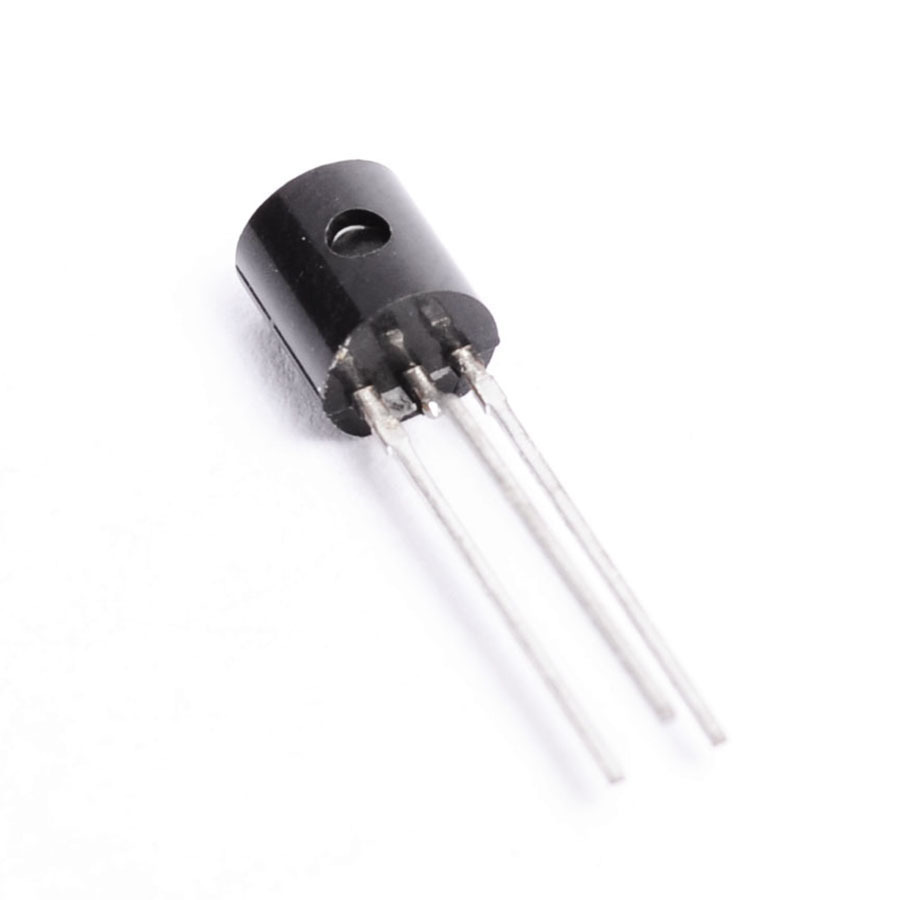

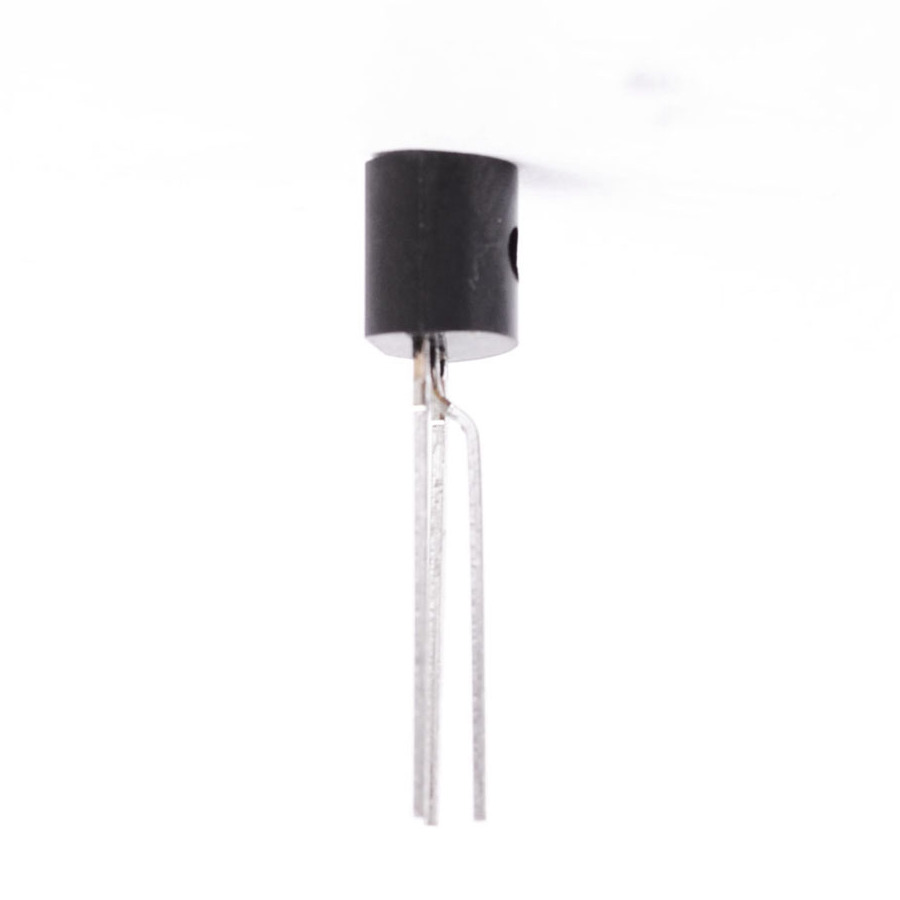

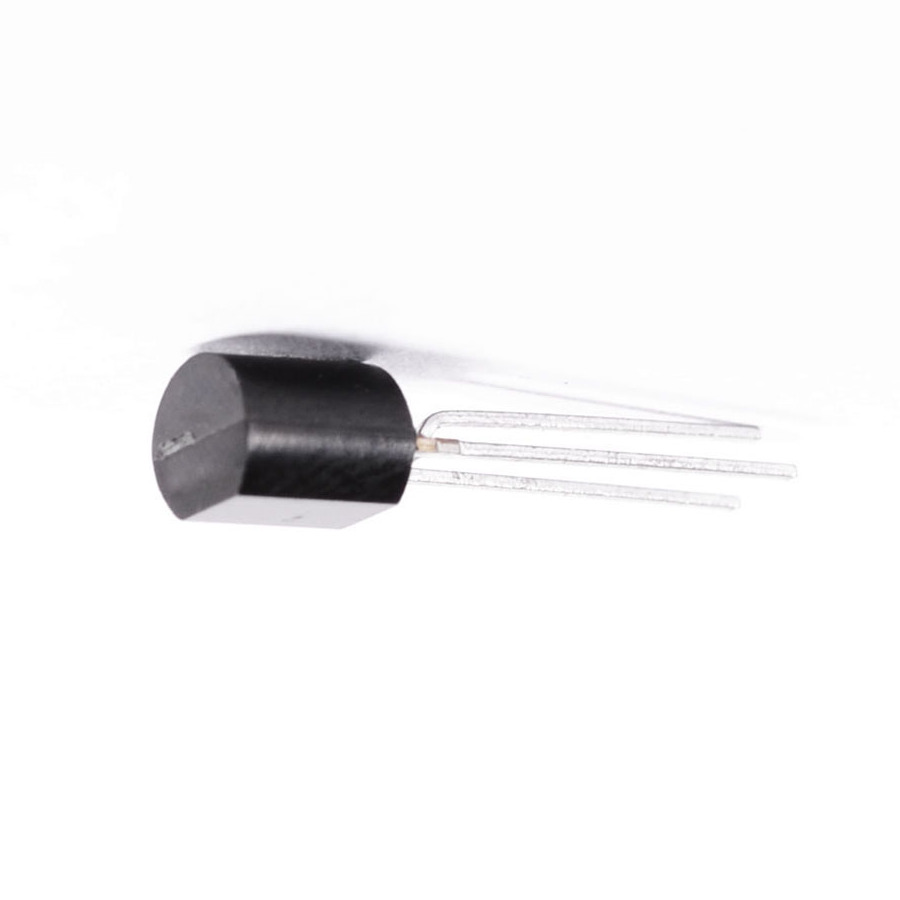

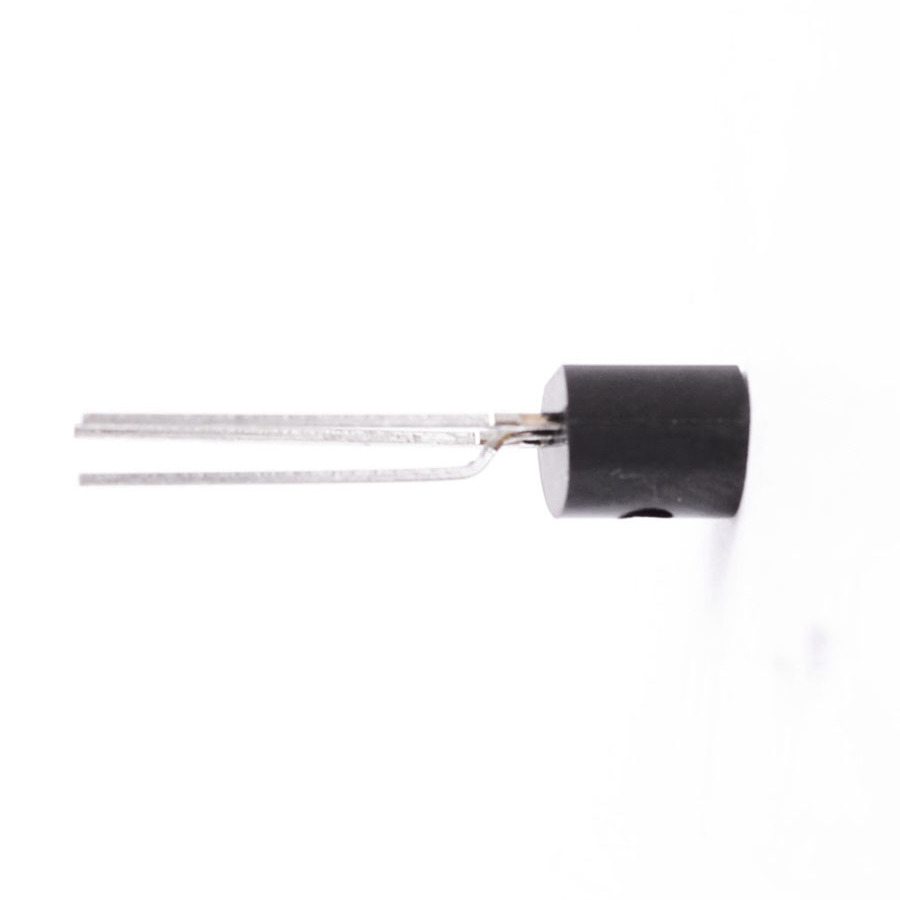

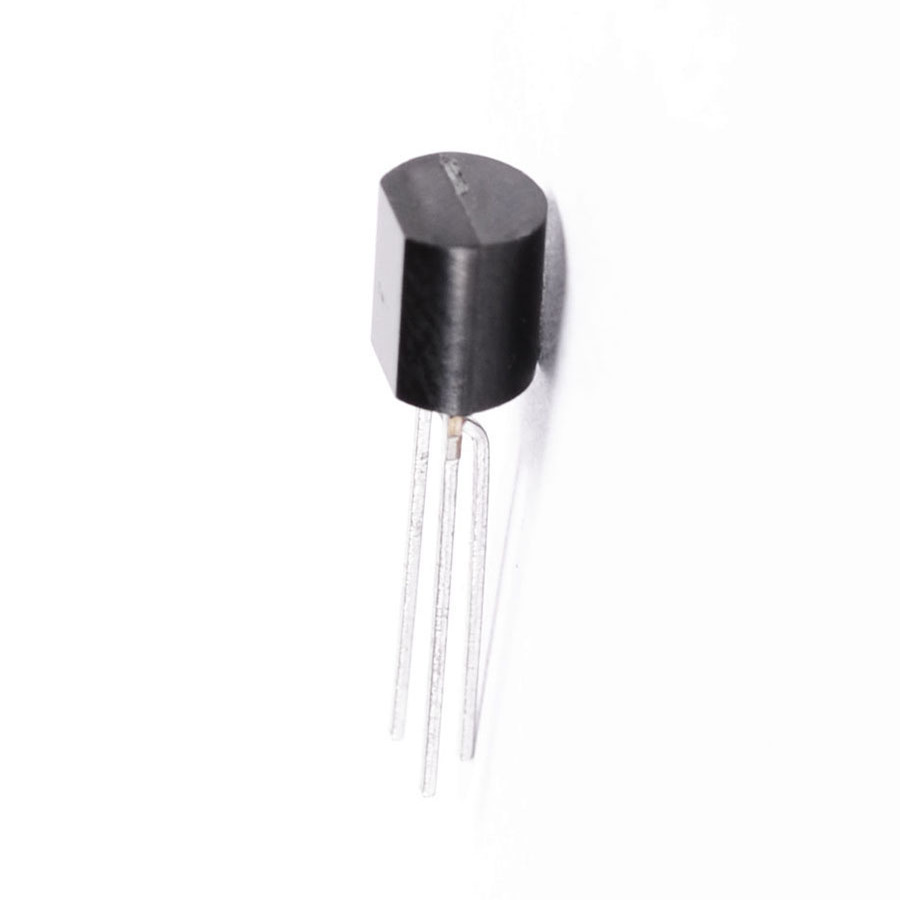

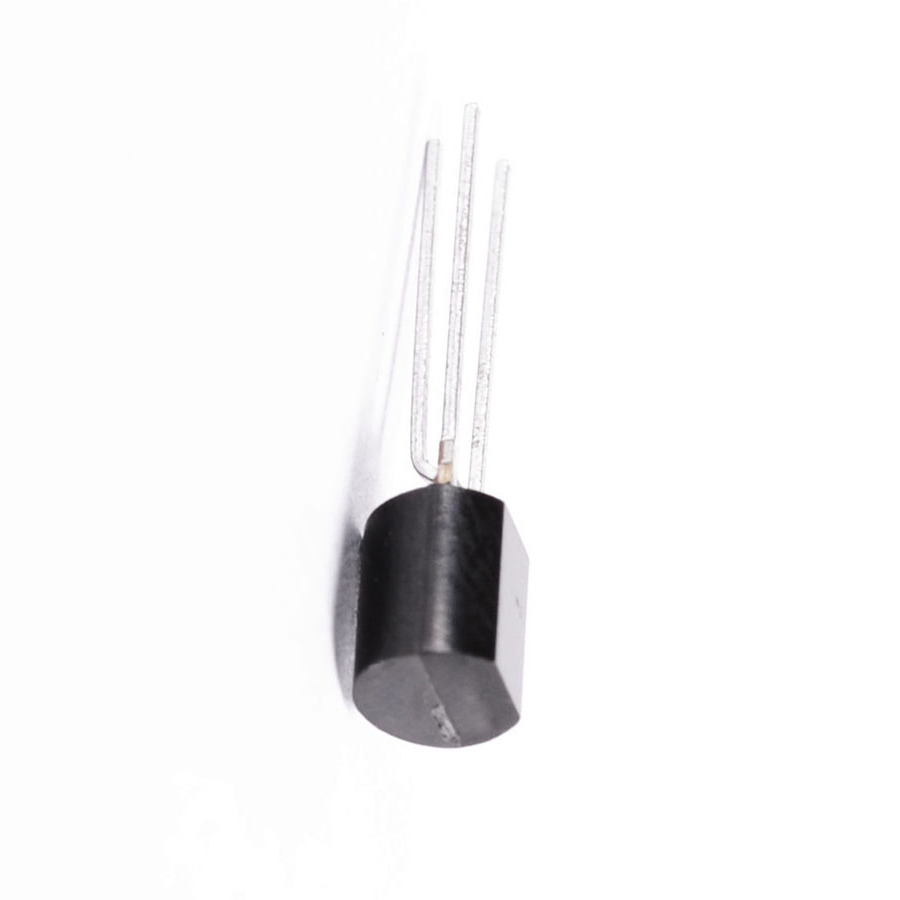

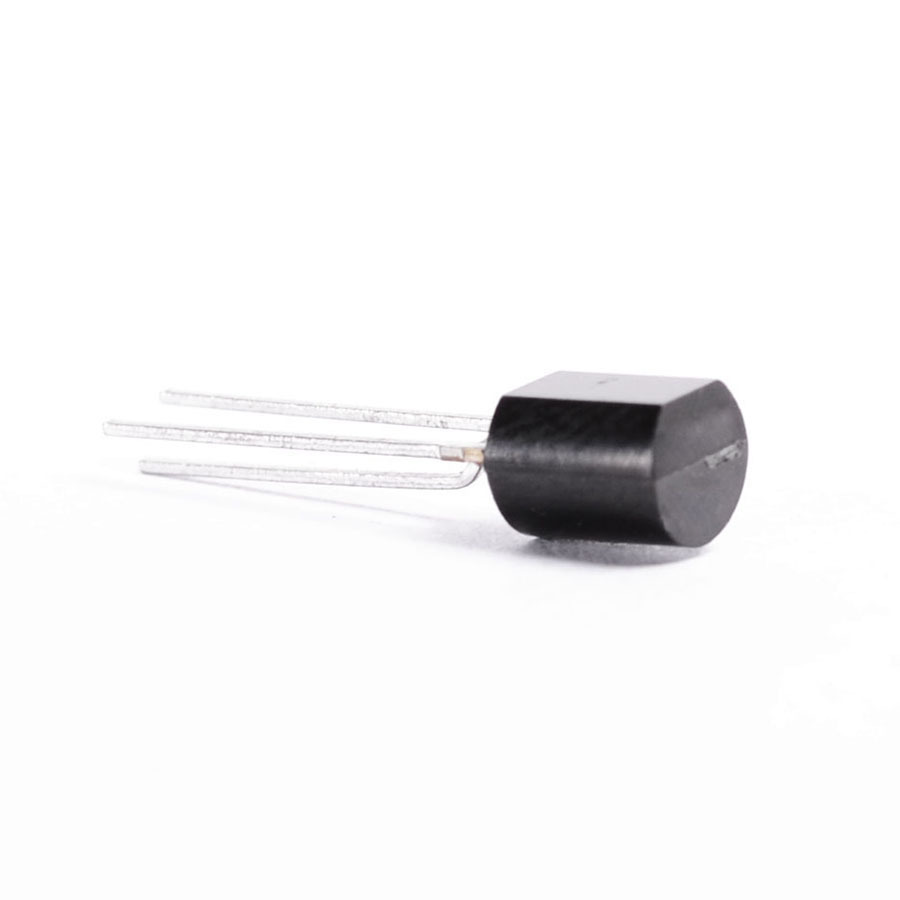

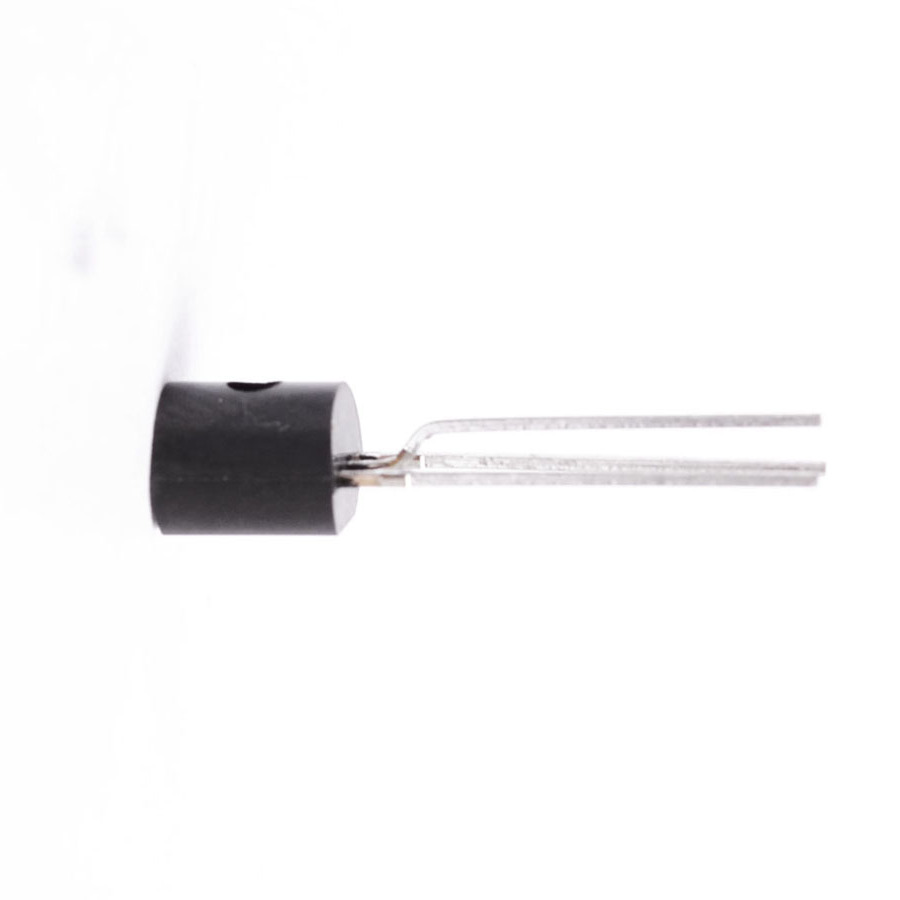

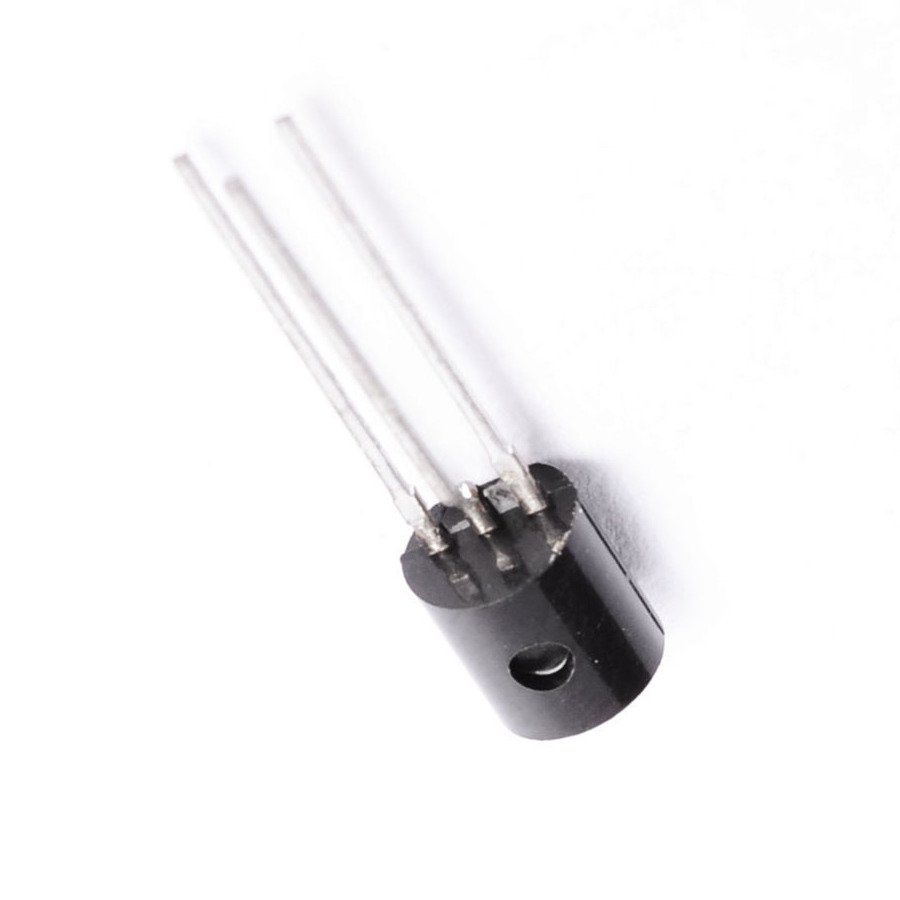

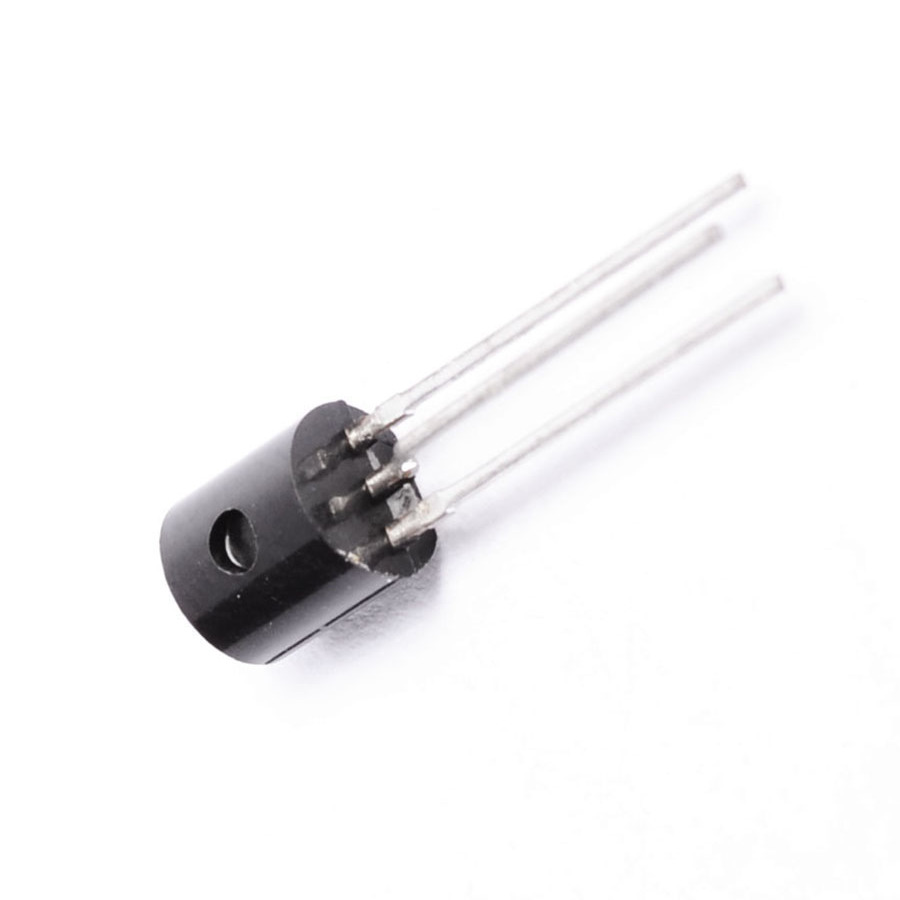

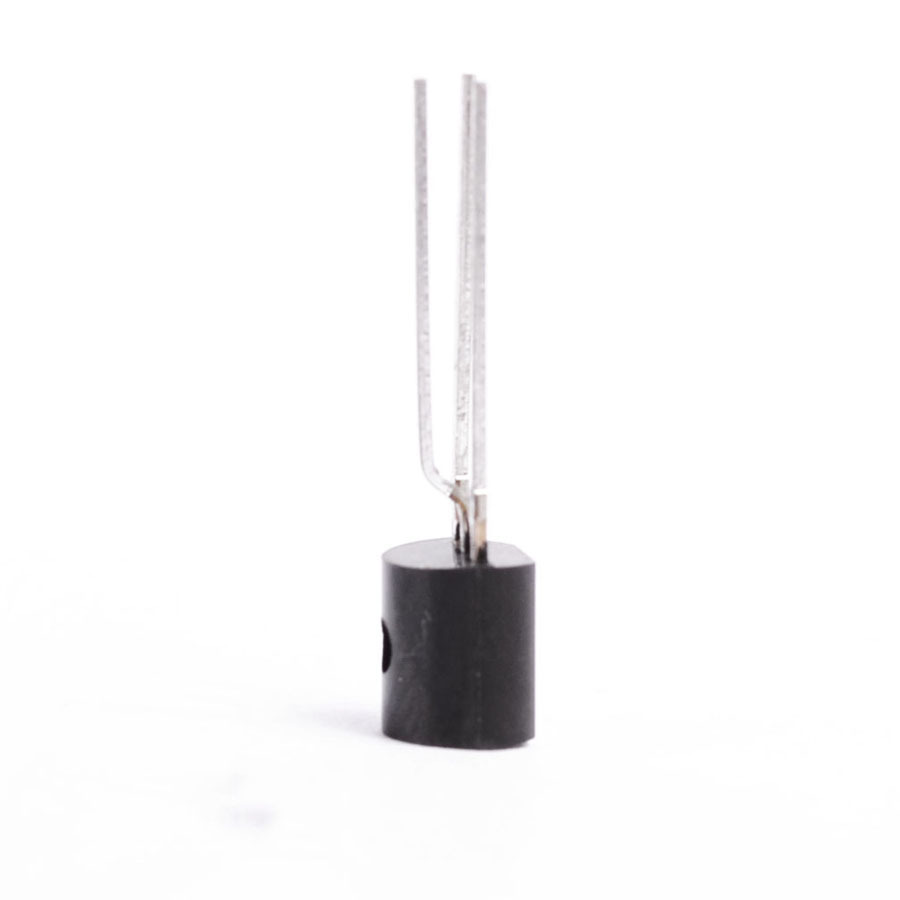

BSW80 Transistor Silicon NPN CASE: SOT30 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT30
Manufacturer Motorola Semiconductor
Vbr CBO 40
Vbr CEO 15
Max. PD (W) 200m
C(ob) (F) 4.0p
Derate (Amb) (W/°C) 2.0m
t(f) Max. (S) 18n+
hfe 40
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 30u
Polarity NPN
Tr Max. (s) 12n
t(stor) Max. (S) 13n
Trans. Freq (Hz) Min. 500M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 125
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 15 V
Maximum Collector-Emitter Voltage |Vce| 15 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 138576
