Home / Actives / Thyristor / BTW50-1000
BTW50-1000
View detailed images (5)

BTW50-1000

SKU: BTW50-1000

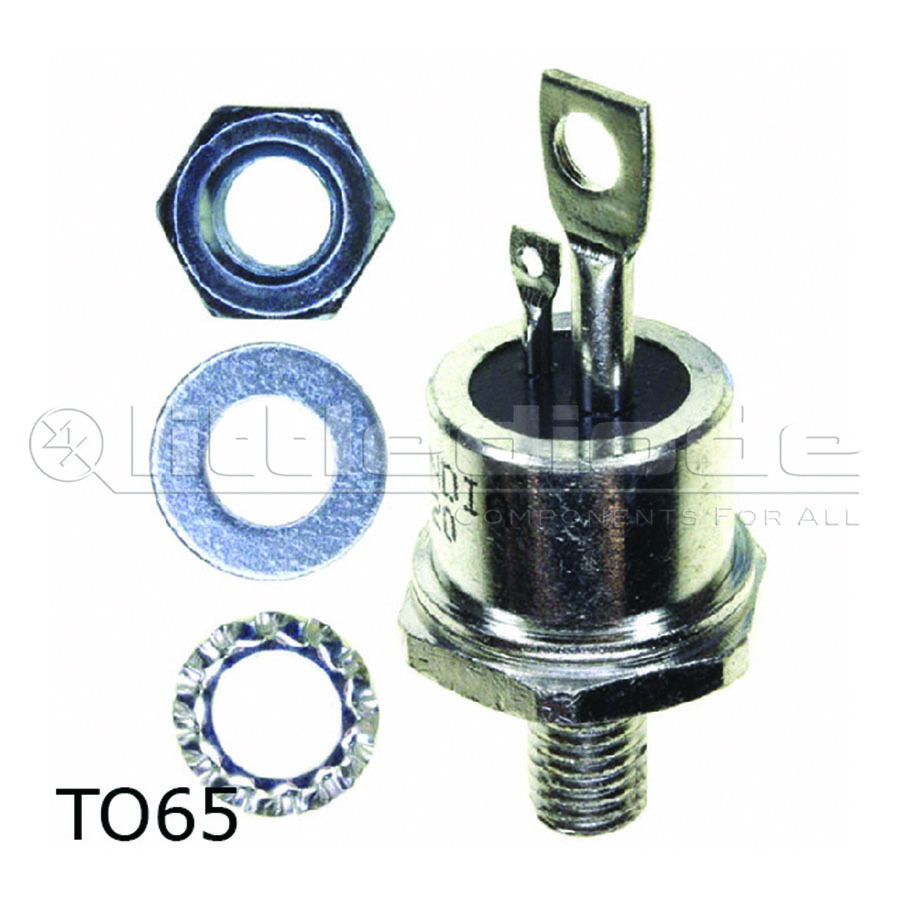

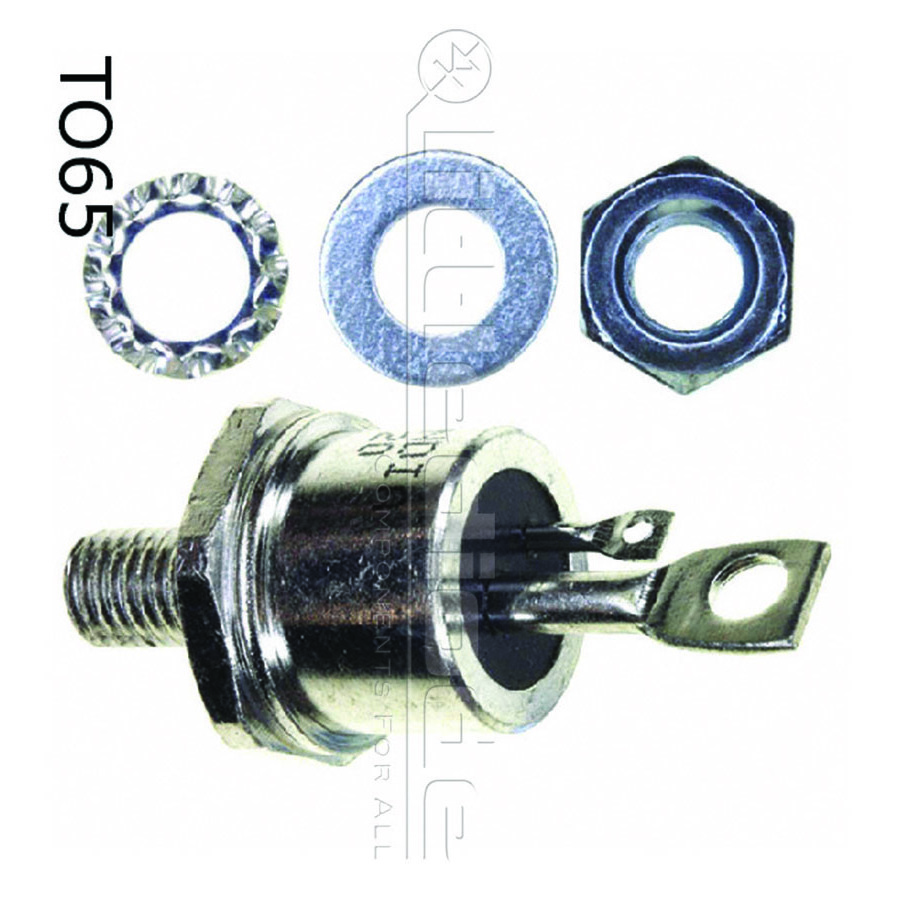

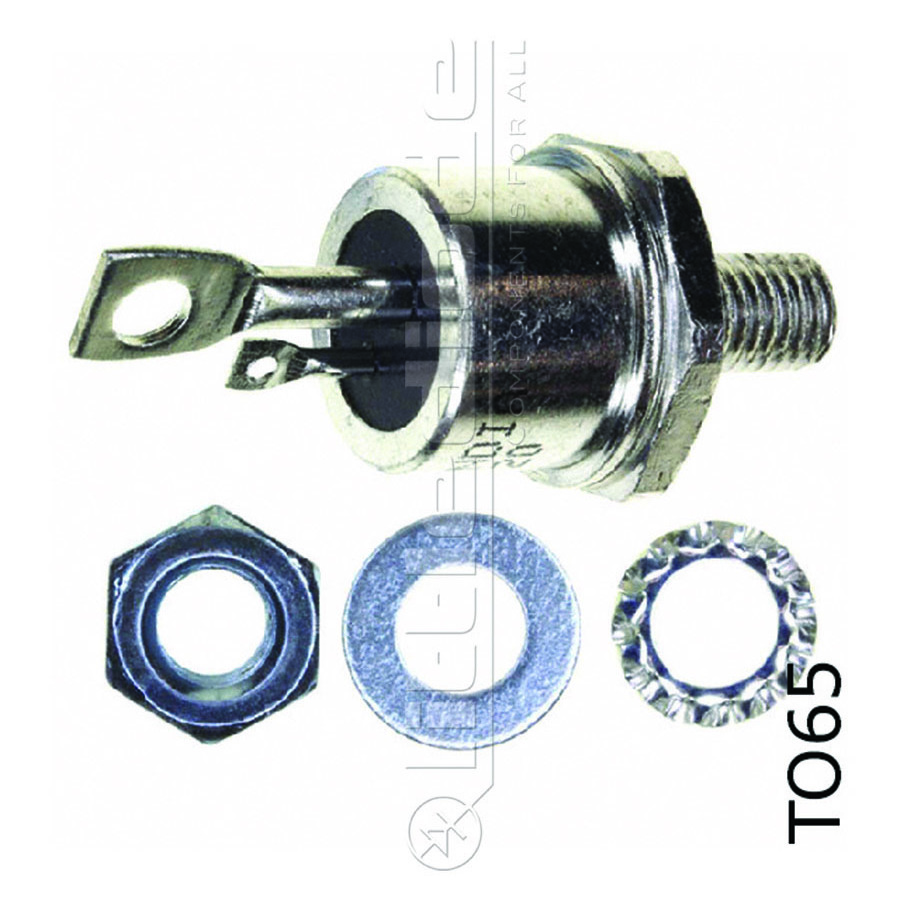

BTW50-1000 Thyristor CASE: TO65 MAKE: ST Microelectronics - STM
Product specifications
Type Thyristor
Case TO65
Manufacturer ST Microelectronics - STM
Dv/Dt Worst Case 200
Firing Char-Igt Max. 150m
Firing Char-Vgt Max. 3.0
I(h) Max. (A) 50m-
Id(off) Max. (A) 12m
@It (test) (A) 10
It(stat) Max. (A) 63
Supp Curr. I(TSM) 800
t(switch) Off Typ. Time (S) 125u
t(switch) Off Typ. Time (S) 2.0u
V(drm) Max. 1.0k
V(T) Max. 3.0
@Temp. (test) (°C) 125
@Temp. (test) (°C) 80#
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125#
@It (A) 500
Surface Mounted Yes/No NO
SKU 408468
