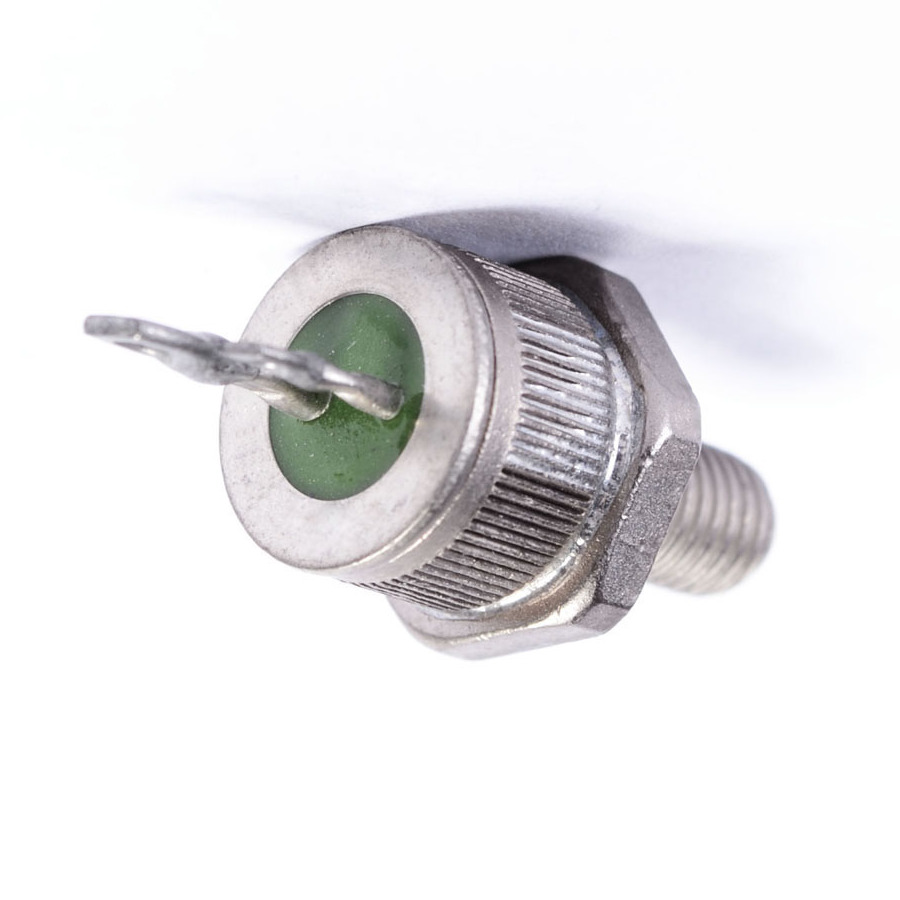

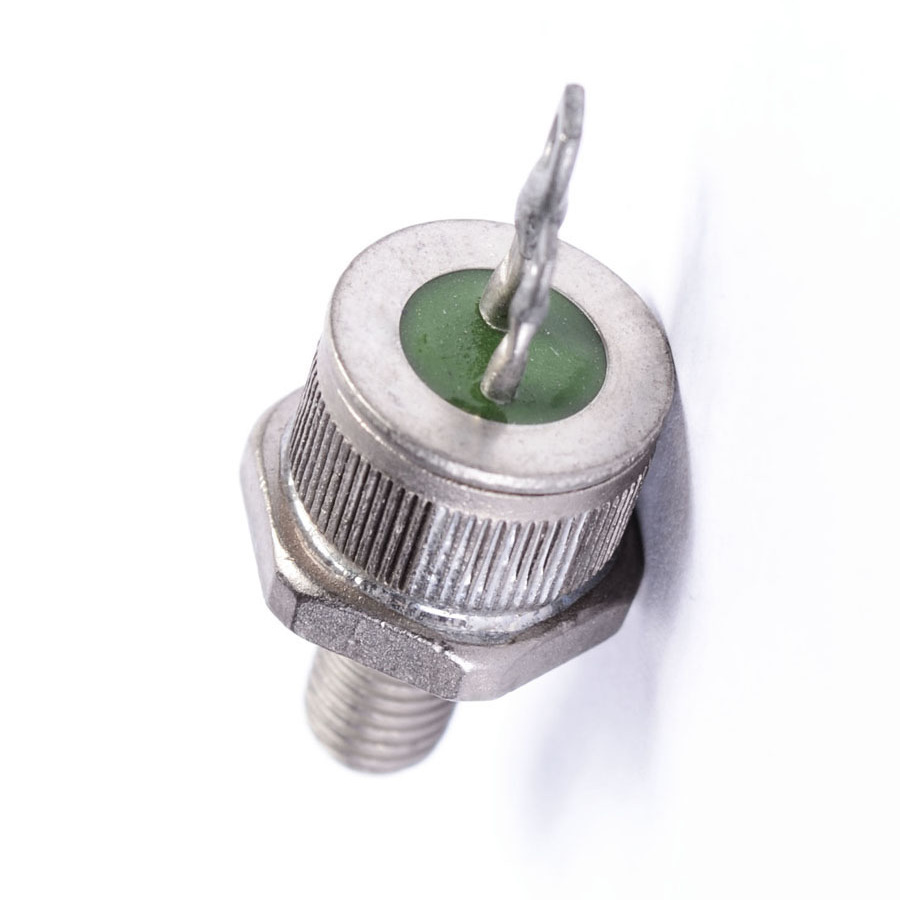

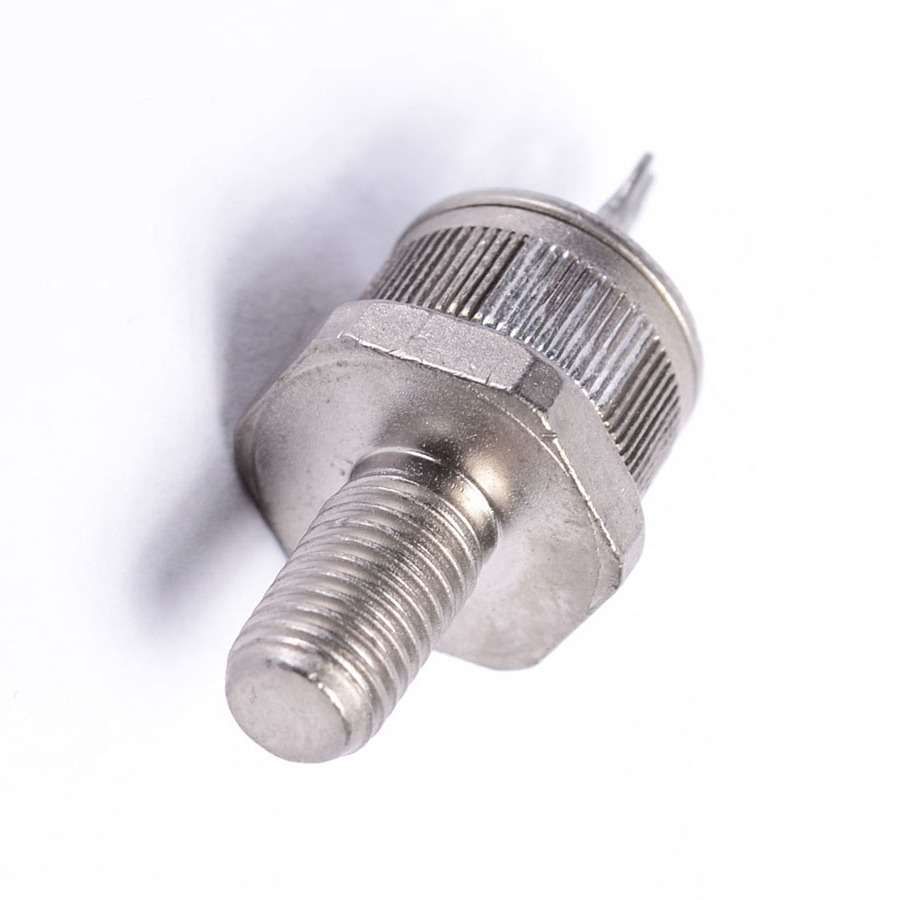

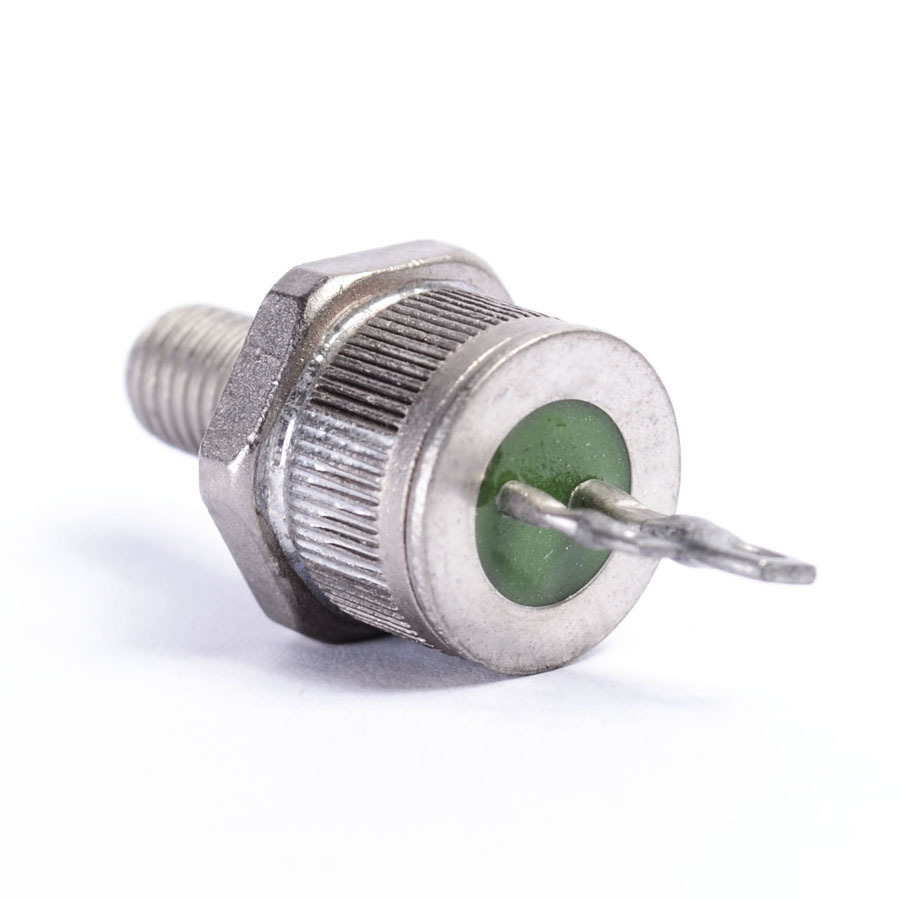

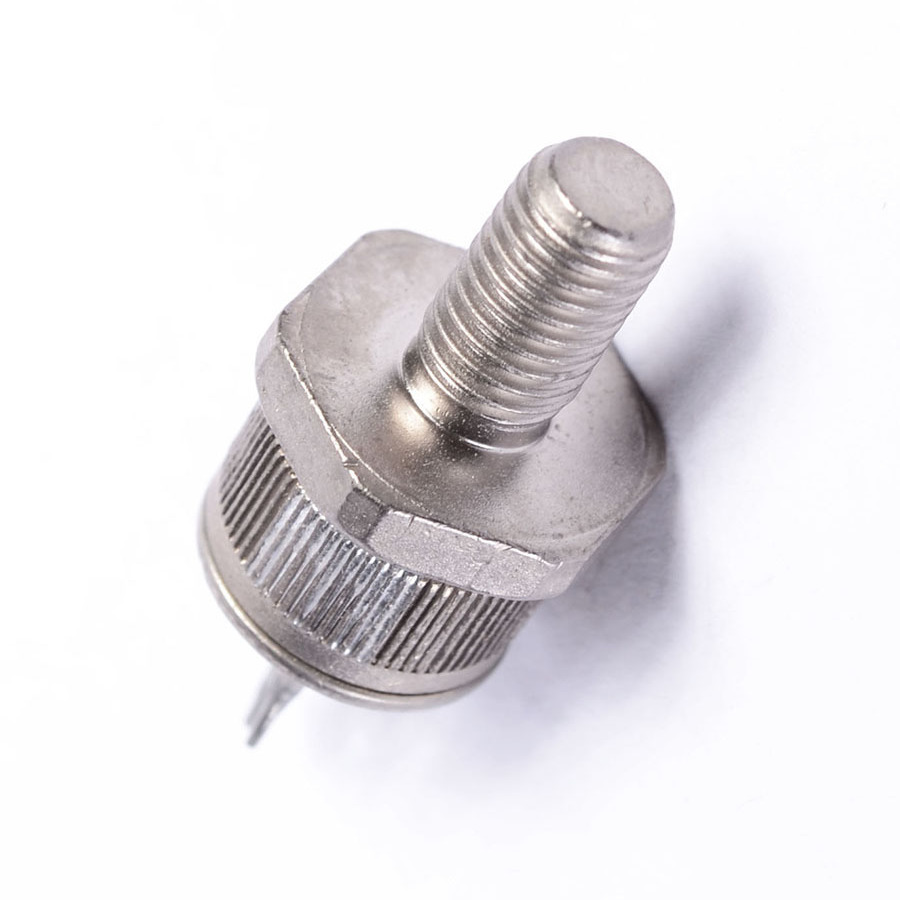

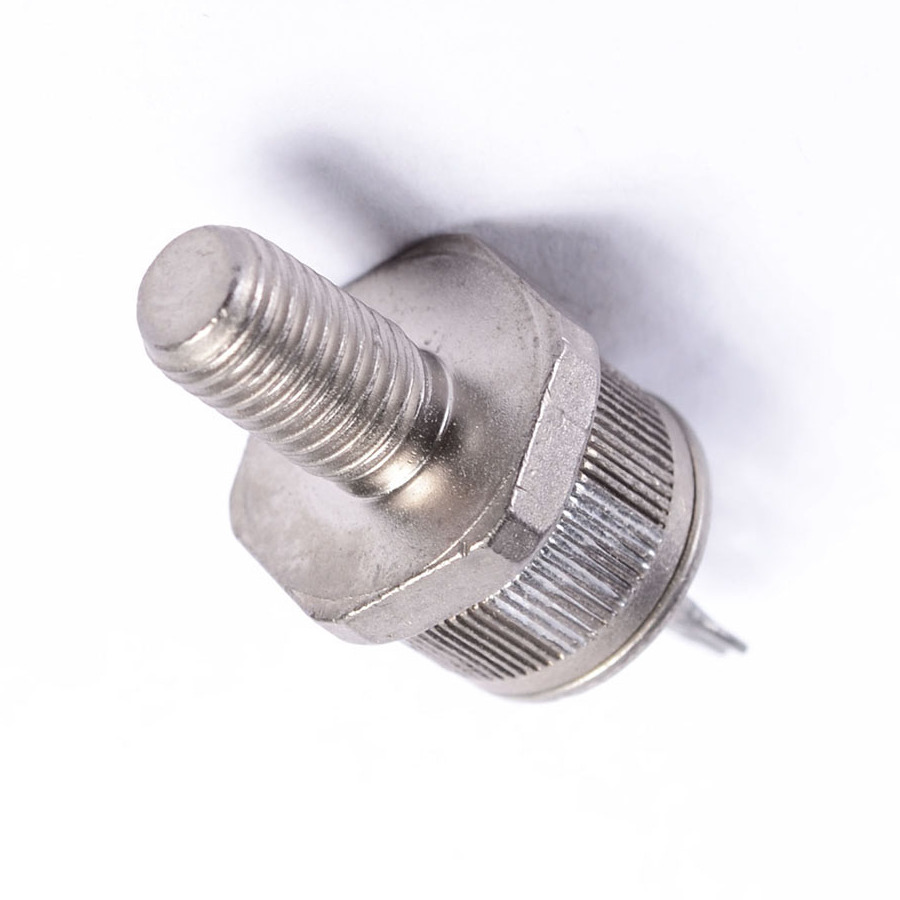

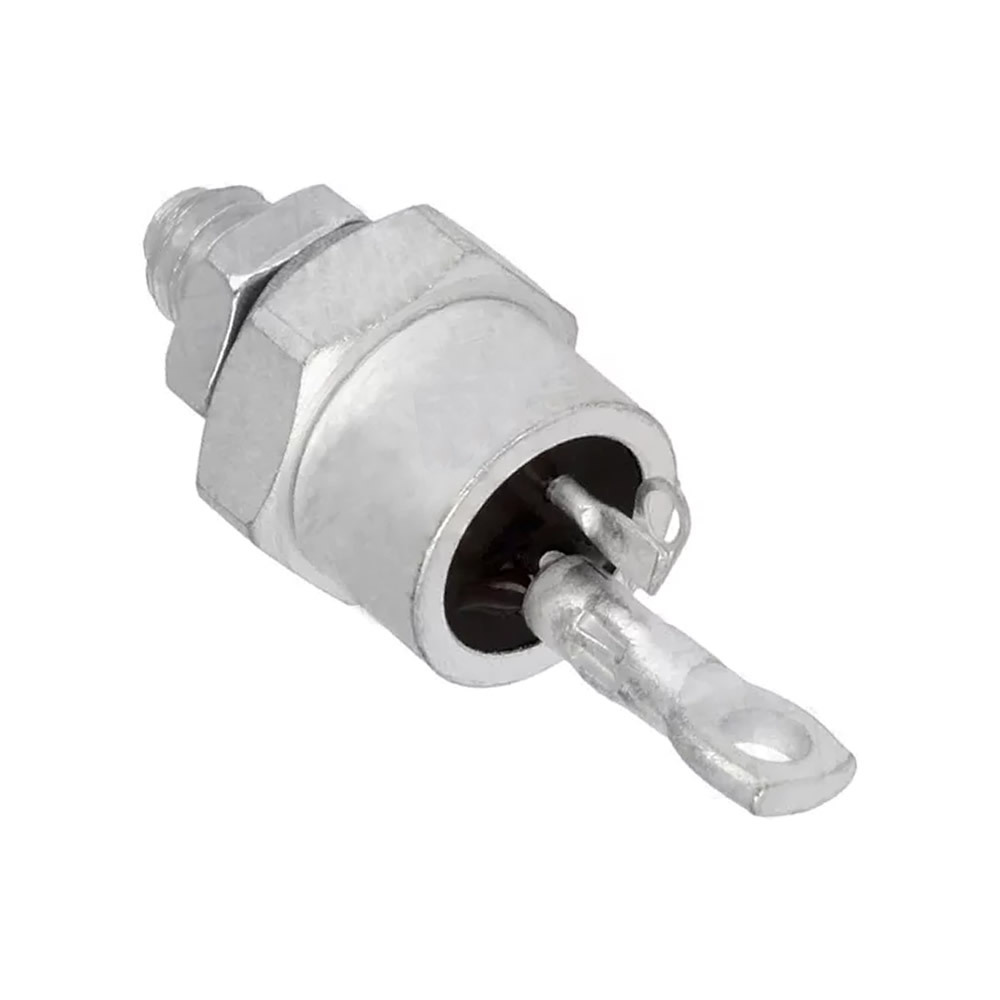

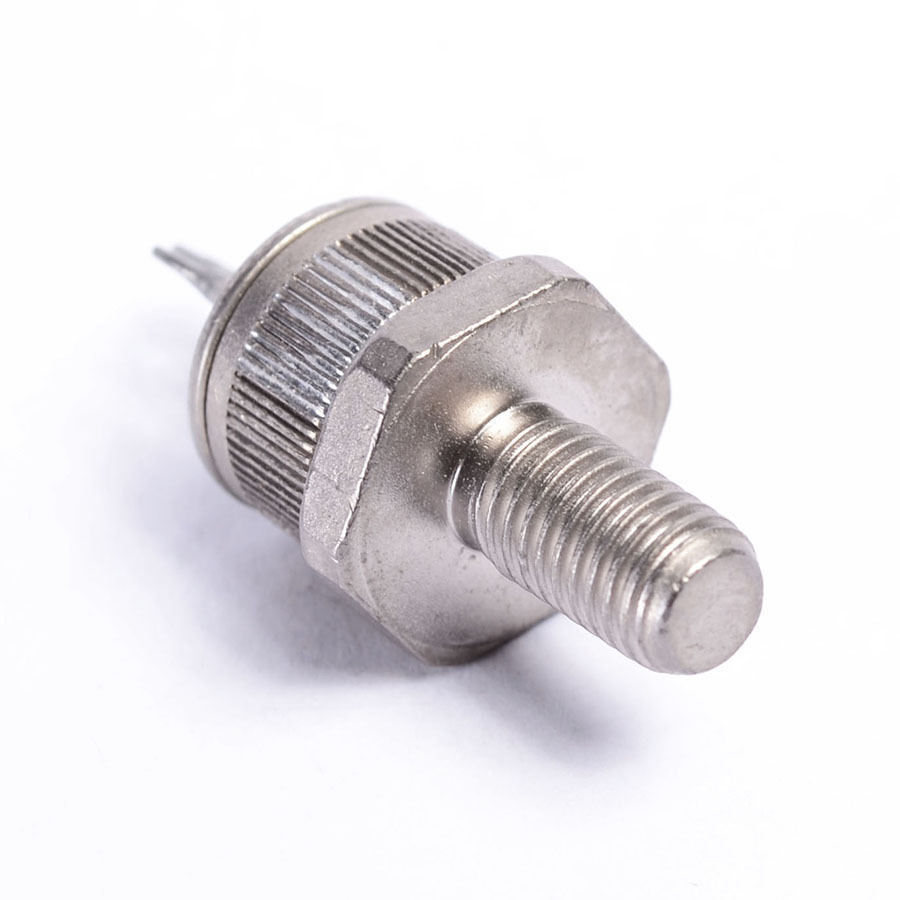

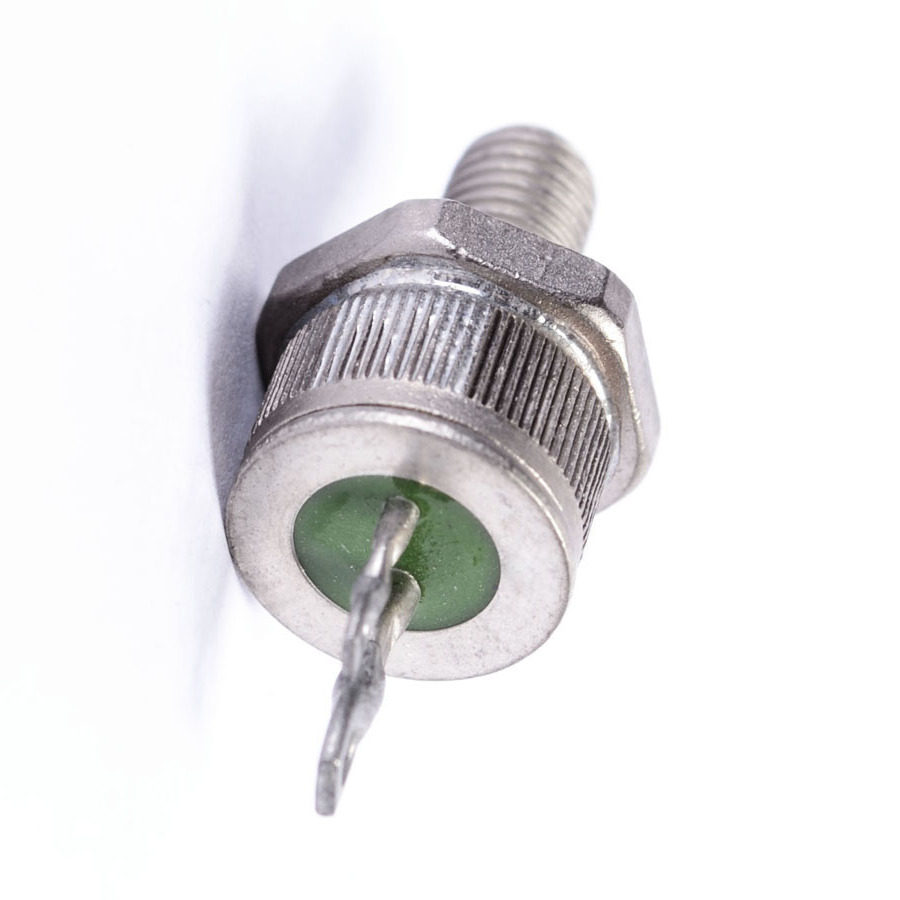

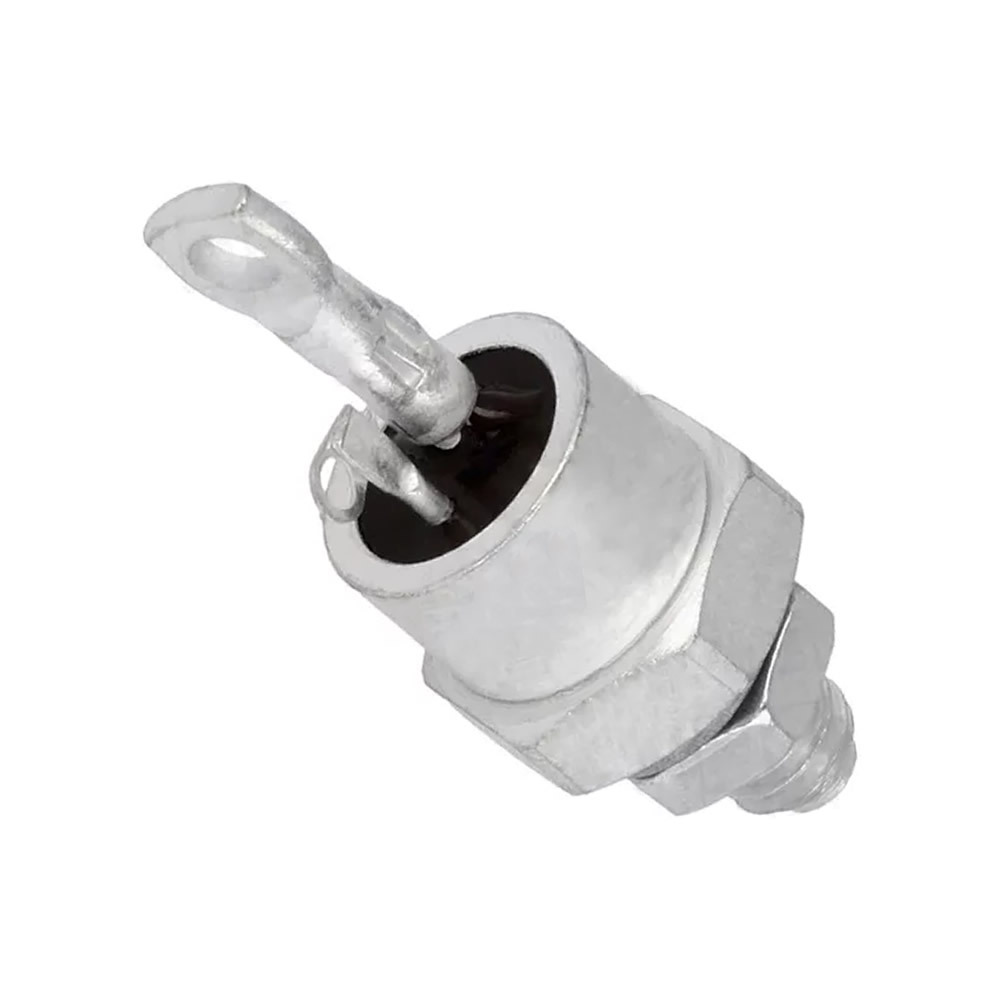

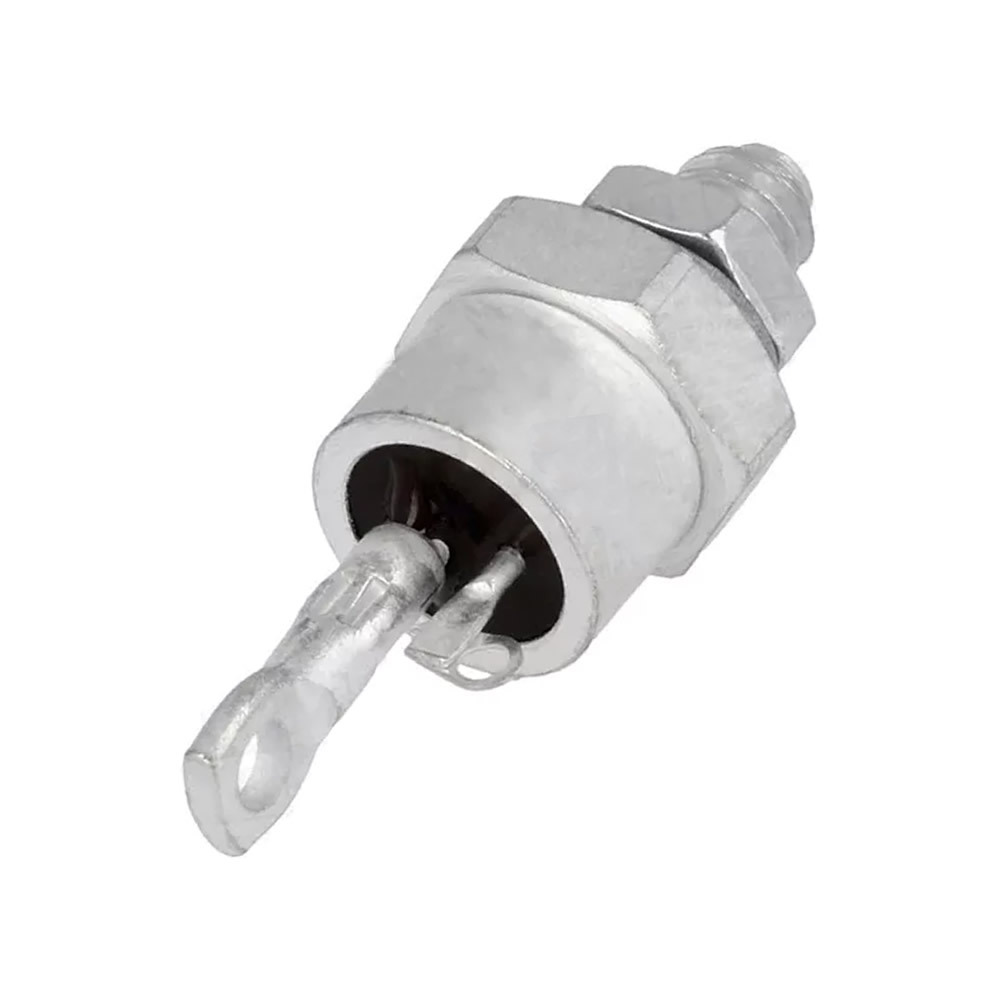

BTX70S500
View detailed images (1)

BTX70S500

SKU: BTX70S500
BTX70S500 Semiconductor - Case: Standard Make: Philips
+ VAT 20% for UK purchases
Product specifications
Type Semiconductor
Case TO48
Manufacturer Philips
Dv/Dt Worst Case 100-
Firing Char-Igt Max. 50m
Firing Char-Vgt Max. 3.0
I(h) Max. (A) 50m
Id(off) Max. (A) 1.5m
@It (test) (A) 5.0
It(stat) Max. (A) 15
Supp Curr. I(TSM) 150
t(switch) Off Typ. Time (S) 8.0u
t(switch) Off Typ. Time (S) 2.0u
V(drm) Max. 500
V(T) Max. 2.0
@Temp. (test) (°C) 125
@Temp. (test) (°C) 125
Oper. Temp (°C) Min -45
Oper. Temp (°C) Max. 125
@It (A) 20
Surface Mounted Yes/No NO
SKU 1347521
