BU2520AF
View detailed images (12)

BU2520AF

SKU: BU2520AF

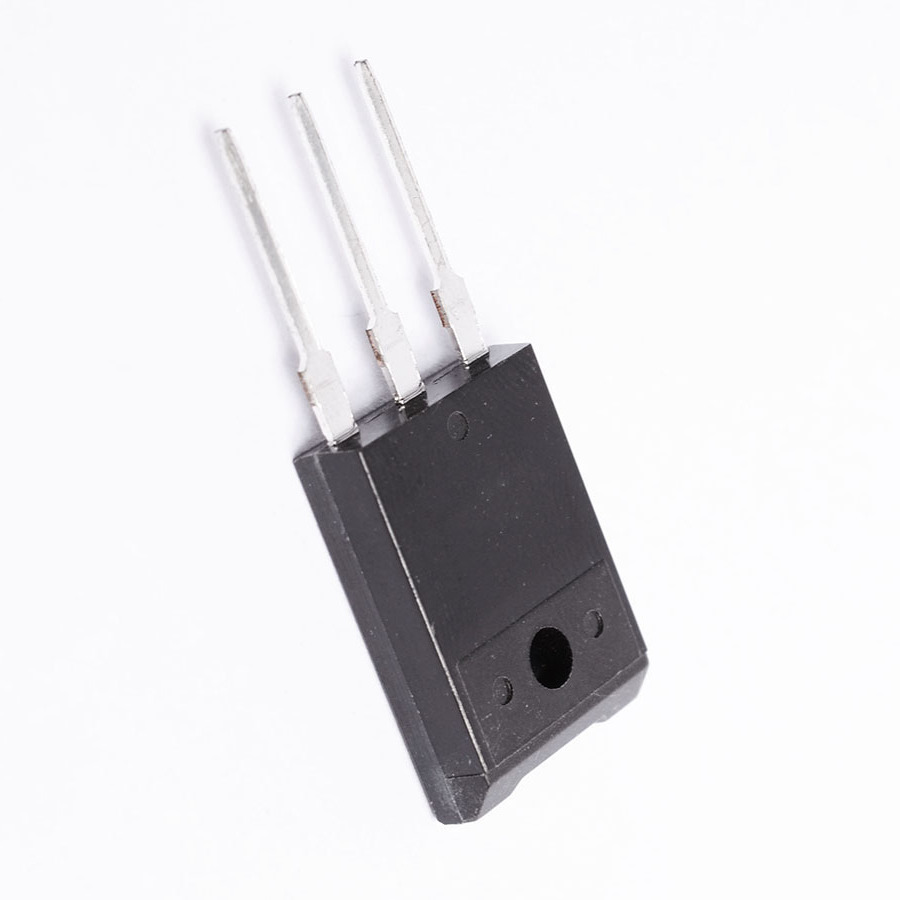

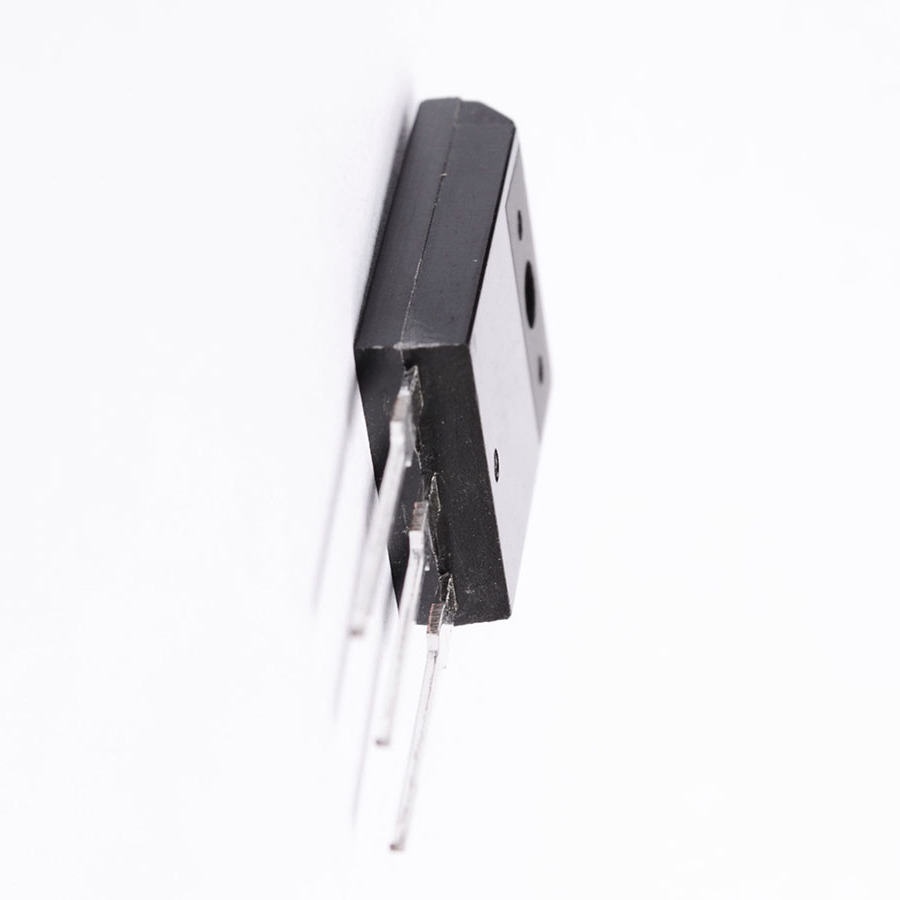

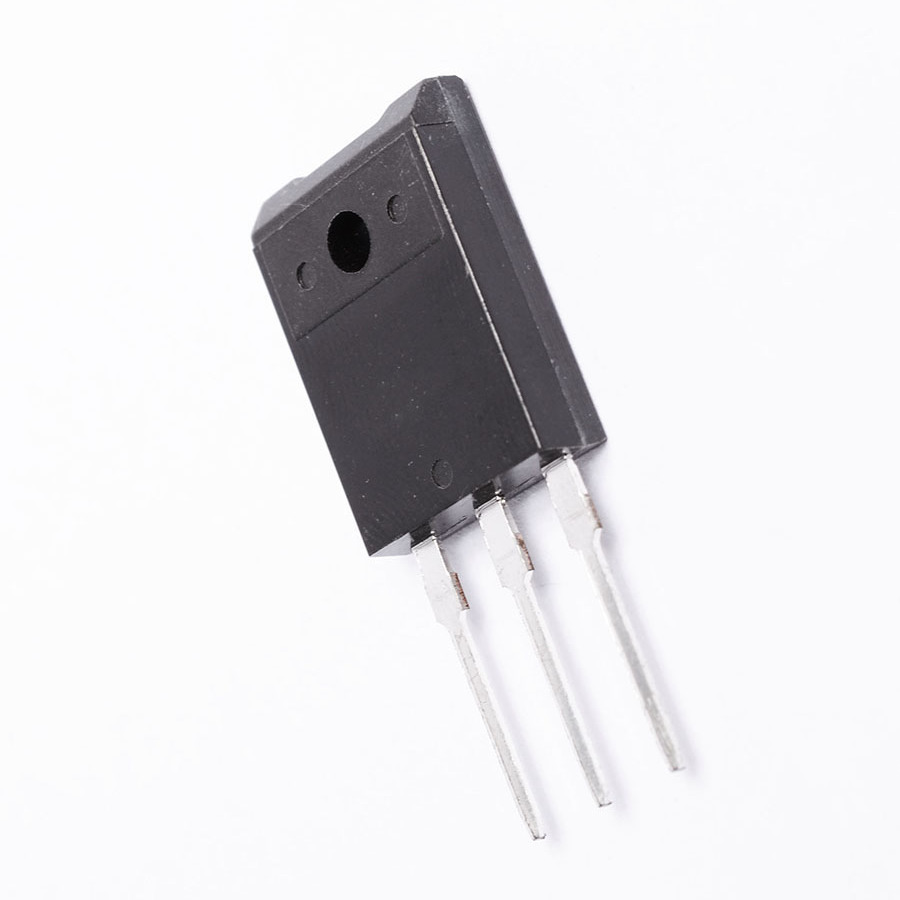

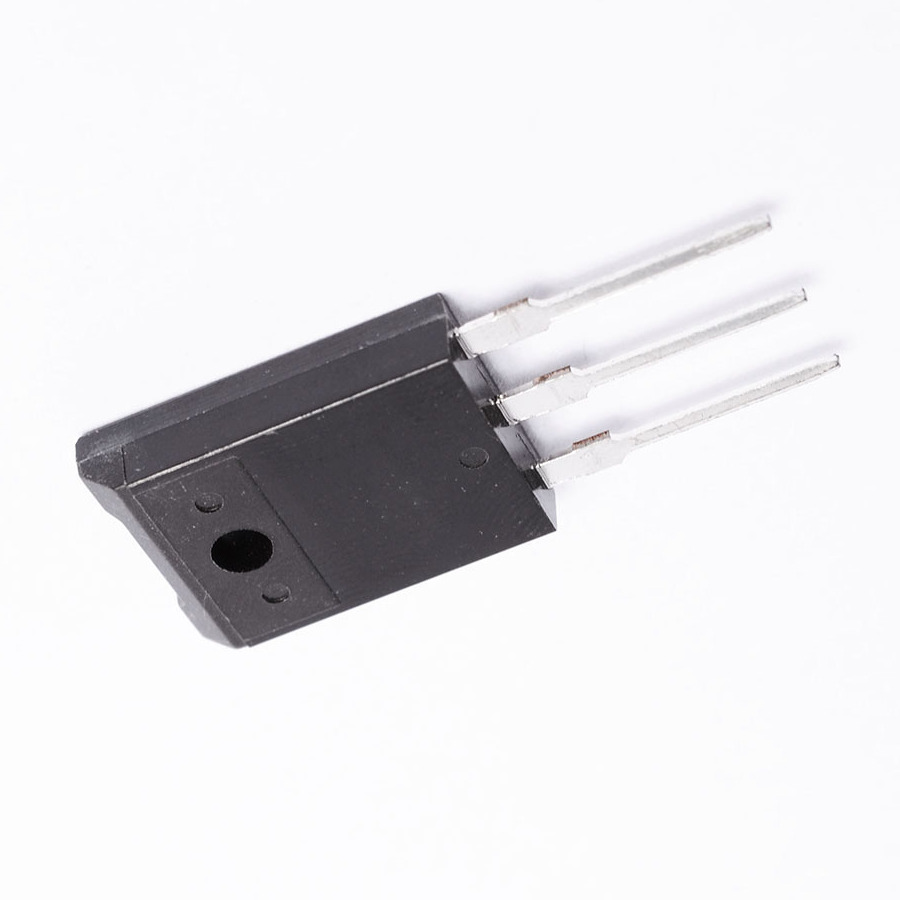

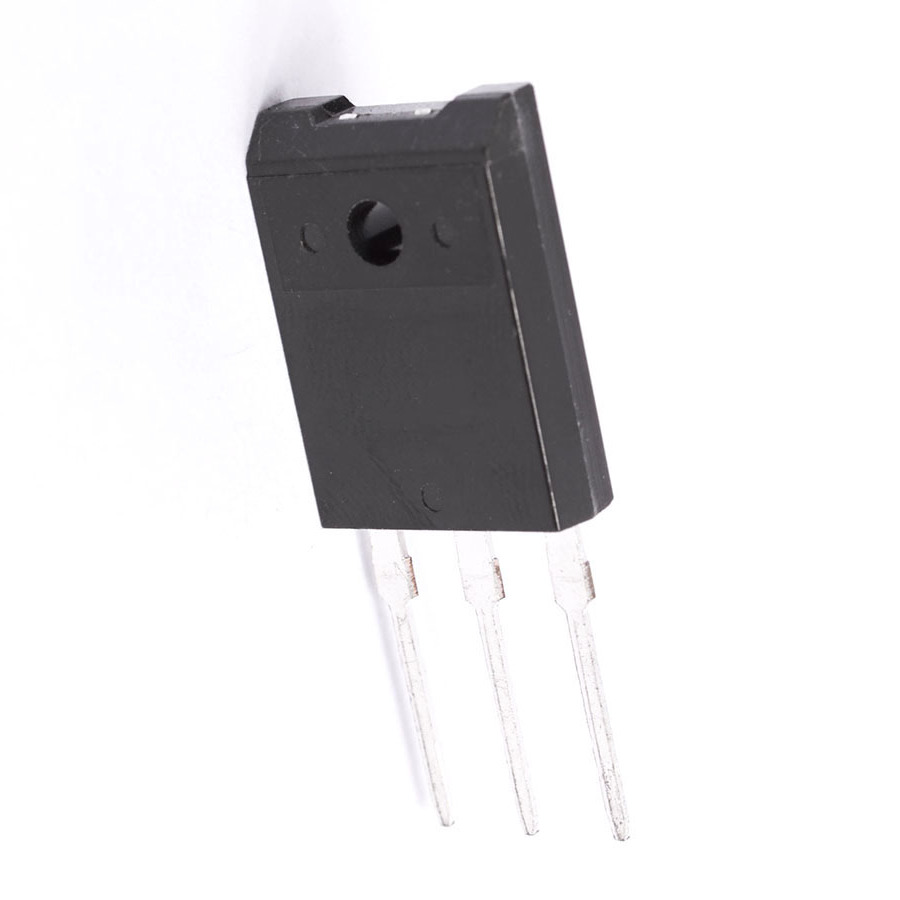

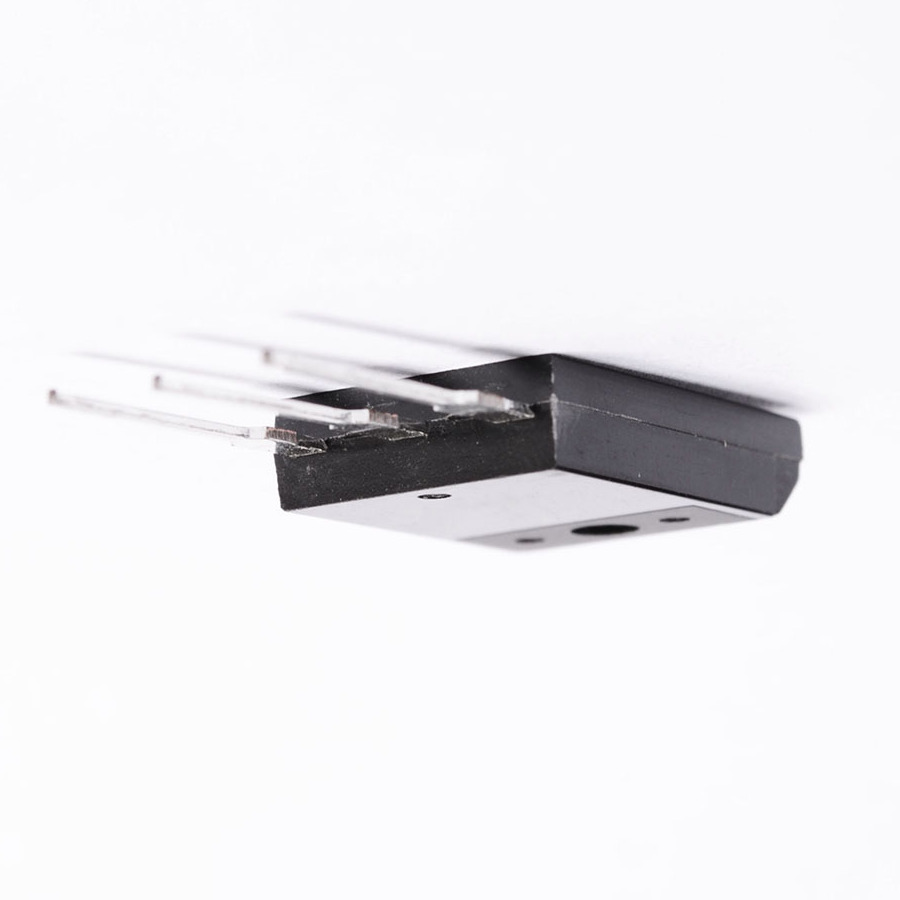

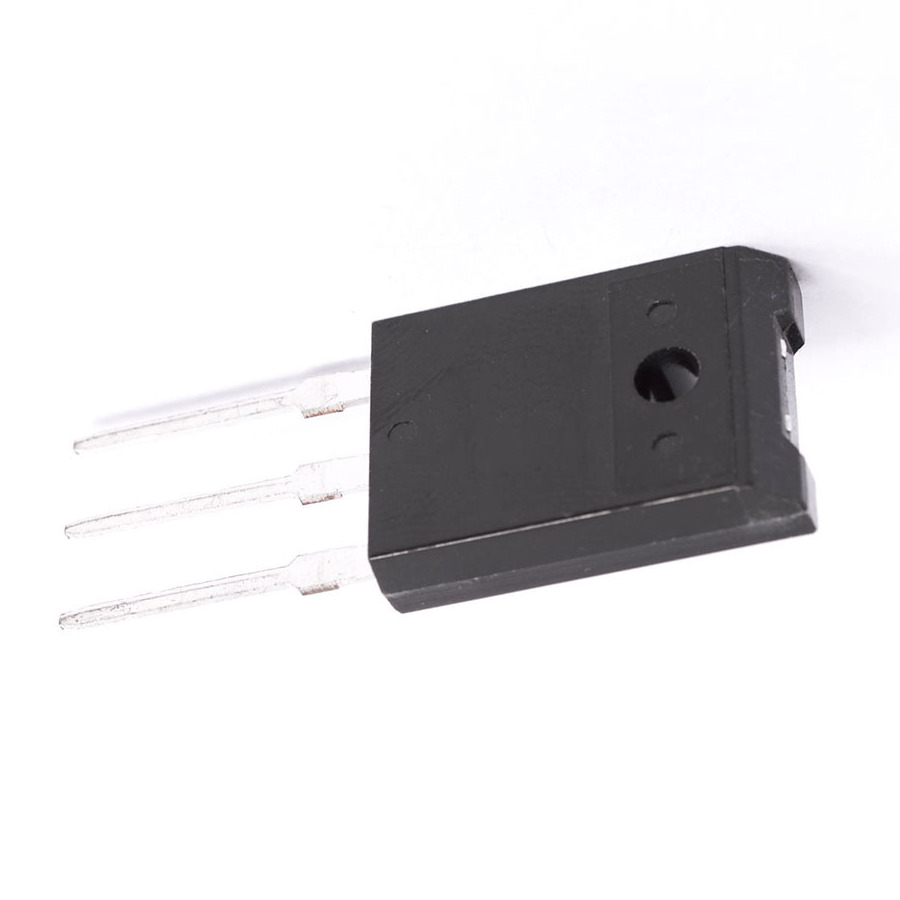

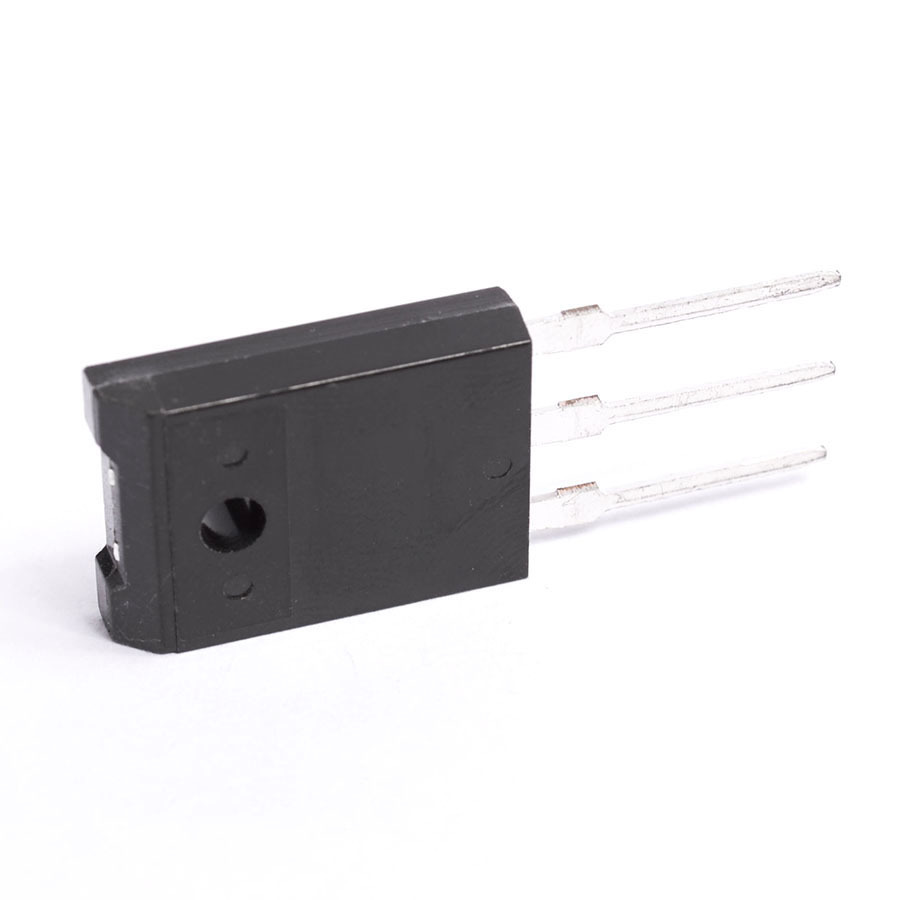

BU2520AF Transistor Silicon NPN CASE: SOT199 MAKE: NXP Semiconductors
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 20 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BU2520AF Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT199
Manufacturer NXP Semiconductors
Vbr CEO 800
Max. PD (W) 45
t(f) Max. (S) 0.5u
Max. hFE 26
Min hFE 6
Ic Max. (A) 10
@Ic (test) (A) 100m
Icbo Max. @Vcb Max. (A) 2.0m
Polarity NPN
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 45 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 115 pF
Forward Current Transfer Ratio (hFE), MIN 5
SKU 20345
