BU2525DF
View detailed images (12)

BU2525DF

SKU: BU2525DF

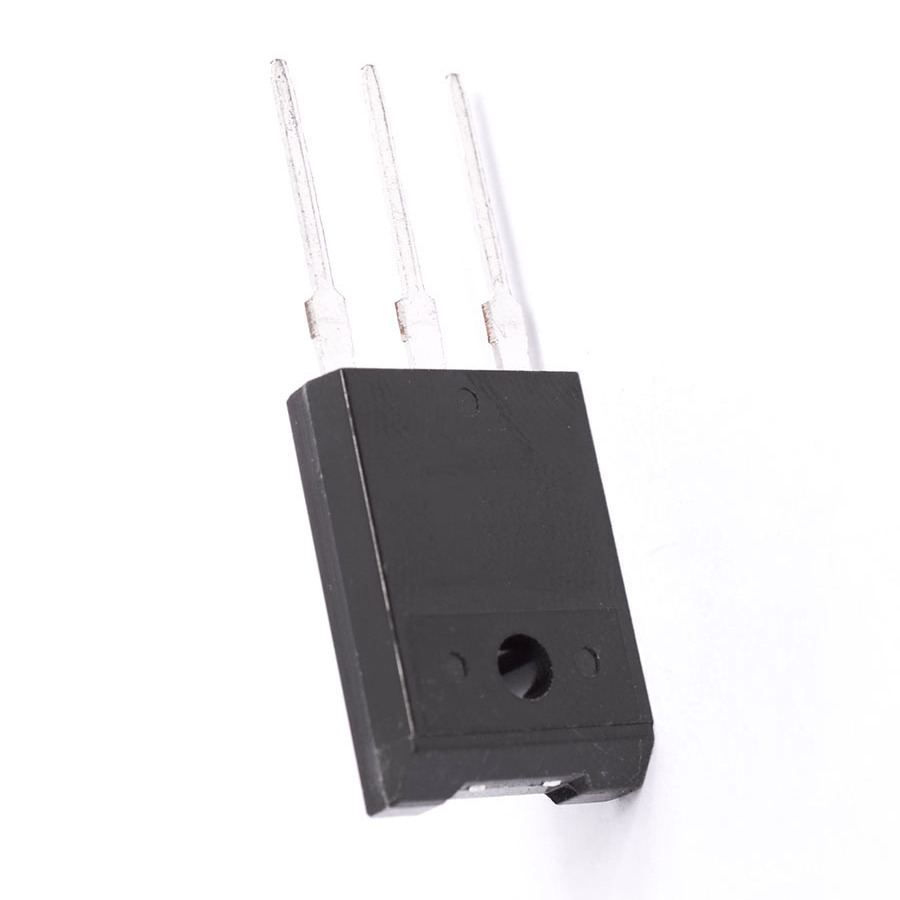

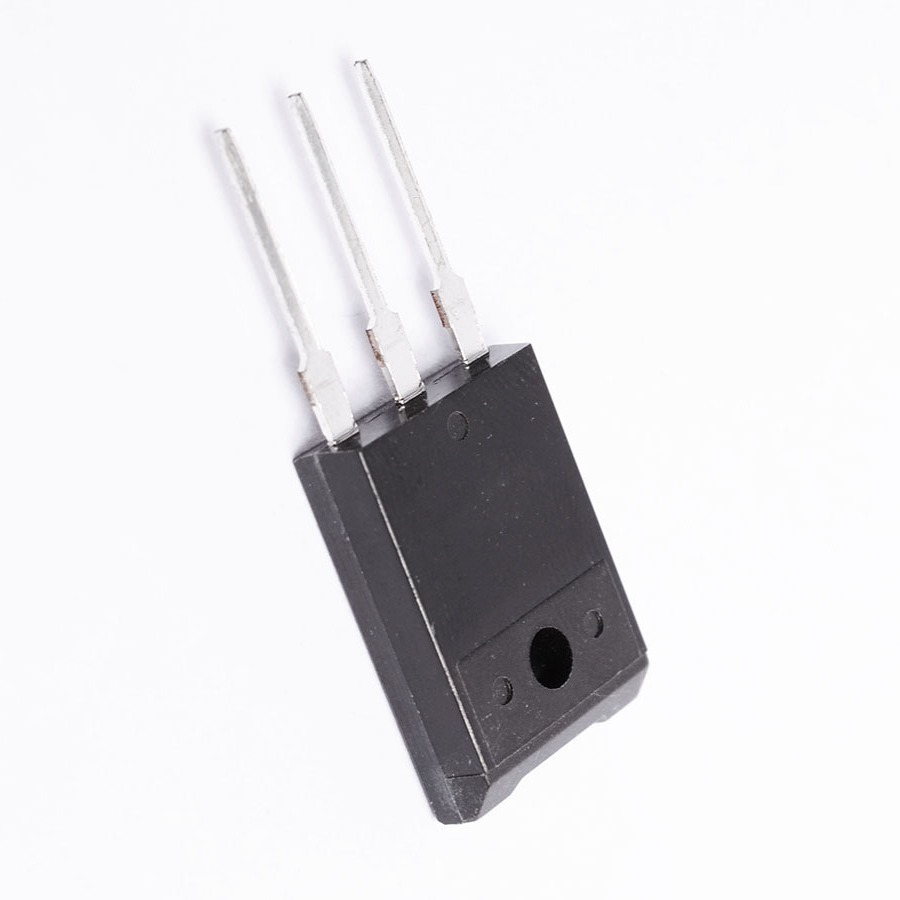

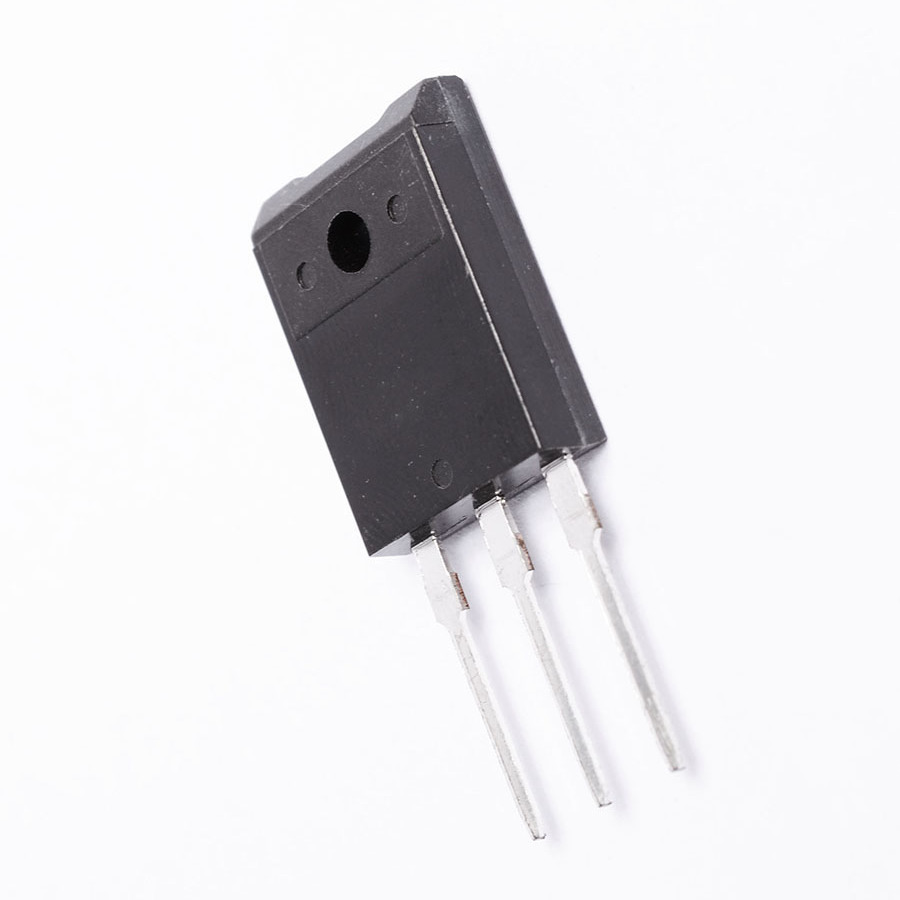

BU2525DF is a silicon diffused power transistor — a high-voltage, high-speed switching NPN with integrated damper diode. Offered in a SOT199 plastic full-pack package, it provides VCESM 1500 V, VCEO 800 V, IC 12 A, ICM 30 A and Ptot 45 W. It is intended for horizontal deflection circuits in large-screen color television receivers.
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • Last 36 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
BU2525DF Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT199
Manufacturer NXP Semiconductors
Polarity NPN
Maximum Collector Power Dissipation (Pc) 45 W
Maximum Collector-Base Voltage |Vcb| 800 V
Maximum Collector-Emitter Voltage |Vce| 800 V
Maximum Emitter-Base Voltage |Veb| 13.5 V
Maximum Collector Current |Ic max| 12 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 145 pF
Forward Current Transfer Ratio (hFE), MIN 11
SKU 80012
