BU508AF

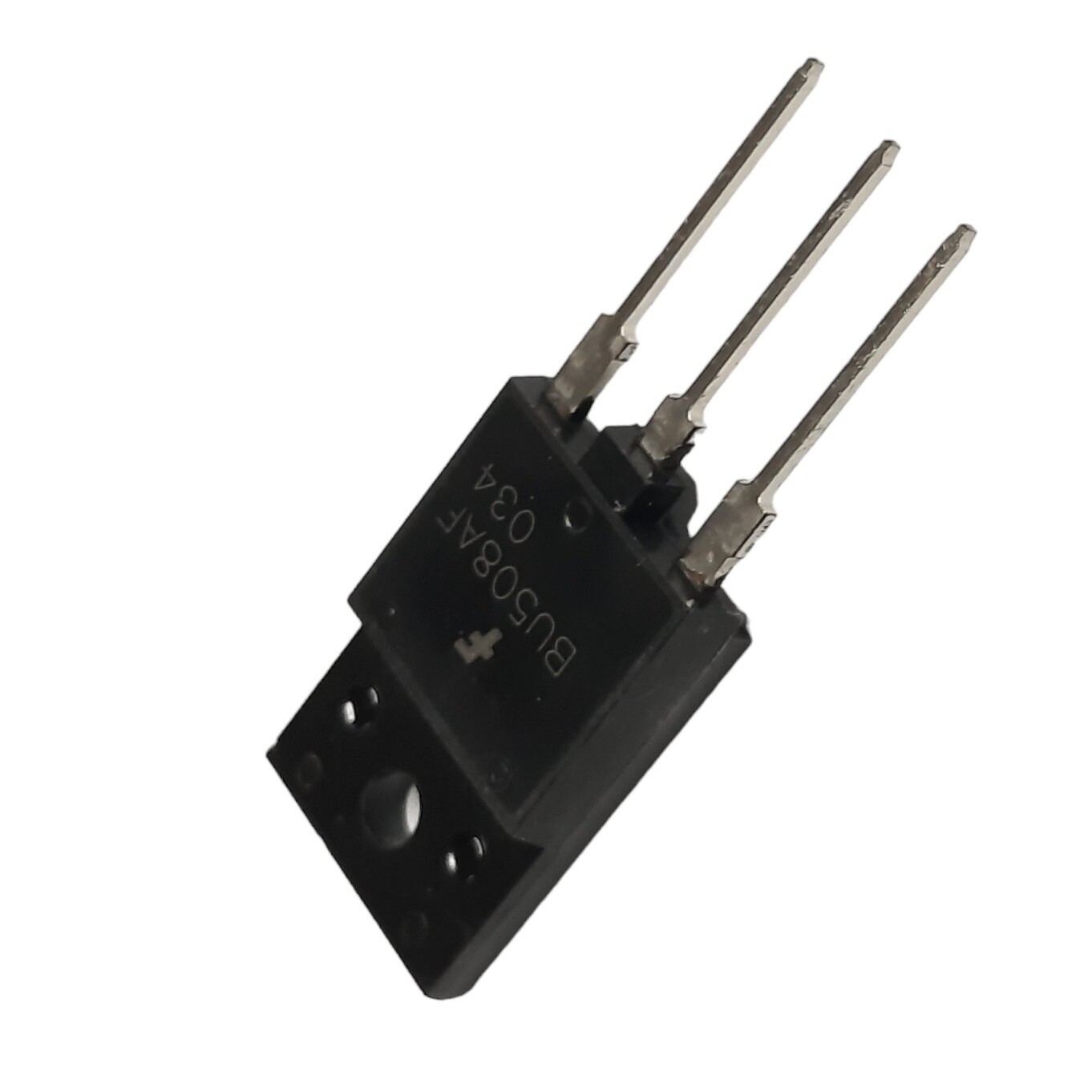

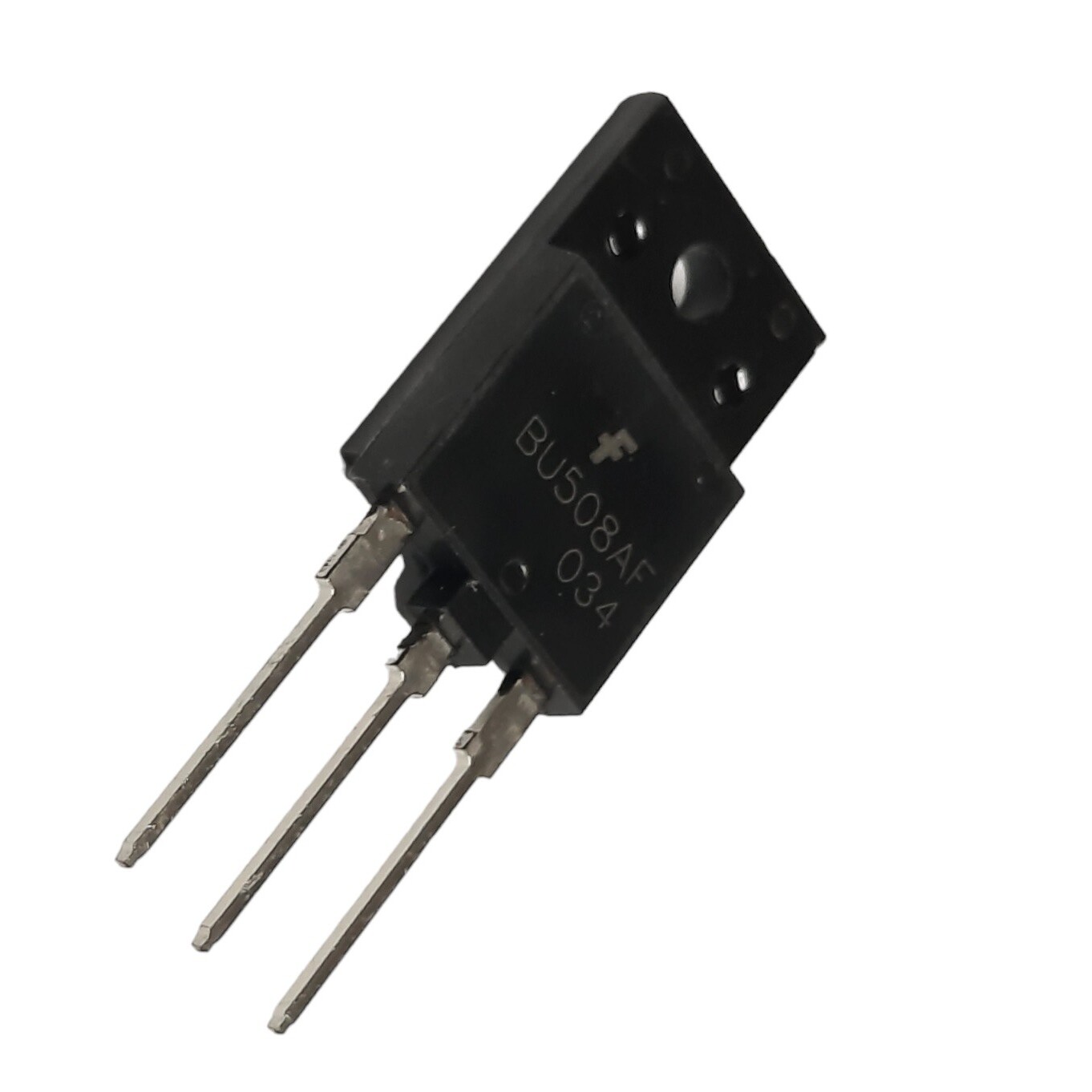

View detailed images (4)

BU508AF

SKU: BU508AF
BU508AF Semiconductor - Case: TO218F Make: Generic
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • 326 pieces in 1-2 Days
  • More pieces shipped in 14 days
Datasheet
BU508AF Datasheet
Product specifications
Manufacturer Generic
Case TO247F
Type Transistor Silicon NPN
Vbr CEO 700
Max. PD (W) 34
t(f) Max. (S) 700n-
Min hFE 15-
Ic Max. (A) 8.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Derate Above 25°C 800m
Trans. Freq (Hz) Min. 7.0M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 34 W
Maximum Collector-Base Voltage |Vcb| 1500 V
Maximum Collector-Emitter Voltage |Vce| 700 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 125 pF
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 5
SKU 16648
