BUF410AI
View detailed images (4)

BUF410AI

SKU: BUF410AI

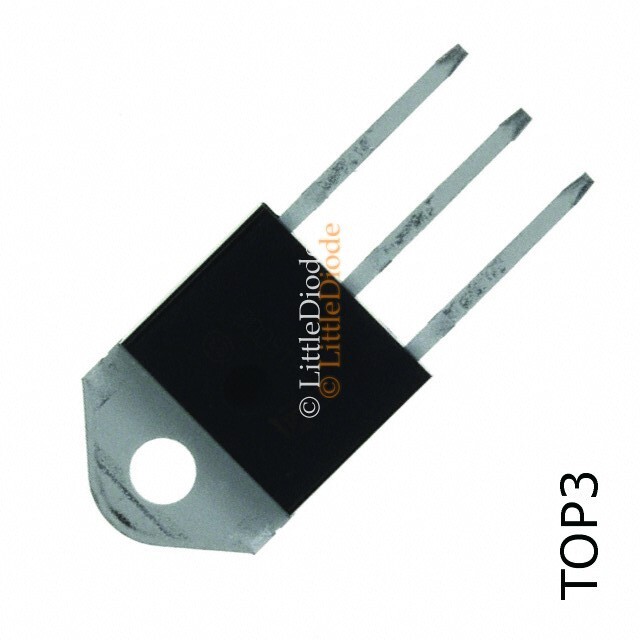

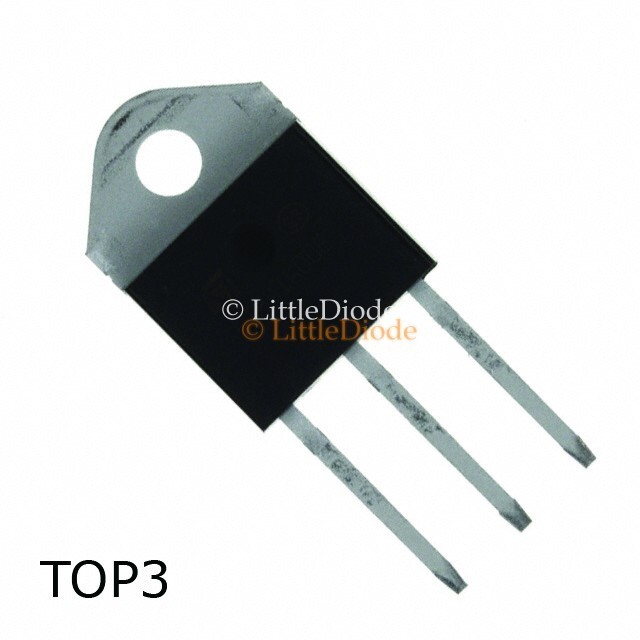

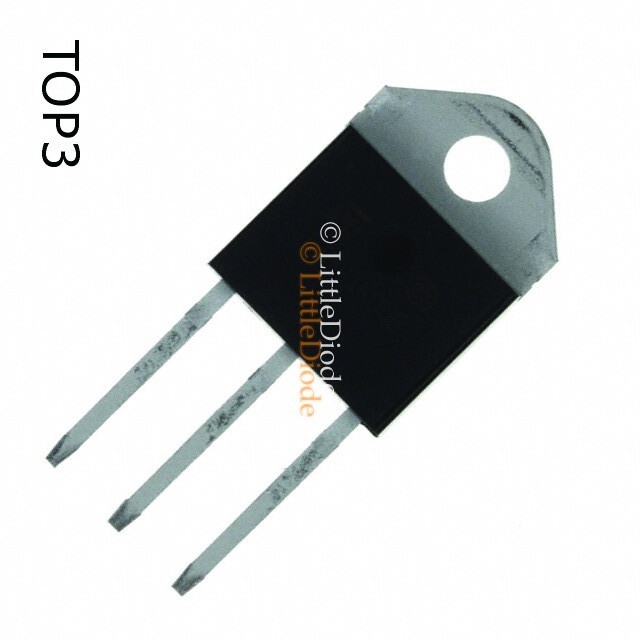

BUF410AI Transistor Silicon NPN CASE: TOP3 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TOP3
Manufacturer Generic
Vbr CEO 450
Max. PD (W) 85
t(f) Max. (S) .12u
Ic Max. (A) 15
Polarity NPN
Trans. Freq (Hz) Min. 100k
Oper. Temp (°C) Max. 150
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 85 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 100
SKU 734676
