BUH713
View detailed images (12)

BUH713

SKU: BUH713

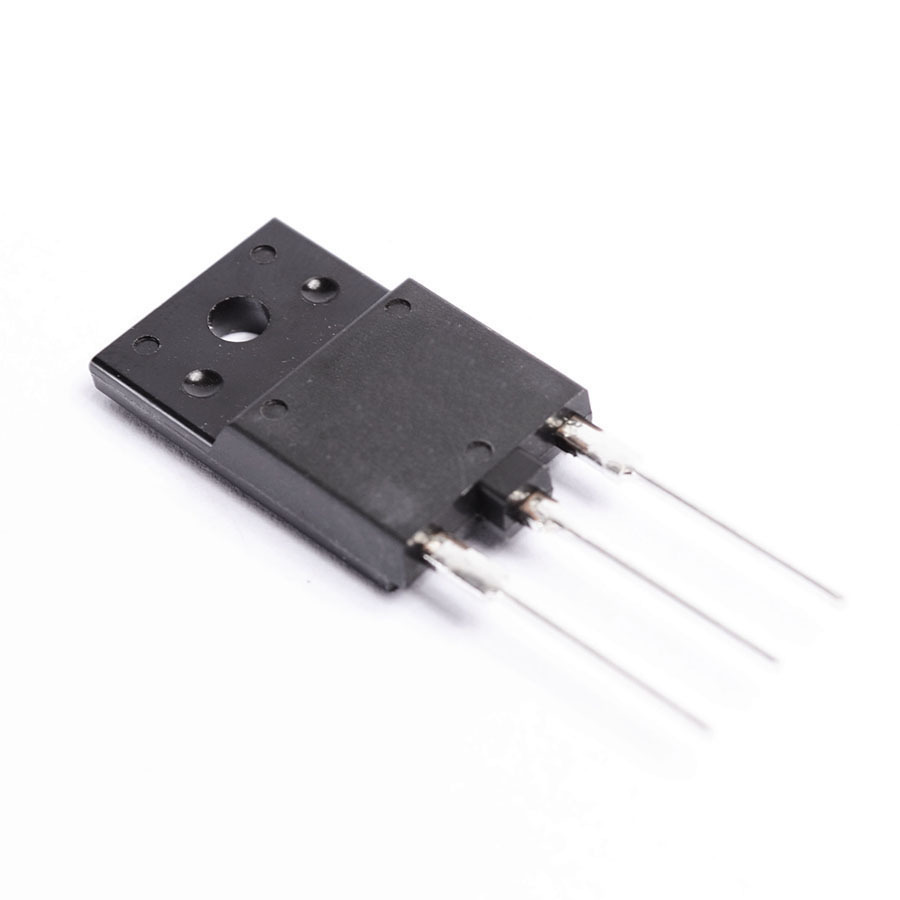

BUH713 Transistor Silicon NPN CASE: TO3PF MAKE: ST Microelectronics - STM
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 9 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BUH713 Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO3PF
Manufacturer ST Microelectronics - STM
Polarity NPN
Maximum Collector Power Dissipation (Pc) 57 W
Maximum Collector-Base Voltage |Vcb| 1300 V
Maximum Collector-Emitter Voltage |Vce| 700 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 10 A
Forward Current Transfer Ratio (hFE), MIN 8
SKU 84930
