BUP22BF
View detailed images (12)

BUP22BF

SKU: BUP22BF

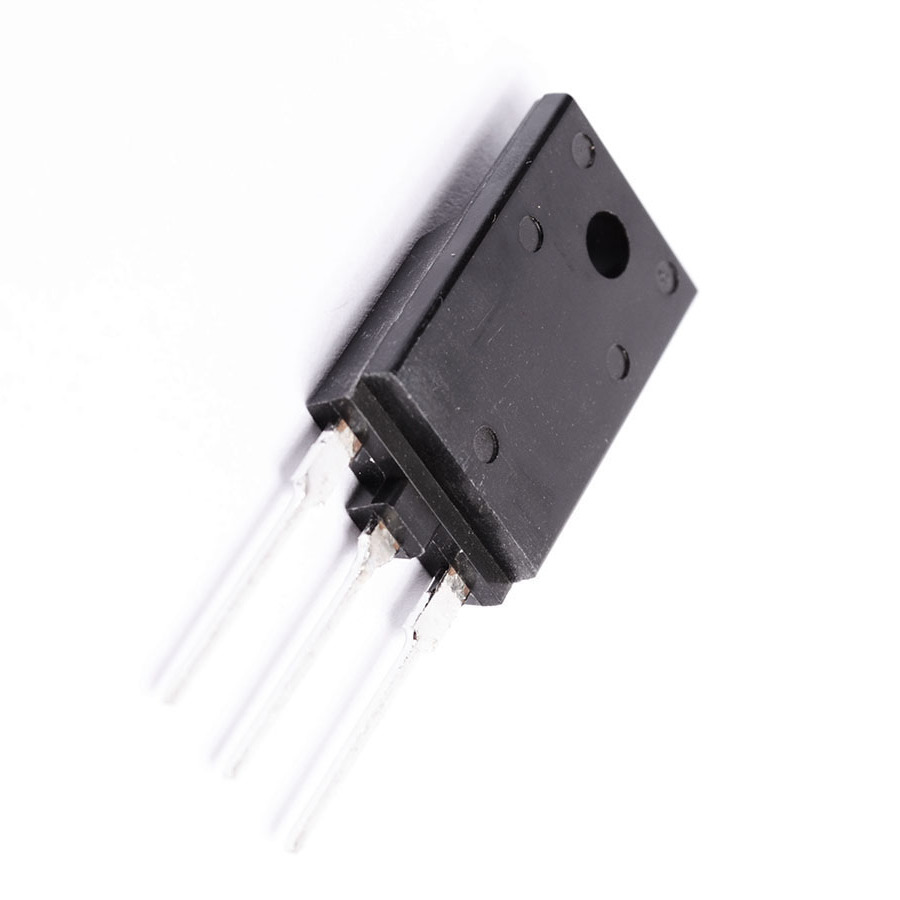

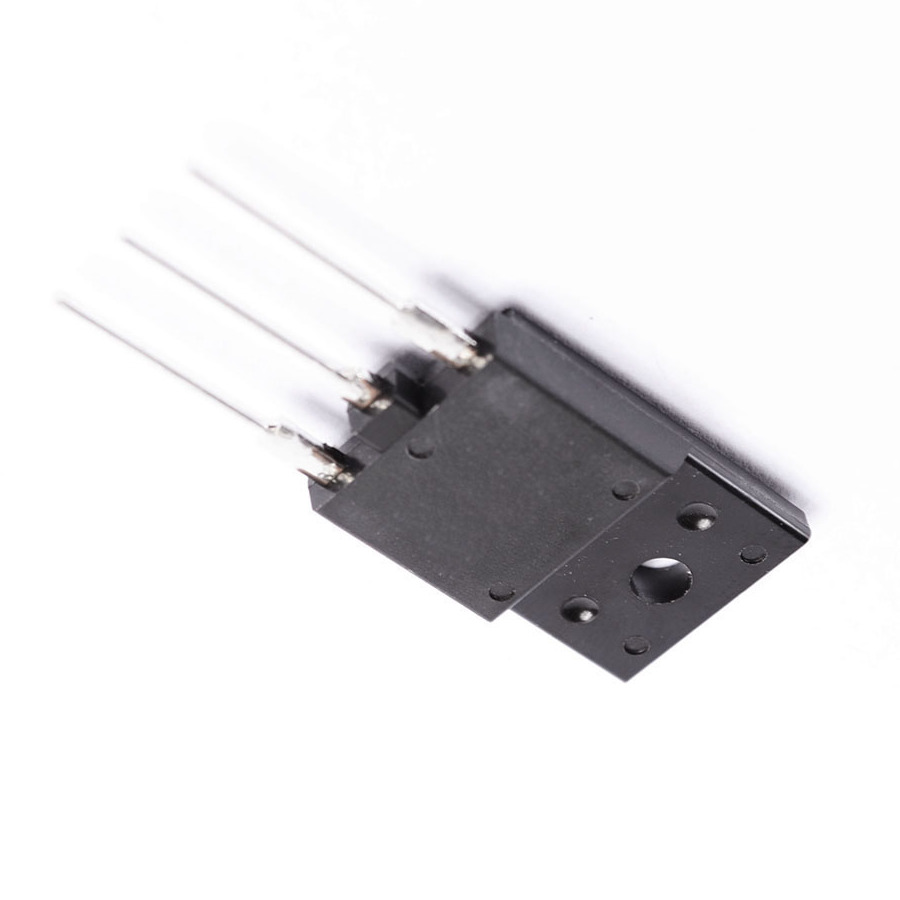

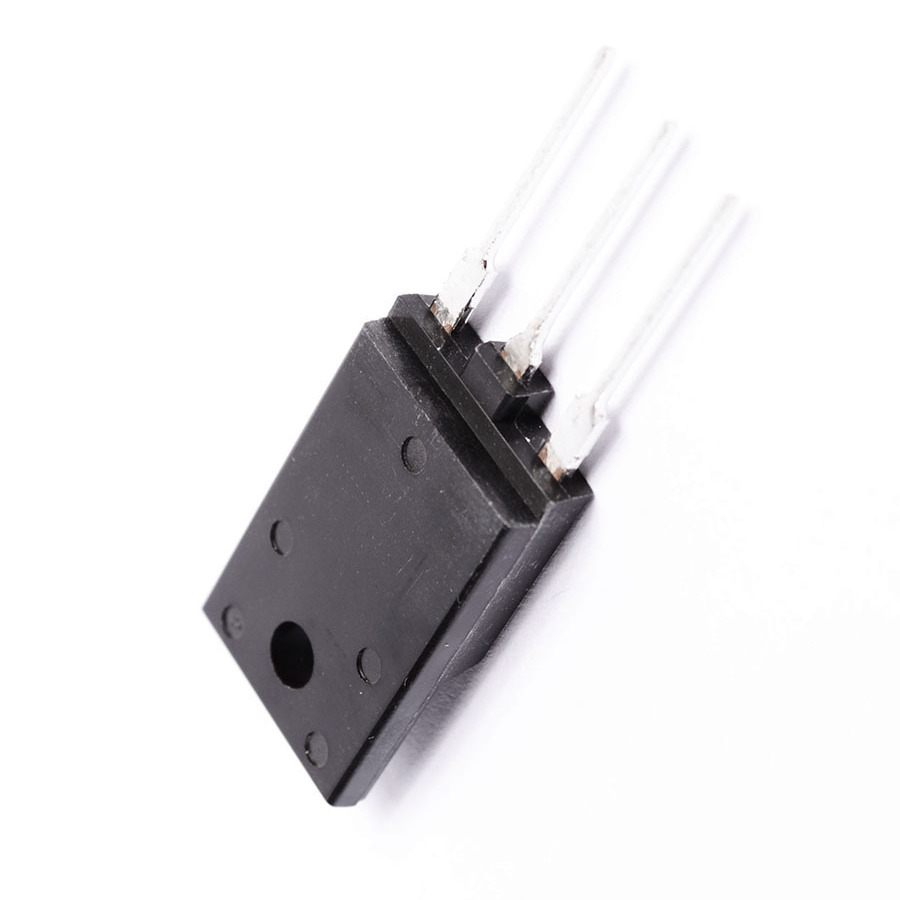

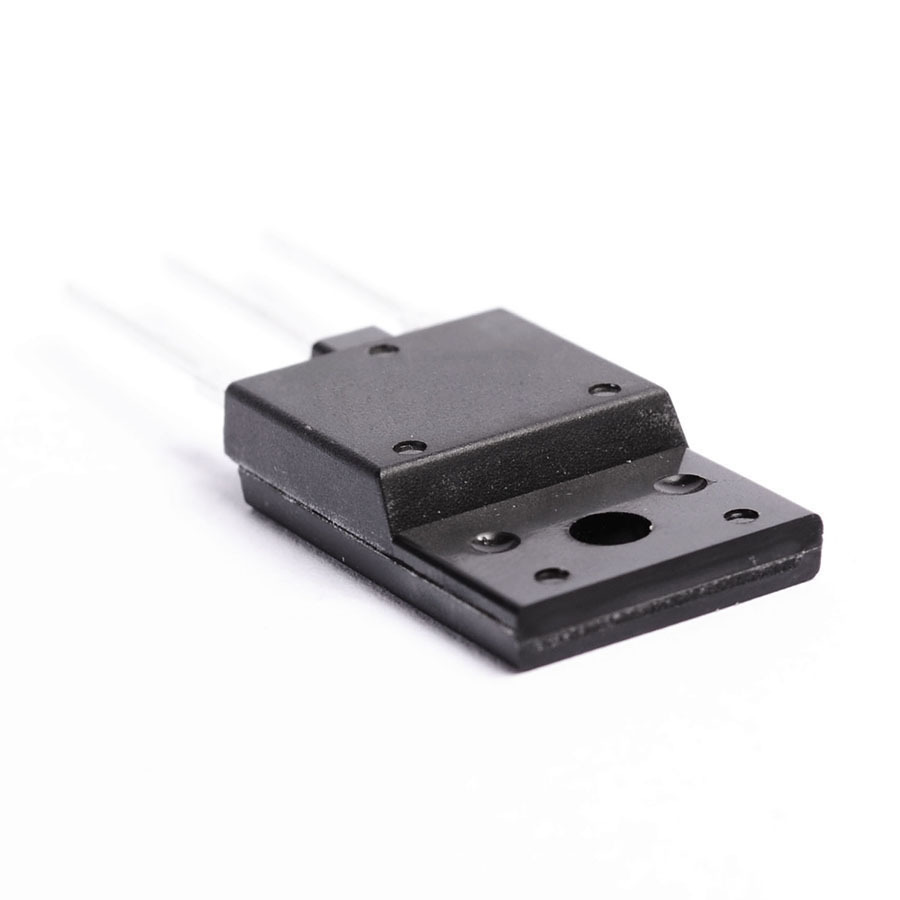

BUP22BF Transistor Silicon NPN CASE: TO3PF MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO3PF
Manufacturer Generic
Vbr CEO 400
Max. PD (W) 125
t(f) Max. (S) 700n
Min hFE 7.5
Ic Max. (A) 8.0
@Ic (test) (A) 6.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Derate Above 25°C 800m
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 37 W
Maximum Collector-Base Voltage |Vcb| 750 V
Maximum Collector-Emitter Voltage |Vce| 400 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 25
SKU 1273296
