BUS22CF
View detailed images (12)

BUS22CF

SKU: BUS22CF

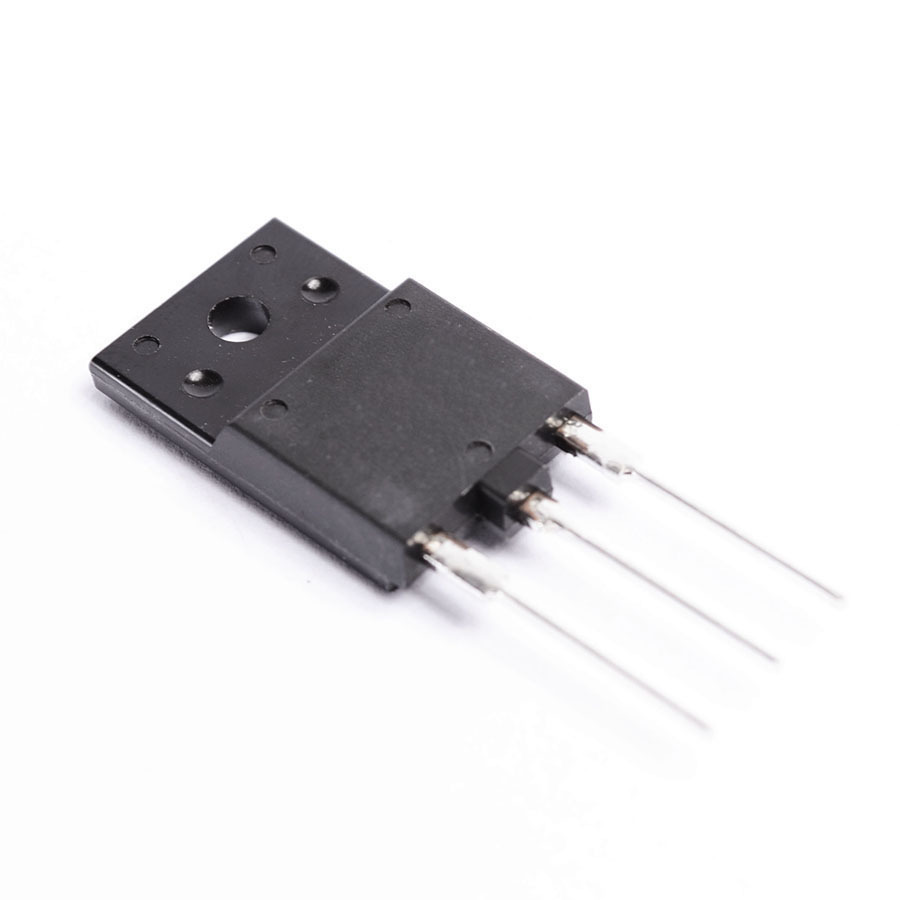

BUS22CF Transistor Silicon NPN CASE: TO3PF MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case TO3PF
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 125 W
Maximum Collector-Base Voltage |Vcb| 850 V
Maximum Collector-Emitter Voltage |Vce| 500 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 25
SKU 1426779
