BUT232V
View detailed images (12)

BUT232V

SKU: BUT232V

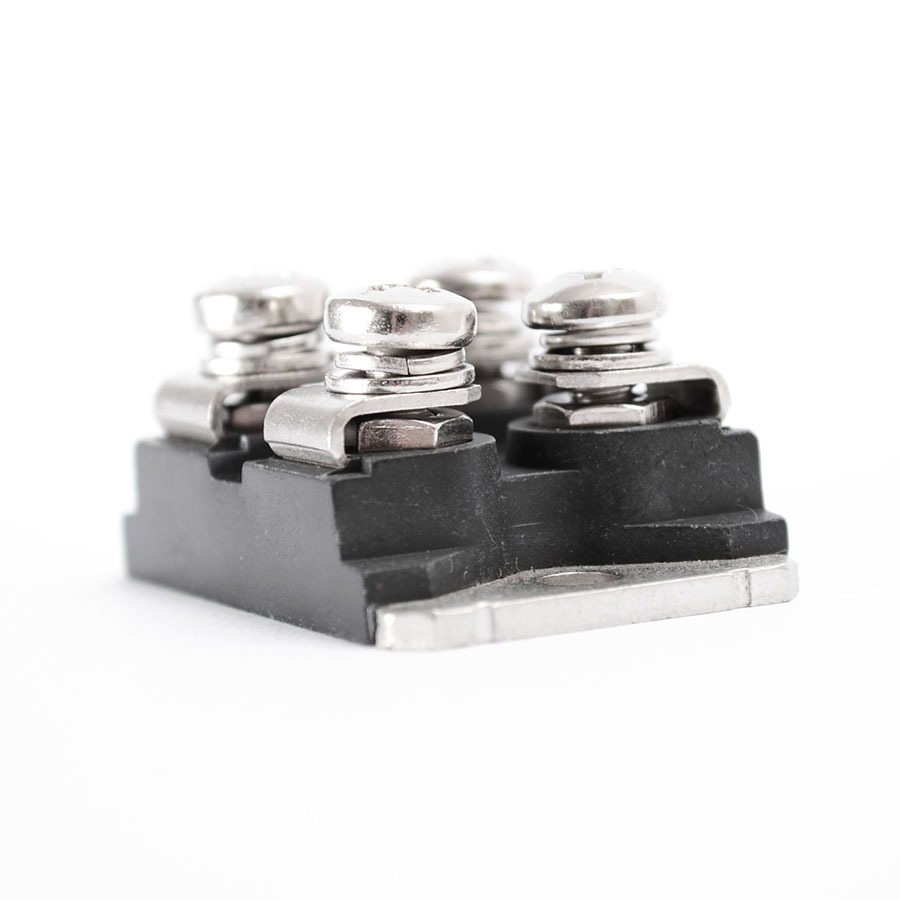

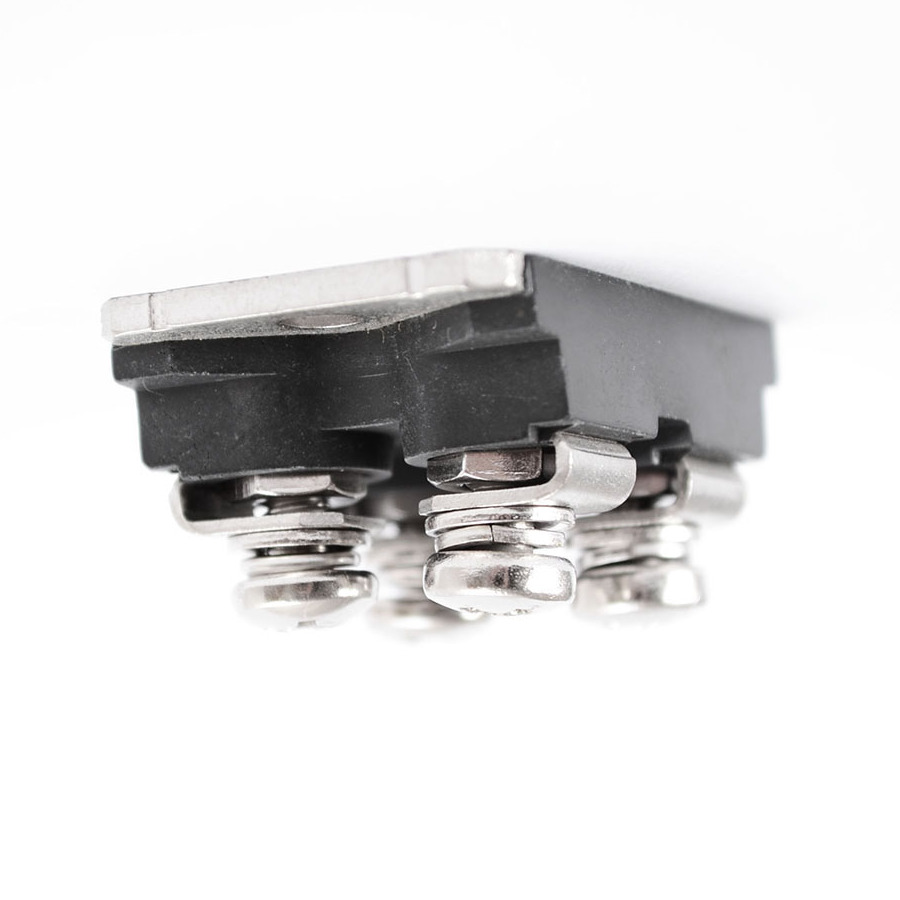

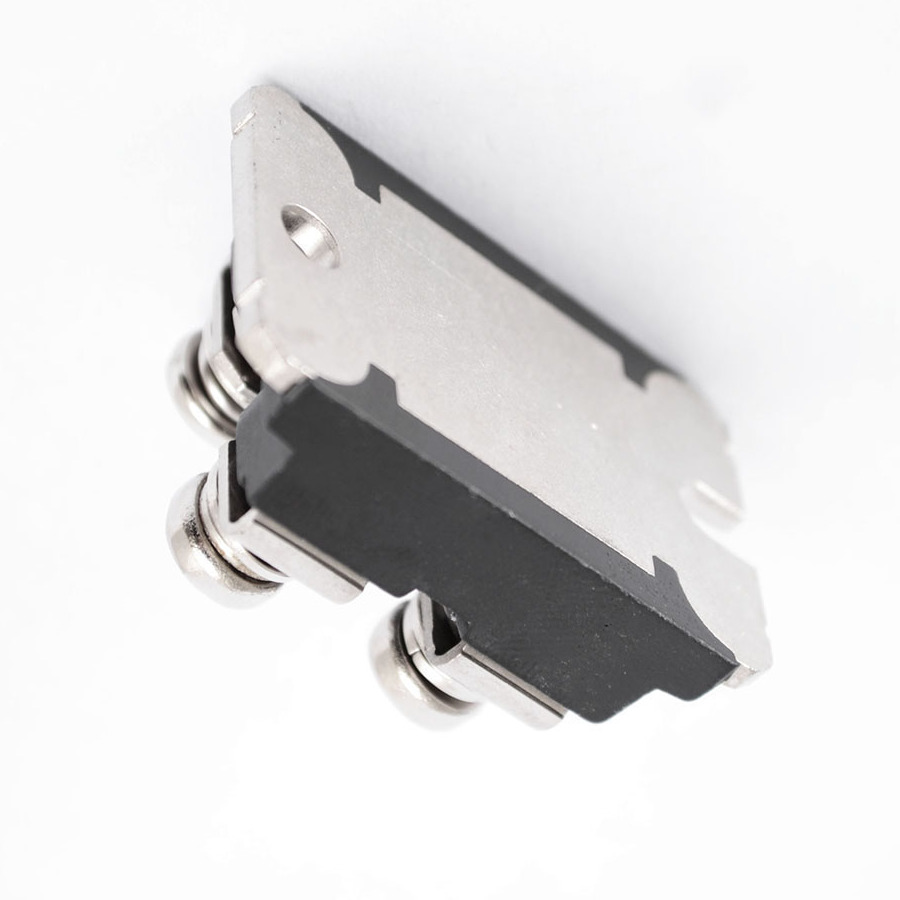

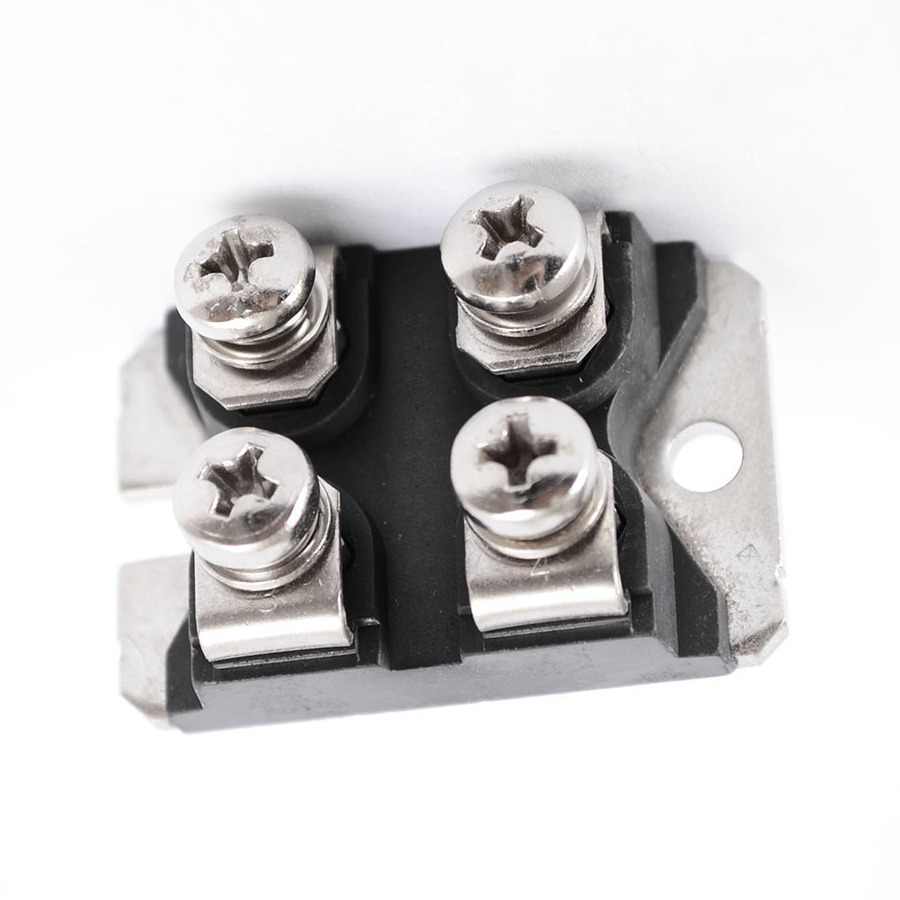

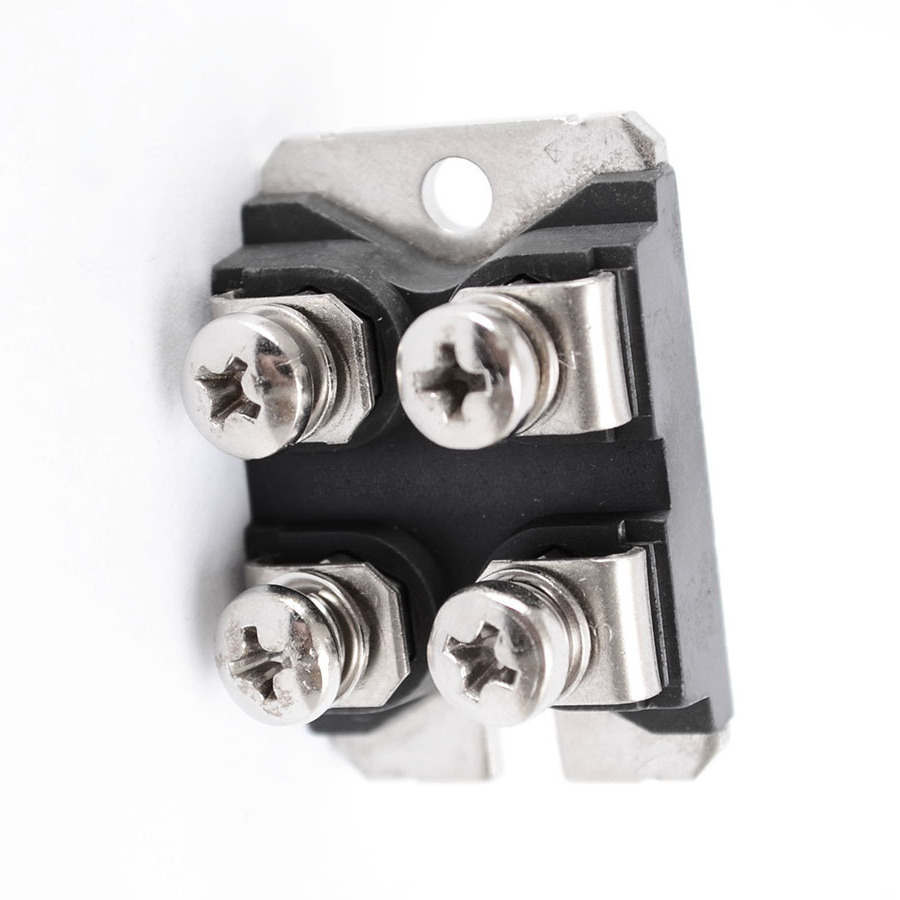

BUT232V Transistor Silicon NPN CASE: SOT227A MAKE: SGS Thomson
Price:
£62.39 Inc. VAT (£51.99 Ex. VAT)
£62.39 Inc. VAT (£51.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BUT232V Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT227A
Manufacturer SGS Thomson
Vbr CEO 300
Ckts Per Dev. 1
Max. PD (W) 300
t(f) Max. (S) 0.4u
Ic Max. (A) 210
@Ic (test) (A) 70
Polarity NPN
Therm Res. (J-C) .41
VCE(sat) Max. 1.9
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 4-89
Maximum Collector Power Dissipation (Pc) 300 W
Maximum Collector-Base Voltage |Vcb| 400 V
Maximum Collector-Emitter Voltage |Vce| 300 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 140 A
Max. Operating Junction Temperature (Tj) 200 °C
Forward Current Transfer Ratio (hFE), MIN 5
SKU 81858
