BUV98A
View detailed images (12)

BUV98A

SKU: BUV98A

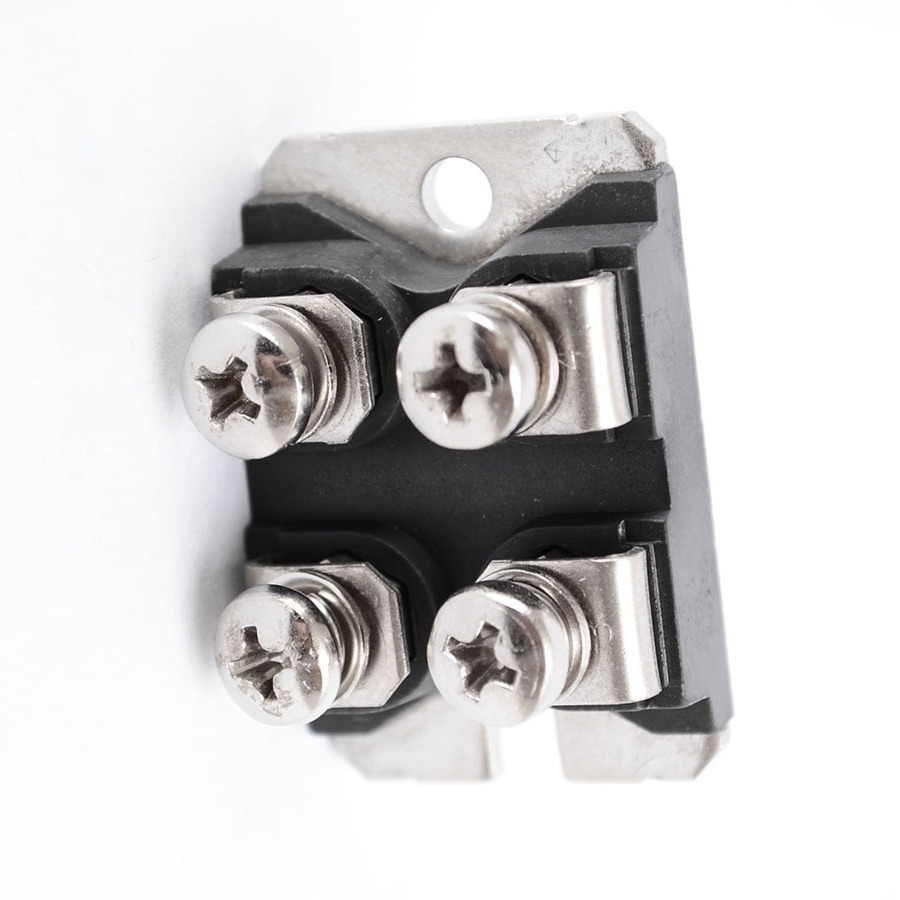

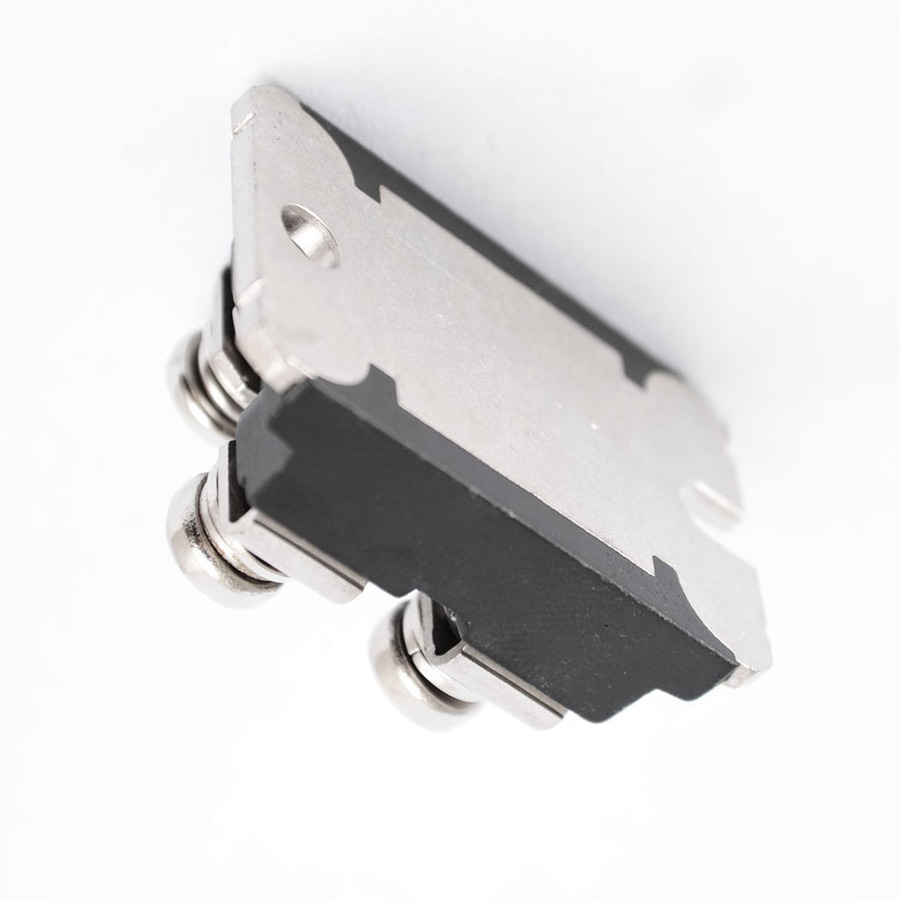

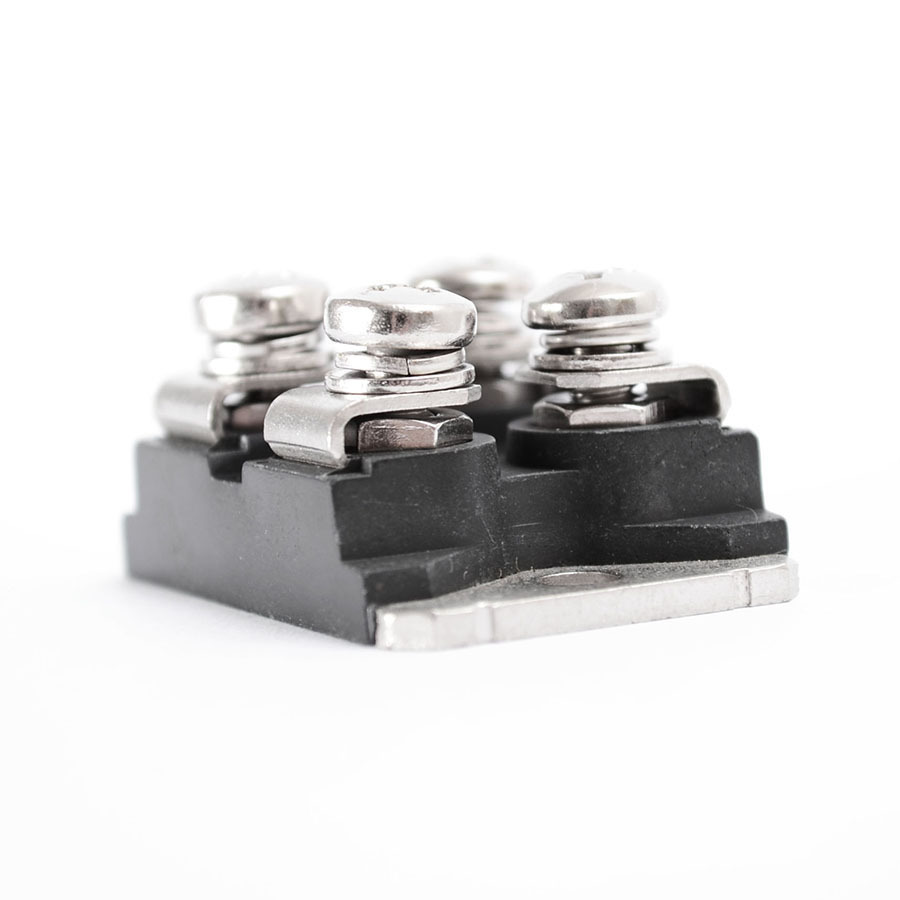

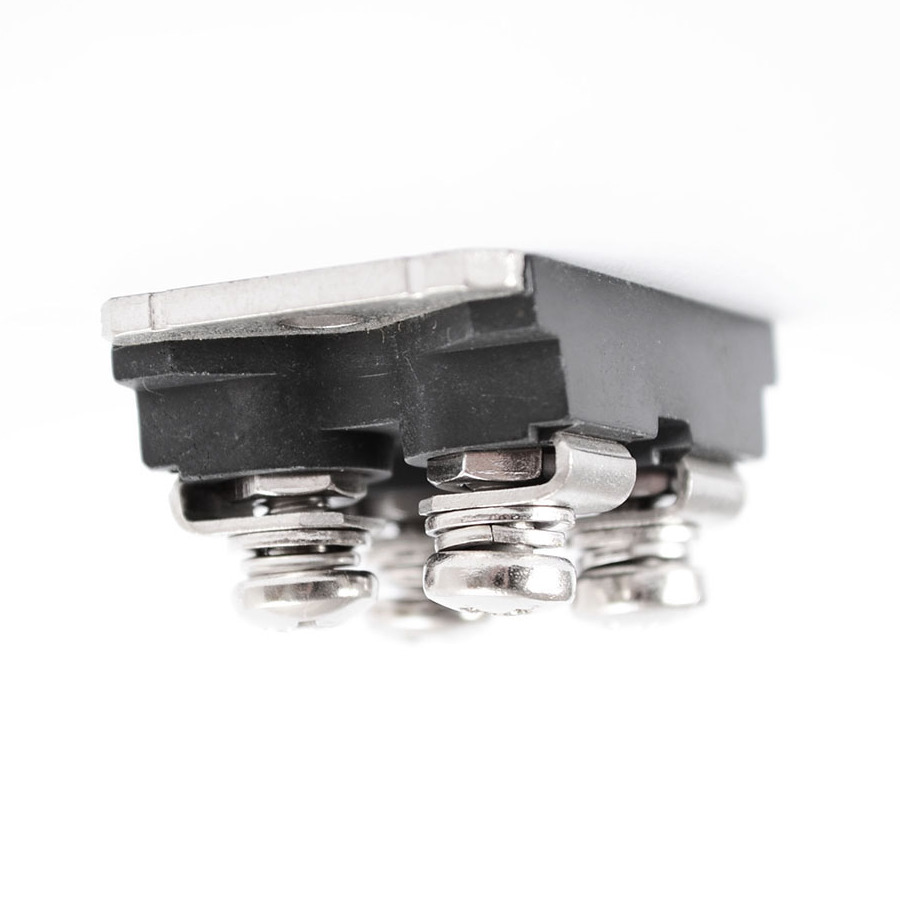

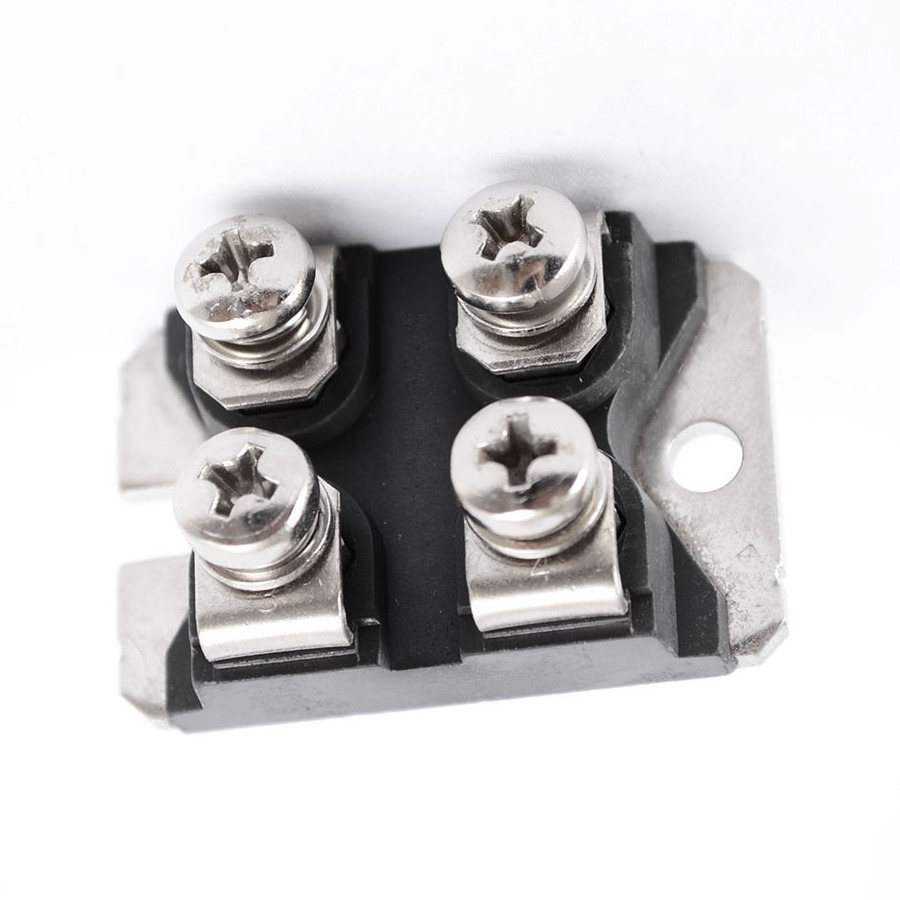

BUV98A Transistor Silicon NPN CASE: SOT227A MAKE: ST Microelectronics - STM
Price:
£52.79 Inc. VAT (£43.99 Ex. VAT)
£52.79 Inc. VAT (£43.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Equivalent BUV98AV
Type Transistor Silicon NPN
Case SOT227A
Manufacturer ST Microelectronics - STM
Vbr CEO 450
Ckts Per Dev. 1
Max. PD (W) 150
t(f) Max. (S) 800n
Min hFE 5.0
Ic Max. (A) 30
@Ic (test) (A) 16
Icbo Max. @Vcb Max. (A) 400u
Polarity NPN
Tr Max. (s) 1.0u
Therm Res. (J-C) .83
VCE(sat) Max. 5.0
Trans. Freq (Hz) Min. 5.0M
Oper. Temp (°C) Max. 140
Isolated Case (Y/N) Yes
Pinout Equivalence Number 3-14
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 30 A
Max. Operating Junction Temperature (Tj) 200 °C
Transition Frequency (ft): 0.2 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SKU 81977
