BUV98V
View detailed images (12)

BUV98V

SKU: BUV98V

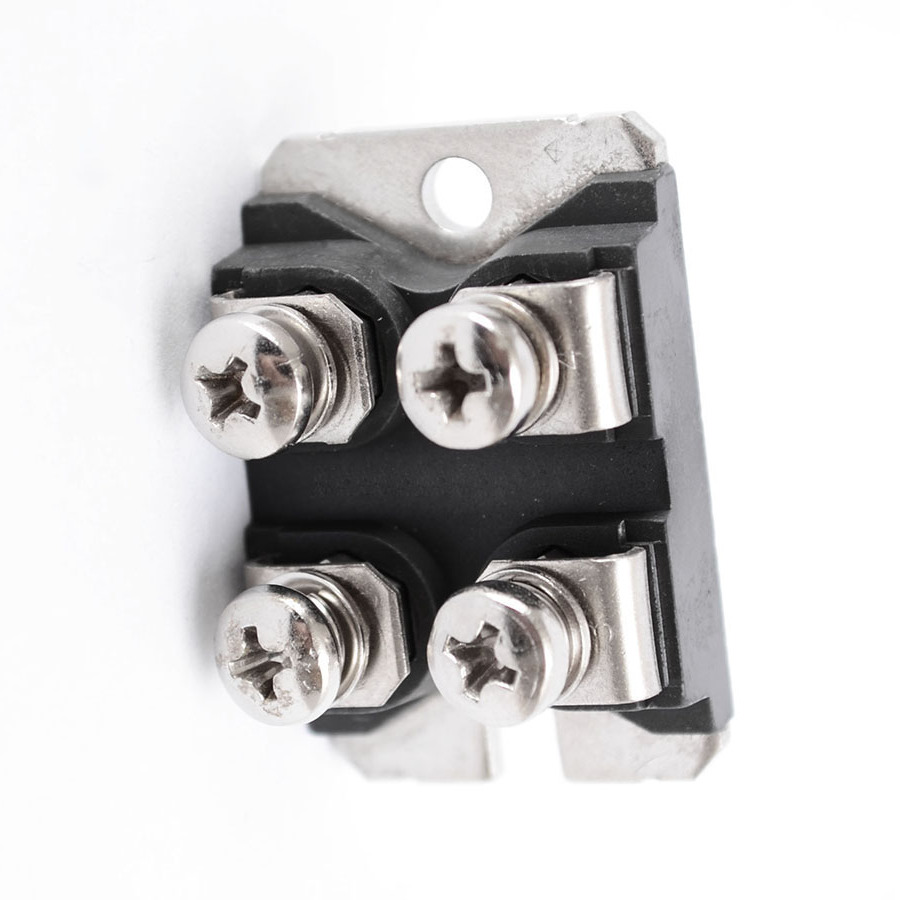

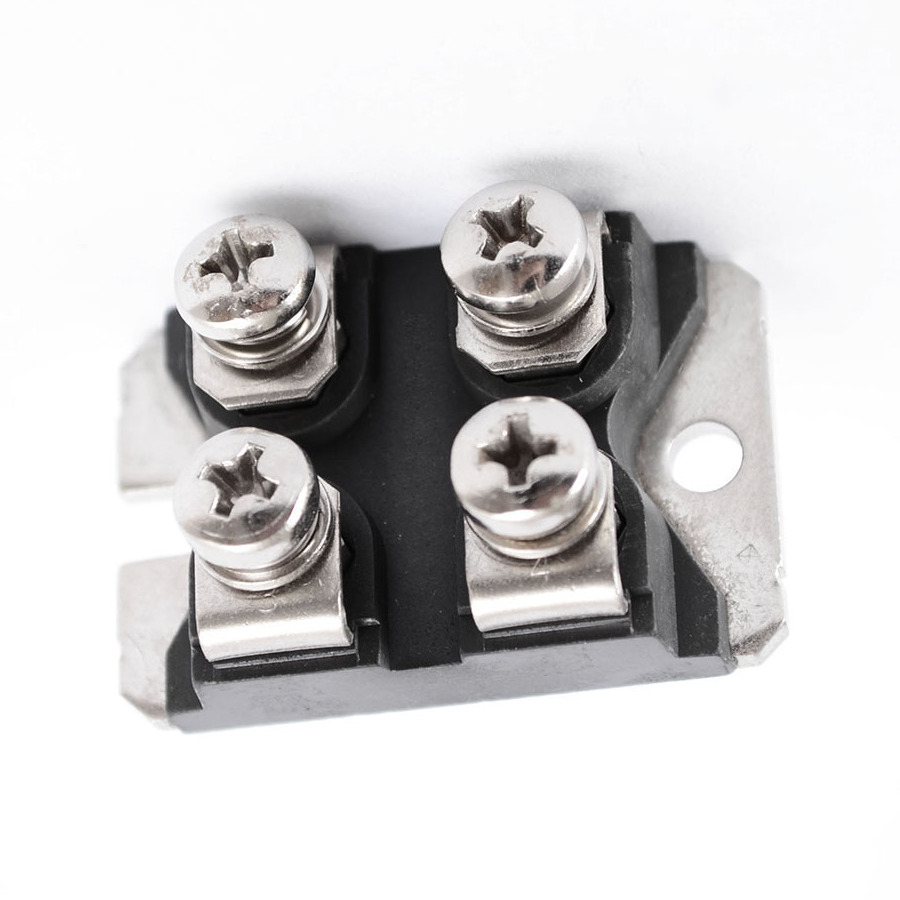

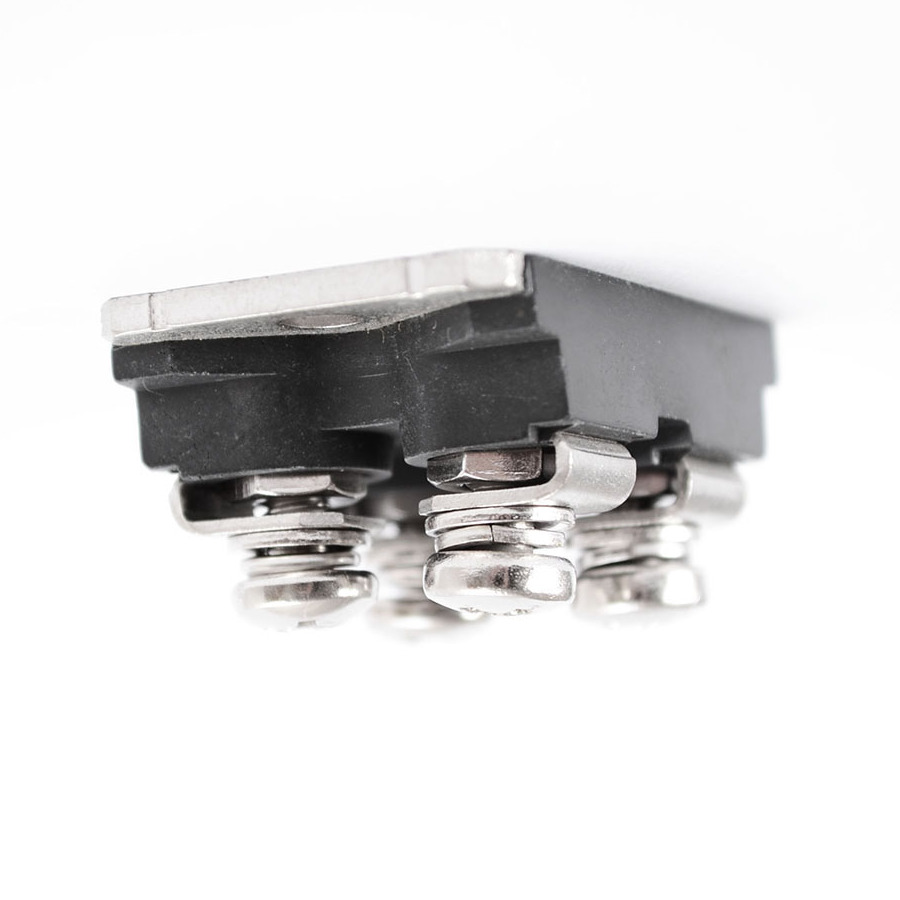

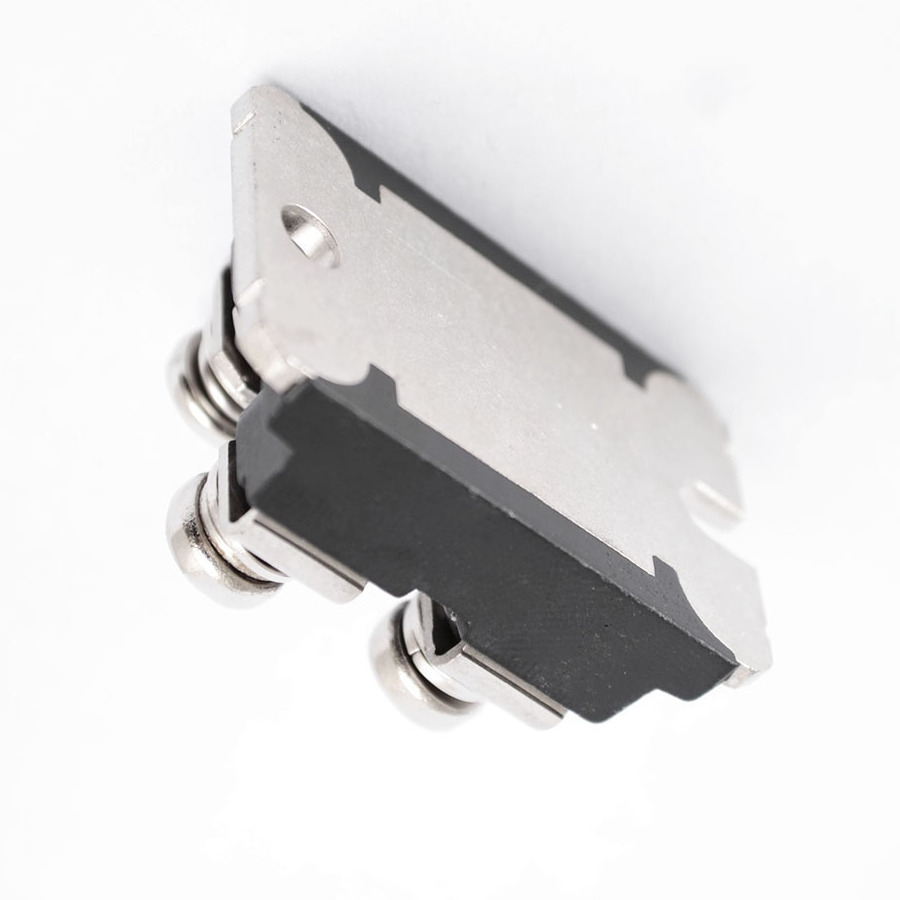

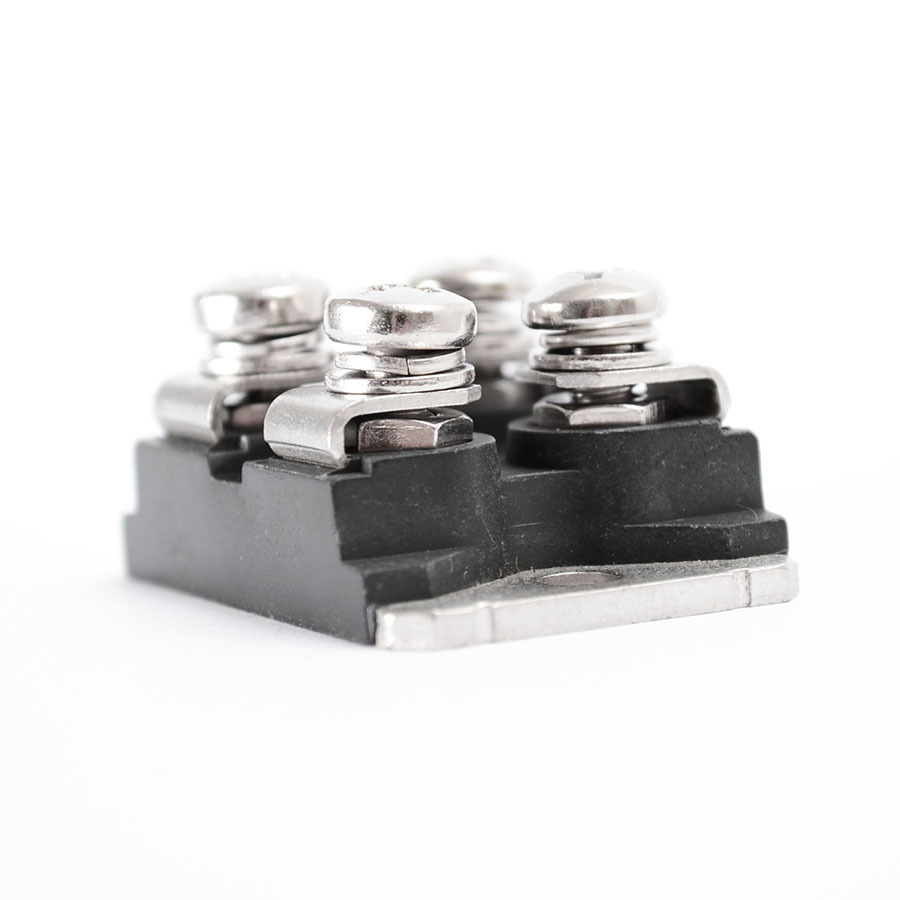

BUV98V Transistor Silicon NPN CASE: SOT227A MAKE: SGS Thomson
Price:
£38.39 Inc. VAT (£31.99 Ex. VAT)
£38.39 Inc. VAT (£31.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
BUV98V Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT227A
Manufacturer SGS Thomson
Vbr CEO 450
Ckts Per Dev. 1
Max. PD (W) 150
t(f) Max. (S) 0.4u
Ic Max. (A) 30
@Ic (test) (A) 24
Polarity NPN
Therm Res. (J-C) 0.5
VCE(sat) Max. 3.5
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 3-52
Maximum Collector Power Dissipation (Pc) 150 W
Maximum Collector-Base Voltage |Vcb| 850 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 30 A
Max. Operating Junction Temperature (Tj) 200 °C
Transition Frequency (ft): 0.2 MHz
Forward Current Transfer Ratio (hFE), MIN 9
SKU 82035
