BUW12AF
View detailed images (5)

BUW12AF

SKU: BUW12AF

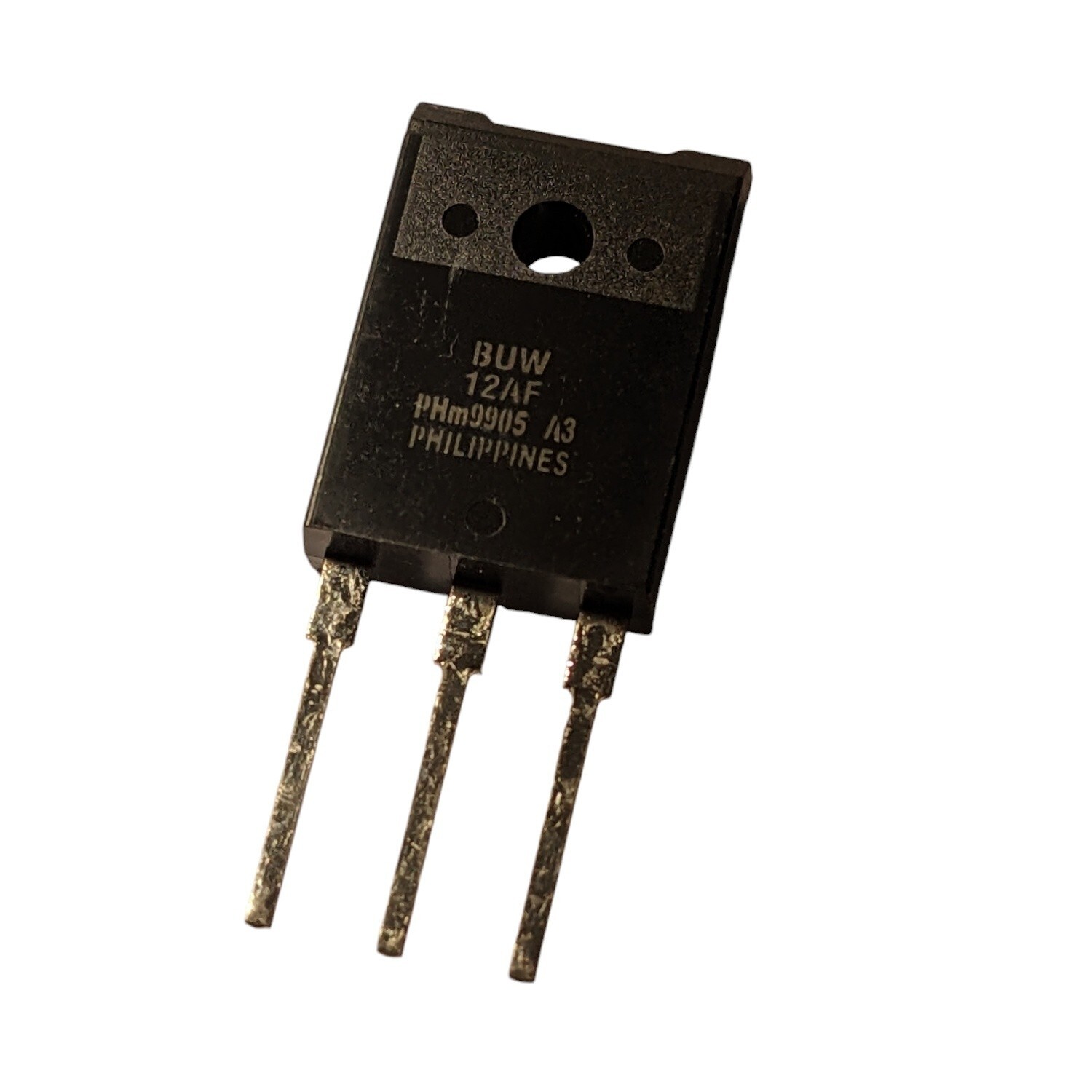

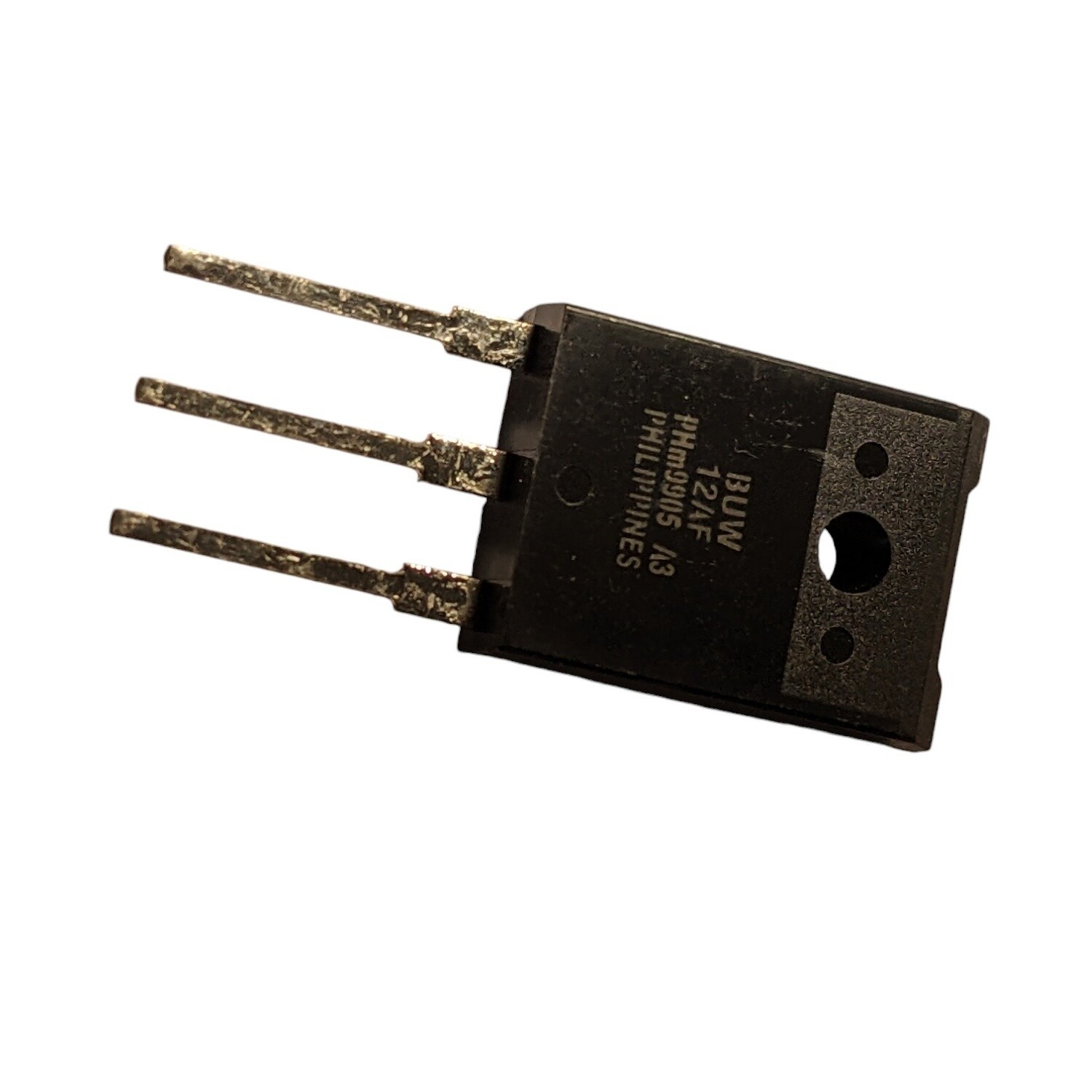

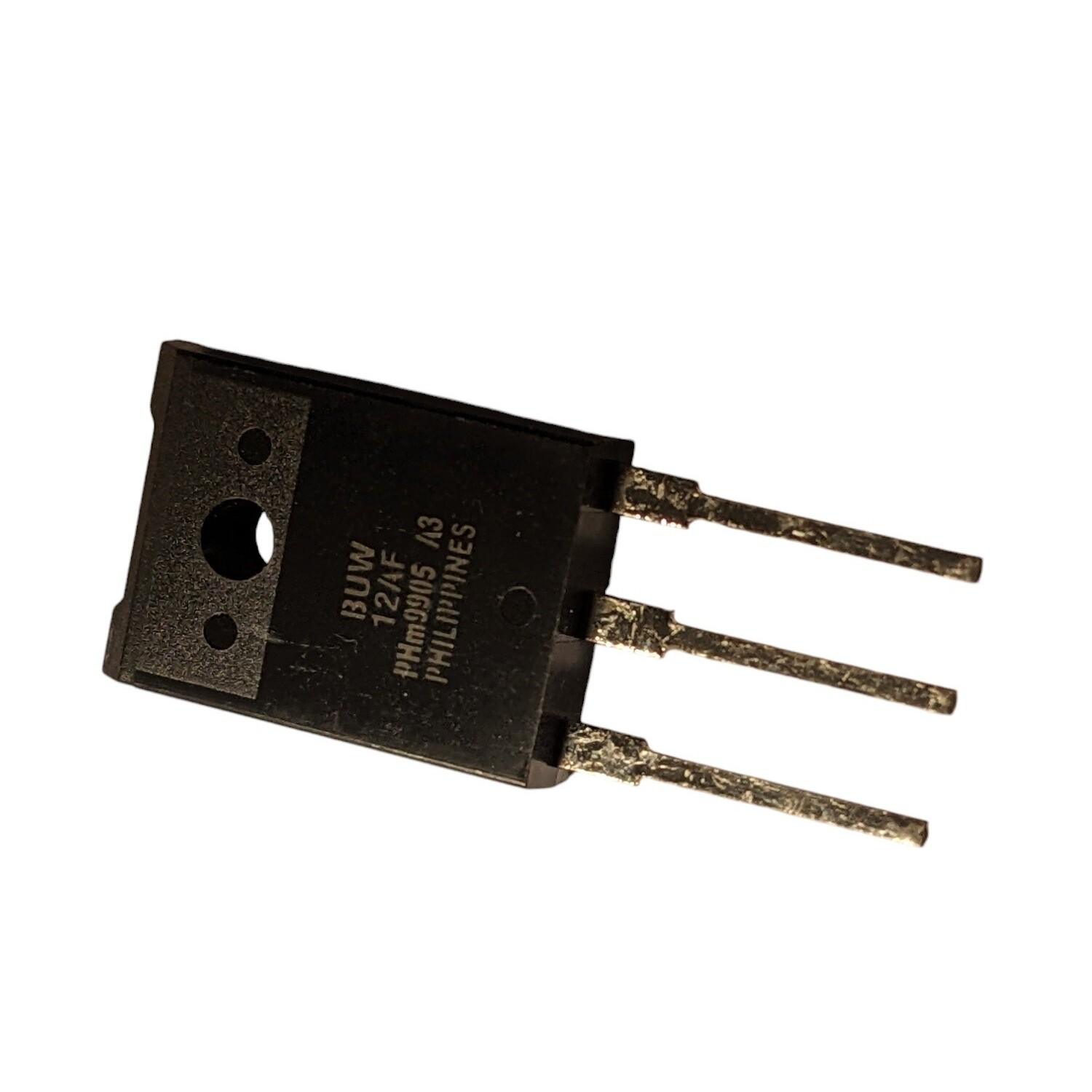

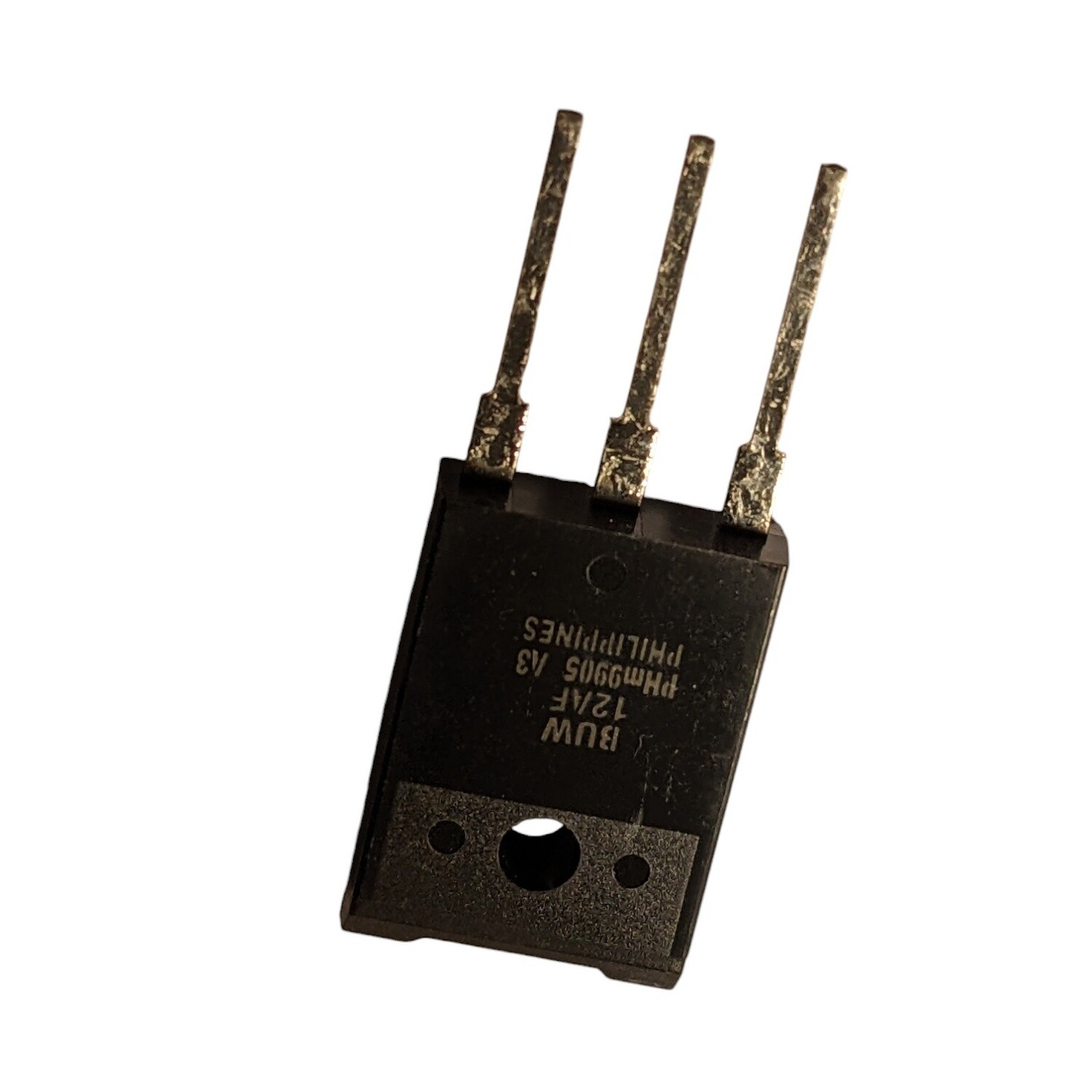

BUW12AF Transistor Silicon NPN CASE: TO3PF MAKE: Philips
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 9 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
BUW12AF Datasheet
Product specifications
Type Transistor Silicon NPN
Case TO3PF
Manufacturer Philips
Vbr CEO 450
Max. PD (W) 34
t(f) Max. (S) 800n
Min hFE 30-
Ic Max. (A) 8.0
@Ic (test) (A) 1.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Derate Above 25°C 800m
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 32 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 5
SKU 115817
