BUW14
View detailed images (12)

BUW14

SKU: BUW14

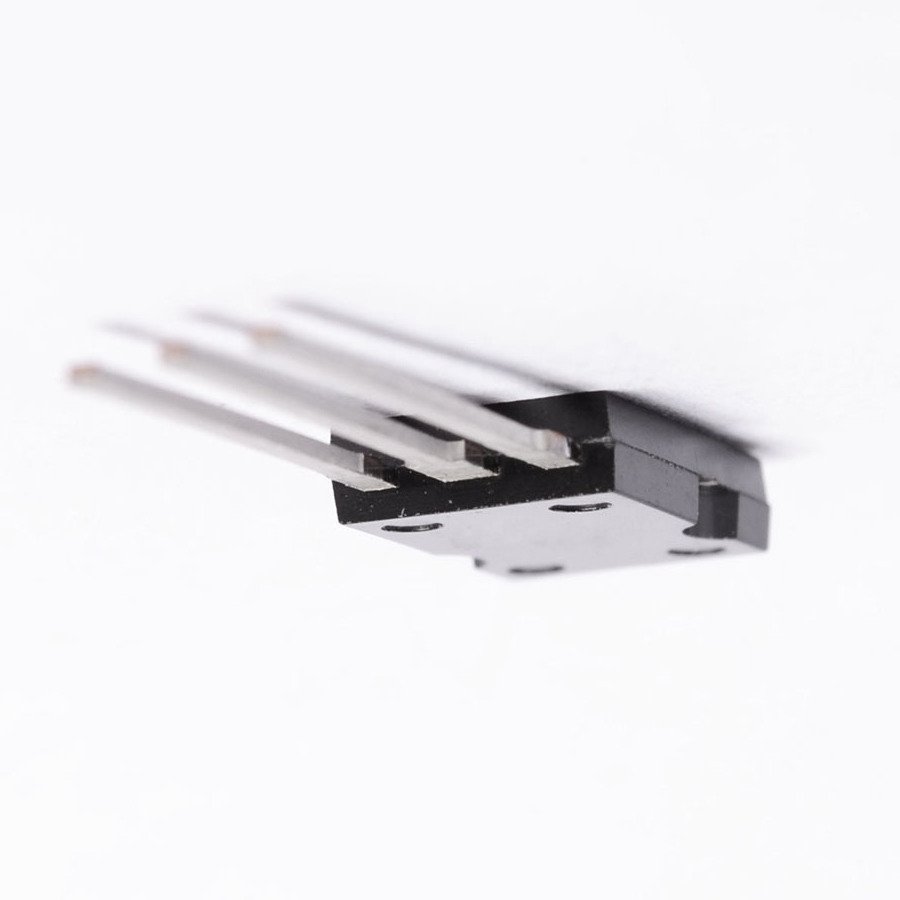

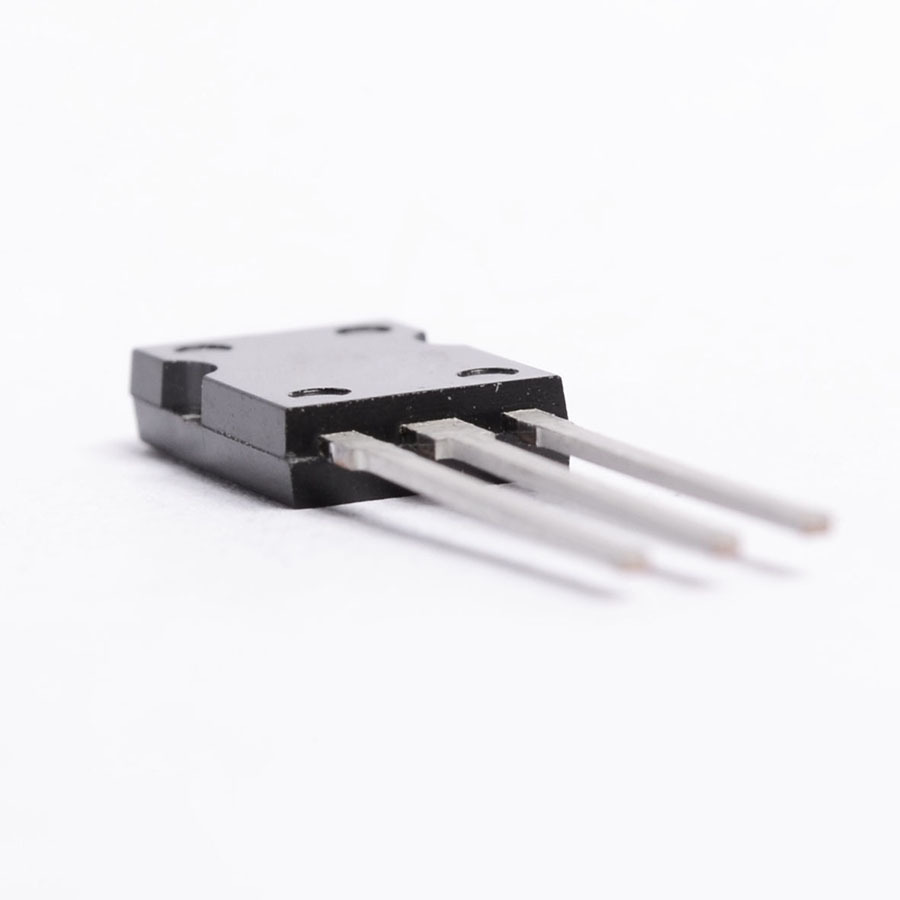

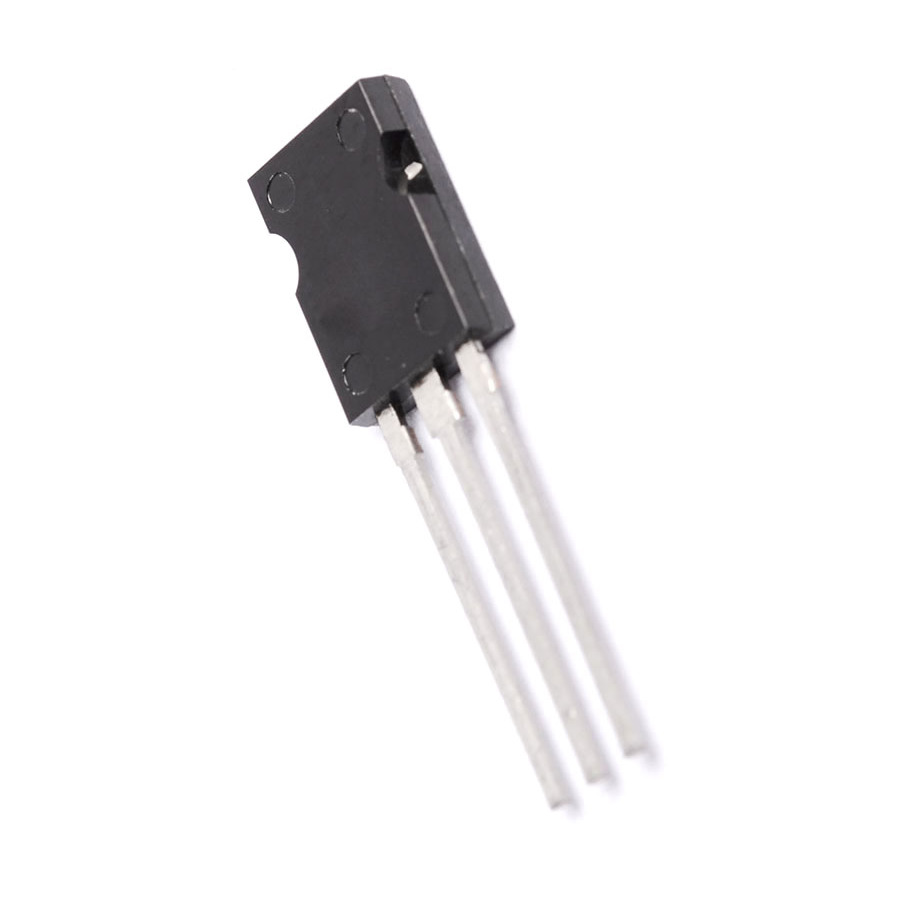

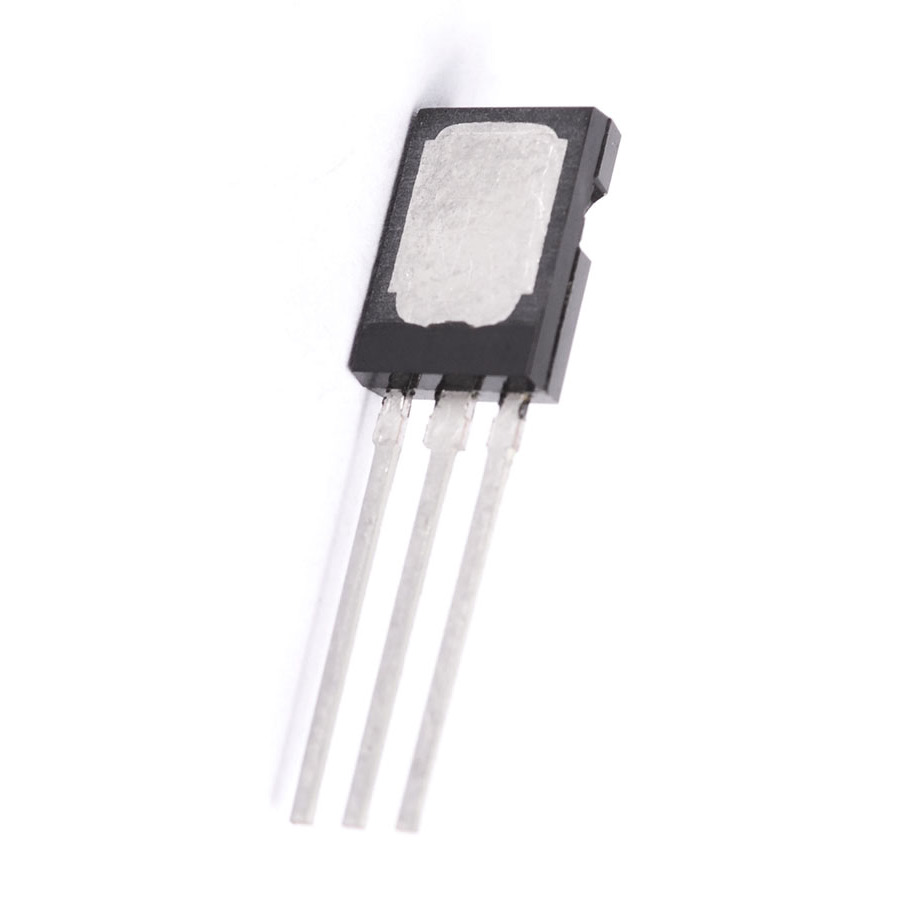

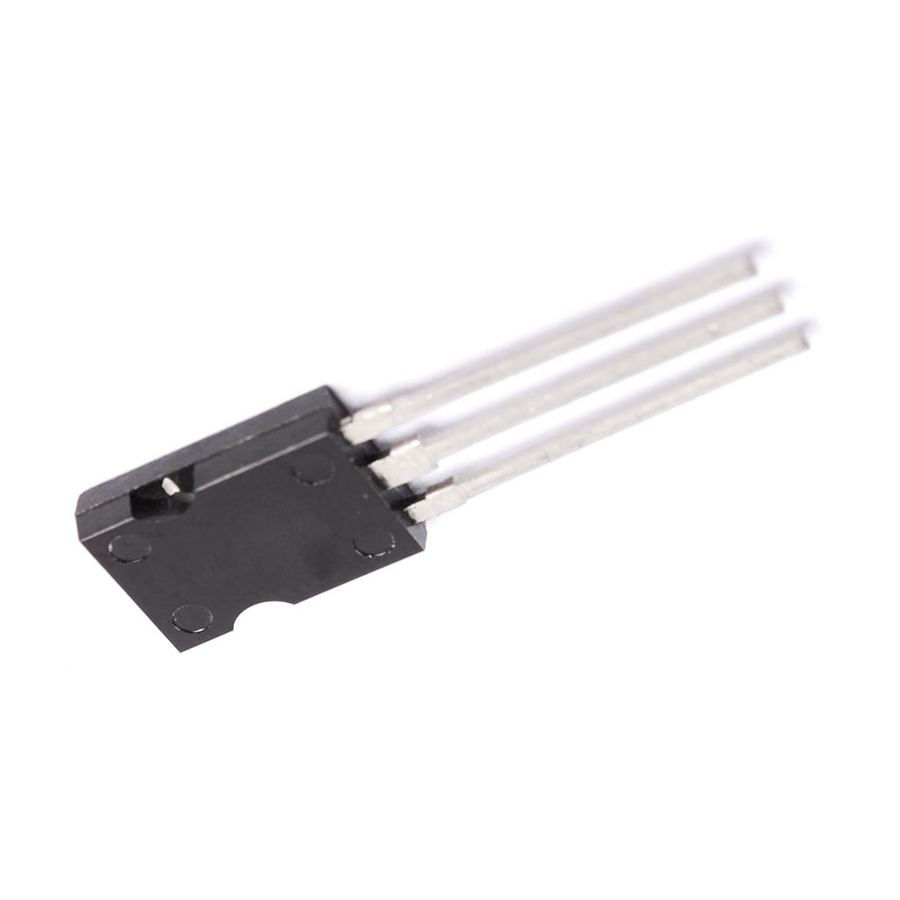

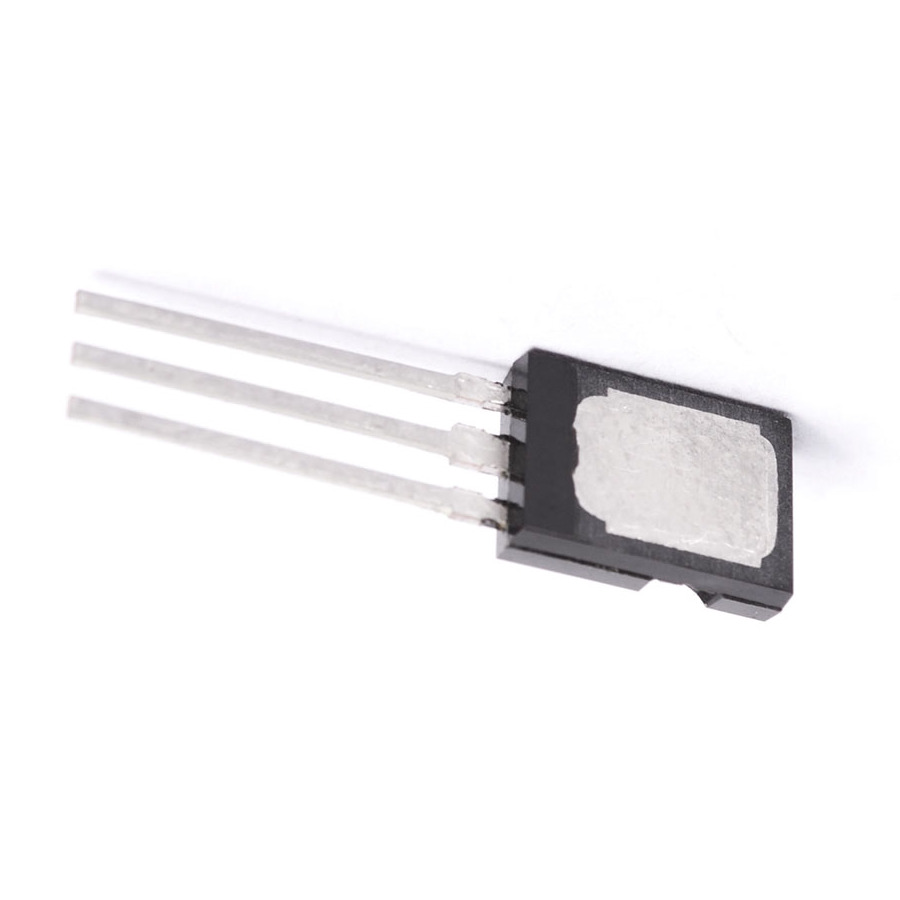

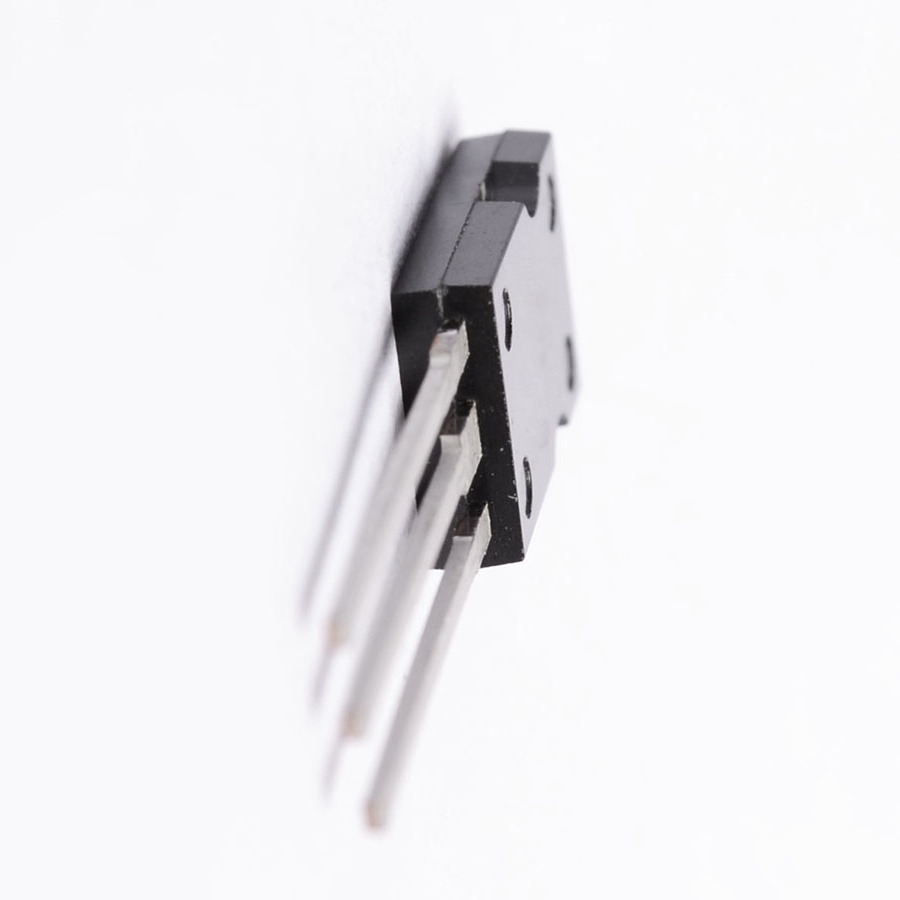

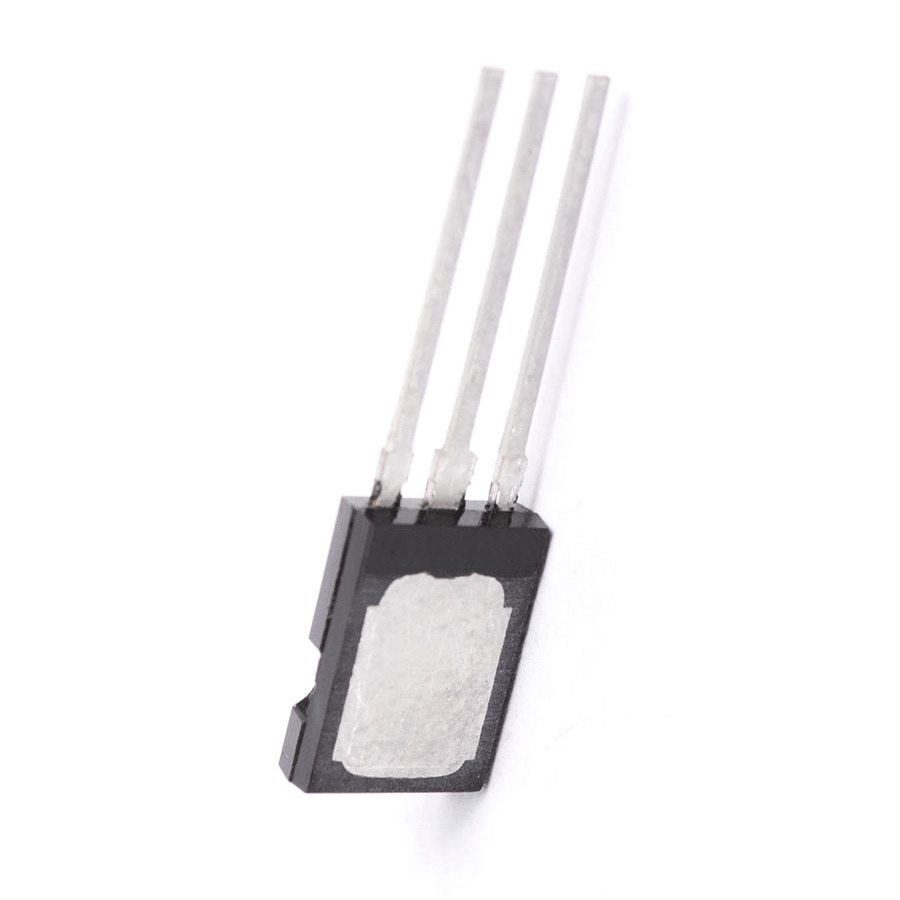

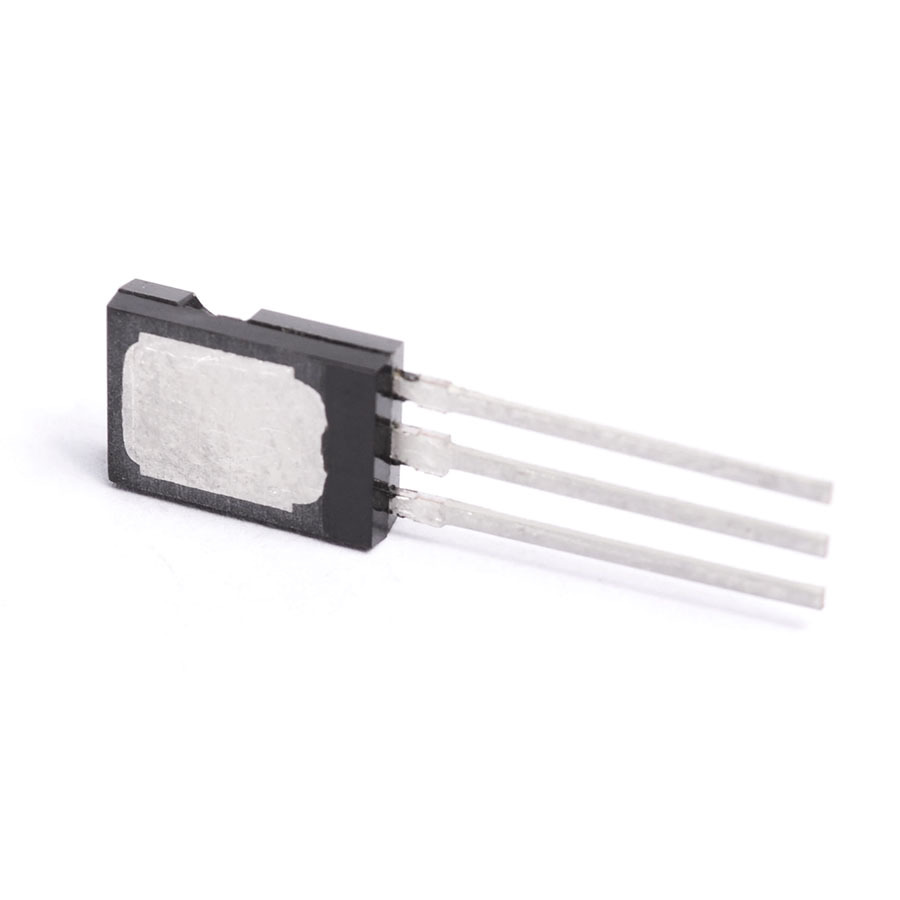

BUW14 Transistor - CASE: SOT82 MAKE: Philips
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Case SOT82
Manufacturer Philips
Vbr CEO 450
Max. PD (W) 20
t(f) Max. (S) 1.3u
Max. hFE 100
Min hFE 25
Ic Max. (A) 0.5
@Ic (test) (A) 300m
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
Trans. Freq (Hz) Min. 20M
Oper. Temp (°C) Max. 150
@VCE (V) 5.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 1000 V
Maximum Collector-Emitter Voltage |Vce| 450 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 20 MHz
Forward Current Transfer Ratio (hFE), MIN 25
SKU 561768
